Step line Chart in Flutter Cartesian Charts (SfCartesianChart)

24 May 20215 minutes to read

To render a step line chart, create an instance of StepLineSeries, and add it to the series collection property of SfCartesianChart. The following properties can be used to customize the appearance of spline segment:

  • color - changes the color of the line.
  • opacity - controls the transparency of the chart series.
  • width - changes the stroke width of the line.
  • dart
  • @override
        Widget build(BuildContext context) {
             return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: DateTimeAxis(),
                            series: <ChartSeries>[
                                // Renders step line chart
                                StepLineSeries<ChartData, DateTime>(
                                    dataSource: chartData,
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y
                                )
                            ]
                        )
                    )
                )
            );
        }

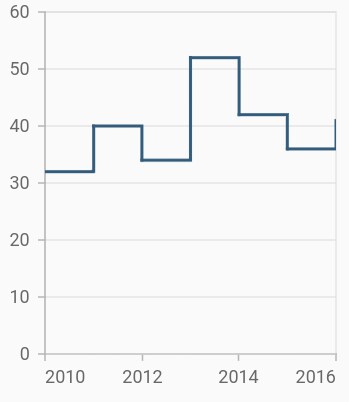

    Step line chart

    Dashed step line

    The dashArray property of the StepLineSeries is used to render step line series with dashes. Odd value is considered as rendering size and even value is considered as gap.

  • dart
  • @override
        Widget build(BuildContext context) {
             return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: DateTimeAxis(),
                            series: <ChartSeries>[
                                StepLineSeries<ChartData, DateTime>(
                                    dataSource: chartData,
                                    // Dashes for step line
                                    dashArray: <double>[5, 5],
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y
                                )
                            ]
                        )
                    )
                )
            );
        }

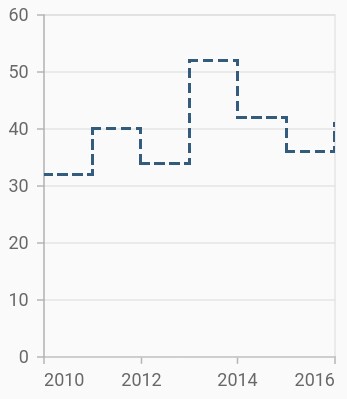

    Step line chart

    Also refer, color palette, color mapping, animation, gradient and empty points for customizing the step line series further.
