Bubble Chart in Flutter Cartesian Charts (SfCartesianChart)

24 May 202120 minutes to read

To render a bubble chart, create an instance of BubbleSeries, and add it to the series collection property of SfCartesianChart.

Bubble chart requires three fields (X, Y, and Size) to plot a point. Here, sizeValueMapper is used to map the size of each bubble segment from data source.

  • color - changes the color of the series.
  • opacity - controls the transparency of the chart series.
  • borderColor - changes the stroke width of the series.
  • borderWidth - changes the stroke color of the series.
  • dart
  • @override
        Widget build(BuildContext context) {
             final List<ChartData> chartData = [
                ChartData(2010, 35, 0.32),
                ChartData(2011, 38, 0.21),
                ChartData(2012, 34, 0.38),
                ChartData(2013, 52, 0.29),
                ChartData(2014, 40, 0.34)
            ];

            return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: DateTimeAxis(),
                            series: <ChartSeries>[
                                // Renders bubble chart
                                BubbleSeries<ChartData, DateTime>(
                                    dataSource: chartData,
                                    sizeValueMapper: (ChartData sales, _) => sales.size,
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y
                                )
                            ]
                        )
                    )
                )
            );
        }

        class ChartData {
            ChartData(this.x, this.y, this.size);
                final DateTime x;
                final double y;
                final double size;
        }

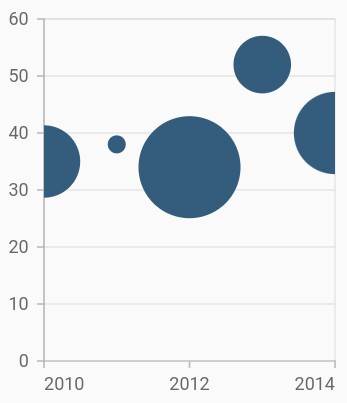

    Bubble chart

    Change the min and max radius of bubble

    The minimumRadius property is used to change the minimum size of the series and the maximumRadius property is used to change the maximum size of the series.

  • dart
  • @override
        Widget build(BuildContext context) {
            return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: DateTimeAxis(),
                            series: <ChartSeries>[
                                BubbleSeries<ChartData, DateTime>(
                                    dataSource: chartData,
                                    sizeValueMapper: (ChartData sales, _) => sales.size,
                                    minimumRadius:9, // Minimum radius of bubble
                                    maximumRadius: 15, // Maximum radius of bubble
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y
                                )
                            ]
                        )
                    )
                )
            );
        }

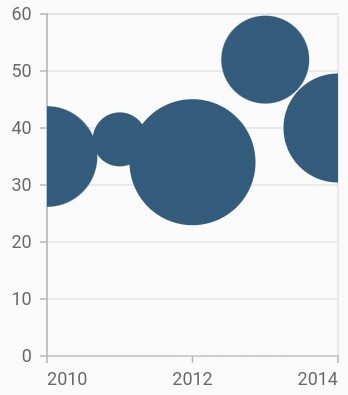

    Bubble size

    Also refer, color palette, color mapping, animation, gradient and empty points for customizing the bubble series further.

    Bubble with various color

    Using the pointColorMapper and sizeValueMapper properties in the Cartesian charts, the Bubble series with different colors and sizes can be rendered.

  • dart
  • @override
        Widget build(BuildContext context) {
            return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: CategoryAxis(),
                            series: <ChartSeries>[
                                BubbleSeries<ChartData, String>(
                                    dataSource: chartData,
                                    sizeValueMapper: (ChartData sales, _) => sales.size,
                                    pointColorMapper:(ChartData sales, _) => sales.pointColor,
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y
                                )
                            ]
                        )
                    )
                )
            );
        }

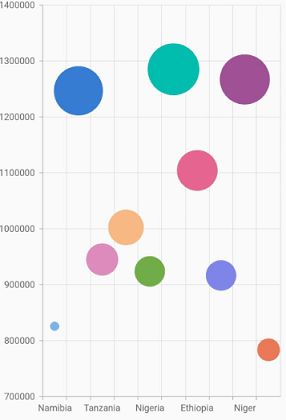

    Bubble various color

    Bubble with gradients

    The gradient property is used to define the gradient colors. The colors from this property is used for series.

  • dart
  • @override
        Widget build(BuildContext context) {
            final List<Color> color = <Color>[];
            color.add(Colors.blue[50]!);
            color.add(Colors.blue[200]!);
            color.add(Colors.blue);

            final List<double> stops = <double>[];
            stops.add(0.0);
            stops.add(0.5);
            stops.add(1.0);

            final LinearGradient gradientColors =
                LinearGradient(colors: color, stops: stops);

            return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            primaryXAxis: CategoryAxis(),
                            series: <CartesianSeries>[
                                BubbleSeries<ChartData, String>(
                                    dataSource: chartData,
                                    xValueMapper: (ChartData sales, _) => sales.x,
                                    yValueMapper: (ChartData sales, _) => sales.y,
                                     sizeValueMapper:(ChartData sales, _) => sales.size,
                                    // Applies gradient color
                                    gradient: gradientColors
                                )
                            ]
                        )
                    )
                )
            );
        }

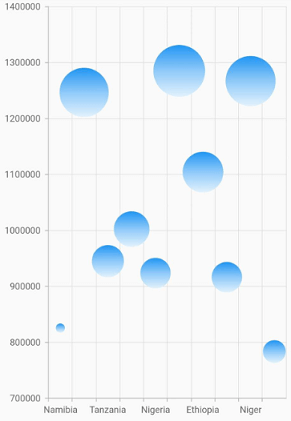

    Bubble gradients

    Bubble with multiple series

    Using the datasource property in the Map charts, multiple series can be rendered in a bubble chart.

  • dart
  • @override
        Widget build(BuildContext context) {
            return Scaffold(
                body: Center(
                    child: Container(
                        child: SfCartesianChart(
                            series: <ChartSeries>[
                                BubbleSeries<ChartData, num>(
                                      dataSource: northAmerica,
                                      xValueMapper: (ChartData sales, _) => sales.xValue,
                                      yValueMapper: (ChartData sales, _) => sales.y,
                                      sizeValueMapper: (ChartData sales, _) => sales.size),
                                BubbleSeries<ChartData, num>(
                                      dataSource: europe,
                                      xValueMapper: (ChartData sales, _) => sales.xValue,
                                      yValueMapper: (ChartData sales, _) => sales.y,
                                      sizeValueMapper:(ChartData sales, _) => sales.size),
                                BubbleSeries<ChartData, num>(
                                      dataSource: asia,
                                      xValueMapper: (ChartData sales, _) => sales.xValue,
                                      yValueMapper: (ChartData sales, _) => sales.y,
                                      sizeValueMapper: (ChartData sales, _) => sales.size),
                                BubbleSeries<ChartData, num>(
                                      dataSource: africa,
                                      xValueMapper: (ChartData sales, _) => sales.xValue,
                                      yValueMapper: (ChartData sales, _) => sales.y,
                                      sizeValueMapper: (ChartData sales, _) => sales.size),
                            ]
                        )
                    )
                )
            );
        }

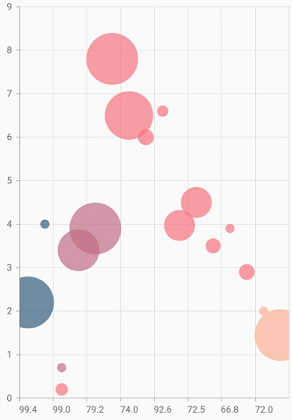

    Bubble nultiple series
