Technical indicators in Flutter Cartesian Charts (SfCartesianChart)

25 Jun 202424 minutes to read

The different types of technical indicators available in chart are follows:

• Accumulation distribution indicator - AD
• Average true range indicator - ATR
• Bollinger band indicator
• Exponential moving average indicator - EMA
• Moving average convergence divergence - MACD
• Momentum indicator
• Relative strength index indicator - RSI
• Simple moving average indicator - SMA
• Stochastic indicator
• Triangular moving average indicator - TMA
• Rate Of Change indicator - ROC
• Weighted Moving Average indicator - WMA

Adding Technical indicator into Chart

To render any indicator, add it to the TechnicalIndicators collection using the indicators in SfCartesianChart.The following properties can be used to customize the appearance:

• isVisible - To check the visibility of the indicator.
• period- Used to indicates the moving average period.
• signalLineColor- Used to defines the color for the respective indicator line.
• signalLineWidth - Used to change the signal line width.
• seriesName - Used to bind the data source of chart series to technical indicators, including x and y axis.
• xAxisName,yAxisName - Used to set the x and y axes
• animationDuration - To control the duration of animation.
• animationDelay - Used to specify the delay duration of the indicator animation. This takes a millisecond value as input. By default, the indicator will get animated for the specified duration. If animationDelay is specified, then the indicator will begin to animate after the specified duration.

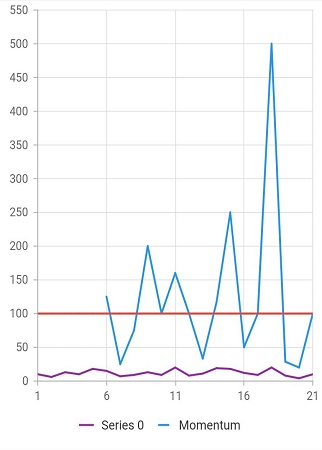

• dataSource - Directly bind the values such as xValueMapper,lowValueMapper,highValueMapper,openValueMapper,closeValueMapper
• isVisibleInLegend,legendItemText,legendIconType - Used to change the legend visibility,text and Icon type
• name - Used to define the label for corresponding indicators.
• dashArray - Used to render the indicators with dashes.

Note: If you giving series and indicator in the chart, you can add the same seriesName to the series and indicator, otherwise you can directly bind the dataSource to the indicators property.

Indicator Types

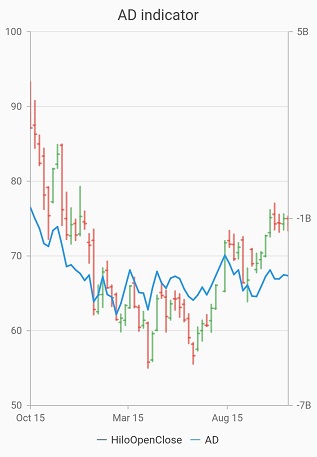

Accumulation distribution indicator (AD)

Accumulation distribution indicator is a volume-based indicator designed to measure the accumulative flow of money into and out of a security. It requires volumeValueMapper property additionally with the data source to calculate the signal line.

Refer the following example,

DART

@override
     Widget build(BuildContext context) {
       return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [AccumulationDistributionIndicator<ChartData, DateTime>(
                  seriesName: 'HiloOpenClose')],
            series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(
              dataSource: ChartData,
              xValueMapper: (ChartData data, _) => data.x,
              lowValueMapper: (ChartData data, _) => data.low,
              highValueMapper: (ChartData data, _) => data.high,
              openValueMapper: (ChartData data, _) => data.open,
              closeValueMapper: (ChartData data, _) => data.close,
              name: 'HiloOpenClose'),
              ]
            )
          )
        );
      }

      class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

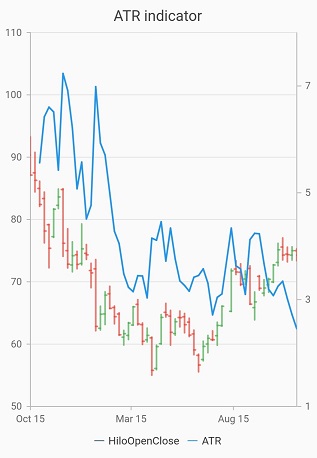

Average true range indicator(ATR)

ATR indicator is a technical analysis volatility indicator. This indicator does not indicate the price trend. simply the degree of price volatility. The average true range is an N-day smoothed moving average (SMMA) of the true range values.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
     return Scaffold(
        body: Center(
         child: SfCartesianChart(
          primaryXAxis: DateTimeAxis(),
          legend: Legend(isVisible: true),
          indicators:[
          AtrIndicator<dynamic, dynamic>(
            period: 3,
            seriesName: 'HiloOpenClose')],
    series: <CartesianSeries<ChartData, DateTime>>[
            HiloOpenCloseSeries<ChartData, DateTime>(
              dataSource: ChartData,
              xValueMapper: (ChartData data, _) => data.x,
              lowValueMapper: (ChartData data, _) => data.low,
              highValueMapper: (ChartData data, _) => data.high,
              openValueMapper: (ChartData data, _) => data.open,
              closeValueMapper: (ChartData data, _) => data.close,
              name: 'HiloOpenClose')
              ]
            )
          )
        );
      }
      class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

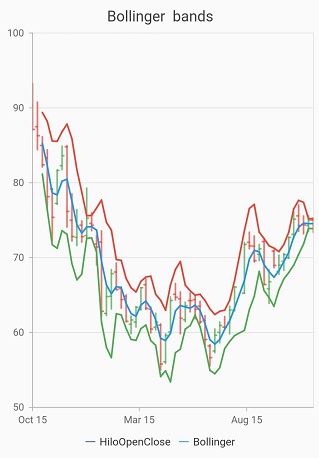

Bollinger band Indicator

This indicator also has upperLineColor and lowerLineColor properties that can be used to define the brushes for the indicator lines.

Also, we can specify standard deviation values for the BollingerBand indicator using standardDeviation property.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
     return Scaffold(
       body: Center(
         child: SfCartesianChart(
           primaryXAxis: DateTimeAxis(),
           legend: Legend(isVisible: true),
           indicators: [ BollingerBandIndicator<dynamic, dynamic>(
                  period: 3,
                  seriesName: 'HiloOpenClose')],
           series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(name: 'HiloOpenClose')
              ]
            )
          )
        );
      }

      class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

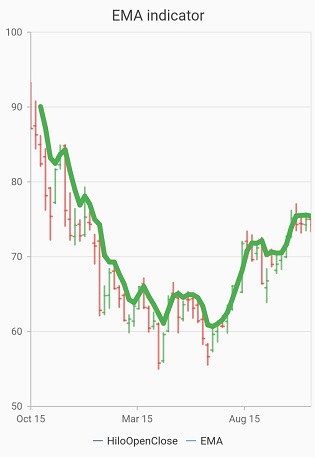

Exponential moving average indicator (EMA)

An EMA indicator is a simple, arithmetic moving average that is calculated by adding the closing price for the number of time periods and dividing the total value by the number of periods.

It also has a valueField property. Based on this property Indicator will render.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
        EmaIndicator<dynamic, dynamic>(
            seriesName: 'HiloOpenClose',
            valueField: 'high',)],
            series: <CartesianSeries<ChartData, DateTime>>[
        HiloOpenCloseSeries<ChartData, DateTime>(
            name: 'HiloOpenClose')
            ]
          )
        )
      );
    }

    class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

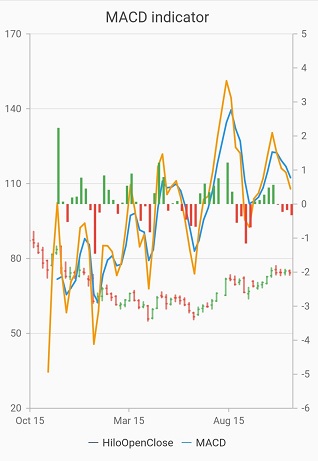

Moving average convergence divergence (MACD)

This is mostly using indicator having shortPeriod and longPeriod for defining the motion of the indicator.

Also you can draw MacdType.line, MacdType.histogram MACD or MacdType.both types using the macdType property,

The macdLineColor property is used to define the color for the MACD line and the histogramNegativeColor and histogramPositiveColor property is used to define the color for the MACD histogram.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
     return Scaffold(
       body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
          MacdIndicator<dynamic, dynamic>(
              longPeriod: 5,
              shortPeriod: 2,
              seriesName: 'HiloOpenClose')],
            series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(
            name: 'HiloOpenClose')
           ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

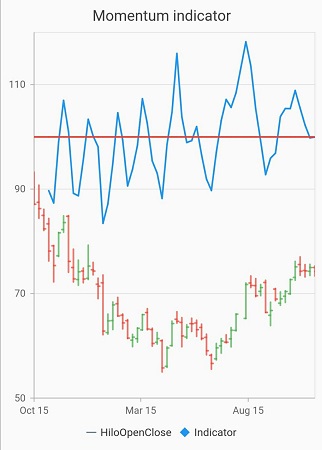

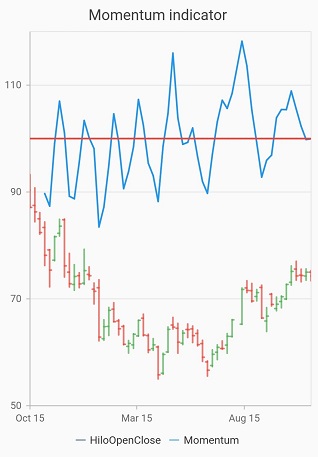

Momentum Indicator

This indicator also has a centerline. The centerLineColor and centerLineWidth properties are used to define center line.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
          MomentumIndicator<dynamic, dynamic>(
            period: 3,
            seriesName: 'HiloOpenClose',)],
           series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(name: 'HiloOpenClose')
            ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

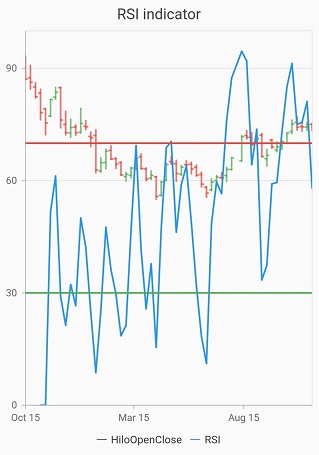

Relative strength index Indicator(RSI)

The RSI indicator has an additional two lines other than the signal line.They indicate the overBought and overSold region.

The upperLineColor property is used to define the color for the line that indicates overBought region, and the lowerLineColor property is used to define the color for the line that indicates overSold region.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
             indicators: [
          RsiIndicator<dynamic, dynamic>(
            period: 3,
            seriesName: 'HiloOpenClose',
            overbought: 70,
            oversold: 30)],
            series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(name: 'HiloOpenClose')
            ]
          )
        )
      );
     }

      class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

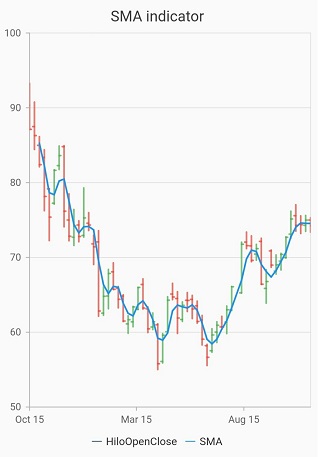

Simple moving average indicator(SMA)

The Simple moving average indicator is similar to Exponential moving average indicator and this can be defined using the following code examples.

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
          SmaIndicator<dynamic, dynamic>(
            seriesName: 'HiloOpenClose',
            valueField: 'close')],
           series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(
            name: 'HiloOpenClose')
            ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

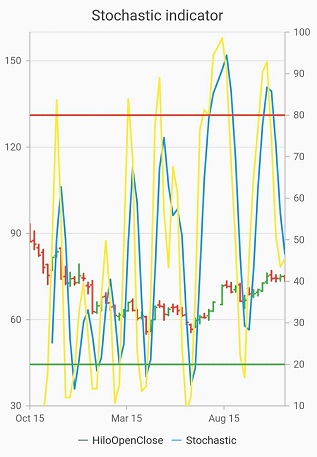

Stochastic indicator

This indicator is used to measure the range and momentum of price movements. It contains kPeriod and dPeriod property defining the ‘k’ percentage and ‘d’ percentage respectively.

In this indicator upperLineColor,lowerLineColor and periodLineColor property are used to define the color for the Stochastic indicator lines.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
          StochasticIndicator<dynamic, dynamic>(
              seriesName: 'HiloOpenClose',,
              kPeriod: 2,
              dPeriod: 3)],
             series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(name: 'HiloOpenClose')
            ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

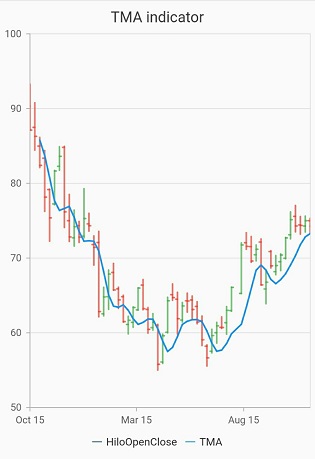

Triangular moving average indicator (TMA)

A TMA indicator is simply a double-smoothed simple moving average of data calculated over a period where the middle portion of the data has more weight.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
          TmaIndicator<ChartData, dynamic>(
              seriesName: 'HiloOpenClose',
              valueField: 'low')],
            series: <CartesianSeries<ChartData, DateTime>>[
          HiloOpenCloseSeries<ChartData, DateTime>(
            name: 'HiloOpenClose')
            ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

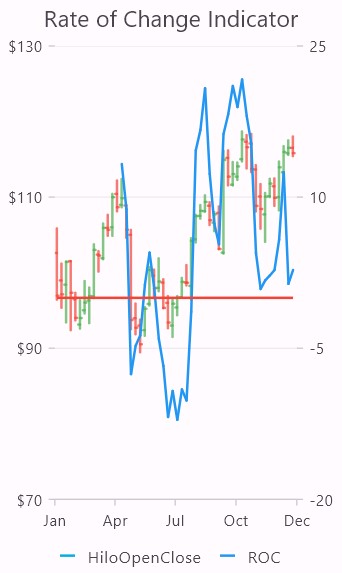

Rate of Change Indicator (ROC)

The Rate of Change Indicator is a momentum oscillator used in technical analysis to measure the percentage change in price over a specified period of time.

• Positive values indicate an upward momentum, suggesting price increases over the specified period.

• Negative values indicate a downward momentum, suggesting price decreases over the specified period.

This indicator also has a centerline. The centerLineColor and centerLineWidth properties are used to define center line.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
              RocIndicator<dynamic, dynamic>(
                period: 3,
                seriesName: 'HiloOpenClose',
              ),
            ],
            series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(
                xValueMapper: (ChartData data, _) => data.x,
                highValueMapper: (ChartData data, _) => data.high,
                lowValueMapper: (ChartData data, _) => data.low,
                openValueMapper: (ChartData data, _) => data.open,
                closeValueMapper: (ChartData data, _) => data.close,
                name: 'HiloOpenClose',
              ),
            ],
          ),
        ),
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);

        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

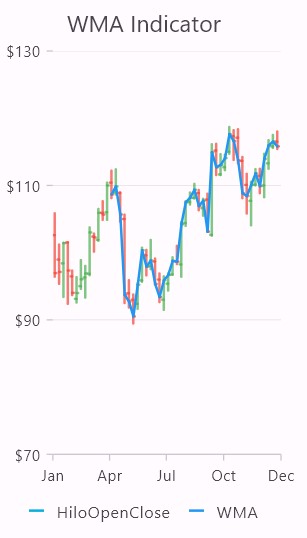

Weighted moving average indicator (WMA)

The Weighted moving average indicator is unlike a Simple moving average indicator, where each data point has an equal weight, the WMA assigns different weights to each data point.

This means that recent data points are given more weight in the calculation, making the WMA more responsive to recent price changes.

Refer the following example,

DART

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            legend: Legend(isVisible: true),
            indicators: [
              WmaIndicator<dynamic, dynamic>(
                seriesName: 'HiloOpenClose',
                valueField: 'close',
              ),
            ],
            series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(
                xValueMapper: (ChartData data, _) => data.x,
                highValueMapper: (ChartData data, _) => data.high,
                lowValueMapper: (ChartData data, _) => data.low,
                openValueMapper: (ChartData data, _) => data.open,
                closeValueMapper: (ChartData data, _) => data.close,
                name: 'HiloOpenClose',
              ),
            ],
          ),
        ),
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

Legend for technical indicators

Legend provides information about the series rendered in the chart. Legend for the indicator is rendered along with the series legend when the legend is set to be visible. Also when the name property is given to an indicator, the legend name is changed based on the indicator name.legendItemText can also be provided for changing the name of the legend. In default rendering the legendIconType will be a horizontal line.

The following code example can define the legend.

DART

@override
    Widget build(BuildContext context){
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            indicators: [
              MomentumIndicator<dynamic, dynamic>(
                  seriesName: 'HiloOpenClose',
                  legendIconType: LegendIconType.diamond,
                  legendItemText: 'Indicator')],
            series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(
                  name: 'HiloOpenClose')
                  ]
                )
              )
            );
          }

      class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

Also refer technical indicators event for customizing the tooltip further.

Tooltip for technical indicators

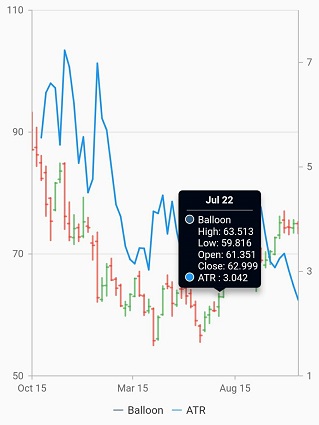

The chart will display the segment information through the tooltip. It is used to show information about the segment when you tap on the segment. The technical indicator tooltip has the same ActivationMode that has been given in the TooltipBehavior of the series.

DART

late TooltipBehavior _tooltipBehavior;

    @override
    void initState(){
      _tooltipBehavior = TooltipBehavior(enable: true, shared: true);
    super.initState();
    }

    @override
    Widget build(BuildContext context){
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            primaryXAxis: DateTimeAxis(),
            tooltipBehavior: _tooltipBehavior,
            indicators: [
              ATRIndicator<dynamic, dynamic>(
                  seriesName: 'HiloOpenClose',
                  )
                ],
            series: <CartesianSeries<ChartData, DateTime>>[
              HiloOpenCloseSeries<ChartData, DateTime>(
                  enableTooltip: true,
                  name: 'HiloOpenClose')
              ]
            )
          )
        );
      }

       class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final DateTime x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

Binding data source to indicators

In order to use TechnicalIndicators for line, area chart etc., you need to bind the data source of the chart to indicator’s xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper respectively.

Refer the following example below

DART

@override
    Widget build(BuildContext context){
      return Scaffold(
        body: Center(
          child: SfCartesianChart(
            indicators: <TechnicalIndicators>[
            MomentumIndicator<ChartData, num>(
                period: 5,
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                highValueMapper: (ChartData data, _) => data.high,
                lowValueMapper: (ChartData data, _) => data.low,
                openValueMapper: (ChartData data, _) => data.open,
                closeValueMapper: (ChartData data, _) => data.close,
              )
            ],
            series: <CartesianSeries<ChartData, num>>[
              LineSeries<ChartData, num>(
                  color: Colors.purple,
                  dataSource: chartData,
                  xValueMapper: (ChartData1 data, _) => data.x,
                  yValueMapper: (ChartData1 data, _) => data.y,
              )
            ]
          )
        )
      );
    }

     class ChartData {
        ChartData(this.x, this.low, this.high, this.open, this.close);
        final num x;
        final double? low;
        final double? high;
        final double? open;
        final double? close;
      }

      class ChartData1{
        ChartData1(this.x, this.y);
        final num x;
        final double y;
      }

See Also

• Refer this link for technical indicators callback.

• Bind data source to technical indicators in Flutter Cartesian chart.

Note: Each indicators has their own number of value mappers available,

• Accumulation distribution indicator (AD) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, closeValueMapper, volumeValueMapper).

• Average true range indicator (ATR) - can be rendered with four value mappers (xValueMapper, lowValueMapper, highValueMapper, closeValueMapper).

• Bollinger band indicator - can be rendered with two value mappers (xValueMapper and closeValueMapper).

• Exponential moving average indicator (EMA) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Moving average convergence divergence (MACD) - can be rendered with two value mappers (xValueMapper and closeValueMapper).

• Momentum indicator - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Relative strength index indicator (RSI) - can be rendered with four value mappers (xValueMapper, lowValueMapper, highValueMapper, closeValueMapper).

• Simple moving average indicator (SMA) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Stochastic indicator - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Triangular moving average indicator (TMA) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Rate Of Change indicator (ROC) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

• Weighted moving average indicator (WMA) - can be rendered with five value mappers (xValueMapper, lowValueMapper, highValueMapper, openValueMapper, closeValueMapper).

Note: chartData in the above code snippets is a class type list and holds the data for binding to the chart series. Refer Bind data source topic for more details.
