Swiping in Flutter DataGrid (SfDataGrid)

8 Jul 202624 minutes to read

The Flutter DataTable provides support to swipe a row by setting the SfDataGrid.allowSwiping property to true. Swipe actions will be displayed when swiping a row from left to right or right to left direction. The swipe dragging gesture can be restricted to a certain point on the row by setting the SfDataGrid.swipeMaxOffset property.

Swipe action builders

The Flutter DataTable enables you to load the desired widget behind the swiped row by using SfDataGrid.startSwipeActionsBuilder and SfDataGrid.endSwipeActionsBuilder properties. The swipe widget’s width that loads from the actions builder is arranged based on the SfDataGrid.swipeMaxOffset property and it takes height based on the current swiping row height.

The following code demonstrates how to implement swipe actions:

Employee Model and Helper Class

class Employee {
  Employee(this.id, this.name, this.designation, this.salary);

  final int id;
  final String name;
  final String designation;
  final int salary;
}

List<Employee> getEmployeeData() {
  return [
    Employee(10001, 'James', 'Project Lead', 20000),
    Employee(10002, 'Kathryn', 'Manager', 30000),
    Employee(10003, 'Lara', 'Developer', 15000),
    Employee(10004, 'Michael', 'Designer', 15000),
    Employee(10005, 'Martin', 'Developer', 15000),
    Employee(10006, 'Newberry', 'Developer', 15000),
    Employee(10007, 'Balnc', 'Developer', 15000),
    Employee(10008, 'Perry', 'Developer', 15000),
    Employee(10009, 'Gable', 'Developer', 15000),
    Employee(10010, 'Grimes', 'Developer', 15000),
  ];
};

DataSource Class

class EmployeeDataSource extends DataGridSource {
  EmployeeDataSource({required List<Employee> employees}) {
    dataGridRows = employees
        .map<DataGridRow>((dataGridRow) => DataGridRow(cells: [
              DataGridCell<int>(columnName: 'id', value: dataGridRow.id),
              DataGridCell<String>(columnName: 'name', value: dataGridRow.name),
              DataGridCell<String>(
                  columnName: 'designation', value: dataGridRow.designation),
              DataGridCell<int>(
                  columnName: 'salary', value: dataGridRow.salary),
            ]))
        .toList();
  }

  List<DataGridRow> dataGridRows = [];

  @override
  List<DataGridRow> get rows => dataGridRows;

  @override
  DataGridRowAdapter? buildRow(DataGridRow row) {
    return DataGridRowAdapter(
        cells: row.getCells().map<Widget>((dataGridCell) {
      return Container(
          alignment: (dataGridCell.columnName == 'id' ||
                  dataGridCell.columnName == 'salary')
              ? Alignment.centerRight
              : Alignment.centerLeft,
          padding: EdgeInsets.symmetric(horizontal: 16.0),
          child: Text(
            dataGridCell.value.toString(),
            overflow: TextOverflow.ellipsis,
          ));
    }).toList());
  }

  void updateDataGridSource() {
    notifyListeners();
  }
}

SfDataGrid with Swipe Actions

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_datagrid/datagrid.dart';

/// The home page of the application which hosts the datagrid.
class SfDataGridExample extends StatefulWidget {
  /// Creates the home page.
  const SfDataGridExample({super.key});

  @override
  State<SfDataGridExample> createState() => _SfDataGridExampleState();
}

class _SfDataGridExampleState extends State<SfDataGridExample> {
  late EmployeeDataSource _employeeDataSource;
  List<Employee> _employees = <Employee>[];

  @override
  void initState() {
    super.initState();
    _employees = getEmployeeData();
    _employeeDataSource = EmployeeDataSource(employees: _employees);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfDataGrid(
        allowSwiping: true,
        swipeMaxOffset: 100.0,
        source: _employeeDataSource,
        startSwipeActionsBuilder:
            (BuildContext context, DataGridRow row, int rowIndex) {
              return GestureDetector(
                onTap: () {
                  _employeeDataSource.dataGridRows.insert(
                    rowIndex,
                    DataGridRow(
                      cells: [
                        DataGridCell(value: 1011, columnName: 'id'),
                        DataGridCell(value: 'Tom Bass', columnName: 'name'),
                        DataGridCell(
                          value: 'Developer',
                          columnName: 'designation',
                        ),
                        DataGridCell(value: 20000, columnName: 'salary'),
                      ],
                    ),
                  );
                  _employeeDataSource.updateDataGridSource();
                },
                child: Container(
                  color: Colors.greenAccent,
                  child: Center(child: Icon(Icons.add)),
                ),
              );
            },
        endSwipeActionsBuilder:
            (BuildContext context, DataGridRow row, int rowIndex) {
              return GestureDetector(
                onTap: () {
                  _employeeDataSource.dataGridRows.removeAt(rowIndex);
                  _employeeDataSource.updateDataGridSource();
                },
                child: Container(
                  color: Colors.redAccent,
                  child: Center(child: Icon(Icons.delete)),
                ),
              );
            },
        columns: <GridColumn>[
          GridColumn(
            columnName: 'id',
            label: Container(
              padding: EdgeInsets.symmetric(horizontal: 16.0),
              alignment: Alignment.centerRight,
              child: Text('ID', overflow: TextOverflow.ellipsis),
            ),
          ),
          GridColumn(
            columnName: 'name',
            label: Container(
              padding: EdgeInsets.symmetric(horizontal: 16.0),
              alignment: Alignment.centerLeft,
              child: Text('Name', overflow: TextOverflow.ellipsis),
            ),
          ),
          GridColumn(
            columnName: 'designation',
            label: Container(
              padding: EdgeInsets.symmetric(horizontal: 16.0),
              alignment: Alignment.centerLeft,
              child: Text('Designation', overflow: TextOverflow.ellipsis),
            ),
          ),
          GridColumn(
            columnName: 'salary',
            label: Container(
              padding: EdgeInsets.symmetric(horizontal: 16.0),
              alignment: Alignment.centerRight,
              child: Text('Salary', overflow: TextOverflow.ellipsis),
            ),
          ),
        ],
      ),
    );
  }
}

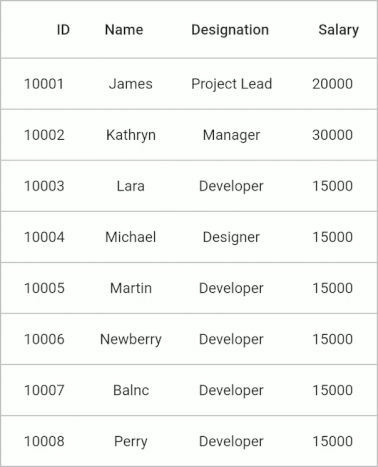

flutter Datagrid shows swiping a row in both directions

Swipe callbacks

The data grid provides the following callbacks to notify the swiping stages:

  • onSwipeStart: Called when the swipe offset changes from its initial value. The swipe action can be canceled by returning false.
  • onSwipeUpdate: Called while swiping a row is in progress. The swipe action can be canceled by returning false.
  • onSwipeEnd: Called when the swipe offset value reaches the SfDataGrid.maxSwipeOffset indicates that the swipe action is completed.

The swipe callbacks provide the following properties in their arguments:

  • RowIndex: Defines the swiping row index.
  • SwipeDirection: Defines the swipe direction of the swiped row (startToEnd for left-to-right or endToStart for right-to-left).
  • SwipeOffset: Defines the current swipe offset of the row being swiped.

By handling the swipe callbacks, you can use these property values from the arguments to perform any desired action, such as deleting the row, editing the data, and more.

Deleting rows on swipe

You can perform customized swipe functionality using the swiping callbacks. The following example demonstrates how to delete a row when swiping beyond the center point.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_datagrid/datagrid.dart';

/// The home page of the application which hosts the datagrid.
class SfDataGridSwipeDeleteExample extends StatefulWidget {
  /// Creates the home page.
  const SfDataGridSwipeDeleteExample({super.key});

  @override
  State<SfDataGridSwipeDeleteExample> createState() =>
      _SfDataGridSwipeDeleteExampleState();
}

class _SfDataGridSwipeDeleteExampleState extends State<SfDataGridSwipeDeleteExample> {
  List<Employee> _employees = <Employee>[];
  late EmployeeDataSource _employeeDataSource;
  bool isReachedCenter = false;

  @override
  void initState() {
    super.initState();
    _employees = getEmployeeData();
    _employeeDataSource = EmployeeDataSource(employees: _employees);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: LayoutBuilder(
        builder: (context, constraints) {
          return SfDataGrid(
            allowSwiping: true,
            columnWidthMode: ColumnWidthMode.fill,
            swipeMaxOffset: constraints.maxWidth,
            source: _employeeDataSource,
            startSwipeActionsBuilder:
                (BuildContext context, DataGridRow row, int rowIndex) {
                  return GestureDetector(
                    onTap: () {
                      _employeeDataSource.dataGridRows.removeAt(rowIndex);
                      _employeeDataSource.updateDataGridSource();
                    },
                    child: Container(
                      color: Colors.green,
                      padding: EdgeInsets.only(left: 30.0),
                      alignment: Alignment.centerLeft,
                      child: Text(
                        'Delete',
                        style: TextStyle(color: Colors.white),
                      ),
                    ),
                  );
                },
            onSwipeUpdate: (details) {
              setState(() {
                isReachedCenter =
                    (details.swipeOffset >= constraints.maxWidth / 2)
                    ? true
                    : false;
              });
              return true;
            },
            onSwipeEnd: (details) {
              if (isReachedCenter &&
                  _employeeDataSource.dataGridRows.isNotEmpty) {
                _employeeDataSource.dataGridRows.removeAt(details.rowIndex);
                _employeeDataSource.updateDataGridSource();
                isReachedCenter = false;
              }
            },
            columns: <GridColumn>[
              GridColumn(
                columnName: 'id',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text('ID', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'name',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text('Name', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'designation',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text('Designation', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'salary',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text('Salary', overflow: TextOverflow.ellipsis),
                ),
              ),
            ],
          );
        },
      ),
    );
  }
}

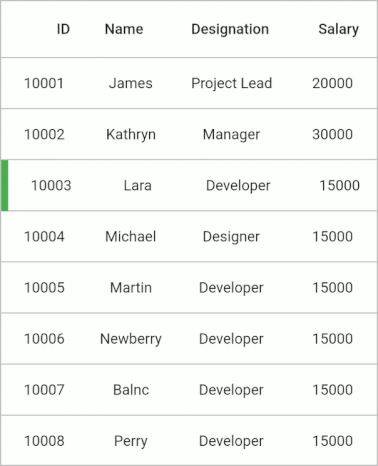

flutter Datagrid shows customized swiping delete functionality

Set different swipe offsets for start and end directions

The swipeMaxOffset property sets a fixed maximum offset for swiping. For directional control, use the onSwipeStart callback with the setSwipeMaxOffset method to set different offsets based on swipe direction.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_datagrid/datagrid.dart';

/// The home page of the application which hosts the datagrid.
class SfDataGridDifferentSwipeOffsetsExample extends StatefulWidget {
  /// Creates the home page.
  const SfDataGridDifferentSwipeOffsetsExample({super.key});

  @override
  State<SfDataGridDifferentSwipeOffsetsExample> createState() =>
      _SfDataGridDifferentSwipeOffsetsExampleState();
}

class _SfDataGridDifferentSwipeOffsetsExampleState extends State<SfDataGridDifferentSwipeOffsetsExample> {
  late EmployeeDataSource employeeDataSource;

  @override
  void initState() {
    super.initState();
    _employees = getEmployeeData();
    _employeeDataSource = EmployeeDataSource(employees: _employees);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: LayoutBuilder(
        builder: (context, constraints) {
          return SfDataGrid(
            allowSwiping: true,
            source: _employeeDataSource,
            onSwipeStart: (details) {
              if (details.swipeDirection ==
                  DataGridRowSwipeDirection.startToEnd) {
                details.setSwipeMaxOffset(200);
              } else if (details.swipeDirection ==
                  DataGridRowSwipeDirection.endToStart) {
                details.setSwipeMaxOffset(100);
              }
              return true;
            },
            startSwipeActionsBuilder:
                (BuildContext context, DataGridRow row, int rowIndex) {
                  return GestureDetector(
                    onTap: () {
                      _employeeDataSource.dataGridRows.insert(
                        rowIndex,
                        DataGridRow(
                          cells: [
                            DataGridCell(value: 1011, columnName: 'id'),
                            DataGridCell(value: 'Tom Bass', columnName: 'name'),
                            DataGridCell(
                              value: 'Developer',
                              columnName: 'designation',
                            ),
                            DataGridCell(value: 20000, columnName: 'salary'),
                          ],
                        ),
                      );
                      _employeeDataSource.updateDataGridSource();
                    },
                    child: Container(
                      color: Colors.greenAccent,
                      child: Center(child: Icon(Icons.add)),
                    ),
                  );
                },
            endSwipeActionsBuilder:
                (BuildContext context, DataGridRow row, int rowIndex) {
                  return GestureDetector(
                    onTap: () {
                      _employeeDataSource.dataGridRows.removeAt(rowIndex);
                      _employeeDataSource.updateDataGridSource();
                    },
                    child: Container(
                      color: Colors.redAccent,
                      child: Center(child: Icon(Icons.delete)),
                    ),
                  );
                },
            columns: <GridColumn>[
              GridColumn(
                columnName: 'id',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text('ID', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'name',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text('Name', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'designation',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text('Designation', overflow: TextOverflow.ellipsis),
                ),
              ),
              GridColumn(
                columnName: 'salary',
                label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text('Salary', overflow: TextOverflow.ellipsis),
                ),
              ),
            ],
          );
        },
      ),
    );
  }
}

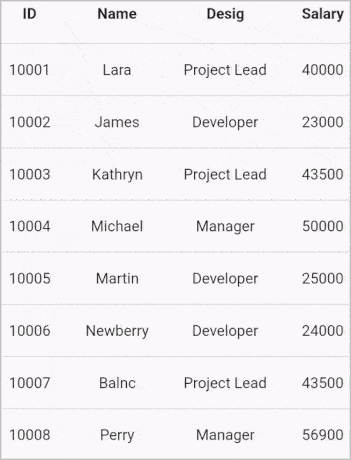

flutter Datagrid shows swiping a row in both directions with different swiping offset
