Footer in Flutter DataGrid (SfDataGrid)

7 Sep 202111 minutes to read

Creates an additional row that can be displayed below to the last row. Widgets can be displayed to the additional row by setting the SfDataGrid.footer property.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      footer: Container(
          color: Colors.grey[400],
          child: Center(
              child: Text(
            'FOOTER VIEW',
            style: TextStyle(fontWeight: FontWeight.bold),
          ))),
      columns: <GridColumn>[
        GridColumn(
            columnName: 'id',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'ID',
                ))),
        GridColumn(
            columnName: 'name',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Name'))),
        GridColumn(
            columnName: 'designation',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'Designation',
                  overflow: TextOverflow.ellipsis,
                ))),
        GridColumn(
            columnName: 'salary',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Salary'))),
      ]);
}

flutter datagrid shows footer

An additional row height can be personalized by using the SfDataGrid.footerHeight property. The default value of the additional row is 49.0.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      footerHeight: 60.0,
      footer: Container(
          color: Colors.grey[400],
          child: Center(
              child: Text(
            'FOOTER VIEW',
            style: TextStyle(fontWeight: FontWeight.bold),
          ))),
      columns: <GridColumn>[
        GridColumn(
            columnName: 'id',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'ID',
                ))),
        GridColumn(
            columnName: 'name',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Name'))),
        GridColumn(
            columnName: 'designation',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'Designation',
                  overflow: TextOverflow.ellipsis,
                ))),
        GridColumn(
            columnName: 'salary',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Salary'))),
      ]);
}

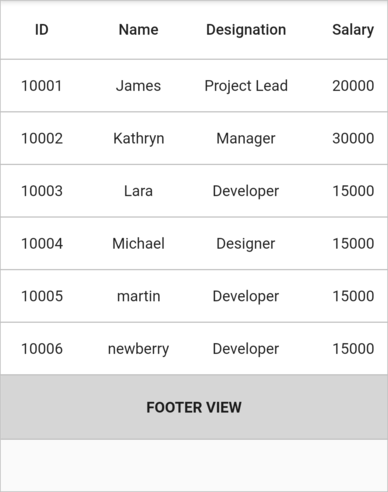

flutter datagrid shows footer height customization

By default, the additional row will be displayed below the last row. To show the additional row always on the view bottom, simply set the SfDataGrid.footerFrozenRowsCount property to 1.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      footerFrozenRowsCount: 1,
      footer: Container(
          color: Colors.grey[400],
          child: Center(
              child: Text(
            'FOOTER VIEW',
            style: TextStyle(fontWeight: FontWeight.bold),
          ))),
      columns: <GridColumn>[
        GridColumn(
            columnName: 'id',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'ID',
                ))),
        GridColumn(
            columnName: 'name',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Name'))),
        GridColumn(
            columnName: 'designation',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text(
                  'Designation',
                  overflow: TextOverflow.ellipsis,
                ))),
        GridColumn(
            columnName: 'salary',
            label: Container(
                padding: EdgeInsets.all(8.0),
                alignment: Alignment.center,
                child: Text('Salary'))),
      ]);
}

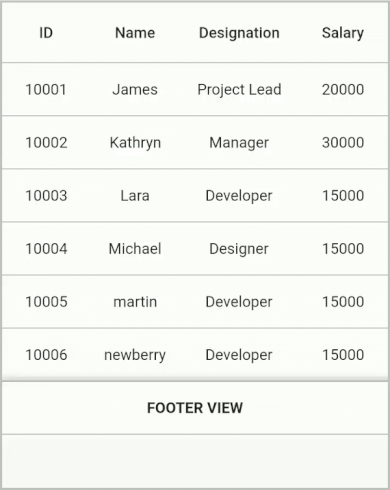

flutter datagrid shows footer always on bottom
