Row Height Customization in Flutter DataGrid (SfDataGrid)

25 Mar 202224 minutes to read

This section explains about options to customize the header row height and the row height of all the grid rows or particular row based on your requirements.

Set the height for specific row

The row height of particular row can be set by using the SfDataGrid.onQueryRowHeight callback.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      onQueryRowHeight: (details) {
        // Set the row height as 70.0 to the column header row.
        return details.rowIndex == 0 ? 70.0 : 49.0;
      },
      columns: <GridColumn>[
        GridColumn(
            columnName: 'ID',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerRight,
                child: Text(
                  'ID',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Contact Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Contact Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Company Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Company Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'City',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'City',
                  softWrap: true,
                )))
      ]);
}

flutter datagrid shows custom row height for the specific row

Fit the row height based on its content

The row height can be autofit based on its content in the SfDataGrid.onQueryRowHeight callback and using the RowHeightDetails.getIntrinsicRowHeight method.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      onQueryRowHeight: (details) {
        return details.getIntrinsicRowHeight(details.rowIndex);
      },
      columns: <GridColumn>[
        GridColumn(
            columnName: 'ID',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerRight,
                child: Text(
                  'ID',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Contact Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Contact Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Company Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Company Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'City',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'City',
                  softWrap: true,
                )))
      ]);
}

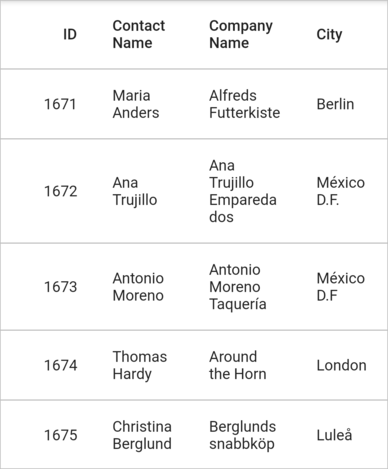

flutter datagrid shows autofit the row height based on content

The RowHeightDetails.getIntrinsicRowHeight method provides some properties to customize the autofit calculation,

  • excludeColumns – By default, the getIntrinsicRowHeight method calculates the row height based on all columns. To skip the specific columns from the row height calculation, add that column’s GridColumn.columnName to the excludeColumns collection.

  • canIncludeHiddenColumns – The hidden columns (GridColumn.visible is false) can also be considered for the row height calculation by setting the canIncludeHiddenColumns as true.

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      onQueryRowHeight: (details) {
          return details.getIntrinsicRowHeight(details.rowIndex,
              excludedColumns: ['City'], canIncludeHiddenColumns: true);
      },
      columns: <GridColumn>[
        GridColumn(
            columnName: 'ID',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerRight,
                child: Text(
                  'ID',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Contact Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Contact Name',
                  softWrap: true,
                ))),
        GridColumn(
            visible: false,
            columnName: 'Company Name',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Company Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'City',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'City',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Country',
            label: Container(
                padding: EdgeInsets.all(16.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Country',
                  softWrap: true,
                )))
      ]);
}

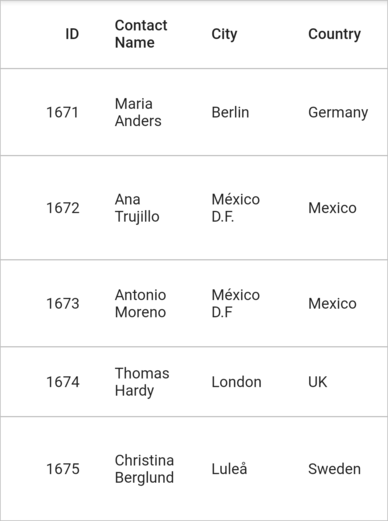

flutter datagrid shows customization of autofit row height calculation

Fit the row based on different TextStyle

By default, the cell height is calculated based on the default text style. To calculate the cell height based on different TextStyle, just override the computeHeaderCellHeight method for header and computeCellHeight method for cell and return the super method with the required TextStyle.

final CustomColumnSizer _customColumnSizer = CustomColumnSizer();

@override
Widget build(BuildContext context) {
  return SfDataGrid(
      source: _employeeDataSource,
      columnSizer: _customColumnSizer,
      onQueryRowHeight: (details) {
        return details.getIntrinsicRowHeight(details.rowIndex);
      },
      columns: <GridColumn>[
        GridColumn(
            columnName: 'ID',
            autoFitPadding: EdgeInsets.all(10.0),
            label: Container(
                padding: EdgeInsets.all(10.0),
                alignment: Alignment.centerRight,
                child: Text(
                  'ID',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'Contact Name',
            autoFitPadding: EdgeInsets.all(10.0),
            label: Container(
                padding: EdgeInsets.all(10.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Contact Name',
                  softWrap: true,
                  style: TextStyle(
                      fontWeight: FontWeight.bold, fontStyle: FontStyle.italic),
                ))),
        GridColumn(
            columnName: 'Company Name',
            visible: true,
            autoFitPadding: EdgeInsets.all(10.0),
            width: 100.0,
            label: Container(
                padding: EdgeInsets.all(10.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'Company Name',
                  softWrap: true,
                ))),
        GridColumn(
            columnName: 'City',
            autoFitPadding: EdgeInsets.all(10.0),
            label: Container(
                padding: EdgeInsets.all(10.0),
                alignment: Alignment.centerLeft,
                child: Text(
                  'City',
                  softWrap: true,
                  style: TextStyle(
                      fontWeight: FontWeight.bold, fontStyle: FontStyle.italic),
                )))
      ]);
}

class EmployeeDataSource extends DataGridSource {
  EmployeeDataSource({required List<Employee> employees}) {
    dataGridRows = employees.map<DataGridRow>((dataGridRow) {
      return DataGridRow(cells: [
        DataGridCell<int>(columnName: 'ID', value: dataGridRow.id),
        DataGridCell<String>(
            columnName: 'Contact Name', value: dataGridRow.contactName),
        DataGridCell<String>(
            columnName: 'Company Name', value: dataGridRow.companyName),
        DataGridCell<String>(columnName: 'City', value: dataGridRow.city),
      ]);
    }).toList();
  }

  List<DataGridRow> dataGridRows = [];

  @override
  List<DataGridRow> get rows => dataGridRows;

  @override
  DataGridRowAdapter buildRow(DataGridRow row) {
    return DataGridRowAdapter(
        cells: row.getCells().map<Widget>((dataCell) {
      return Container(
        padding: EdgeInsets.all(10.0),
        alignment: dataCell.columnName == 'ID'
            ? Alignment.centerRight
            : Alignment.centerLeft,
        child: Text(
          dataCell.value.toString(),
          style: (dataCell.columnName == 'City' ||
                  dataCell.columnName == 'Contact Name')
              ? TextStyle(
                  fontWeight: FontWeight.bold, fontStyle: FontStyle.italic)
              : null,
        ),
      );
    }).toList());
  }
}

class CustomColumnSizer extends ColumnSizer {
  @override
  double computeHeaderCellHeight(GridColumn column, TextStyle textStyle) {
    if (column.columnName == 'Contact Name' || column.columnName == 'City') {
      textStyle =
          TextStyle(fontWeight: FontWeight.bold, fontStyle: FontStyle.italic);
    }
    return super.computeHeaderCellHeight(column, textStyle);
  }

  @override
  double computeCellHeight(GridColumn column, DataGridRow row,
      Object? cellValue, TextStyle textStyle) {
    if (column.columnName == 'Contact Name' || column.columnName == 'City') {
      textStyle =
          TextStyle(fontWeight: FontWeight.bold, fontStyle: FontStyle.italic);
    }
    return super.computeCellHeight(column, row, cellValue, textStyle);
  }
}

NOTE
Download demo application from GitHub.

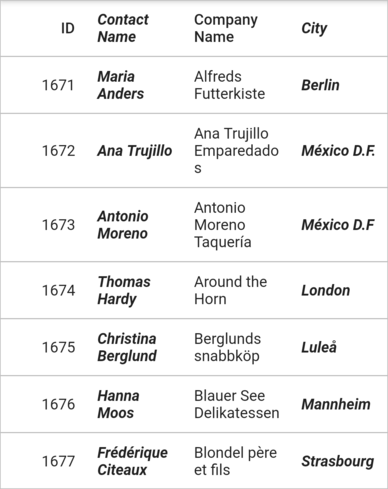

flutter datagrid shows autofit the row height based on different text style

Fit the row based on formatted value

By default, the cell height is calculated based on the DataGridCell.value property. To autofit the cell height based on the displayed formatted value (i.e, DateFormat and NumberFormat), simply override the computeCellHeight method and return the super method with the required cellValue.

To use intl, add the package as dependency to pubspec.yaml file.

  • DART
  • dependencies:
      intl: ^0.17.0

    Import the intl library, to use the date and number format.

    import 'package:intl/intl.dart';
    import 'package:syncfusion_flutter_datagrid/datagrid.dart';

    late EmployeeDataSource employeeDataSource;
    final CustomColumnSizer _customColumnSizer = CustomColumnSizer();

    @override
    Widget build(BuildContext context) {
      return MaterialApp(
          home: Scaffold(
              appBar: AppBar(
                title: const Text('Syncfusion Flutter DataGrid'),
              ),
              body: SfDataGrid(
                  source: employeeDataSource,
                  columnSizer: _customColumnSizer,
                  onQueryRowHeight: (RowHeightDetails details) {
                    return details.getIntrinsicRowHeight(details.rowIndex);
                  },
                  columns: <GridColumn>[
                    GridColumn(
                        columnName: 'ID',
                        autoFitPadding: EdgeInsets.all(10.0),
                        label: Container(
                            padding: EdgeInsets.all(10.0),
                            alignment: Alignment.centerRight,
                            child: Text(
                              'ID',
                              softWrap: true,
                            ))),
                    GridColumn(
                        columnName: 'Contact Name',
                        autoFitPadding: EdgeInsets.all(10.0),
                        label: Container(
                            padding: EdgeInsets.all(10.0),
                            alignment: Alignment.centerLeft,
                            child: Text(
                              'Contact Name',
                              softWrap: true,
                            ))),
                    GridColumn(
                        columnName: 'Date of Birth',
                        visible: true,
                        autoFitPadding: EdgeInsets.all(10.0),
                        width: 100.0,
                        label: Container(
                            padding: EdgeInsets.all(10.0),
                            alignment: Alignment.centerLeft,
                            child: Text(
                              'Date of Birth',
                              softWrap: true,
                            ))),
                    GridColumn(
                        columnName: 'Salary',
                        autoFitPadding: EdgeInsets.all(10.0),
                        label: Container(
                            padding: EdgeInsets.all(10.0),
                            alignment: Alignment.centerLeft,
                            child: Text(
                              'Salary',
                              softWrap: true,
                            )))
                  ])));
    }

    class EmployeeDataSource extends DataGridSource {
      EmployeeDataSource({required List<Employee> employees}) {
        dataGridRows = employees.map<DataGridRow>((dataGridRow) {
          return DataGridRow(cells: [
            DataGridCell<int>(columnName: 'ID', value: dataGridRow.id),
            DataGridCell<String>(
                columnName: 'Contact Name', value: dataGridRow.contactName),
            DataGridCell<DateTime>(
                columnName: 'Date of Birth', value: dataGridRow.dob),
            DataGridCell<int>(columnName: 'Salary', value: dataGridRow.salary),
          ]);
        }).toList();
      }

      List<DataGridRow> dataGridRows = [];

      @override
      List<DataGridRow> get rows => dataGridRows;

      @override
      DataGridRowAdapter buildRow(DataGridRow row) {
        return DataGridRowAdapter(
            cells: row.getCells().map<Widget>((dataCell) {
          late String cellValue;
          if (dataCell.columnName == 'Date of Birth') {
            cellValue = DateFormat.yMMMMd('en_US').format(dataCell.value);
          } else if (dataCell.columnName == 'Salary') {
            cellValue = NumberFormat.simpleCurrency(decimalDigits: 0)
                .format(dataCell.value);
          } else {
            cellValue = dataCell.value.toString();
          }

          return Container(
            padding: EdgeInsets.all(10.0),
            alignment: dataCell.columnName == 'ID'
                ? Alignment.centerRight
                : Alignment.centerLeft,
            child: Text(cellValue),
          );
        }).toList());
      }
    }

    class CustomColumnSizer extends ColumnSizer {
      @override
      double computeCellHeight(GridColumn column, DataGridRow row,
          Object? cellValue, TextStyle textStyle) {
        if (column.columnName == 'Date of Birth') {
          cellValue = DateFormat.yMMMMd('en_US').format(cellValue as DateTime);
        } else if (column.columnName == 'Salary') {
          cellValue =
              NumberFormat.simpleCurrency(decimalDigits: 0).format(cellValue);
        }

        return super.computeCellHeight(column, row, cellValue, textStyle);
      }
    }

    NOTE
    Download demo application from GitHub.

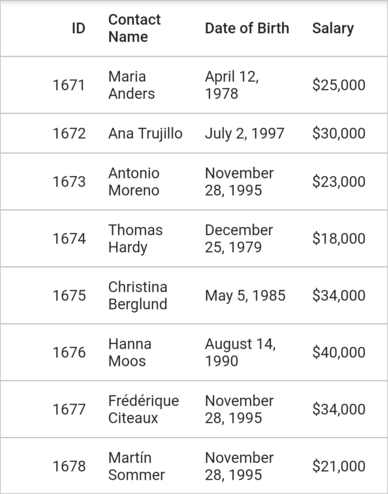

    flutter datagrid shows autofit the row height based on formatted cell value

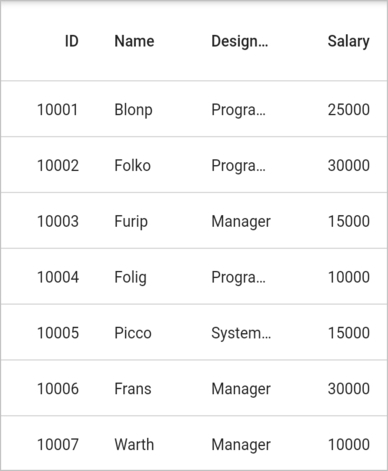

    Set height for header row

    SfDataGrid allows you to customize the height of the header row by using the headerRowHeight property.

    @override
    Widget build(BuildContext context) {
      return Scaffold(
          body: SfDataGrid(
        source: _employeeDataSource,
        headerRowHeight: 70,
        columns: <GridColumn>[
          GridColumn(
              columnName: 'id',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text(
                    'ID',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'name',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text(
                    'Name',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'designation',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text(
                    'Designation',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'salary',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text(
                    'Salary',
                    overflow: TextOverflow.ellipsis,
                  ))),
        ],
      ));
    }

    flutter datagrid shows header row with custom height

    Set height for rows except header row

    You can customize the height of the grid rows in SfDataGrid by using the rowHeight property.

    @override
    Widget build(BuildContext context) {
      return Scaffold(
          body: SfDataGrid(
        source: _employeeDataSource,
        rowHeight: 60,
        columns: <GridColumn>[
          GridColumn(
              columnName: 'id',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text(
                    'ID',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'name',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text(
                    'Name',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'designation',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerLeft,
                  child: Text(
                    'Designation',
                    overflow: TextOverflow.ellipsis,
                  ))),
          GridColumn(
              columnName: 'salary',
              label: Container(
                  padding: EdgeInsets.symmetric(horizontal: 16.0),
                  alignment: Alignment.centerRight,
                  child: Text(
                    'Salary',
                    overflow: TextOverflow.ellipsis,
                  ))),
        ],
      ));
    }

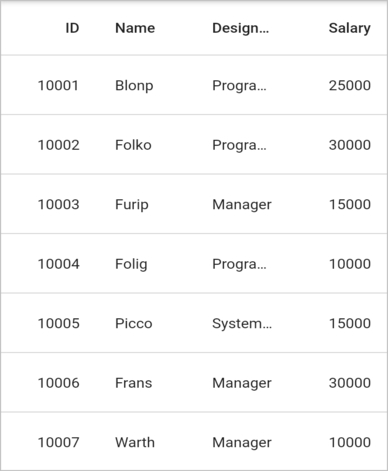

    flutter datagrid shows rows except header row with custom height

    Refresh row height for specific row

    The SfDataGrid allows you to update or refresh specific row and it’s height when
    an underlying data is updated.

    You can refresh a specific row and its height by using the DataGridController.refreshRow method. This method has following two arguments,

    • rowIndex- Specify the required row index which is required to refresh. If you specify this, the data alone will be refreshed for a row.

    • recalculateRowHeight - Decides whether a height of a row should be refreshed along with the data.

    If you call refreshRow method, onQueryRowHeight callback will called for that specific row. So, auto-calculation of height can be recalculated for that row.

    In the below example, row data is updated when the refreshRow is called in onPressed callback of the TextButton.

    List<Employee> _employees = [];

    late EmployeeDataSource _employeeDataSource;
    final DataGridController _controller = DataGridController();
    List<Employee> _employees = <Employee>[];

    @override
    void initState() {
      super.initState();
      _employees = getEmployeeData();
      _employeeDataSource = EmployeeDataSource(employees: _employees);
    }

    @override
    Widget build(BuildContext context) {
      return Scaffold(
          appBar: AppBar(
            title: const Text('Syncfusion Flutter DataGrid'),
          ),
          body: Column(children: [
            TextButton(
                child: const Text('Update cell value'),
                onPressed: () {
                  _employees[0].id = 1010;
                  _employees[0].name = 'Maria Anders';
                  _employees[0].designation = 'Sales Representative';
                  _employees[0].salary = 25000;
                  _controller.refreshRow(0);
                  _employeeDataSource.buildDataGridSource(_employees);
                  _employeeDataSource.updateDataGridSource();
                }),
            Expanded(
                child: SfDataGrid(
                    source: _employeeDataSource,
                    controller: _controller,
                    columnSizer: _columnSizer,
                    columnWidthMode: ColumnWidthMode.auto,
                    onQueryRowHeight: (RowHeightDetails details) {
                      if (details.rowIndex == 0) {
                        return 100.0;
                      }

                      return 50.0;
                    },
                    columns: <GridColumn>[
                  GridColumn(
                      columnName: 'id',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerRight,
                          child: Text(
                            'ID',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'name',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerLeft,
                          child: Text(
                            'Name',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'designation',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerLeft,
                          child: Text(
                            'Designation',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'salary',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerRight,
                          child: Text(
                            'Salary',
                            overflow: TextOverflow.ellipsis,
                          ))),
                ]))
          ]));
    }

    class EmployeeDataSource extends DataGridSource {
      EmployeeDataSource({required List<Employee> employees}) {
        buildDataGridSource(employees);
      }
      void buildDataGridSource(List<Employee> employees) {
        dataGridRows = employees
            .map<DataGridRow>((dataGridRow) => DataGridRow(cells: [
                  DataGridCell<int>(columnName: 'id', value: dataGridRow.id),
                  DataGridCell<String>(columnName: 'name', value: dataGridRow.name),
                  DataGridCell<String>(
                      columnName: 'designation', value: dataGridRow.designation),
                  DataGridCell<int>(
                      columnName: 'salary', value: dataGridRow.salary),
                ]))
            .toList();
      }

      List<DataGridRow> dataGridRows = [];

      @override
      List<DataGridRow> get rows => dataGridRows;

      @override
      DataGridRowAdapter? buildRow(DataGridRow row) {
        return DataGridRowAdapter(
            cells: row.getCells().map<Widget>((dataGridCell) {
          return Container(
              alignment: (dataGridCell.columnName == 'id' ||
                      dataGridCell.columnName == 'salary')
                  ? Alignment.centerRight
                  : Alignment.centerLeft,
              padding: EdgeInsets.symmetric(horizontal: 16.0),
              child: Text(
                dataGridCell.value.toString(),
                overflow: TextOverflow.ellipsis,
              ));
        }).toList());
      }

      void updateDataGridSource() {
        notifyListeners();
      }
    }

    In the below example, row data is refreshed along with its row height when the refreshRow is called in onPressed callback of the TextButton.

    List<Employee> _employees = [];

    late EmployeeDataSource _employeeDataSource;
    final DataGridController _controller = DataGridController();
    List<Employee> _employees = <Employee>[];

    @override
    void initState() {
      super.initState();
      _employees = getEmployeeData();
      _employeeDataSource = EmployeeDataSource(employees: _employees);
    }

    @override
    Widget build(BuildContext context) {
      return Scaffold(
          appBar: AppBar(
            title: const Text('Syncfusion Flutter DataGrid'),
          ),
          body: Column(children: [
            TextButton(
                child: const Text('Update cell value'),
                onPressed: () {
                  _employees[0].id = 1010;
                  _employees[0].name = 'Maria Anders';
                  _employees[0].designation = 'Sales Representative';
                  _employees[0].salary = 25000;
                  _controller.refreshRow(0, recalculateRowHeight: true);
                  _employeeDataSource.buildDataGridSource(_employees);
                  _employeeDataSource.updateDataGridSource();
                }),
            Expanded(
                child: SfDataGrid(
                    source: _employeeDataSource,
                    controller: _controller,
                    columnSizer: _columnSizer,
                    columnWidthMode: ColumnWidthMode.auto,
                    onQueryRowHeight: (RowHeightDetails details) {
                      if (details.rowIndex == 0) {
                        return 100.0;
                      }

                      return 50.0;
                    },
                    columns: <GridColumn>[
                  GridColumn(
                      columnName: 'id',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerRight,
                          child: Text(
                            'ID',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'name',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerLeft,
                          child: Text(
                            'Name',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'designation',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerLeft,
                          child: Text(
                            'Designation',
                            overflow: TextOverflow.ellipsis,
                          ))),
                  GridColumn(
                      columnName: 'salary',
                      label: Container(
                          padding: EdgeInsets.symmetric(horizontal: 16.0),
                          alignment: Alignment.centerRight,
                          child: Text(
                            'Salary',
                            overflow: TextOverflow.ellipsis,
                          ))),
                ]))
          ]));
    }
