Data Validation in Windows Forms Grid Control

31 Jan 20228 minutes to read

GridControl provides support to validate the cell while editing. When an incorrect data is entered in the cell, it will display an error icon and an error message. It is also possible to display error icon in row header.

Built-in validation

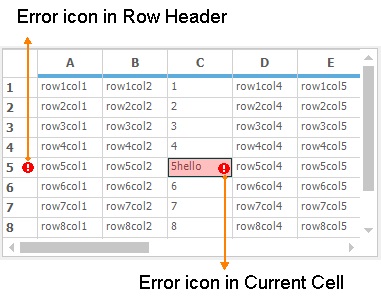

The GridControl has the built-in data validation. It will shows the error icon on the current cell to notify the error is occurred. The visibility of the error icon can be changed by setting the setting ShowErrorIcon and ShowRowHeaderErrorIcon property.

//To display the error icon in the current cell.
this.gridControl1.CurrentCell.ShowErrorIcon = true;

//To display the Error icon on the RowHeader.
this.gridControl1.ShowRowHeaderErroricon = true;
'To display the error icon in the current cell.
Me.gridControl1.CurrentCell.ShowErrorIcon = True

'To display the Error icon on the RowHeader.
Me.gridControl1.ShowRowHeaderErroricon = True

NOTE

The default value for the ShowErrorIcon property value is true and the ShowRowHeaderErrorIcon property value is false.

DataValidation_img1

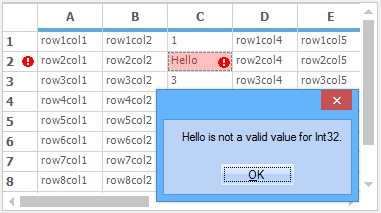

GridControl validates the cell based on the CellValueType property and shows the error message. If CellValueType is int type and user enters string value, then the grid will automatically throw the error message like “Value(x) is not a valid value for Int32” in a message box. Whereas, x denotes the entered cell value.

By default the error provider will show a popup while the exception is occurred. When you want to disable this popup, set the ShowErrorMessageBox property to false.

//Disable the Error Message Box.
this.gridControl1.CurrentCell.ShowErrorMessageBox = false;
'Disable the Error Message Box.
Me.gridControl1.CurrentCell.ShowErrorMessageBox = False

DataValidation_img2

Error Tips Support

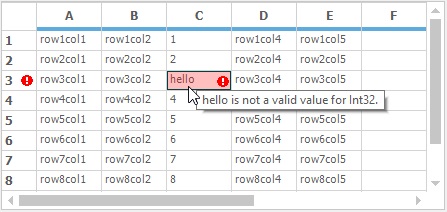

The Error provider will also show the error message in the comment tips while moving the mouse over the error cell.

DataValidation_img3

NOTE

While the error is occurred, the current cell will not leave from the edit mode. So that the grid will not allow to perform other actions like moving the current cells, clicking, etc. The Esc key is used to get out from the exception with the old value of the cell.

Programmatic validation

While setting the cell value through the code, it will not trigger the CurrentCellStartEditing and CurrentCellValidating events. Therefore the validation will not work at this type of editing. To validate this type of editing, call CurrentCell.Validate method after editing the value of the current cell. It will raise the CurrentCellValidating event to manually validate the cell value.

this.gridControl1.CurrentCellValidating += new CancelEventHandler(gridControl1_CurrentCellValidating);

void gridControl1_CurrentCellValidating(object sender, CancelEventArgs e)
{
    if (this.gridControl1.CurrentCell.ColIndex == 3)
    {
       int val;
       GridTextBoxCellRenderer renderer = this.gridControl1.CurrentCell.Renderer as GridTextBoxCellRenderer;

       if (renderer != null && !int.TryParse(renderer.ControlText, out val))
       {
          //Display custom error provider.
          this.gridControl1.CurrentCell.SetError("Please enter the valid input");
       }
    }
}

// Set the CellValue for the particular cell in a button click event.
private void button1_Click(object sender, EventArgs e)
{
    this.gridControl1[3, 3].CellValue = "Hello";
    this.gridControl1.CurrentCell.MoveTo(3, 3);
    this.gridControl1.CurrentCell.Validate();
}
AddHandler gridControl1.CurrentCellValidating, AddressOf gridControl1_CurrentCellValidating

Private Sub gridControl1_CurrentCellValidating(ByVal sender As Object, ByVal e As CancelEventArgs)

If Me.gridControl1.CurrentCell.ColIndex = 3 Then
Dim val As Integer
Dim renderer As GridTextBoxCellRenderer = TryCast(Me.gridControl1.CurrentCell.Renderer, GridTextBoxCellRenderer)

If renderer IsNot Nothing AndAlso (Not Integer.TryParse(renderer.ControlText, val)) Then

'Display custom error provider
Me.gridControl1.CurrentCell.SetError("Please enter the valid input")
End If
End If
End Sub

' Set the CellValue for the particular cell in a button click event.
Private Sub button1_Click(ByVal sender As Object, ByVal e As EventArgs)

Me.gridControl1(3, 3).CellValue = "Hello"
Me.gridControl1.CurrentCell.MoveTo(3, 3)
Me.gridControl1.CurrentCell.Validate()
End Sub

Customizing error text

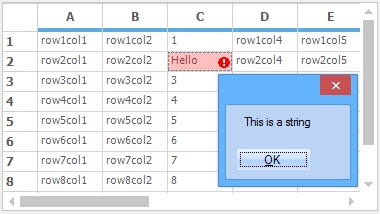

If you want to change the text displayed in the Error message box, it can be done by setting the ValidationErrorText property.

//Set the text displayed in the Error Message Box.
this.gridControl1.CurrentCell.ValidationErrorText = "This is a String";
'Set the text displayed in the Error Message Box.
Me.gridControl1.CurrentCell.ValidationErrorText = "This is a String"

DataValidation_img4

Custom validation

The user can validate the data based on their required conditions using some customizations. It’s also possible to handle the display of error message box using the customizations.

Validating the current cell data using event

The error provider can be customized by calling the SetError event.

//Invoke this event for validate the conditions.
this.gridControl1.CurrentCellValidating += gridControl1_CurrentCellValidating;

void gridControl1_CurrentCellValidating(object sender, CancelEventArgs e)
{
    if (this.gridControl1.CurrentCell.ColIndex == 3)
    {
        int val;
        GridTextBoxCellRenderer renderer = this.gridControl1.CurrentCell.Renderer as GridTextBoxCellRenderer;

        if (renderer != null && int.TryParse(renderer.ControlText,out val) && val> 20)
        {

        //Display custom error provider.
        this.gridControl1.CurrentCell.SetError("Please enter the valid input");
        }
    }
}
'Invoke this event for validate the conditions.
Private Me.gridControl1.CurrentCellValidating += AddressOf gridControl1_CurrentCellValidating

Private Sub gridControl1_CurrentCellValidating(ByVal sender As Object, ByVal e As CancelEventArgs)

If Me.gridControl1.CurrentCell.ColIndex = 3 Then
Dim val As Integer
Dim renderer As GridTextBoxCellRenderer = TryCast(Me.gridControl1.CurrentCell.Renderer, GridTextBoxCellRenderer)

If renderer IsNot Nothing AndAlso Integer.TryParse(renderer.ControlText,val) AndAlso val> 20 Then

'Display custom error provider
Me.gridControl1.CurrentCell.SetError("Please enter the valid input")
End If
End If
End Sub

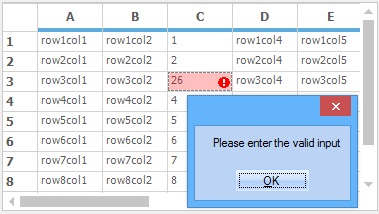

When the validation is failed at the CurrentCellValidating event, the custom error provider will pop up the error message as of follows,

DataValidation_img5

Handling error message using events

The CurrentCellErrorMessage event will triggered while the error is occurred. It can be used to get the error message by using the e.Text and also used to restrict display of error message box by handling this event like e.Cancel value as true.

this.gridControl1.CurrentCellErrorMessage += gridControl1_CurrentCellErrorMessage;

void gridControl1_CurrentCellErrorMessage(object sender, GridCurrentCellErrorMessageEventArgs e)
{

// Does not show the Message box for error provider.
e.Cancel = true;
}
Private Me.gridControl1.CurrentCellErrorMessage += AddressOf gridControl1_CurrentCellErrorMessage

Private Sub gridControl1_CurrentCellErrorMessage(ByVal sender As Object, ByVal e As GridCurrentCellErrorMessageEventArgs)

'Does not show the Message box for error provider.
e.Cancel = True

End Sub
