Paging in Windows Forms GridGrouping control

21 Jan 20255 minutes to read

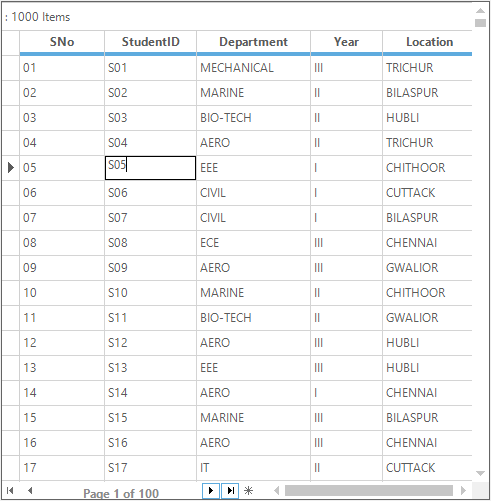

Paging is the process of splitting up of large records into a separate segments to view and manipulate the data. It is used to improve the performance of the grid. The paging support can be enabled to the GridGroupingControl by using the Pager.Wire method.

//Creating the object for Pager
Pager pager = new Pager();

//Wiring the pager to the Grid
pager.Wire(this.gridGroupingControl1, dataTable); // dataTable is the DataTable object
'Creating the object for Pager
Dim pager As New Pager()

' wiring the pager to the Grid
pager.Wire(Me.gridGroupingControl1, dataTable) ' dataTable is the DataTable object

Paging_img1

NOTE

The paging is not supported for the nested grids.

Page Size

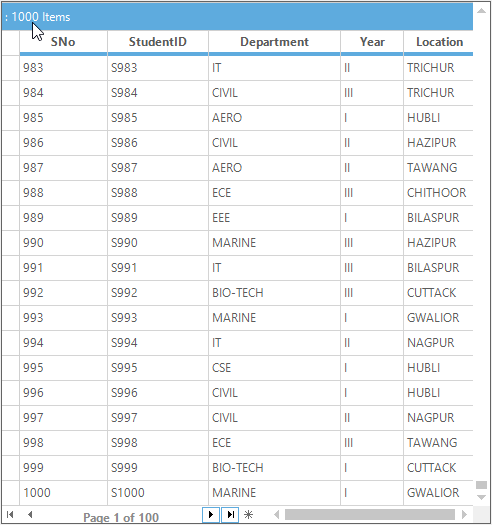

The size of the page that is number of records needs to be visible in each page can be set by using the PageSize property.

//Creating the object for Pager
Pager pager = new Pager();

//Set the size  1000 records in each page
pager.PageSize = 1000;

//Add the paging support to the GridGroupingControl
pager.Wire(this.gridGroupingControl1, dataTable); // dataTable is the DataTable object
'Creating the object for Pager
Dim pager As New Pager()

' Set the size  1000 records in each page
pager.PageSize = 1000

'Add the paging support to the GridGroupingControl
pager.Wire(Me.gridGroupingControl1, dataTable) ' dataTable is the DataTable object

Paging_img2

Page Navigation

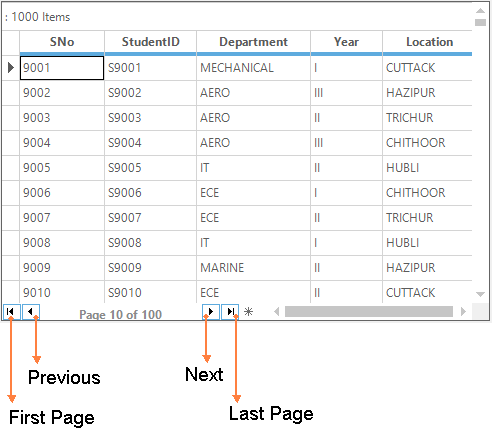

The current page can be moved to the first, last, previous and next by using the arrow buttons of the navigation bar. The current page of the grid will be displayed at the label of the navigation bar along with the total number of pages.

Paging_img3

The page navigation through the arrow buttons can be notified by using the ArrowButtonClicked event. The button clicks can be differentiate by using the ArrowType enumeration.

this.gridGroupingControl1.RecordNavigationBar.ArrowButtonClicked += new ArrowButtonEventHandler(RecordNavigationBar_ArrowButtonClicked);

void RecordNavigationBar_ArrowButtonClicked(object sender, ArrowButtonEventArgs e)
{

   if(e.Arrow == ArrowType.Previous)
   {

       //Notify the button clicked on the page navigation bar
       MessageBox.Show("Current page is moved to previous page");
   }
}
Private Me.gridGroupingControl1.RecordNavigationBar.ArrowButtonClicked += New ArrowButtonEventHandler(AddressOf RecordNavigationBar_ArrowButtonClicked)

Private Sub RecordNavigationBar_ArrowButtonClicked(ByVal sender As Object, ByVal e As ArrowButtonEventArgs)

   If e.Arrow = ArrowType.Previous Then

       'Notify the button clicked on the page navigation bar
       MessageBox.Show("Current page is moved to previous page")
   End If
End Sub

Sorting

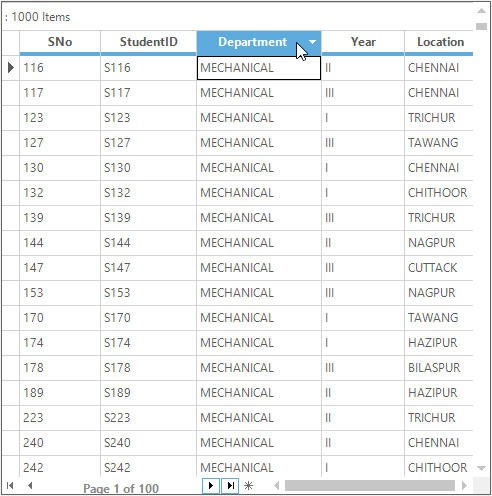

The paging is allows to sort the columns ascending and descending order. It will sort the records that are belong to the particular page. The sorting will be enabled while navigating the pages and applied individually for each page.

Paging_img4

Grouping

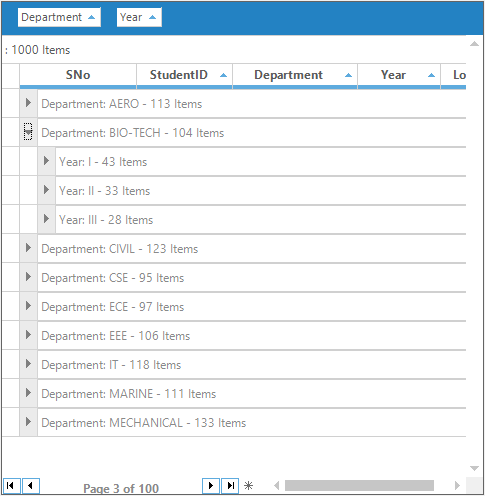

The paging is also provides the support for grouping the column using the GroupDropArea. The grouping can be applied only to the records belongs to the current page. It will be remain same for each page while navigating.

//Adding GroupDropArea to the GridGroupingControl
this.gridGroupingControl1.ShowGroupDropArea = true;
'Adding GroupDropArea to the GridGroupingControl
Me.gridGroupingControl1.ShowGroupDropArea = True

Paging_img5

Filtering

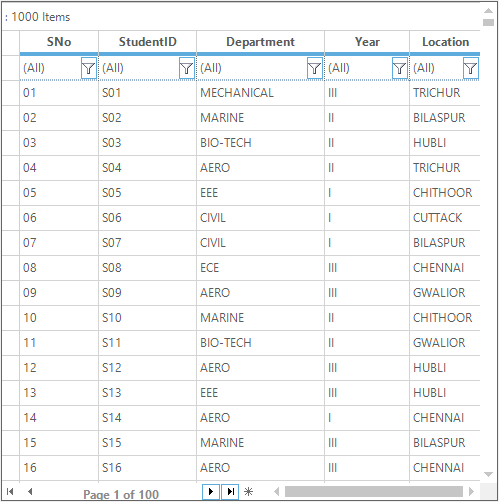

The filtering can be applied to the GridGroupingControl when the paging is enabled. The filter can be applied to the records which are bound to the page. However, this restriction can be overcome by wiring the view to a temporary table.

//Display filter bar for the GridGroupingControl
this.gridGroupingControl1.TopLevelGroupOptions.ShowFilterBar = true;

//Enable filtering for all the columns

foreach (var column in this.gridGroupingControl1.TableDescriptor.Columns)
    column.AllowFilter = true;
'Display filter bar for the GridGroupingControl
Me.gridGroupingControl1.TopLevelGroupOptions.ShowFilterBar = True

'Enable filtering for all the columns

For Each column In Me.gridGroupingControl1.TableDescriptor.Columns
    column.AllowFilter = True
Next column

Paging_img6

Unwire Paging

The paging can be removed from the grid by using the Pager.Unwire method. It will remove the pager from the grid and display as all the records.

//Remove the pager from grid
pager.Unwire(this.gridGroupingControl1);
'Remove the pager from grid
pager.Unwire(Me.gridGroupingControl1)
