Grid Designer in Windows Forms GridGrouping (GridGroupingControl)

28 Apr 2021 / 5 minutes to read

The GridGroupingControl has strong designer support. The user can control all aspects of grid’s appearance through the designer. Additional commands (verbs) will let you save layouts and restore them.

The user can also use preview feature that will allow you load data into your control and then further set the GridGroupingControl properties that can be persisted as design-time properties.

Getting Started

The GridGroupingControl can be previewed and edited at design time by following steps,

  1. Open the Designer of application form which has GridGroupingControl.

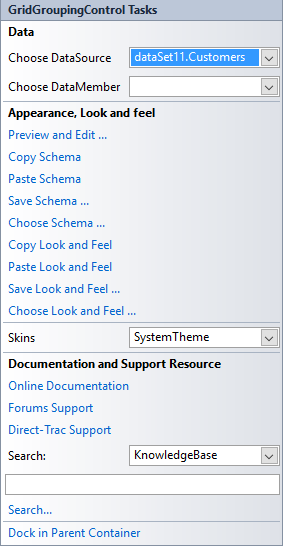

  2. Click the Smart tag button which is available in the top right corner and following dialog box will be opened,

    Grid-Designer_images1

  3. Select the Preview and Edit option and following dialog will be opened,

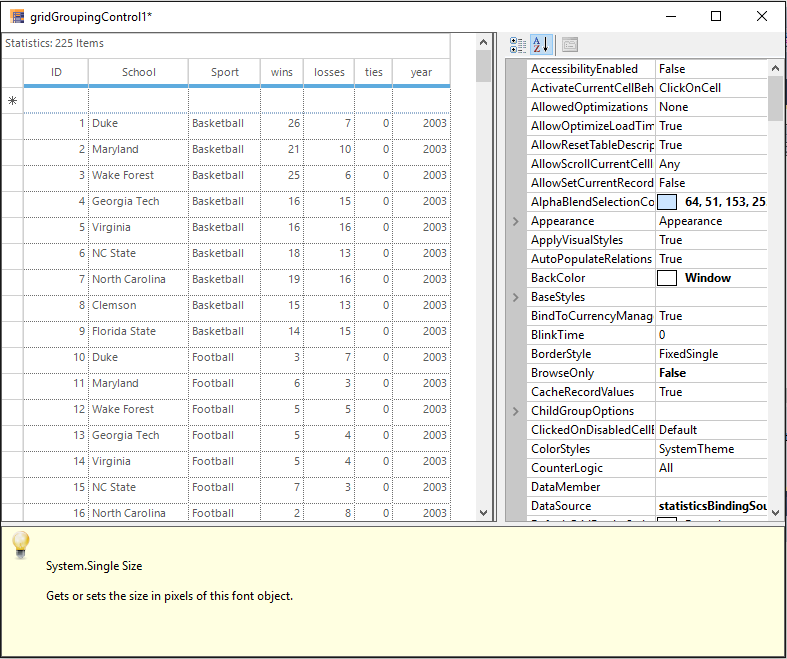

    Grid-Designer_images2

It also displays help description for the properties that are being selected. The user can use the property grid to change GridGroupingControl’s properties and see the effect immediately on the populated control. When you close the preview, you will have the option of saving any changed properties to the property grid in the designer.

Grouping

Designer provides full drag and drop capability so that the user can group the records by dragging a column header and dropping it into GroupDropArea, provided the GroupDropArea is enabled by setting ShowGroupDropArea to true. Likewise, user can group data against any number of columns across the tables when multiple nested tables are used.

The below example shows the Sport column is dragged for grouping,

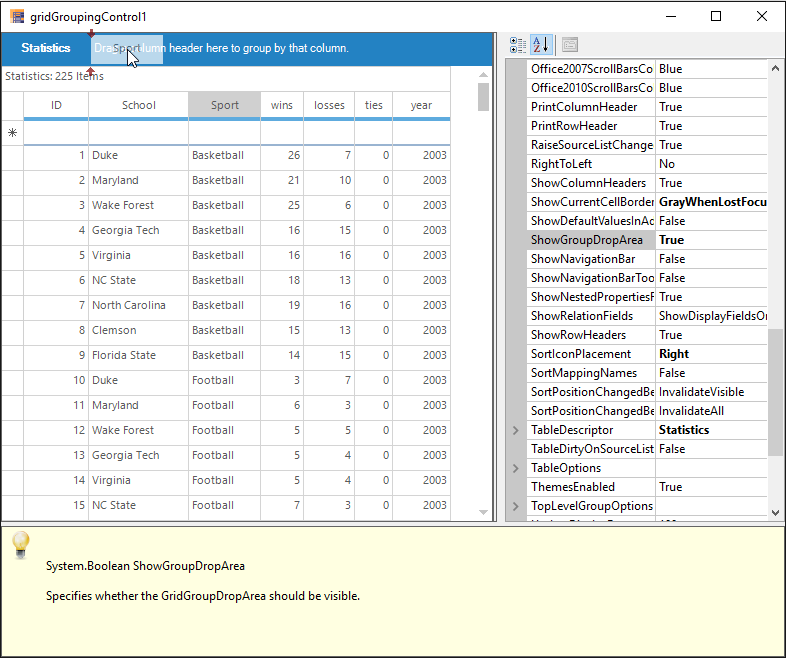

Grid-Designer_img3

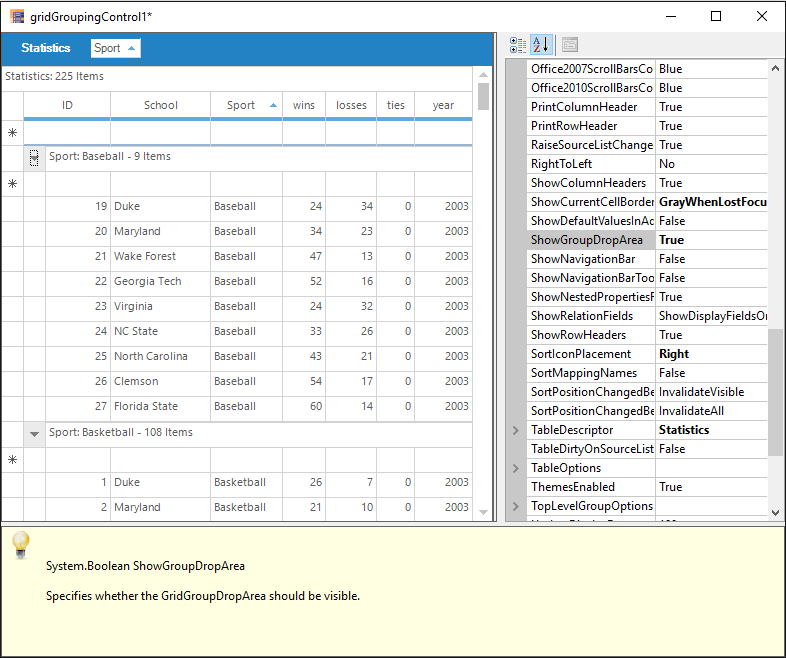

The below example shows the Sport column is grouped in the Grid,

Grid-Designer_img4

Grouping Columns using Property window

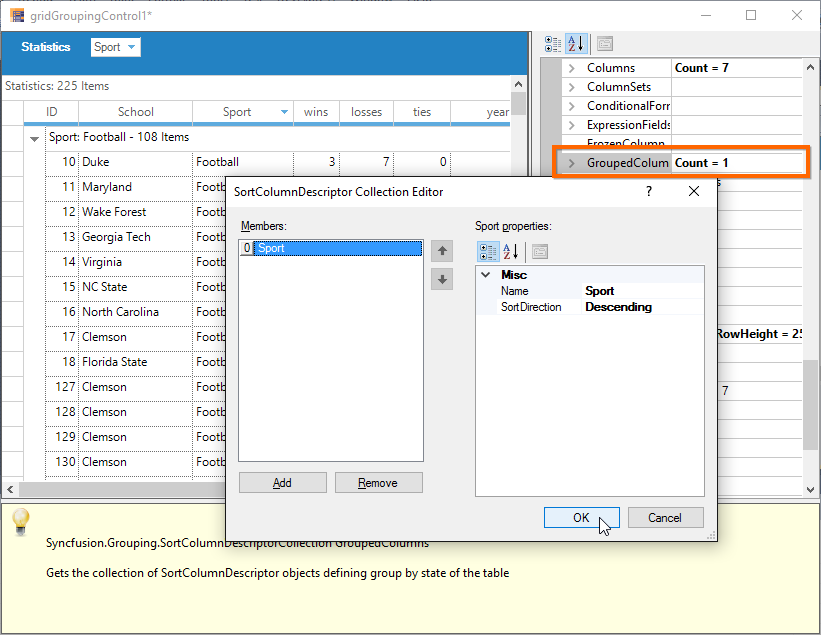

The column can be grouped in the grid by using the TableDescriptor.GroupedColumns property.

Grid-Designer_img5

The detailed information about Grouping has been discussed in this Grouping section.

Sorting

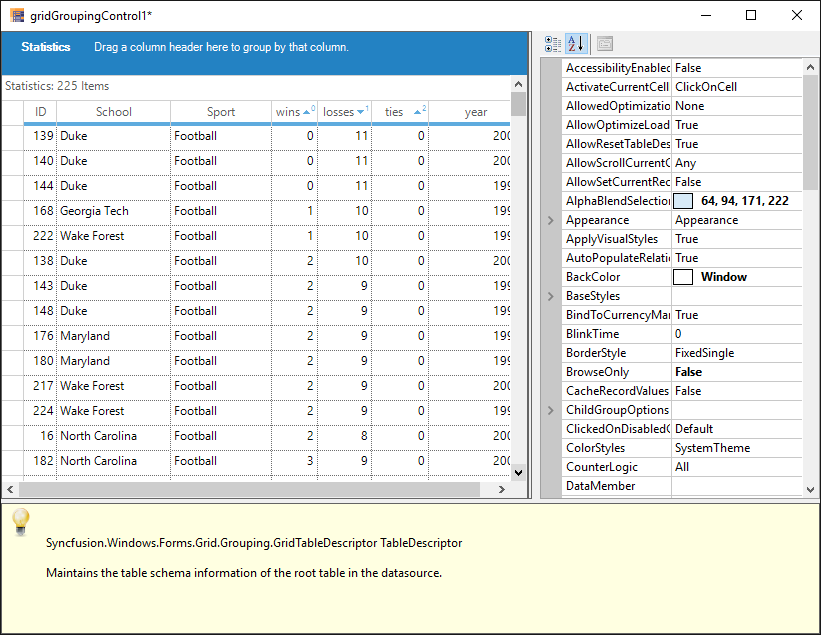

Sorting can be done on the table data by simply clicking the desired column header by which the values need to be sorted. Once sorting is done, the grouping grid displays Sort Icon in the respective column header to indicate Sort Direction.

Grid-Designer_img6

Column sorting using Property window

The user can also make use of the TableDescriptor.SortedColumns property to sort table data wherein you need to provide the column to be sorted and sort order.

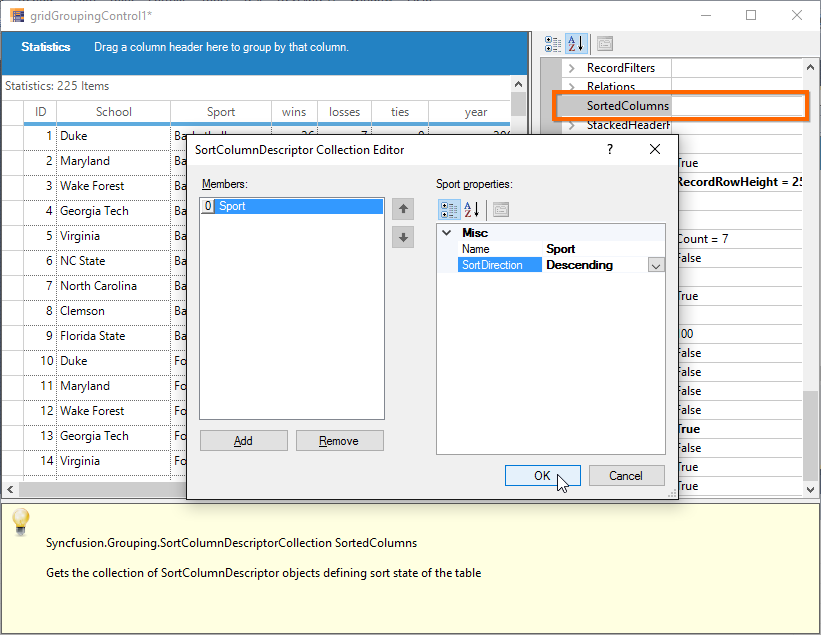

Grid-Designer_img7

The detailed information about Sorting has been discussed in this Sorting section.

Summaries

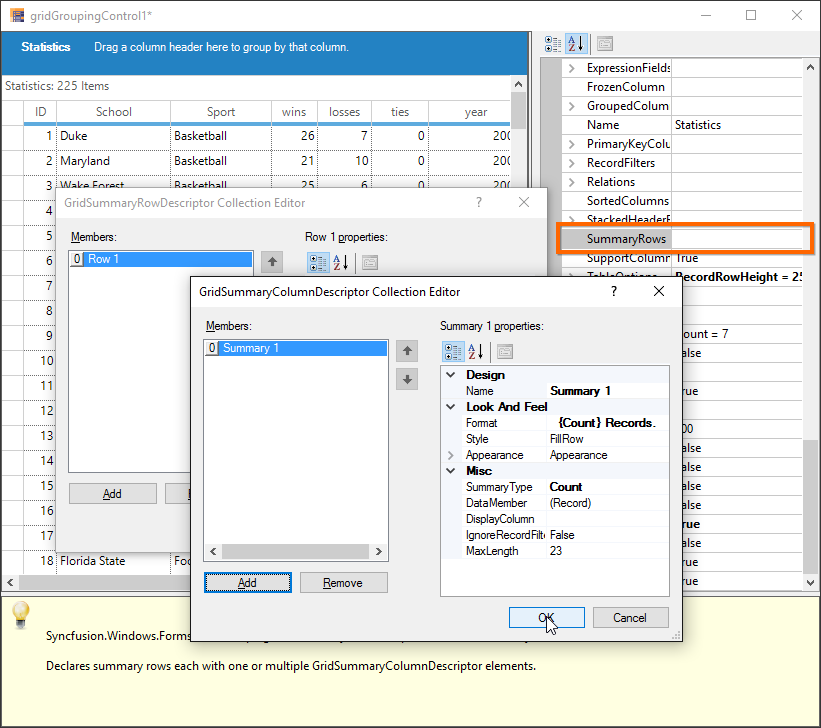

Summaries can be added in the designer itself by accessing TableDescriptor.SummaryRows property. The user can add as many summary rows as you need, each with a desired number of summary columns specifying the type of summary, summary format, the column based on whose values the summary has to be calculated and the like for each of the summary columns.

Grid-Designer_img8

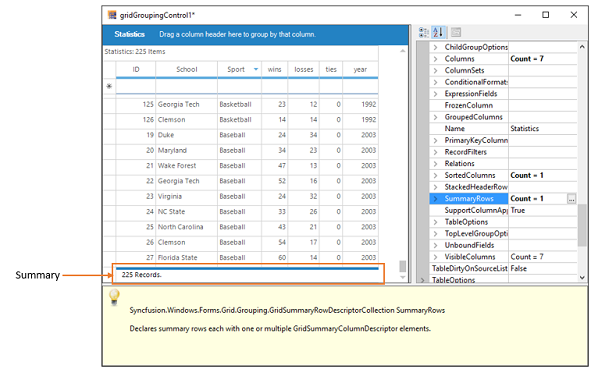

The below example shows the summary is added to the Grid,

Grid-Designer_img9

The detailed information about Summaries has been discussed in this Summaries section.

Record Filters

By using the TableDescriptor.RecordFilters property, you can add row filters for your grid table. Once you have specified filter criteria and column name whose values have to be checked against the given criteria, the grouping grid will display only the subset of records that satisfies the given criteria.

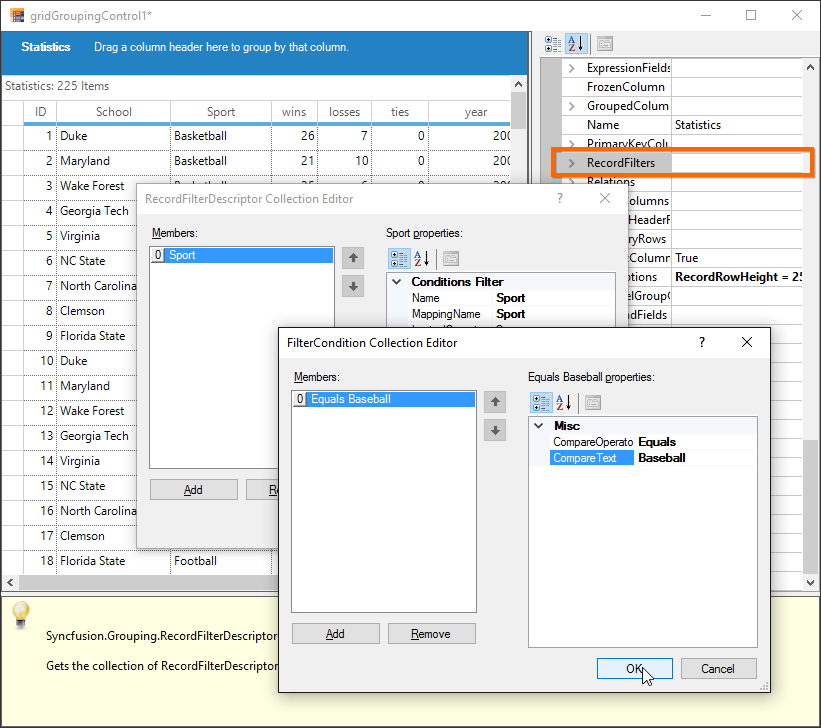

Grid-Designer_img10

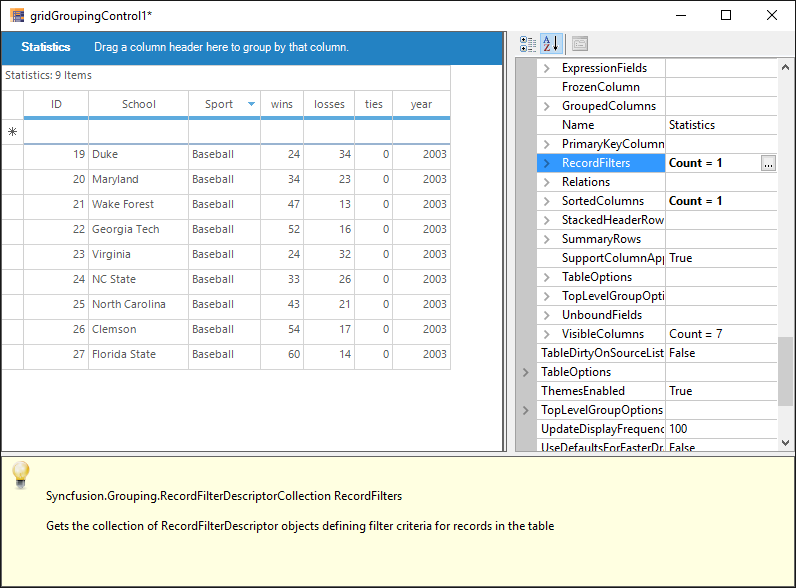

The below example shows the Sport column is filtered based on the text Baseball,

Grid-Designer_img11

Filter bar

GridGroupingControl provides AutoFilterRow, which can be enabled by setting ShowFilterBar property to true. Once that is done, the user must enable AllowFilter property for the desired columns to enable filtering on those columns.

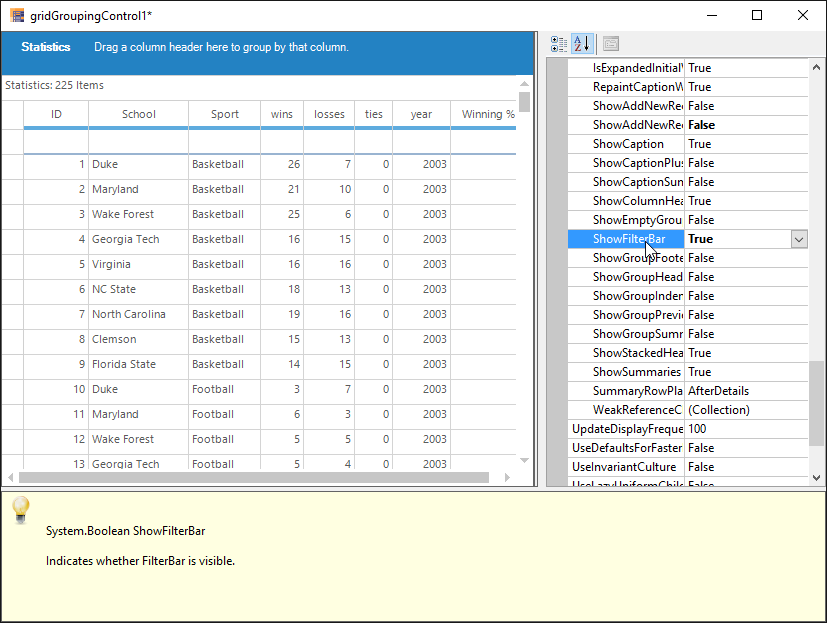

The following example shows the ShowFilterBar property is enabled,

Grid-Designer_img12

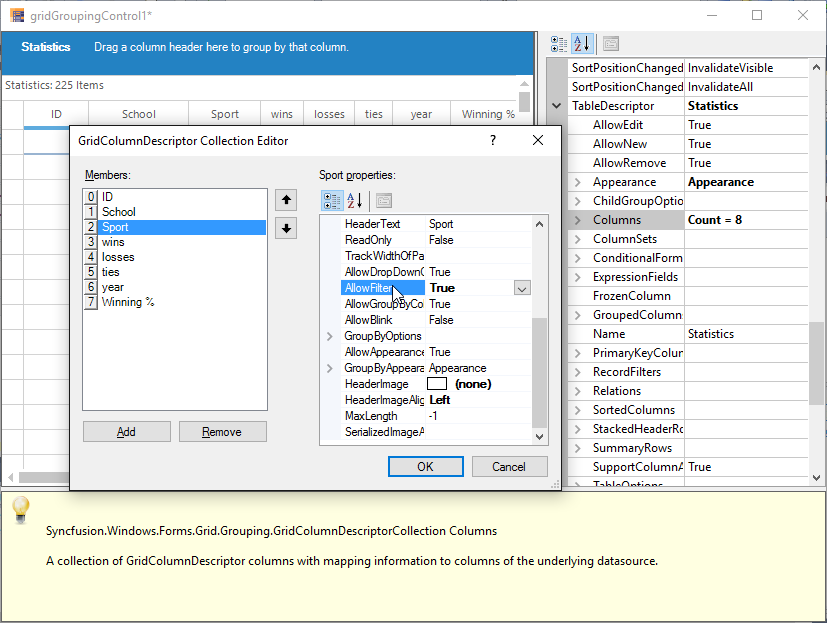

The following example shows the AllowFilter property is enabled for Sport column,

Grid-Designer_img13

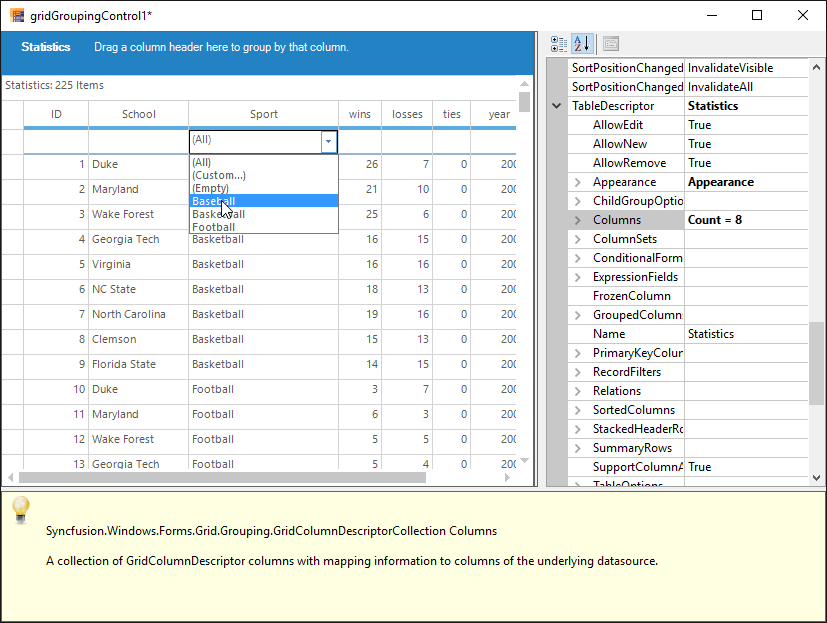

The following example shows the filter bar drop down showing filtering options for the column Sport,

Grid-Designer_img14

The detailed information about Filtering has been discussed in this Filtering section.

Expression Fields

When there is a need to display calculated values based on the values on other fields in the same record, ExpressionFields would be the right choice to use. ExpressionFields can be created by using TableDescriptor.ExpressionFields property. This will open an editor wherein the user can add any number of expression fields each with its own expression used to calculate the results.

The following example shows the Expression field is added for Winning % column,

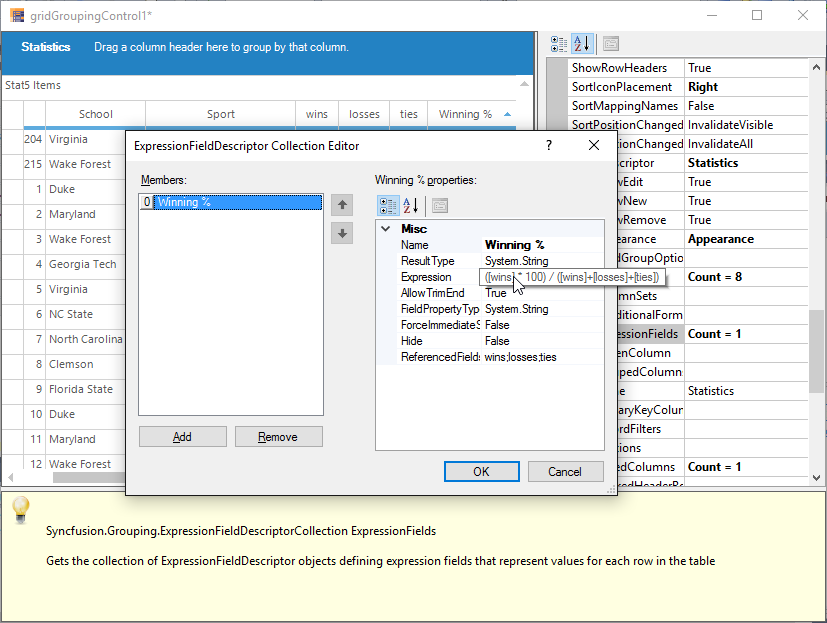

Grid-Designer_img15

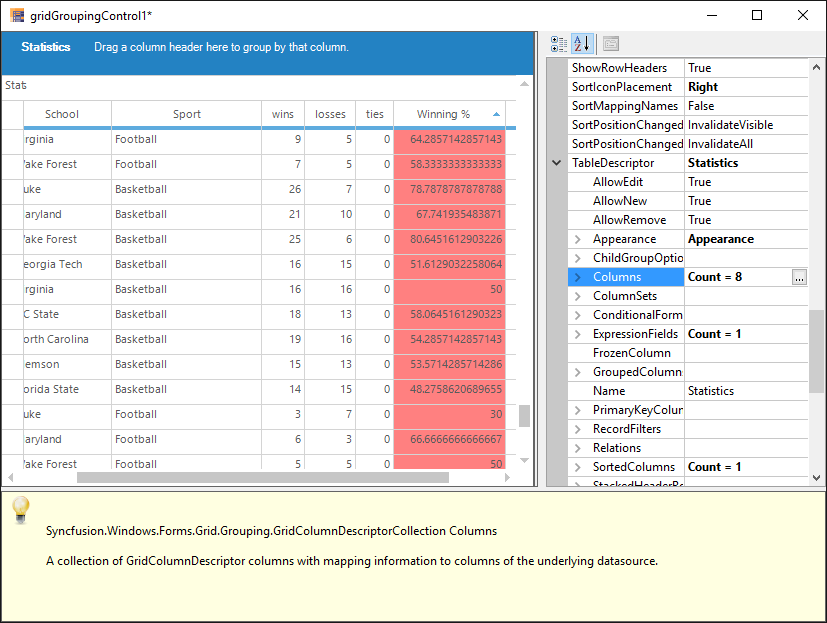

The following example shows the Winning % column shows the calculation result,

Grid-Designer_img16

The detailed information about ExpressionFields has been discussed in this ExpressionFields section.

Relations

It is possible to specify the relation to be used across the tables in case multiple tables are used. It can be done by accessing TableDescriptor.Relations property wherein the user can specify the relation type, name of the child table, relation keys consisting of the keys in parent and child tables and other information necessary to setup the relation.

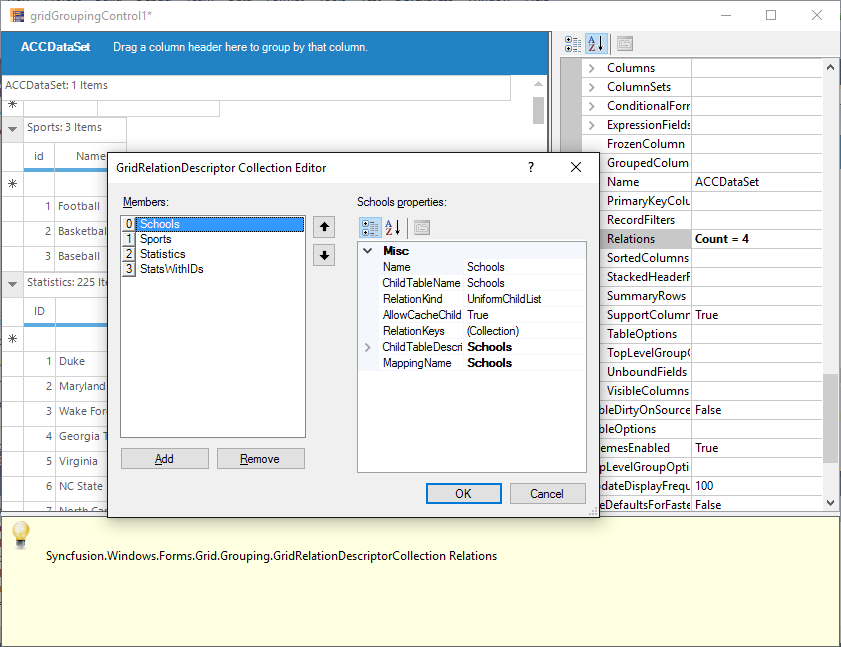

Grid-Designer_img17

The detailed information about Relations has been discussed in this Relation and Hierarchy section.

Appearance

The appearance of every grid element can be customized by accessing Appearance property. It allows you to setGridStyleInfo properties like cell type, value, back color, font, etc. for grid cells. It holds a sub tree of different grid elements, each with its own set of formatting properties. The appearance of alternate record field cell can be changed by using Appearance.AlternateRecordFieldCell property.

To change the appearance of the summary cells, Appearance.SummaryFieldCell or related property can be used.

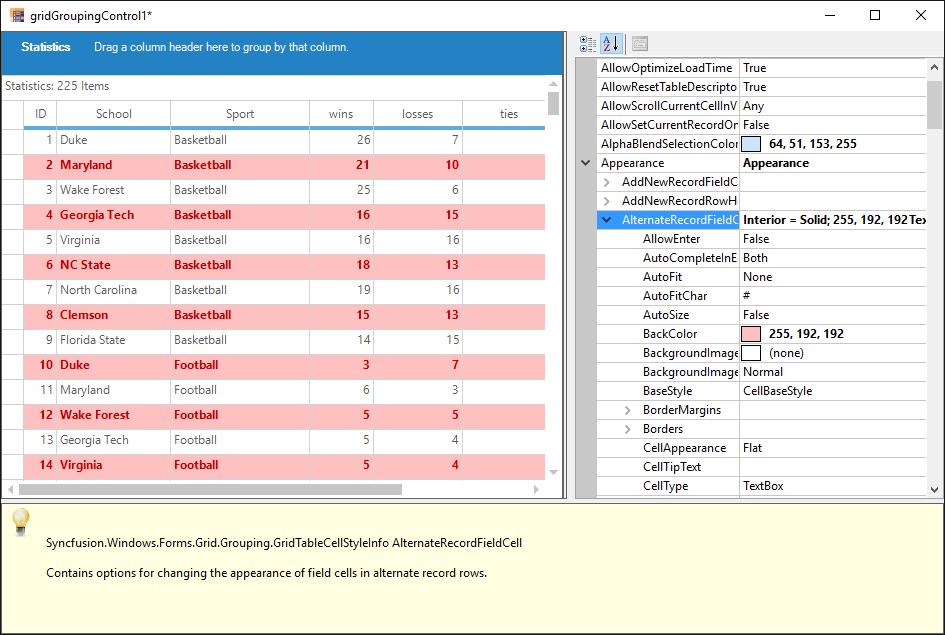

Grid-Designer_img18

The detailed information about Appearance has been discussed in this Appearance section.

Skins

The appearance and behavior of every grid element to provide grid with a rich look and feel can be changed by setting skins.

The GridGroupingControl has the following skins,

  • Office 2003
  • Office 2007 (Blue, Silver and Black)
  • Office 2010 (Blue, Silver and Black)
  • Metro
  • System Theme (Windows XP)

To set a skin, GridVisualStyles property can be used. It lists possible skin options in a drop down, which will make the entire grid redrawn with the chosen style.

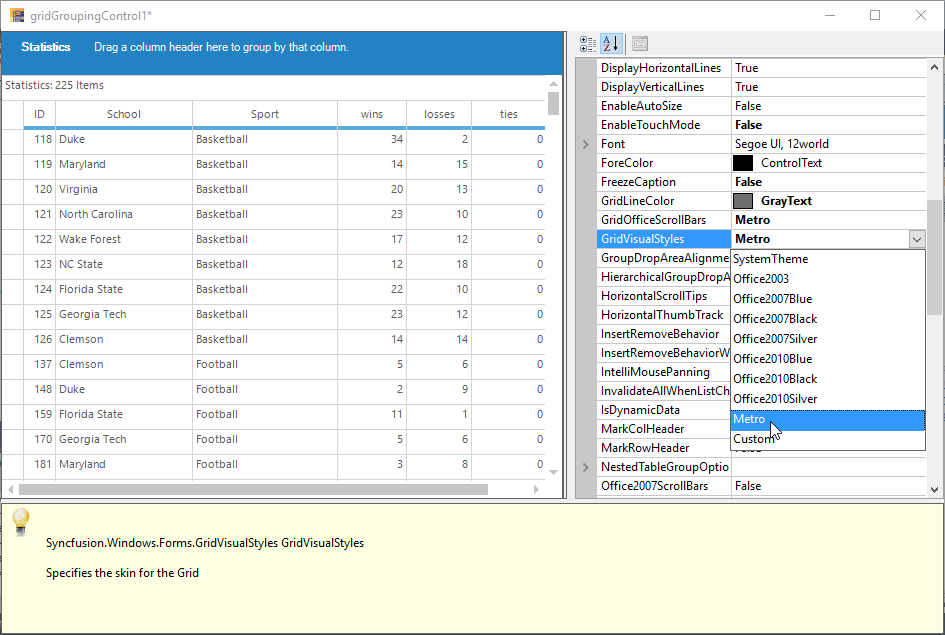

Grid-Designer_img19

The detailed information about Skins has been discussed in this Visual Styles section.
