Comment Tip in Windows Forms GridGrouping (GridGroupingControl)

28 Apr 202123 minutes to read

The Excel-like comment tip can be added to the individual cells. This allows a user to show more information about the particular cell on mouse hover.
A user can customize an appearance of the comment tip window and comment indicator of the individual cells. The user can also add the images to the comment tip window.

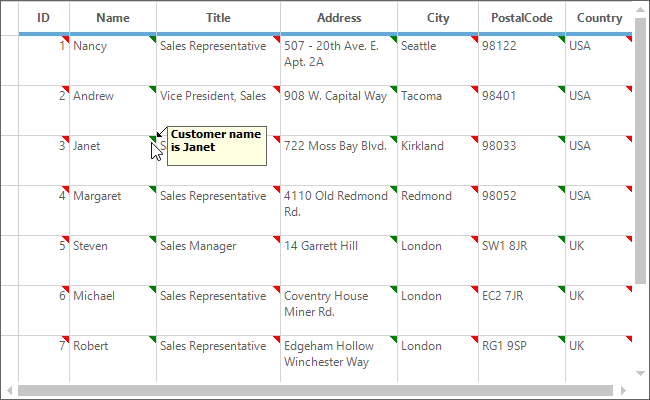

CommentTip_img1

Adding comment tip

The CommentTip property provides the various options to customize the comment tip of the cells. The comment tip can be added to the particular cell by setting the CommentText property in the QueryCellStyleInfo event. The comment text will be displayed in the comment tip window.

this.gridGroupingControl1.QueryCellStyleInfo +=new GridTableCellStyleInfoEventHandler(gridGroupingControl1_QueryCellStyleInfo);
void gridGroupingControl1_QueryCellStyleInfo(object sender, GridTableCellStyleInfoEventArgs e)
{

    if (e.Style.TableCellIdentity.Column != null && e.Style.TableCellIdentity.Column.Name == "FirstName")
    {

        //Setting the comment tip text

        if (e.TableCellIdentity.DisplayElement != null && e.TableCellIdentity.DisplayElement.Kind == DisplayElementKind.Record)
        {
            e.Style.CommentTip.CommentText = "Hello";
        }
    }
}
AddHandler gridGroupingControl1.QueryCellStyleInfo, AddressOf gridGroupingControl1_QueryCellStyleInfo

Private Sub gridGroupingControl1_QueryCellStyleInfo(ByVal sender As Object, ByVal e As GridTableCellStyleInfoEventArgs)

	If e.Style.TableCellIdentity.Column IsNot Nothing AndAlso e.Style.TableCellIdentity.Column.Name = "FirstName" Then

		'Setting the comment tip text

		If e.TableCellIdentity.DisplayElement IsNot Nothing AndAlso e.TableCellIdentity.DisplayElement.Kind Is DisplayElementKind.Record Then
			e.Style.CommentTip.CommentText = "Hello"
		End If
	End If
End Sub

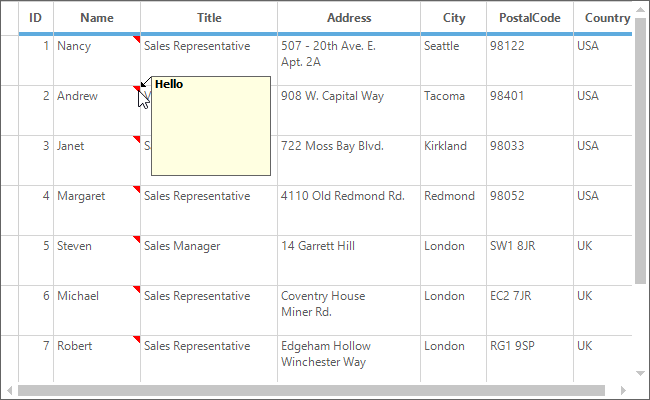

CommentTip_img2

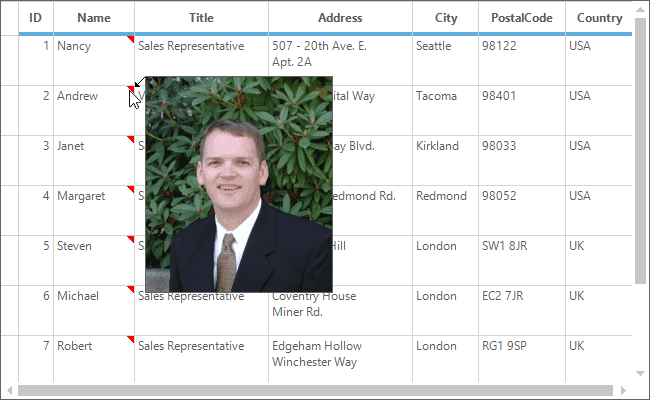

Adding image to comment tip

The comment tip for the cells can also be added by setting the CommentImage property. The given image will be displayed as the comment tip for the cells.

this.gridGroupingControl1.QueryCellStyleInfo +=new GridTableCellStyleInfoEventHandler(gridGroupingControl1_QueryCellStyleInfo);
void gridGroupingControl1_QueryCellStyleInfo(object sender, Syncfusion.Windows.Forms.Grid.Grouping.GridTableCellStyleInfoEventArgs e)
{

    if (e.Style.TableCellIdentity.Column != null && e.Style.TableCellIdentity.Column.Name == "FirstName"
        && e.TableCellIdentity.DisplayElement != null && e.TableCellIdentity.DisplayElement.Kind == Syncfusion.Grouping.DisplayElementKind.Record)
    {

        //Set the comment image for the cell.
        e.Style.CommentTip.CommentImage = Image.FromFile(@"../../Images/" + e.Style.Text + ".png");
    }
}
AddHandler gridGroupingControl1.QueryCellStyleInfo, AddressOf gridGroupingControl1_QueryCellStyleInfo

Private Sub gridGroupingControl1_QueryCellStyleInfo(ByVal sender As Object, ByVal e As Syncfusion.Windows.Forms.Grid.Grouping.GridTableCellStyleInfoEventArgs)

	If e.Style.TableCellIdentity.Column IsNot Nothing AndAlso e.Style.TableCellIdentity.Column.Name = "FirstName" AndAlso e.TableCellIdentity.DisplayElement IsNot Nothing AndAlso e.TableCellIdentity.DisplayElement.Kind Is Syncfusion.Grouping.DisplayElementKind.Record Then

		'Set the comment image for the cell.
		e.Style.CommentTip.CommentImage = Image.FromFile("../../Images/" & e.Style.Text & ".png")
	End If
End Sub

CommentTip_img3

NOTE

The comment tip can be added to the particular cell by either setting the CommentText property or CommentImage property.

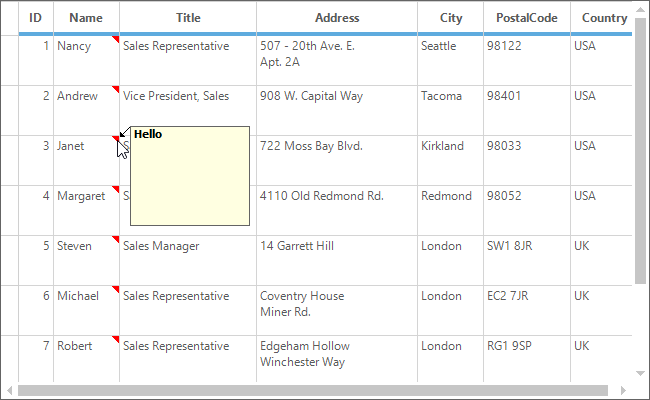

Adding comment tip for column

The comment tip can be added to the specific column by setting the Appearance.AnyRecordFieldCell.CommentTip.CommentText property of the particular column descriptor. It will enable the comment tip for all the cells in the column with the same comment text.

// Setting comment tip text for particular column.
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello";
' Setting comment tip text for particular column.
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello"

CommentTip_img4

Adding comment tip to nested table

The comment tip can be added for the nested tables by getting the table descriptor using the GetTableDescriptor method and setting the CommentTip.CommentText to the column that you want.

// Adding Comment text for nested table cells
this.gridGroupingControl1.GetTableDescriptor("Orders").Columns["Freight"].Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello";
' Adding Comment text for nested table cells
Me.gridGroupingControl1.GetTableDescriptor("Orders").Columns("Freight").Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello"

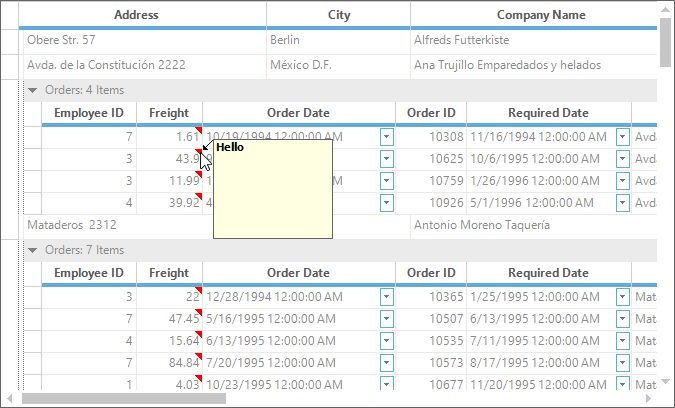

CommentTip_img15

NOTE

The comment tip events for the nested table can be accessed by getting the specific nested table’s table control using the GetTableControl method.

Removing comment tip

The comment tip for the cell can be removed by using the ResetCommentTip method. It will reset the comment tip properties to the default values.

// Remove the comment tip for particular column
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.ResetCommentTip();
' Remove the comment tip for particular column
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.ResetCommentTip()

Customizing an appearance of comment tip

The CommentTip property provides the list of properties that are used to customize an appearance of the comment tip window.

Comment indicator

The size and color of the comment indicator can be customized by using the CommentIndicatorSize and CommentIndicatorColor properties of the CommentTip. By default, it will be displayed as the red color triangle at the top-right corner of the cell.

// Setting the Color and Size for the comment indicator
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.CommentTip.CommentIndicatorColor = Color.Green;
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.CommentTip.CommentIndicatorSize = new Size(20, 20);
' Setting the Color and Size for the comment indicator
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.CommentTip.CommentIndicatorColor = Color.Green
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.CommentTip.CommentIndicatorSize = New Size(20, 20)

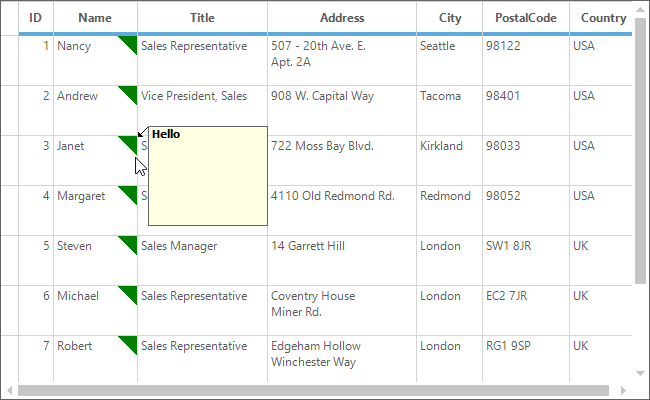

CommentTip_img5

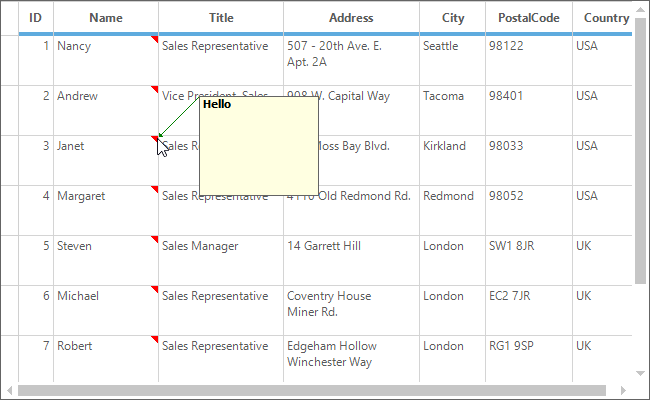

Comment arrow

The size and color of the comment arrow can be customized by using the CommentArrowSize and CommentArrowColor property.

// Setting Color and Size for the Comment Arrow
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.CommentTip.CommentArrowSize = new Size(5, 40);
this.gridGroupingControl1.TableDescriptor.Columns["ColumnName"].Appearance.AnyRecordFieldCell.CommentTip.CommentArrowColor = Color.Green;
' Setting Color and Size for the Comment Arrow
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.CommentTip.CommentArrowSize = New Size(5, 40)
Me.gridGroupingControl1.TableDescriptor.Columns("ColumnName").Appearance.AnyRecordFieldCell.CommentTip.CommentArrowColor = Color.Green

CommentTip_img6

Hiding the comment arrow

The comment arrow can be hidden by setting the width of the CommentArrowSize property to zero.

this.gridGroupingControl1.TableDescriptor.Columns["FirstName"].Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello";
// Setting Color and Size for the Comment Arrow
this.gridGroupingControl1.TableDescriptor.Columns["FirstName"].Appearance.AnyRecordFieldCell.CommentTip.CommentArrowSize = new Size(0, 10);
Me.gridGroupingControl1.TableDescriptor.Columns("FirstName").Appearance.AnyRecordFieldCell.CommentTip.CommentText = "Hello"
' Setting Color and Size for the Comment Arrow
Me.gridGroupingControl1.TableDescriptor.Columns("FirstName").Appearance.AnyRecordFieldCell.CommentTip.CommentArrowSize = New Size(0, 10)

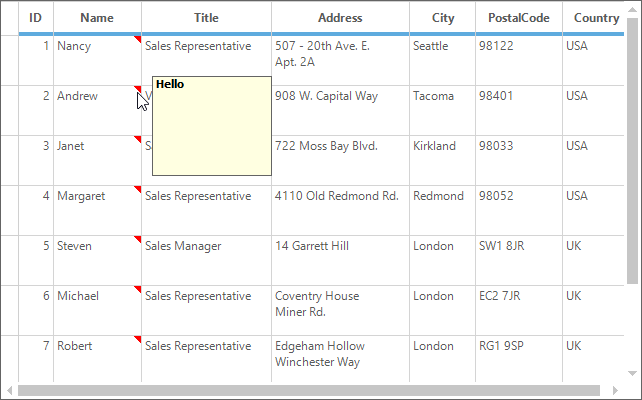

CommentTip_img7

NOTE

If the height of the CommentArrowSize is set to zero, the comment arrow will be hidden and the comment tip window will be shown near to the top-right corner of a cell.

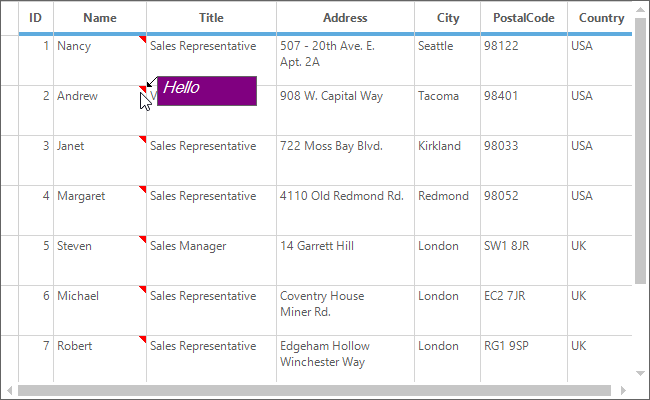

Comment tip window

The size and font of the comment tip window can be customized by using the CommentWindowSize and CommentFont properties respectively.
The foreground and background colors of the comment tip window can be changed by using the ForeColor and BackColor properties of the CommentTip.

this.gridGroupingControl1.QueryCellStyleInfo +=new GridTableCellStyleInfoEventHandler(gridGroupingControl1_QueryCellStyleInfo);
void gridGroupingControl1_QueryCellStyleInfo(object sender, Syncfusion.Windows.Forms.Grid.Grouping.GridTableCellStyleInfoEventArgs e)
{

    if (e.Style.TableCellIdentity.Column != null && e.Style.TableCellIdentity.Column.Name == "ColumnName"
        && e.TableCellIdentity.DisplayElement != null && e.TableCellIdentity.DisplayElement.Kind == Syncfusion.Grouping.DisplayElementKind.Record)
    {

        //Set the comment text, comment font and fore color.
        {
            e.Style.CommentTip.CommentWindowSize = new Size(100, 30);
            e.Style.CommentTip.CommentFont = new Font("sans serif", 12, FontStyle.Italic);
            e.Style.CommentTip.ForeColor = Color.White;
            e.Style.CommentTip.BackColor = Color.Purple;
        }
    }
}
AddHandler gridGroupingControl1.QueryCellStyleInfo, AddressOf gridGroupingControl1_QueryCellStyleInfo

Private Sub gridGroupingControl1_QueryCellStyleInfo(ByVal sender As Object, ByVal e As Syncfusion.Windows.Forms.Grid.Grouping.GridTableCellStyleInfoEventArgs)

	If e.Style.TableCellIdentity.Column IsNot Nothing AndAlso e.Style.TableCellIdentity.Column.Name = "ColumnName" AndAlso e.TableCellIdentity.DisplayElement IsNot Nothing AndAlso e.TableCellIdentity.DisplayElement.Kind Is Syncfusion.Grouping.DisplayElementKind.Record Then

		'Set the comment text, comment font and fore color.
			e.Style.CommentTip.CommentWindowSize = New Size(100, 30)
			e.Style.CommentTip.CommentFont = New Font("sans serif", 12, FontStyle.Italic)
			e.Style.CommentTip.ForeColor = Color.White
			e.Style.CommentTip.BackColor = Color.Purple
	End If
End Sub

CommentTip_img8

Events

The following events are used to customize an appearance of the comment tip,

  • DrawCommentIndicator
  • CommentTipShowing
  • CommentTipShown

DrawCommentIndicator event

This event is used to customize an appearance of the comment indicator by changing its shape, color and location through the event arguments.

this.gridGroupingControl1.TableControl.DrawCommentIndicator += new DrawCommentIndicatorEventHandler(TableControl_DrawCommentIndicator);
void TableControl_DrawCommentIndicator(object sender, DrawCommentIndicatorEventArgs e)
{
     Console.WriteLine("CommentRow {0} CommentColumn {1}", e.RowIndex, e.ColIndex);
}
AddHandler gridGroupingControl1.TableControl.DrawCommentIndicator, AddressOf TableControl_DrawCommentIndicator

Private Sub TableControl_DrawCommentIndicator(ByVal sender As Object, ByVal e As DrawCommentIndicatorEventArgs)
     Console.WriteLine("CommentRow {0} CommentColumn {1}", e.RowIndex, e.ColIndex)
End Sub

CommentTipShowing event

An appearance of the comment tip window can be customized by using the CommentTipShowing event. This can be also used to change the text, size, color and location of the comment tip window. This event will be raised before comment tip window is displayed.

this.gridGroupingControl1.TableControl.CommentTipShowing += new CommentTipShowingEventHandler(TableControl_CommentTipShowing);
void TableControl_CommentTipShowing(object sender, CommentTipShowingEventArgs e)
{
     Console.WriteLine("CommentRow {0} CommentColumn {1}", e.RowIndex, e.ColIndex);
}
AddHandler gridGroupingControl1.TableControl.CommentTipShowing, AddressOf TableControl_CommentTipShowing

Private Sub TableControl_CommentTipShowing(ByVal sender As Object, ByVal e As CommentTipShowingEventArgs)
     Console.WriteLine("CommentRow {0} CommentColumn {1}", e.RowIndex, e.ColIndex)
End Sub

CommentTipShown event

This event will be raised after comment tip window is shown. This is used to get the notification of the showing of comment tip window on specific cell.

this.gridGroupingControl1.TableControl.CommentTipShown += new CommentTipShownEventHandler(TableControl_CommentTipShown);
void TableControl_CommentTipShown(object sender, CommentTipShownEventArgs e)
{
    Console.WriteLine("Comment tip is shown for the cell [" + e.RowIndex + "," + e.ColIndex + "].");
}
AddHandler gridGroupingControl1.TableControl.CommentTipShown, AddressOf TableControl_CommentTipShown

Private Sub TableControl_CommentTipShown(ByVal sender As Object, ByVal e As CommentTipShownEventArgs)
	Console.WriteLine("Comment tip is shown for the cell [" & e.RowIndex & "," & e.ColIndex & "].")
End Sub

Customization using events

The CommentTipShowing and DrawCommentIndicator events are used to customize an appearance of the comment tip window. This section explains about the customization of comment tip using these events.

Changing the color and location of the comment indicator

The color and location of the comment indicator can be customized by using the DrawCommentIndicator event.

this.gridGroupingControl1.TableControl.DrawCommentIndicator += new DrawCommentIndicatorEventHandler(TableControl_DrawCommentIndicator);
void TableControl_DrawCommentIndicator(object sender, DrawCommentIndicatorEventArgs e)
{

    //Set the color for the comment indicator.
    e.Style.CommentTip.CommentIndicatorColor = Color.Green;

    // Modify the indicator location
    e.IndicatorBounds = new Rectangle(e.IndicatorBounds.Left, e.IndicatorBounds.Top + e.CellBounds.Height - 8, 8, 8);
}
AddHandler gridGroupingControl1.TableControl.DrawCommentIndicator, AddressOf TableControl_DrawCommentIndicator

Private Sub TableControl_DrawCommentIndicator(ByVal sender As Object, ByVal e As DrawCommentIndicatorEventArgs)

	'Set the color for the comment indicator.
	e.Style.CommentTip.CommentIndicatorColor = Color.Green

	' Modify the indicator location
	e.IndicatorBounds = New Rectangle(e.IndicatorBounds.Left, e.IndicatorBounds.Top + e.CellBounds.Height - 8, 8, 8)
End Sub

CommentTip_img9

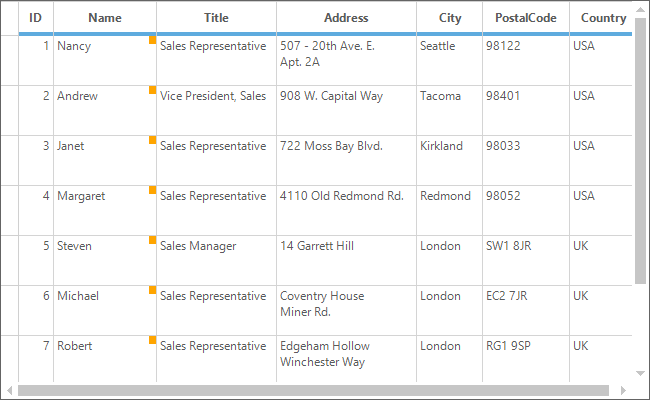

Changing the shape of the comment indicator

By default, the comment indicator will be drawn in a triangle shape at the top right corner of the cell. The default shape of the comment indicator can be changed by using the DrawCommentIndicator event.
Using the event argument e.Graphics, the shape can be filled that you want to display as the comment indicator. The default location of the comment indicator can be get by using the e.IndicatorBounds property.

this.gridGroupingControl1.TableControl.DrawCommentIndicator += new DrawCommentIndicatorEventHandler(TableControl_DrawCommentIndicator);
void TableControl_DrawCommentIndicator(object sender, DrawCommentIndicatorEventArgs e)
{

    if (e.ColIndex == 2)
    {
        e.Cancel = true;

        //Set the comment indicator color and shape.
        e.Graphics.FillRectangle(new SolidBrush(Color.Orange), e.IndicatorBounds);
    }
}
AddHandler gridGroupingControl1.TableControl.DrawCommentIndicator, AddressOf TableControl_DrawCommentIndicator

Private Sub TableControl_DrawCommentIndicator(ByVal sender As Object, ByVal e As DrawCommentIndicatorEventArgs)

	If e.ColIndex = 2 Then
		e.Cancel = True

		'Set the comment indicator color and shape.
		e.Graphics.FillRectangle(New SolidBrush(Color.Orange), e.IndicatorBounds)
	End If
End Sub

CommentTip_img10

Disabling the comment indicator

The DrawCommentIndicator event is used to avoid displaying the comment indicator by setting the e.Cancel to true.

this.gridGroupingControl1.TableControl.DrawCommentIndicator += new DrawCommentIndicatorEventHandler(TableControl_DrawCommentIndicator);
void TableControl_DrawCommentIndicator(object sender, DrawCommentIndicatorEventArgs e)
{

     //Cancel the displaying of the comment tip indicator.
     e.Cancel = true;
}
AddHandler gridGroupingControl1.TableControl.DrawCommentIndicator, AddressOf TableControl_DrawCommentIndicator

Private Sub TableControl_DrawCommentIndicator(ByVal sender As Object, ByVal e As DrawCommentIndicatorEventArgs)

	'Cancel the displaying of the comment tip indicator.
	e.Cancel = True
End Sub

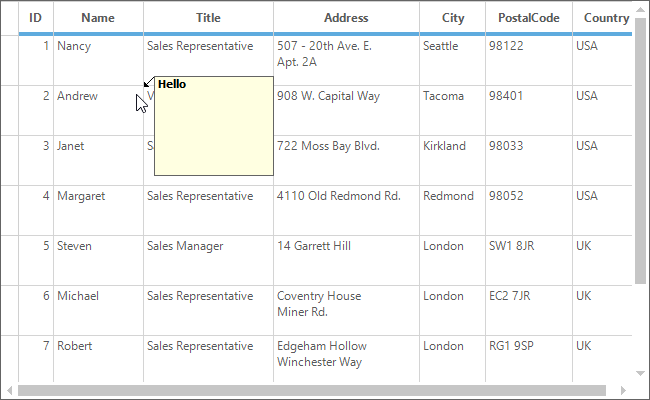

CommentTip_img11

Disabling the comment tip window

The displaying of comment tip window on mouse hover at the comment tip cell can be restricted by canceling the CommentTipShowing event.

this.gridGroupingControl1.TableControl.CommentTipShowing += new CommentTipShowingEventHandler(TableControl_CommentTipShowing);
void TableControl_CommentTipShowing(object sender, CommentTipShowingEventArgs e)
{

    //Cancel the displaying of the comment tip window.
    e.Cancel = true;
}
AddHandler gridGroupingControl1.TableControl.CommentTipShowing, AddressOf TableControl_CommentTipShowing

Private Sub TableControl_CommentTipShowing(ByVal sender As Object, ByVal e As CommentTipShowingEventArgs)

	'Cancel the displaying of the comment tip window.
	e.Cancel = True
End Sub

Changing the location of comment tip window

The location of the comment tip window can be modified dynamically by handling the CommentTipShowing event. In this event, the location of the comment tip window can be set through the CommentTipWindow.Location property.

this.gridGroupingControl1.TableControl.CommentTipShowing += new CommentTipShowingEventHandler(TableControl_CommentTipShowing);
void TableControl_CommentTipShowing(object sender, CommentTipShowingEventArgs e)
{
    Point pt = e.CommentTipWindow.Location;

    //Display the comment tip window at the given point.
    e.CommentTipWindow.Location = new Point(pt.X + 40, pt.Y + 10);
}
AddHandler gridGroupingControl1.TableControl.CommentTipShowing, AddressOf TableControl_CommentTipShowing

Private Sub TableControl_CommentTipShowing(ByVal sender As Object, ByVal e As CommentTipShowingEventArgs)
	Dim pt As Point = e.CommentTipWindow.Location

	'Display the comment tip window at the given point.
	e.CommentTipWindow.Location = New Point(pt.X + 40, pt.Y + 10)
End Sub

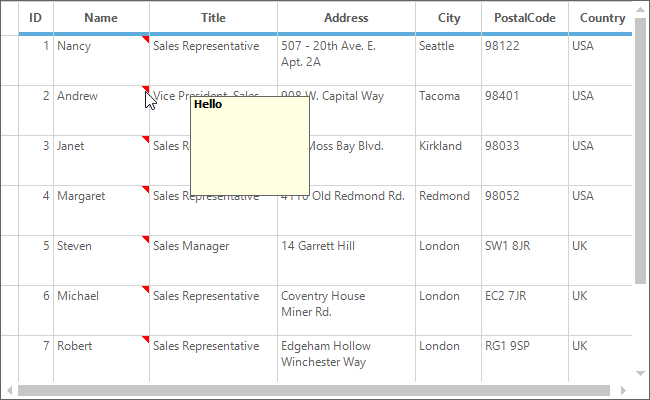

CommentTip_img12

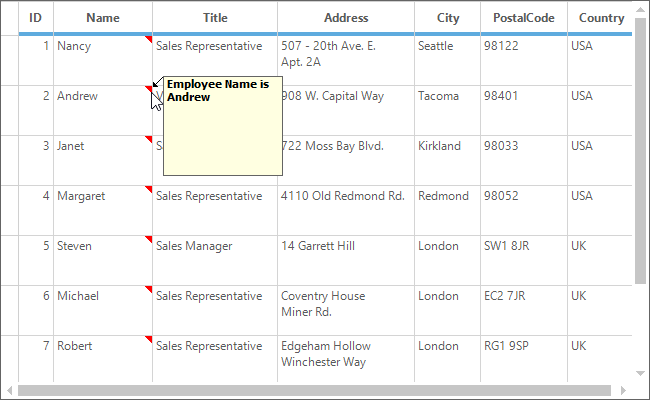

Setting custom comment text

The text displayed on the comment tip window can be customized by using the CommentTipShowing event.

this.gridGroupingControl1.TableControl.CommentTipShowing += new CommentTipShowingEventHandler(TableControl_CommentTipShowing);
void TableControl_CommentTipShowing(object sender, CommentTipShowingEventArgs e)
{
    string comment = "Employee Name is " + e.Style.CellValue.ToString();
    e.Style.CommentTip.CommentText = comment;
}
AddHandler gridGroupingControl1.TableControl.CommentTipShowing, AddressOf TableControl_CommentTipShowing

Private Sub TableControl_CommentTipShowing(ByVal sender As Object, ByVal e As CommentTipShowingEventArgs)
	Dim comment As String = "Employee Name is " & e.Style.CellValue.ToString()
	e.Style.CommentTip.CommentText = comment
End Sub

CommentTip_img13

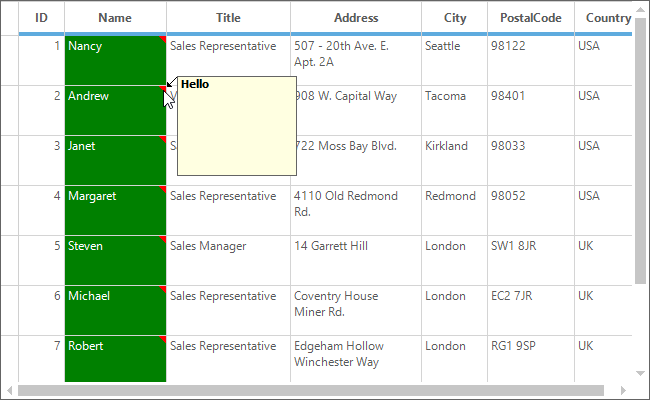

Highlighting the comment tip cell

To highlight the cells or customize the cells if that cell has comment tip, check whether the CommentText and CommentImage properties are changed in the PrepareViewStyleInfo event.

this.gridGroupingControl1.QueryCellStyleInfo +=new GridTableCellStyleInfoEventHandler(gridGroupingControl1_QueryCellStyleInfo);
void gridGroupingControl1_QueryCellStyleInfo(object sender, GridTableCellStyleInfoEventArgs e)
{

    //Check whether the cell has comment tip or not.

    if (e.Style.CommentTip.CommentText != "" || e.Style.CommentTip.CommentImage != null)
    {
        e.Style.BackColor = Color.Green;
        e.Style.TextColor = Color.White;
    }
}
AddHandler gridGroupingControl1.QueryCellStyleInfo, AddressOf gridGroupingControl1_QueryCellStyleInfo

Private Sub gridGroupingControl1_QueryCellStyleInfo(ByVal sender As Object, ByVal e As GridTableCellStyleInfoEventArgs)

	'Check whether the cell has comment tip or not.

	If e.Style.CommentTip.CommentText <> "" OrElse e.Style.CommentTip.CommentImage IsNot Nothing Then
		e.Style.BackColor = Color.Green
		e.Style.TextColor = Color.White
	End If
End Sub

CommentTip_img14
