Row Drag and Drop in MAUI DataGrid (SfDataGrid)

7 Jul 202618 minutes to read

The SfDataGrid control allows you to drag and drop rows by setting the SfDataGrid.AllowDraggingRow property to true. Dragging is enabled by long pressing and dragging a row on mobile platforms and by clicking and dragging on desktop platforms. A row drag view is displayed during the drag operation. You can handle drag-and-drop operations based on your requirements by using the SfDataGrid.QueryRowDragging event.

To quickly get started with row drag and drop in .NET MAUI DataGrid, watch this video:

To enable row drag and drop functionality, refer to the code example below:

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowDraggingRow="True">
 </syncfusion:SfDataGrid>
dataGrid.AllowDraggingRow = true;

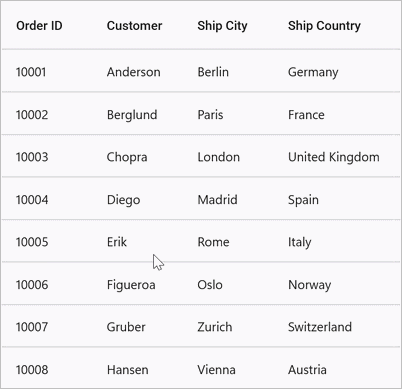

DataGrid row drag and drop

Dragging scenarios

The SfDataGrid supports drag-and-drop operations for both data rows and groups in the following scenarios:

  • Records reordering with auto-scrolling: Rows can be reordered to any position in the grid. Auto-scrolling is enabled by default, allowing continuous scrolling when dragging near grid boundaries.
  • Group reordering: Group headers can be reordered using drag and drop. Note that groups cannot be nested within other groups.
  • Cross-group row movement: Data rows can be reordered within the same group or moved to different groups by dragging.

Note: Reordering changes are made only in the SfDataGrid.View, not in the underlying data. As a result, these changes will be reverted when performing sorting, grouping, or any other operation that refreshes the view. To persist reordering changes in the underlying data, handle the QueryRowDragging event as explained below in Reordering underlying data.

Row drag-and-drop template

The SfDataGrid.RowDragDropTemplate allows you to load specific content during row drag-and-drop operations. This template can be defined in XAML or code-behind.

Default template

The default template will be used for row drag-and-drop operations unless another template is explicitly assigned.

DataGrid row drag and drop

Customizing row drag-and-drop template

Any type of custom view can be loaded inside the SfDataGrid.RowDragDropTemplate.

Refer to the following code example that demonstrates how to load a custom view in a template:

<syncfusion:SfDataGrid>
    <syncfusion:SfDataGrid.RowDragDropTemplate>
        <DataTemplate>
            <Grid BackgroundColor="LightBlue">
                <Label Text="Drag View"
                       TextColor="Black"
                       HorizontalTextAlignment="Center"
                    VerticalTextAlignment="Center"/>
            </Grid>
        </DataTemplate>
    </syncfusion:SfDataGrid.RowDragDropTemplate>
</syncfusion:SfDataGrid>

Default drag and drop

Events in row drag-and-drop

The SfDataGrid.QueryRowDragging event is triggered when a row begins to be dragged and fires continuously as the row is dragged (typically on each pointer movement). By handling this event, you can customize behavior and cancel dragging operations.

The QueryRowDragging event provides the following properties through the DataGridQueryRowDraggingEventArgs:

  • From: Returns the index of the row that is currently being dragged.
  • To: Returns the index of the row where you are attempting to drop the dragged item.
  • Position: Returns the current x and y coordinates of the RowDragView.
  • DraggingAction: Returns the current drag state as DataGridDragAction.
  • RowData: Returns the underlying data object associated with the dragged row.
  • CurrentRowData: Returns the data object corresponding to the current drop position of the RowDragView.
  • CanAutoScroll: Gets or sets a value indicating whether auto-scrolling should occur when the RowDragView reaches the top or bottom of the SfDataGrid.
  • Cancel: Gets or sets a Boolean value indicating whether the event should be canceled.

Cancel dragging of a particular row

Dragging a specific row can be canceled by using the DataGridDragAction argument in the QueryRowDragging event handler.

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    //e.From returns the index of the dragged row.
    //e.DataGridDragAction returns the dragging status of the row.
    if (e.From == 1 && e.DraggingAction == DataGridDragAction.DragStarted)
        e.Cancel = true;
}

Cancel dropping when dragging over particular rows

The action of dropping while dragging over specific rows can be canceled using the DataGridDragAction argument in the QueryRowDragging event handler.

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    if ((e.To > 5 || e.To < 10) && (e.DraggingAction == DataGridDragAction.DragEnded || e.DraggingAction == DataGridDragAction.Dragging))
    e.Cancel = true;
}

Cancel dropping of a particular row

The dropping of a specific row can be canceled using the DataGridDragAction argument in the QueryRowDragging event handler.

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    if (e.From == 1 && e.DraggingAction == DataGridDragAction.DragEnded)
        e.Cancel = true;
}

Cancel dropping at a particular position

Dropping at a specific position can be canceled by using the DataGridDragAction argument in the QueryRowDragging event handler.

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    if ((e.To == 5 || e.To == 7) && e.DraggingAction == DataGridDragAction.DragEnded)
        e.Cancel = true;
}

Cancel dropping of a particular row in a position

The dropping of a particular row at a position can be canceled using the DataGridDragAction and Position arguments in the QueryRowDragging event handler.

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

 private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
 {
     if ((e.To == 3) && e.Position == new Point(927, 1167) && e.DraggingAction == DataGridDragAction.DragEnded)
         e.Cancel = true;
 }

Cancel drag and drop between frozen and non-frozen rows

Cancel dragging between frozen and non-frozen rows

To prevent rows from being dragged out of the frozen row area, check whether the dragged row is a frozen row using the From argument in the QueryRowDragging event handler.

dataGrid.FrozenRowCount = 4;

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    // Cancel if dragging from a frozen row (index > header + frozen row count boundary)
    if (e.From > dataGrid.GetHeaderIndex() && e.From <= dataGrid.FrozenRowCount && e.DraggingAction == DataGridDragAction.DragStarted)
        e.Cancel = true;
}

Cancel dropping between frozen and non-frozen rows

To prevent rows from being dropped into frozen row areas from non-frozen areas, check the drop target using the From argument in the QueryRowDragging event handler.

dataGrid.FrozenRowCount = 4;

dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private async void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    // Cancel if dropping into frozen rows area
    if (e.From > dataGrid.GetHeaderIndex() && e.From <= dataGrid.FrozenRowCount && e.DraggingAction == DataGridDragAction.DragEnded)
        e.Cancel = true;
}

Note: The FrozenRowCount value must be less than the total number of rows in the grid view.

Reorder the underlying data

Reordering changes made directly to the underlying data can be done using the DataGridDragAction argument in the QueryRowDragging event handler. Please refer to the following code sample to implement permanent reordering changes:

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    if (e.DraggingAction == DataGridDragAction.DragEnded)
    {
        var collection = (sender as SfDataGrid).ItemsSource as IList;
        if (collection != null)
        {
            collection.RemoveAt(e.From - 1);
            collection.Insert(e.To - 1, e.RowData);
            // Cancel the default operation to prevent duplicate reordering
            e.Cancel = true;
        }
    }
}

Drop a grid row in the last position

The To property of the DataGridQueryRowDraggingEventArgs indicates the current drop index of the dragged row when it is being dragged over the grid rows. It returns the same index when dragging a row over the last position or the second-to-last position. To programmatically determine whether the dragged row is dropped in the last position or the second-to-last position, use the Position property in DataGridQueryRowDraggingEventArgs, which indicates the current screen coordinates of the RowDragView.

Refer to the following code example in which the Position property is used to determine whether the row is dropped in the last position:

this.dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
    var totalHeight = dataGrid.RowColumnIndexToPoint(new RowColumnIndex(viewModel.Orders.Count, 0)).Y + this.dataGrid.RowHeight;
    if (e.DraggingAction == DataGridDragAction.DragEnded)
    {
        if (Math.Ceiling(e.Position.Y + (dataGrid.RowHeight / 2)) > totalHeight && e.To == viewModel.Orders.Count)
        {
            //Will hit if the row is dropped at the last position
            DisplayAlert("RowDragAndDrop info", "The row is dropped at the last position", "OK");
        }
    }
}

Updating summaries when dragging and dropping a row between groups

Grouping and summarization of items in the data grid are determined by the group key. When an item is dragged from one group to another, the group key of the dragged item will differ from the group key of the items in the dropped group. Therefore, by default, the summaries will not be updated. This reflects the actual behavior of this control.

Therefore, to update the summaries when a row is dragged and dropped between groups, call the UpdateCaptionSummaries and Refresh methods in the QueryRowDragging event.

public partial class MainPage : ContentPage
{
    private SfDataGrid dataGrid;
    private ViewModel viewModel;
    public MainPage()
    {
         InitializeComponent();
         dataGrid = new SfDataGrid();
         viewModel = new OrderRepo();
         dataGrid.ItemsSource = viewModel.Orders;
         dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;
         this.Content = dataGrid;
    }
   private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
    {
         if (e.DraggingAction == DataGridDragAction.DragEnded)
         {
             // Delay allows the view to process the drag operation before refresh
             await Task.Delay(100);
             this.dataGrid.View.TopLevelGroup.UpdateCaptionSummaries();
             this.dataGrid.View.Refresh();
         }
    }
}

Disable auto scrolling

By default, the grid automatically scrolls when the drag view reaches the top or bottom boundaries during row drag operations. To disable this behavior, set the CanAutoScroll property to false in the QueryRowDragging event handler.

dataGrid.QueryRowDragging += DataGrid_QueryRowDragging;

private void DataGrid_QueryRowDragging(object? sender, Syncfusion.Maui.DataGrid.DataGridQueryRowDraggingEventArgs e)
{
   // Disable automatic scrolling during drag operations
   e.CanAutoScroll = false;
}

Customization of row drag view

The row drag view’s background color, text color, and indicator color can be customized using the RowDragViewBackgroundColor, RowDragViewTextColor, and RowDraggingIndicatorLineColor properties.

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowDraggingRow="True">

    <syncfusion:SfDataGrid.DefaultStyle>
        <syncfusion:DataGridStyle RowDraggingIndicatorLineColor="Blue"
                                  RowDragViewBackgroundColor="LightCyan"
                                  RowDragViewTextColor="Maroon"/>
    </syncfusion:SfDataGrid.DefaultStyle>
 </syncfusion:SfDataGrid>
dataGrid.DefaultStyle.RowDraggingIndicatorLineColor = Colors.Blue;
dataGrid.DefaultStyle.RowDragViewBackgroundColor = Colors.LightCyan;
dataGrid.DefaultStyle.RowDragViewTextColor = Colors.Maroon;

Customization of row drag view

Multi-Row Drag and Drop

The SfDataGrid control supports dragging and dropping multiple rows simultaneously. This functionality can be enabled by setting SfDataGrid.AllowDraggingRow to true, SfDataGrid.SelectionMode to Multiple, and SfDataGrid.SelectionUnit to Row (the default value of SelectionUnit is Row).

Once enabled, users can select the required rows and perform drag-and-drop operations in the same manner as standard row drag and drop.

The multi-row drag-and-drop operation preserves the selection order. Upon dropping, the rows are arranged according to the order in which they were selected. During the drag operation, the number of selected rows is indicated through a badge view on the drag indicator.

Note: The badge view is not displayed when a custom view is defined using the SfDataGrid.RowDragDropTemplate.

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding Orders}"
                       AllowDraggingRow="True"
                       SelectionMode="Multiple"
                       SelectionUnit="Row">
</syncfusion:SfDataGrid>
SfDataGrid dataGrid = new SfDataGrid();
OrderInfoViewModel orderInfoViewModel = new OrderInfoViewModel();
dataGrid.ItemsSource = orderInfoViewModel.Orders;
dataGrid.AllowDraggingRow = true;
dataGrid.SelectionMode = DataGridSelectionMode.Multiple;
dataGrid.SelectionUnit = DataGridSelectionUnit.Row;
this.Content = dataGrid;

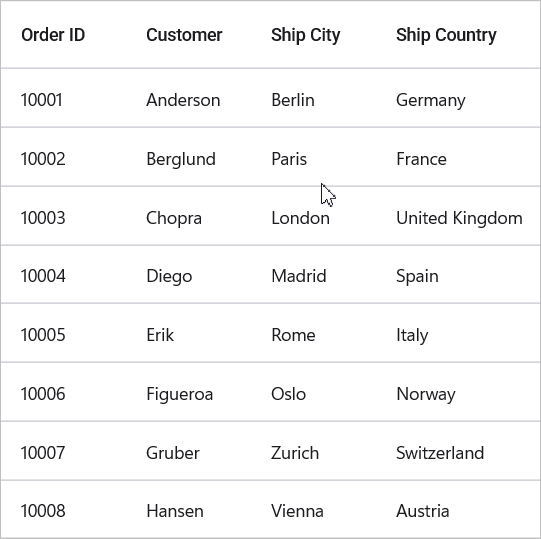

DataGrid multi row drag and drop
