Filtering in MAUI DataGrid (SfDataGrid)

18 Mar 202624 minutes to read

Filtering is the process of retrieving the values from the collection which satisfy the specified condition. The SfDataGrid provides the view filtering support.

To get start quickly with filtering in .NET MAUI DataGrid, you can check on this video:

Programmatic filtering

View filtering

The SfDataGrid supports filtering the records in the view by setting the SfDataGrid.View.Filter property where Filter is a predicate.

NOTE

In order to refresh filtering for the newly added row or column, set the SfDataGrid.View.LiveDataUpdateMode to LiveDataUpdateMode.AllowDataShaping.

C#

private void Button_Clicked(object sender, EventArgs e)
{
	this.dataGrid.View.Filter = FilterRecords;
	this.dataGrid.View.RefreshFilter();
}

public bool FilterRecords(object record)
{
	OrderInfo? orderInfo = record as OrderInfo;

	if(orderInfo != null && orderInfo.ShipCity == "Germany")
	{
		return true;
	}
	return false;
}

NOTE

View filtering is not supported when ItemsSource is DataTable.

Filter based on conditions

In addition, the records can be filtered based on the conditions. For example, the records can be filtered based on the given input or contrast to the input. The condition-based filtering can also be achieved for all or any particular column.

The records can be filtered based on any of the following conditions:

• Equals
• Does not equal
• Contains

The above mentioned conditions are the mostly used conditions. Add new conditions and alter the following code samples based on your requirement.

C#

public bool FilterRecords(object record)
{
    OrderInfo orderInfo = record as OrderInfo;

    if (orderInfo != null)
    {
        if (columns.SelectedItem.ToString() == "All Columns")
        {
            if (conditions.SelectedItem.ToString() == "Contains")
            {
                var filterText = FilterText.ToLower();
                if (orderInfo.OrderID.ToString().ToLower().Contains(filterText) ||
                    orderInfo.CustomerID.ToLower().Contains(filterText) ||
                    orderInfo.Customer.ToLower().Contains(filterText) ||
                    orderInfo.ShipCountry.ToLower().Contains(filterText) ||
                    orderInfo.ShipCity.ToLower().Contains(filterText))
                    return true;
                return false;
            }
            else if (conditions.SelectedItem.ToString() == "Equals")
            {
                if (CheckEquals(orderInfo.OrderID.ToString()) ||
                    CheckEquals(orderInfo.CustomerID) ||
                    CheckEquals(orderInfo.Customer) ||
                    CheckEquals(orderInfo.ShipCountry) ||
                    CheckEquals(orderInfo.ShipCity))
                    return true;
                return false;
            }
            else
            {
                if (!CheckEquals(orderInfo.OrderID.ToString()) ||
                   !CheckEquals(orderInfo.CustomerID) ||
                   !CheckEquals(orderInfo.Customer) ||
                   !CheckEquals(orderInfo.ShipCountry) ||
                   !CheckEquals(orderInfo.ShipCity))
                    return true;
                return false;
            }
        }
        else
        {
            var value = record.GetType().GetProperty(columns.SelectedItem.ToString().Replace(" ",""));
            var exactValue = value.GetValue(record, null);
            if (conditions.SelectedItem.ToString() == "Contains")
            {
                return FilterText.ToLower().Contains(exactValue.ToString().ToLower());
            }
            else if (conditions.SelectedItem.ToString() == "Equals")
            {
                return CheckEquals(exactValue.ToString());
            }
            else
            {
                return !CheckEquals(exactValue.ToString());
            }
        }
    }
    return false;
}

public bool CheckEquals(string value)
{
    return FilterText.Equals(value);
}

private void Button_Clicked(object sender, EventArgs e)
{
	this.dataGrid.View.Filter = FilterRecords;
	this.dataGrid.View.RefreshFilter();
}

The following code example illustrates how to create a Picker for conditions and add appropriate strings to that Picker and how the records will be filtered based on selected conditions.

XAML

<Grid Grid.Row="1" Grid.Column="0">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="150"/>
        <ColumnDefinition Width="150"/>
        <ColumnDefinition Width="150"/>
    </Grid.ColumnDefinitions>

    <Picker
        x:Name="columns"
        Grid.Row="0" Grid.Column="0">
        <Picker.Items>
            <x:String>All Columns</x:String>
            <x:String>Order ID</x:String>
            <x:String>Customer ID</x:String>
            <x:String>Customer</x:String>
            <x:String>Ship City</x:String>
            <x:String>Ship Country</x:String>
        </Picker.Items>
        <Picker.SelectedItem>
            <x:String>All Columns</x:String>
        </Picker.SelectedItem>
    </Picker>
    <Picker
        x:Name="conditions"
        Grid.Row="0" Grid.Column="1">
        <Picker.Items>
            <x:String>Equals</x:String>
            <x:String>Does Not Equal</x:String>
            <x:String>Contains</x:String>
        </Picker.Items>
    </Picker>

    <Button Grid.Row="0" Grid.Column="3" Text="Filter" Clicked="Button_Clicked"/>
</Grid>

Clear filtering

Clear the applied filtering by setting the SfDataGrid.View.Filter property to null.

C#

private void Button_Clicked(object sender, EventArgs e)
{
	this.dataGrid.View.Filter = null;
	this.dataGrid.View.RefreshFilter();
}

UI Filtering

The .NET MAUI DataGrid (SfDataGrid) provides excel like filtering UI and also advanced filter UI to filter the data easily. UI filtering can be enabled by setting SfDataGrid.AllowFiltering property to true , where you can open filter UI by clicking the Filter icon in column header and filter the records. The filtering UI appears as a popup menu on desktop and as a new page on mobile platforms.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"/>

C#

this.dataGrid.AllowFiltering = true;

We can enable/disable filtering for particular column by setting DataGridColumn.AllowFiltering property.

XAML

<syncfusion:DataGridTextColumn AllowFiltering="True"
                                MappingName="OrderID"/>

C#

dataGrid.Columns["OrderID"].AllowFiltering = true;

Built in UI views

The SfDataGrid filter UI consists of two distinct user interfaces.

• Checkbox Filter UI - Offers an Excel-like filter interface with a list of check boxes.

• Advanced Filter UI - Offers advanced filter options for data filtering.

When the filter pop-up is opened, both the Checkbox Filter and the Advanced Filter are loaded by default. The AdvancedFilter button in the UI view allows you to move between AdvancedFilter and CheckboxFilter.

The following image shows the checkbox filter popup menu on the desktop platform,

The following image shows the advanced filter popup menu on the desktop platform,

Checkbox filtering

Checkbox filtering is similar to Excel’s filter popup, which displays a checked list box of unique items along with a search text field. The items which are in the checked state will be visible in the view. Other items will be filtered out from the view.

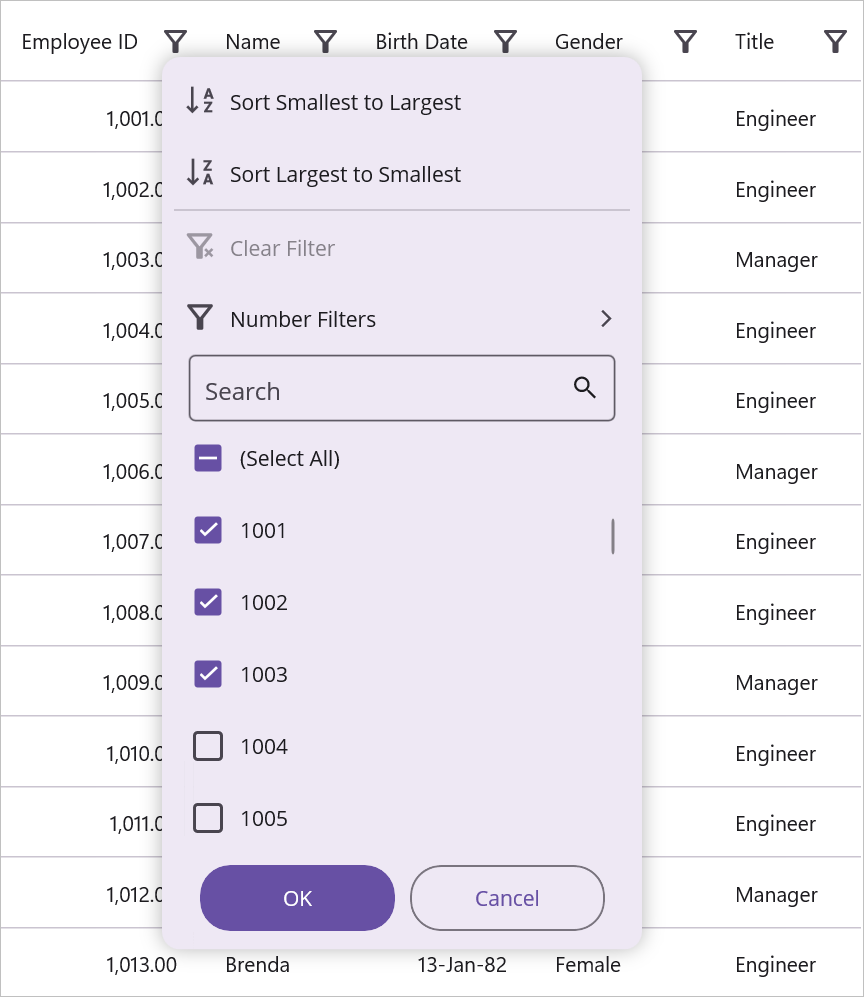

The checkbox filter popup menu with a few selected values in the checkbox list view for filtering is displayed in the following image.

Advanced filtering

Multiple filter choices are available in the advanced filter UI to make data filtering simple. By automatically identifying the underlying date type, filter menu options are loaded based on the Advanced filter type.

The supported built-in filter types are shown below.

1. Text Filters - Displays a variety of menu options for filtering the text column.
2. Number Filters - Displays a variety of menu options for filtering numeric data.
3. Date Filters - Displays a variety of menu options and a DatePicker to filter the DateTime column.

Text Filters	Number Filters	Date Filters
When the string value is loaded to the DataGridColumn, then TextFilters options are loaded in advanced filter view.	When the numeric value is loaded to the DataGridColumn, then NumberFilters options are loaded in advanced filter view.	When the DateTime type value is loaded to the DataGridColumn, then DateFilters options are loaded in advanced filter view.
Filter menu options Equals Does Not Equal Begins With Does Not Begin With Ends With Does Not End With Contains Does Not Contain Empty Not Empty Null Not Null	Filter menu options Equals Does Not Equal Less Than Less Than Or Equal Greater Than Greater Than Or Equal Null Not Null	Filter menu options Equals Does Not Equal Before Before Or Equal After After Or Equal Null Not Null

Case sensitive

By default, casing is not considered while filtering. Because, filter predicates will be created with IsCaseSensitive as false. The case sensitive icon in the advanced filter UI can be used to enable IsCaseSensitive as true for the column. This option is only available for the TextFilters filter view.

Events

SfDataGrid provide the following events to UI filtering.

FilterChanging

FilterChanging event invokes when the filtering is being applied to the particular column through UI filtering. Using this event we can change the FilterPredicates, FilterType and FilterBehavior.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterChaning="dataGrid_FilterChanging"/>

C#

private void dataGrid_FilterChanging(object sender, DataGridFilterChangingEventArgs e)
{

}

FilterChanged

FilterChanged is event invoked after the filtering is applied to the particular column through UI filtering. You can use this event to get the filter records.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterChanged="dataGrid_FilterChanged"/>

C#

private void dataGrid1_FilterChanged(object sender, DataGridFilterChangedEventArgs e)
{

}

FilterItemsPopulating

When the filter list items in filter view are being populated, the FilterItemsPopulating event is raised. This event allows you to modify DataGridFilterView properties.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterItemsPopulating="dataGrid_FilterItemsPopulating"/>

C#

private void dataGrid_FilterItemsPopulating(object sender, Syncfusion.Maui.DataGrid.DataGridFilterItemsPopulatingEventArgs e)
{

}

FilterItemsPopulated

FilterItemsPopulated event is raised after filter list items are populated. You can change GridFilterControl ItemSource by using this event.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterItemsPopulated="dataGrid_FilterItemsPopulated"/>

C#

private void dataGrid_FilterItemsPopulated(object sender, DataGridFilterItemsPopulatedEventArgs e)
{

}

Changing built-in UI views

You can choose which filter UI view to show in the DataGrid (SfDataGrid) for a column or the whole grid using the DataGridFilterView.FilterMode property.

The options are listed below.

1. CheckboxFilter: Shows only the Checkbox filter view.
2. AdvancedFilter: Shows only the Advanced filter view.
3. Both: Shows both filter views.

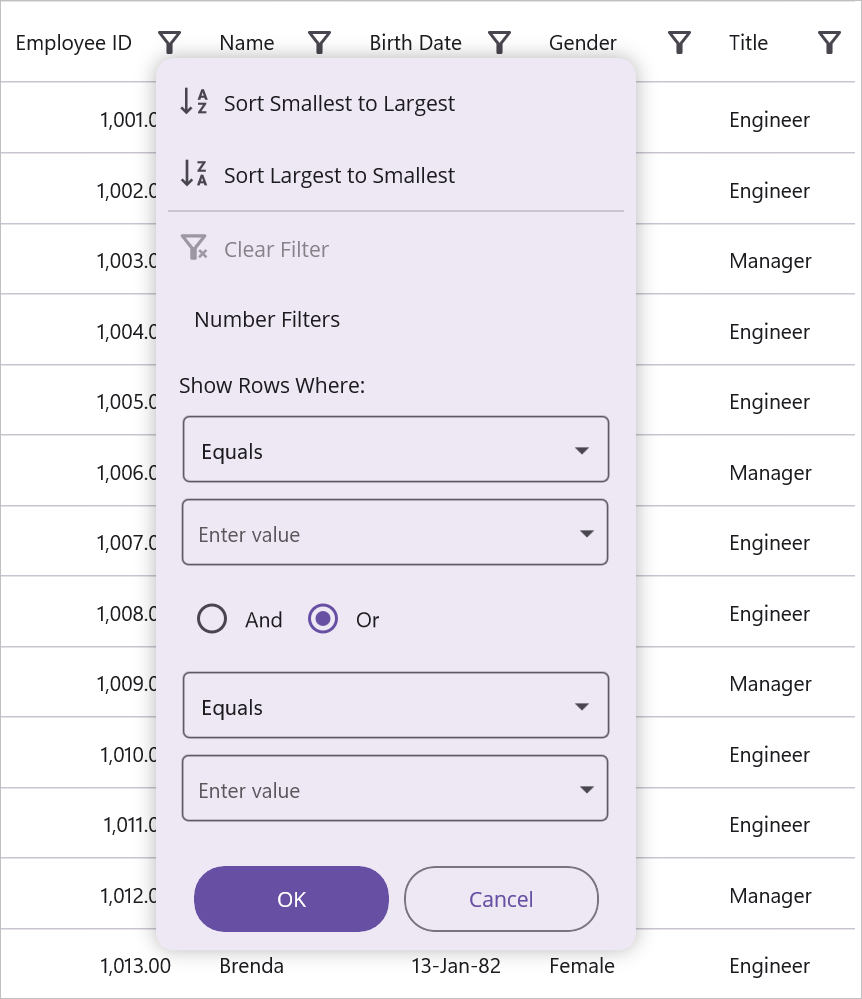

Changing filter UI for DataGrid

We can change the filter UI for all the columns in DataGrid by changing the FilterMode property in DataGridFilterView by setting style and added it to SfDataGrid.FilterPopupStyle.

XAML

<ContentPage.Resources>
    <Style x:Key="filterViewStyle" TargetType="syncfusion:DataGridFilterView">
        <Setter Property="FilterMode" Value="AdvancedFilter"/>
    </Style>
</ContentPage.Resources>

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterPopupStyle="{StaticResource filterViewStyle}"/>

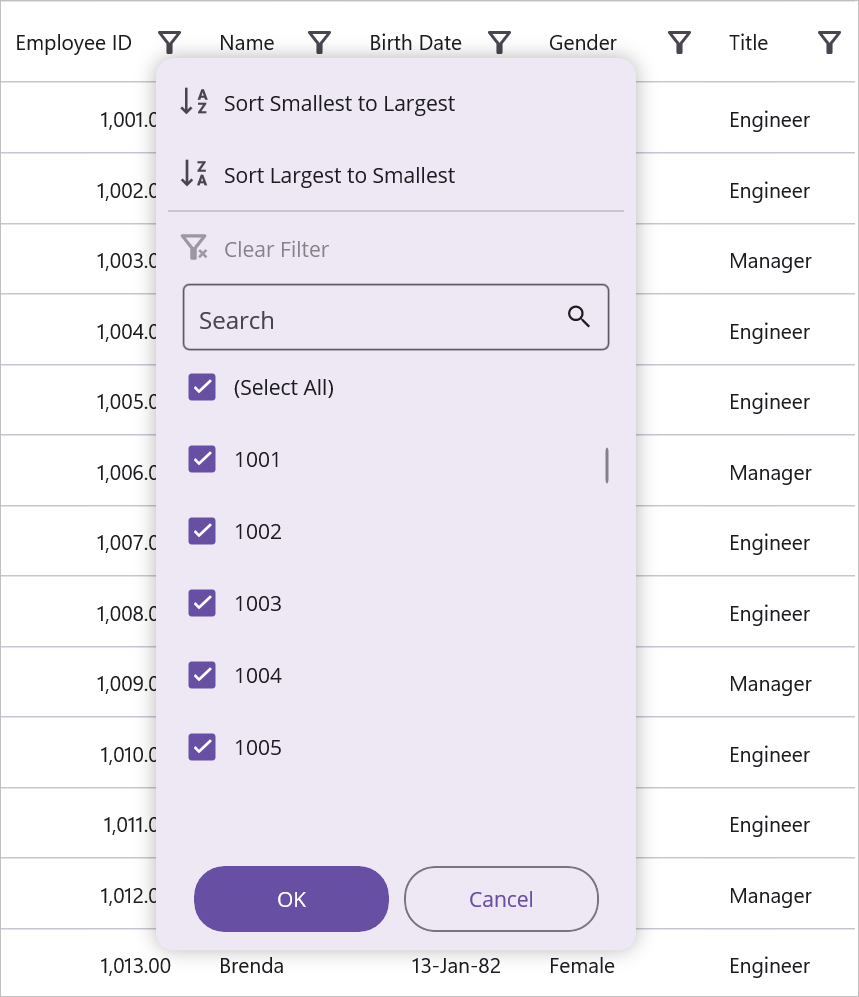

Changing filter UI for particular column

Filter UI view can be changed for a particular column in DataGrid by changing the FilterMode property in DataGridFilterView by writing style and added it to DataGridColumn.FilterPopupStyle property.

XAML

<ContentPage.Resources>
    <Style x:Key="filterViewStyle" TargetType="syncfusion:DataGridFilterView">
        <Setter Property="FilterMode" Value="CheckboxFilter"/>
    </Style>
</ContentPage.Resources>

<syncfusion:DataGridTextColumn MappingName="OrderID"
                                FilterPopupStyle="{StaticResource filterViewStyle}"/>

Changing Advanced filter type

FilterBehavior determines the Advanced filter type loaded in filter view. You can change the advanced filter type using FilterBehavior.

• StringTyped - TextFilters will be loaded in AdvancedFilterControl.
• Strongly Typed – Advanced filter type is automatically detected based on underlying data type.

XAML

<syncfusion:DataGridTextColumn MappingName="OrderID" FilterBehavior="StringTyped"/>

C#

dataGrid.Columns["OrderID"].FilterBehavior = FilterBehavior.StringTyped;

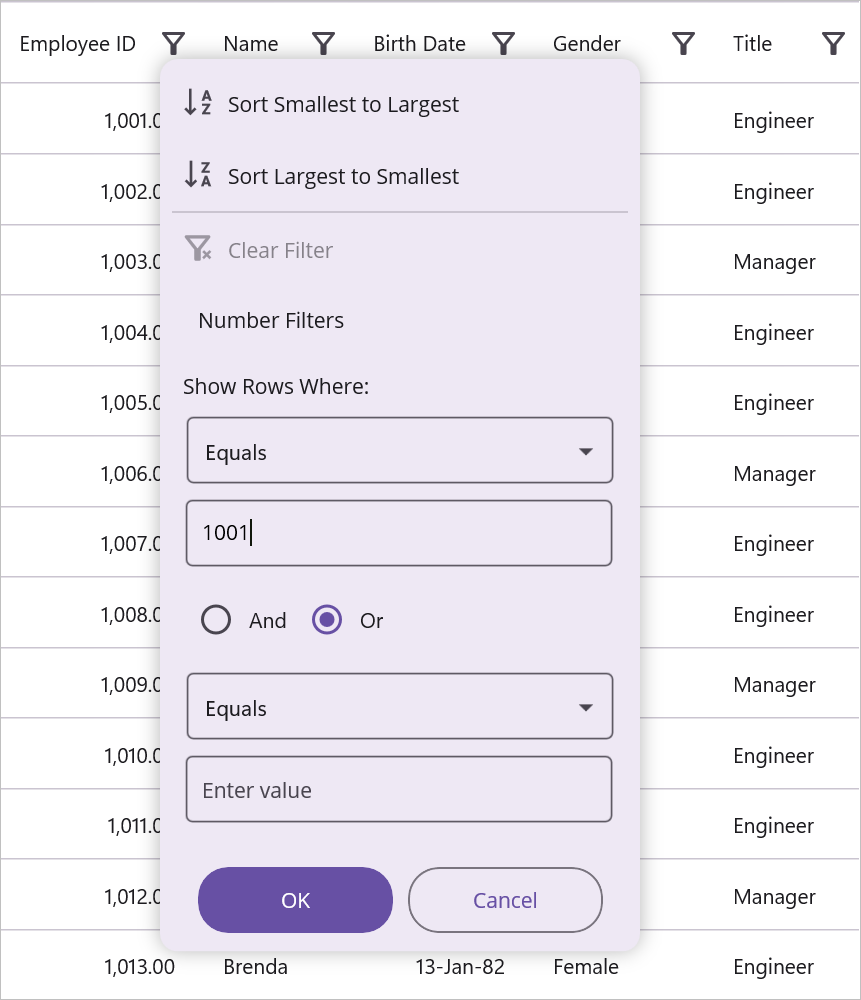

Increased loading Performance

Setting FilterMode to AdvancedFilter and CanGenerateUniqueItems to false will improve DataGridFilterView’s loading performance. Instead of Combobox control, Entry is loaded which lets you manually enter text for filtering.

XAML

<ContentPage.Resources>
    <Style x:Key="filterViewStyle" TargetType="syncfusion:DataGridFilterView">
        <Setter Property="FilterMode" Value="AdvancedFilter"/>
    </Style>
    <Style TargetType="datagrid:DataGridFilterView">
        <Setter Property="CanGenerateUniqueItems" Value="False"/>
    </Style>
</ContentPage.Resources>

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterPopupStyle="{StaticResource filterViewStyle}"/>

Filtering null values

By default the AllowBlankFilters property is set to true. So, the filter items must have null values. AllowBlankFilters must be set to false if you want to remove null values from the list of filter items.

When we set AllowBlankFilters as True, Combobox options have Null and Not Null choices in advanced filter and checkbox items include a Blanks option in checkbox filtering UI.

XAML

<syncfusion:DataGridTextColumn MappingName="OrderID" AllowBlankFilters="False">

C#

dataGrid.Columns["OrderID"].AllowBlankFilters = false;

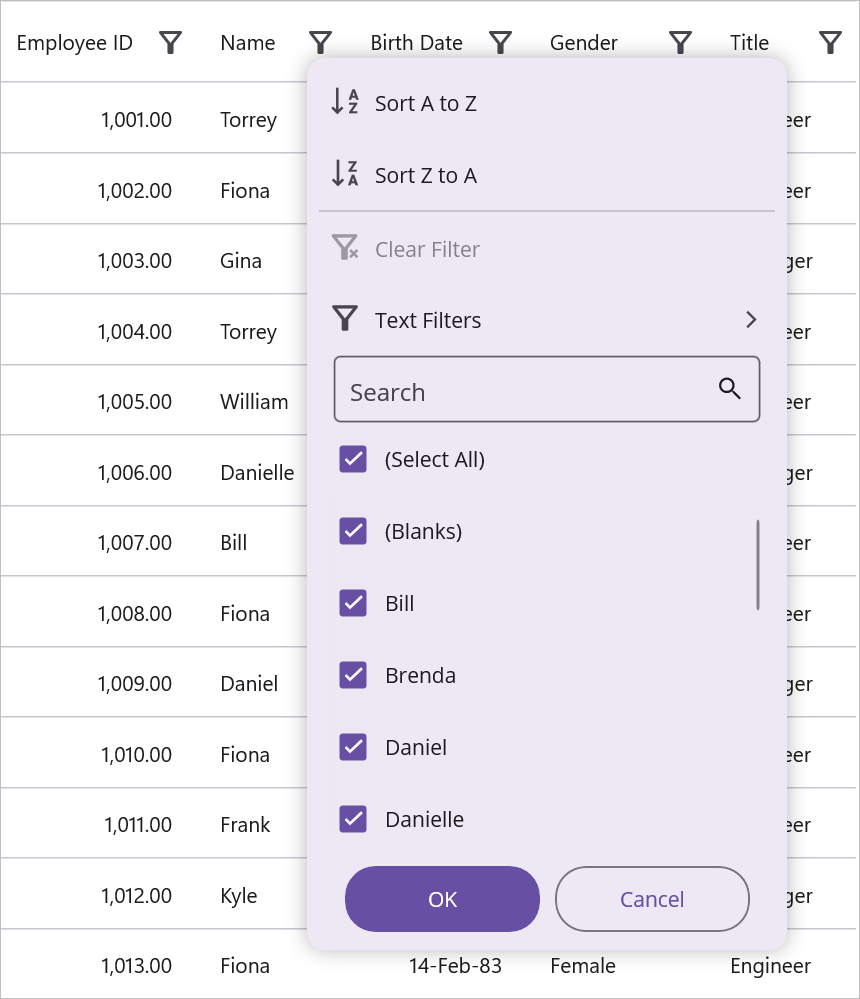

Checkbox Filter with AllowBlankFilters as True

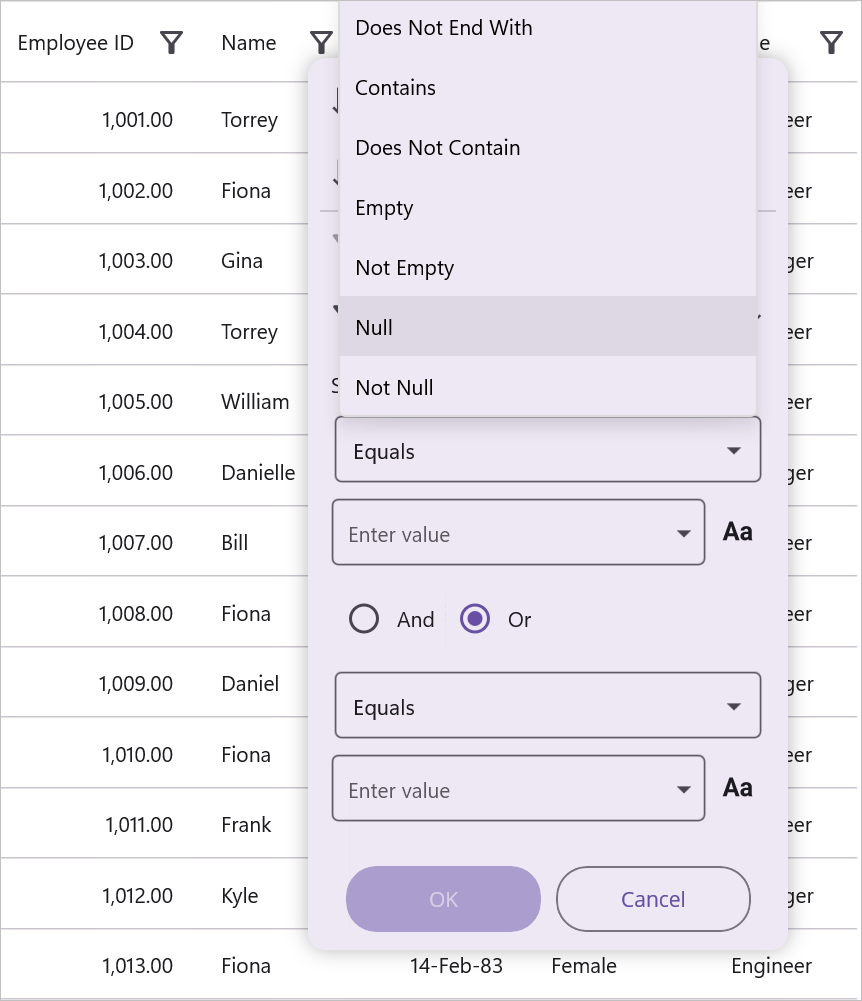

Advanced Filter with AllowBlankFilters as True

Instant Filtering

By default, filtering is applied to the columns when OK button is clicked in UI filtering. You must set ImmediateUpdateColumnFilter to True if you wish to update the filters instantly whenever the filter items are updated in the filter popup menu.

In this, Done button is displayed to close the filter popup instead of OK and Cancel buttons.

XAML

<syncfusion:DataGridTextColumn MappingName="OrderID" ImmediateUpdateColumnFilter="True">

C#

dataGrid.Columns["OrderID"].ImmediateUpdateColumnFilter = true;

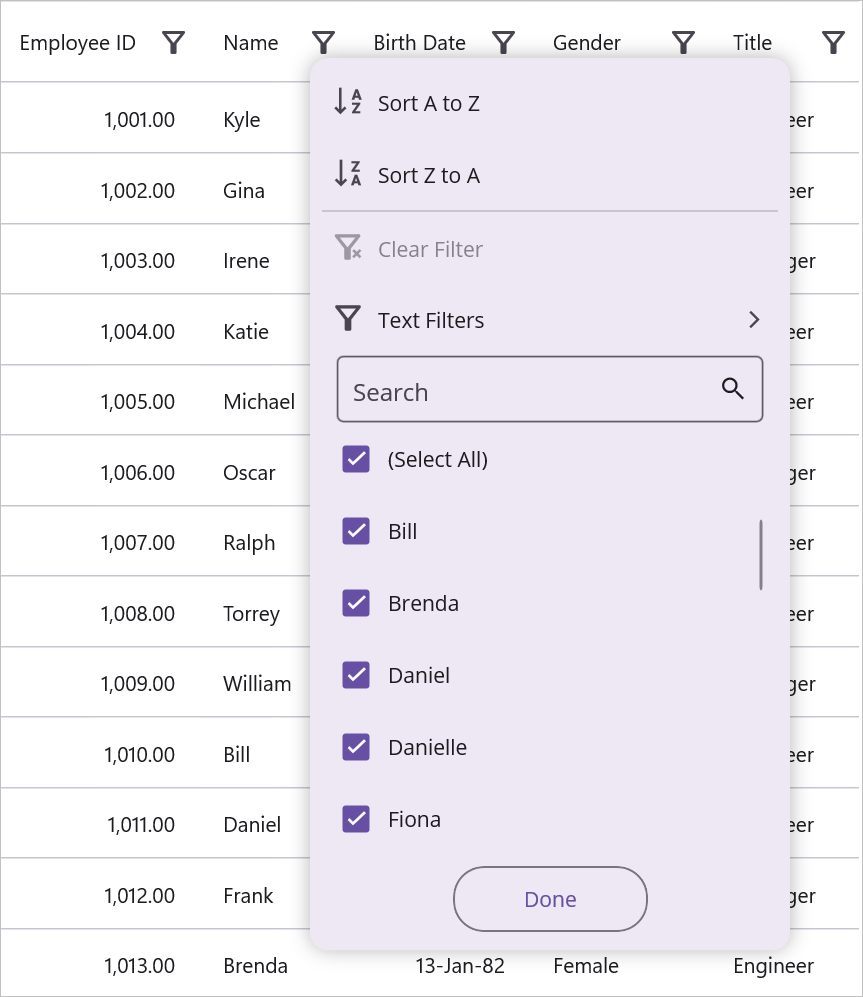

Checkbox Filter with ImmediateUpdateColumnFilter as True

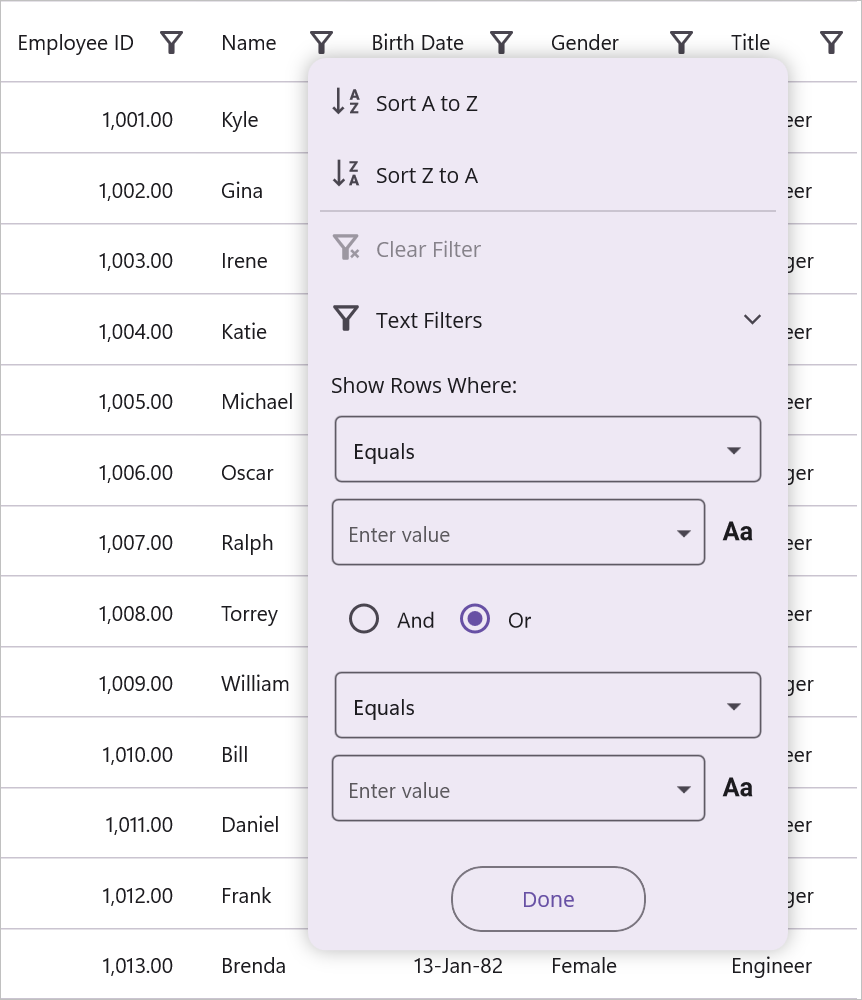

Advanced Filter with ImmediateUpdateColumnFilter as True

Customizing the filter popup menu options

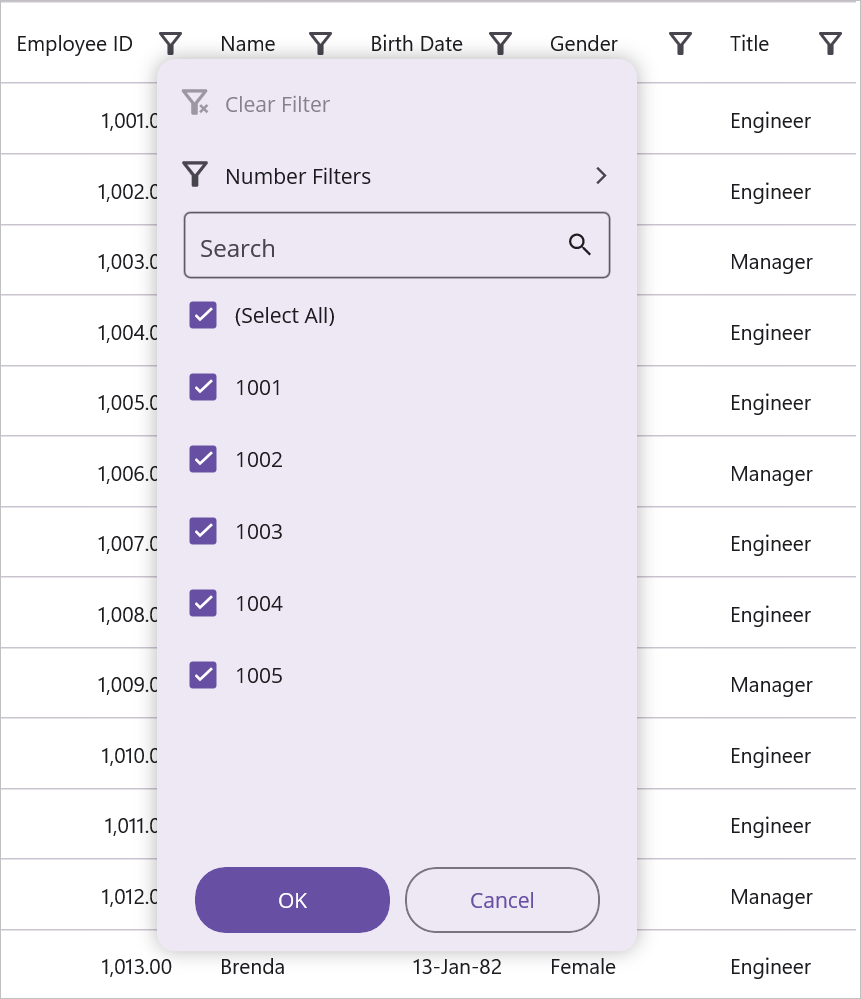

Visibility of sort options

The sort options in the filter popup will be enabled only when we set SortingMode as Single or Multiple. OtherWise the icons are in disable state. If you want to remove the sort options from the filter popup, set the SortOptionsVisibility to false using FilterPopupStyle. As the default value of SortOptionsVisibility is true, the sort options is visible in the popup menu.

XAML

<ContentPage.Resources>
    <Style x:Key="filterViewStyle" TargetType="syncfusion:DataGridFilterView">
        <Setter Property="SortOptionsVisiblity" Value="false"/>
    </Style>
</ContentPage.Resources>

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterPopupStyle="{StaticResource filterViewStyle}"/>

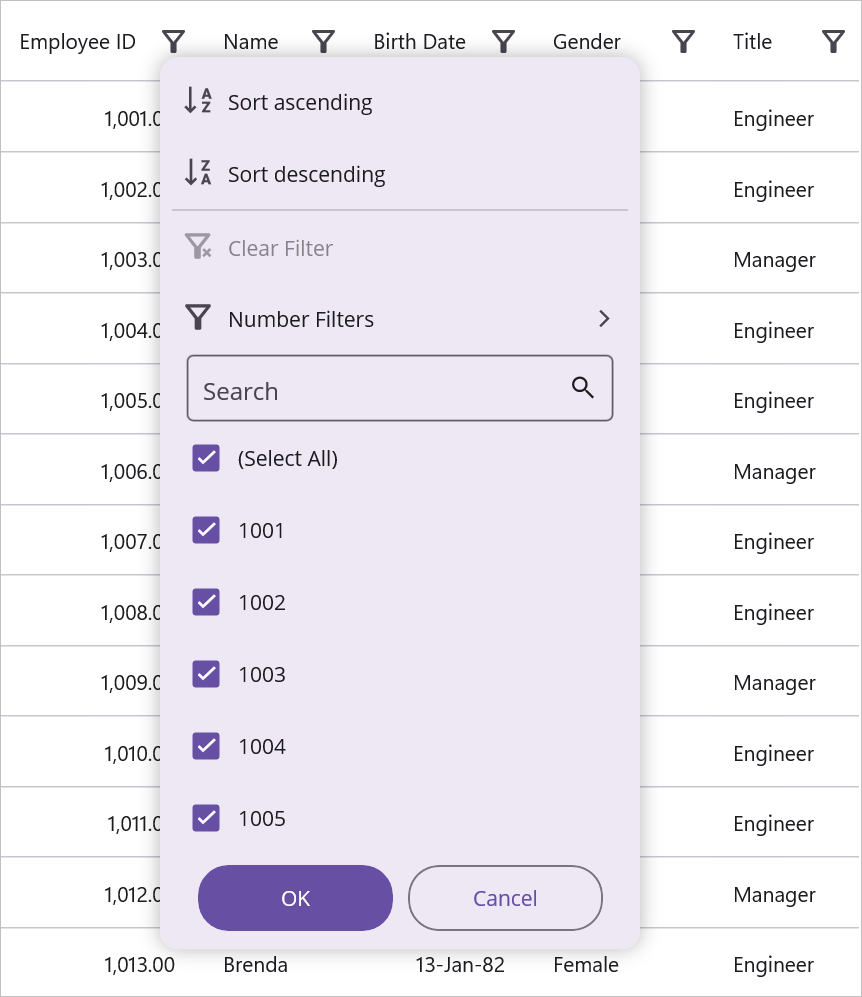

Customizing the sorting text

We can customize the text present in the sort options using AscendingSortString and DescendingSortString.

C#

dataGrid.FilterItemsPopulating += dataGrid_FilterItemsPopulating;

private void dataGrid_FilterItemsPopulating(object sender, Syncfusion.Maui.DataGrid.DataGridFilterItemsPopulatingEventArgs e)
{
    if (e.Column.MappingName == "Name")
    {
        e.FilterControl.AscendingSortString = "Sort ascending";
        e.FilterControl.DescendingSortString = "Sort descending";
    }
}

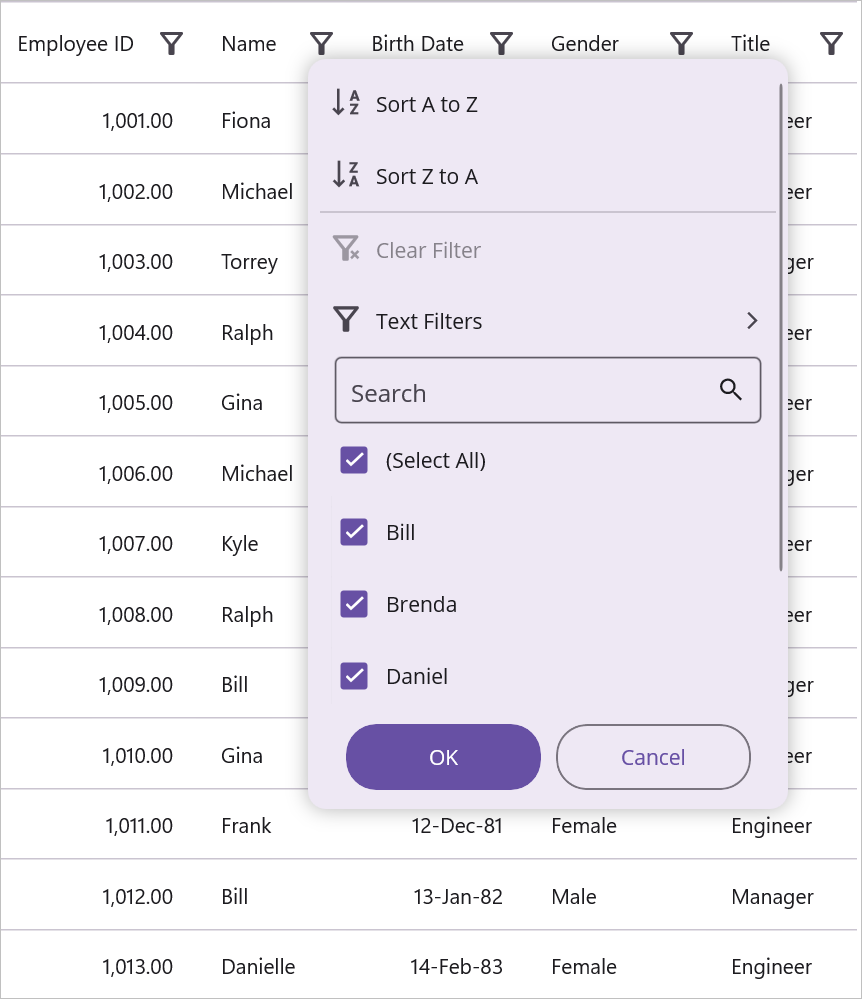

Customize the filter popup size

You can customize the FilterPopup size using FilterPopupHeight and FilterPopupWidth properties by writing style of TargetType as DataGridFilterView.

XAML

<ContentPage.Resources>
    <Style x:Key="filterViewStyle" TargetType="syncfusion:DataGridFilterView">
        <Setter Property="FilterPopupHeight" Value="500"/>
        <Setter Property="FilterPopupWidth" Value="360"/>
    </Style>
</ContentPage.Resources>

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding OrderInfoCollection}"
                       AllowFiltering="True"
                       FilterPopupStyle="{StaticResource filterViewStyle}"/>

Customize the filter icon

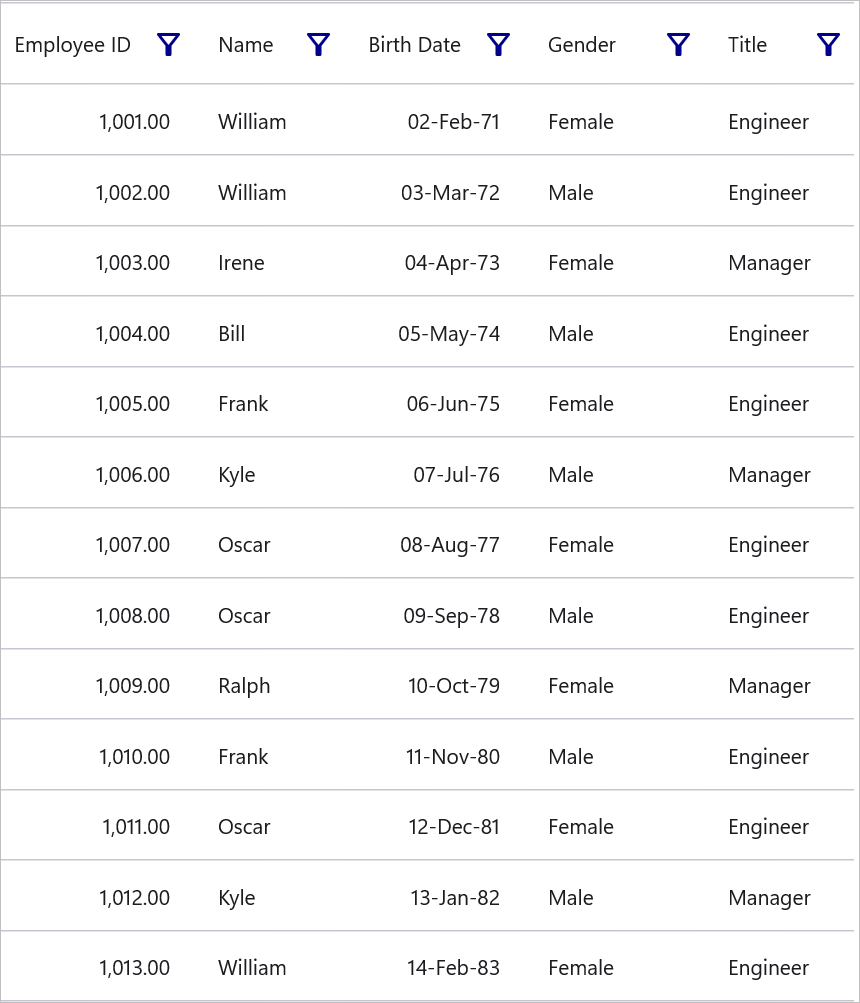

Change the filter icon color

The default color of the filter icon can be customized by setting the DataGridStyle.FilterIconColor property.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                        AllowFiltering="True"
                        ItemsSource="{Binding OrderInfoCollection}" >
        <syncfusion:SfDataGrid.DefaultStyle>
                <syncfusion:DataGridStyle FilterIconColor="DarkBlue" />
        </syncfusion:SfDataGrid.DefaultStyle>
</syncfusion:SfDataGrid>

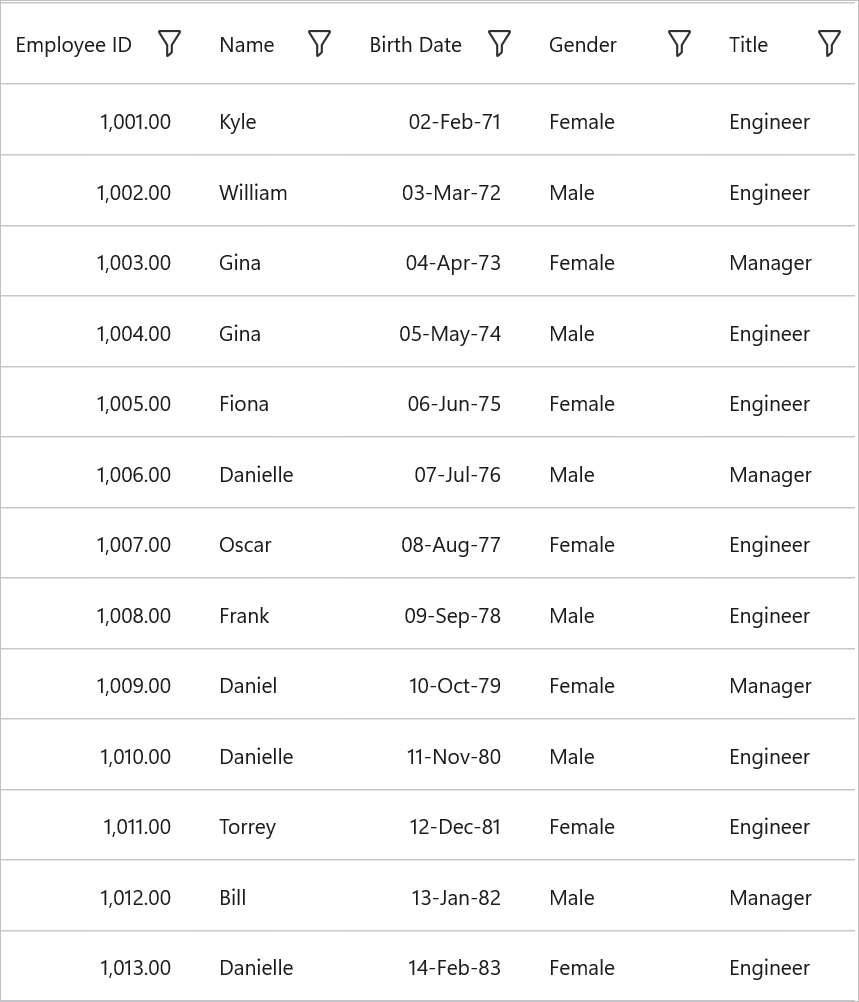

Load filter icon through template

The SfDataGrid uses an icon to open the filter popup in UI filtering. You can personalize the filtering icon by using the SfDataGrid.FilterIconTemplate property. This property allow you to define a custom template that appears in the column header instead of default filter icon.

XAML

<syncfusion:SfDataGrid ItemsSource="{Binding OrderInfoCollection}"
                            x:Name="dataGrid"
                            AllowFiltering="True">
        <syncfusion:SfDataGrid.FilterIconTemplate>
                <DataTemplate>
                    <Image Source="filter.png"/>
                </DataTemplate>
        </syncfusion:SfDataGrid.FilterIconTemplate>
</syncfusion:SfDataGrid>

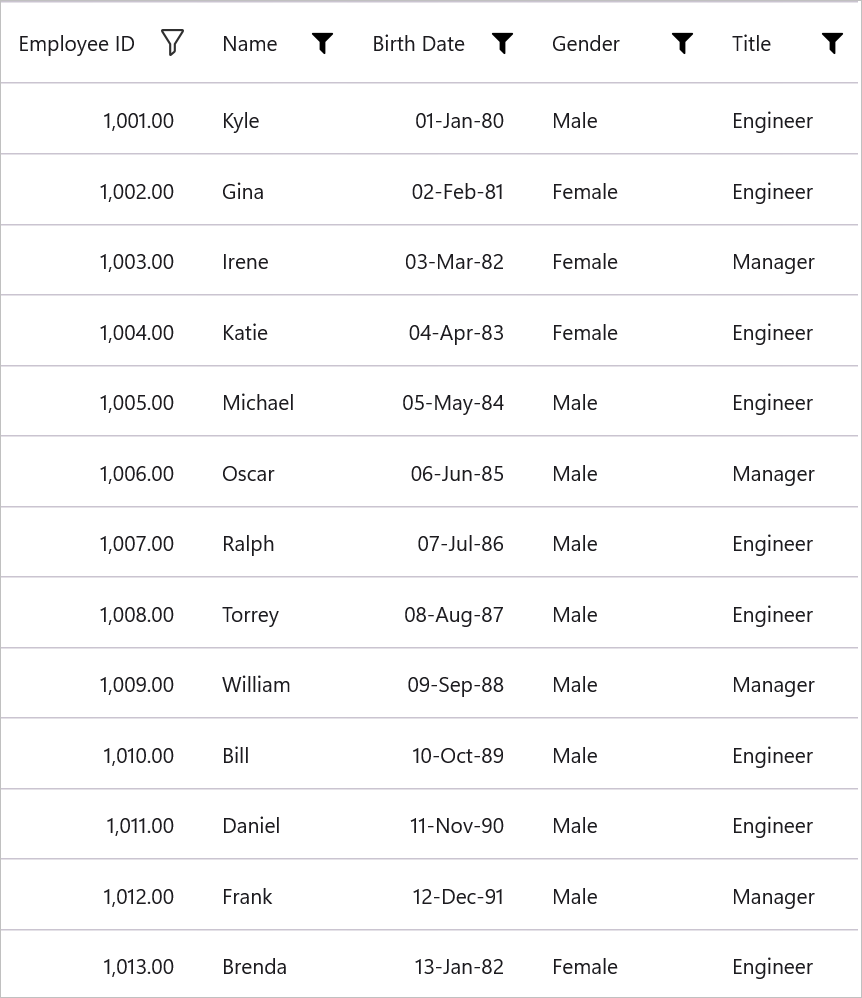

Load filter icon through template selector

When choosing a FilterIconTemplate as a DataTemplateSelector, you have the option to supply two different templates for columns.

XAML

<ContentPage.Resources>
    <ResourceDictionary>
        <DataTemplate x:Key="FilterIcon1">
            <Image Source="filter.png"/>
        </DataTemplate>
        <DataTemplate x:Key="FilterIcon2">
            <Image Source="filterNew.png"/>
        </DataTemplate>
    </ResourceDictionary>
</ContentPage.Resources>

<ContentPage.Content>
<syncfusion:SfDataGrid ItemsSource="{Binding EmployeeDetails}"
                            x:Name="dataGrid"
                            AllowFiltering="True"
                            >
        <syncfusion:SfDataGrid.FilterIconTemplate >
            <local:FilterIconTemplateSelector IconTemplate1="{StaticResource FilterIcon1 }" IconTemplate2="{StaticResource FilterIcon2}" />
        </syncfusion:SfDataGrid.FilterIconTemplate>
</syncfusion:SfDataGrid>
<ContentPage.Content>

C#

public class FilterIconTemplateSelector : DataTemplateSelector
{
    public DataTemplate? IconTemplate1 { get; set; }

    public DataTemplate? IconTemplate2 { get; set; }

    protected override DataTemplate OnSelectTemplate(object item, BindableObject container)
    {
        var column = item as DataGridColumn;
        if (column == null)
        {
            return null;
        }

        if (column.MappingName == "EmployeeID")
        {
            return IconTemplate1;
        }
        else
        {
            return IconTemplate2;
        }
    }
}

Customize the appearance of filter popup menu

The SfDataGrid provides extensive appearance customization options for its filter popup through the DataGridStyle. These settings allow you to customize visual elements such as icons, dividers, checkboxes, and button backgrounds in both the basic and advanced filter popups.

You can apply these customizations by assigning a DataGridStyle instance to the SfDataGrid.DefaultStyle property

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding EmployeeDetails}"
                       AllowFiltering="True">
    <syncfusion:SfDataGrid.DefaultStyle>
        <syncfusion:DataGridStyle
            FilterPopupIconColor="Maroon"
            FilterPopupBackground="LightCyan"
            FilterPopupOkButtonBackgroundColor="Purple"
            FilterPopupCheckboxCheckedColor="ForestGreen" />
    </syncfusion:SfDataGrid.DefaultStyle>
</syncfusion:SfDataGrid>

C#

dataGrid.DefaultStyle = new DataGridStyle
   {
        FilterPopupIconColor= Colors.Maroon,
        FilterPopupBackground= Colors.LightCyan,
        FilterPopupOkButtonBackgroundColor= Colors.Purple,
        FilterPopupCheckboxCheckedColor= Colors.ForestGreen,
    };

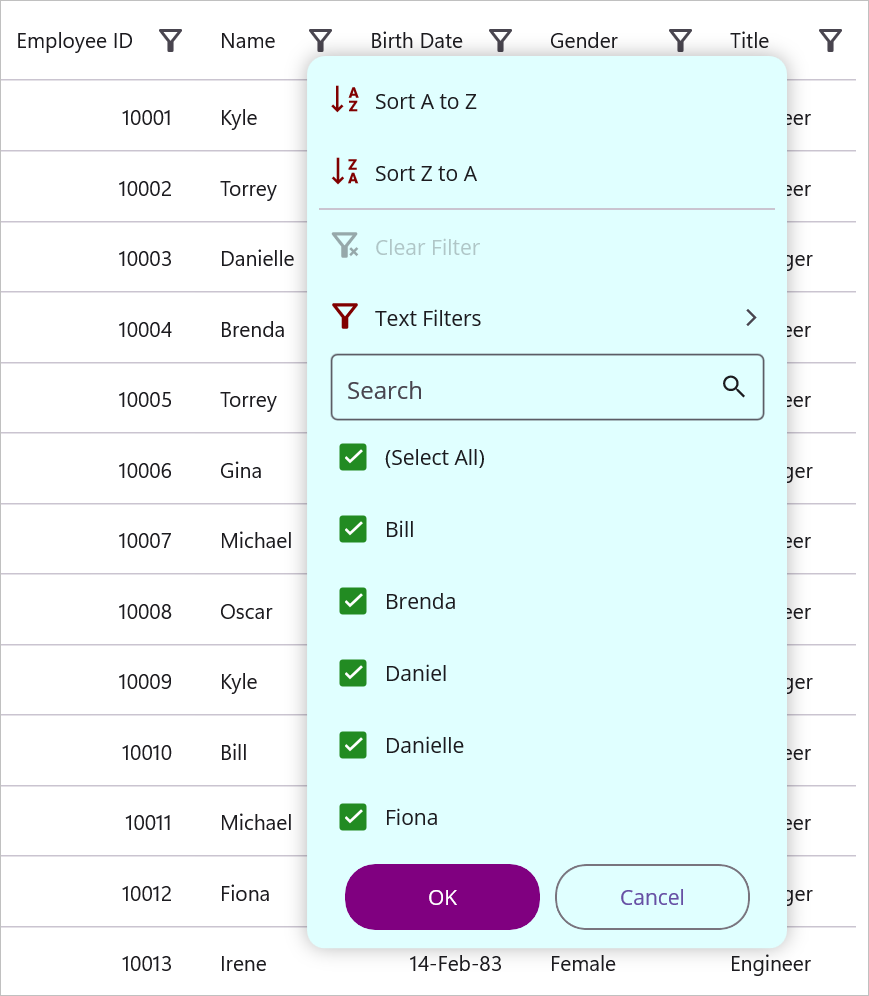

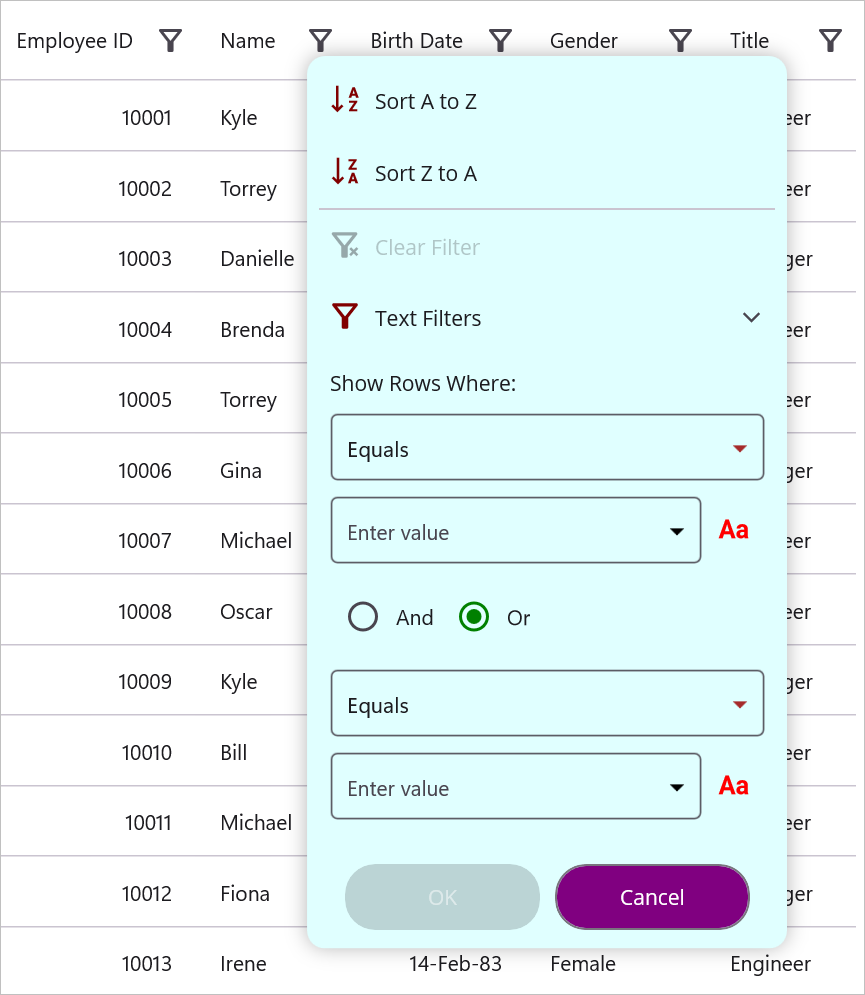

Here is the checkbox and advanced filter popup with some appearance customizations

Use the following DataGridStyle properties to customize the filter popup menu and related elements:

Property	Description
DataGridStyle.FilterPopupBackground	Background color of the filter popup (Brush).
DataGridStyle.FilterPopupTextColor	Text color used within the popup.
DataGridStyle.FilterPopupIconColor	Color for icons displayed in the popup.
DataGridStyle.FilterPopupDisabledIconColor	Color of the clear-filter icon when it’s disabled in the popup.
DataGridStyle.FilterPopupTopDividerColor	Color of the top divider line in the popup.
DataGridStyle.FilterPopupOkButtonBackgroundColor	Background color of the OK button in the popup.
DataGridStyle.FilterPopupOkButtonTextColor	Text color of the OK button in the popup.
DataGridStyle.FilterPopupOkButtonDisabledColor	Color of the OK button when disabled in the popup.
DataGridStyle.FilterPopupCancelButtonBackgroundColor	Background color of the Cancel button in the popup.
DataGridStyle.FilterPopupCancelButtonTextColor	Text color of the Cancel button in the popup.
DataGridStyle.FilterPopupHeaderOkIconColor	Color of the OK icon in the popup in Mobile view.
DataGridStyle.FilterPopupHeaderCancelIconColor	Color of the Cancel/Close icon in the popup in Mobile view.
DataGridStyle.FilterPopupPlaceholderColor	Placeholder color for search bar, entry, and combo boxes in the popup.
DataGridStyle.FilterPopupCheckboxCheckedColor	Fill color of checkboxes when selected in Checkbox filter view.
DataGridStyle.FilterPopupSearchBarIconColor	Color of the search icon in the checkbox filter view.
DataGridStyle.FilterPopupSearchBarStroke	Border color of the search bar in the checkbox filter view.
DataGridStyle.FilterPopupNoMatchesTextColor	Text color of the “No matches” label in the checkbox filter view.
DataGridStyle.FilterPopupRadioButtonCheckedColor	Color of checked And/Or radio buttons in Advanced filter view.
DataGridStyle.FilterPopupRadioButtonUncheckedColor	Color of unchecked And/Or radio buttons in Advanced filter view.
DataGridStyle.FilterPopupCaseSensitiveActiveColor	Case-sensitive icon color when activated in Advanced text filters.
DataGridStyle.FilterPopupCaseSensitiveInactiveColor	Case-sensitive icon color when inactive in Advanced text filters.
DataGridStyle.FilterPopupCaseSensitiveHoverColor	Background color when hovering the case-sensitive icon (Advanced text filters).
DataGridStyle.FilterPopupCalendarIconColor	Calendar icon color for date pickers in Advanced date filters.
DataGridStyle.AdvanceFilterDropdownIconColor	Dropdown icon color used in the advanced filter header area.
DataGridStyle.AdvanceFilterTypeDropdownIconColor	Dropdown icon color of the filter type combo box in Advanced filter.
DataGridStyle.AdvanceFilterValueDropdownIconColor	Dropdown icon color of the filter value combo box in Advanced filter.
DataGridStyle.AdvanceFilterTypeDropdownStroke	Border color of the filter type combo box (Advanced filter).
DataGridStyle.AdvanceFilterValueDropdownStroke	Border color of the filter value combo box (Advanced filter).

NOTE

The FilterPopupHeaderCancelIconColor and FilterPopupHeaderOkIconColor properties are supported only on mobile platforms.
