Touch Support in Windows Forms Ribbon (RibbonControlAdv)

24 Mar 20221 minute to read

Ribbon control have touch support and it provides Touch UI which is easy to access the elements in Ribbon.

Enable Touch Style

You can control touch mode settings of RibbonControlAdv control using the following property.

Property	Type	Description
RibbonTouchModeEnabled	Boolean	Enabling the RibbonTouchModeEnabled property in RibbonControlAdv, increases the size according to Microsoft touch mode size. Disabling the property retains its original size.

C#
VB
//Enables touch mode
this.ribbonControlAdv1.RibbonTouchModeEnabled = true;
this.ribbonControlAdv1.TouchMode = true;
Me.ribbonControlAdv1.RibbonTouchModeEnabled = True
Me.ribbonControlAdv1.TouchMode = True

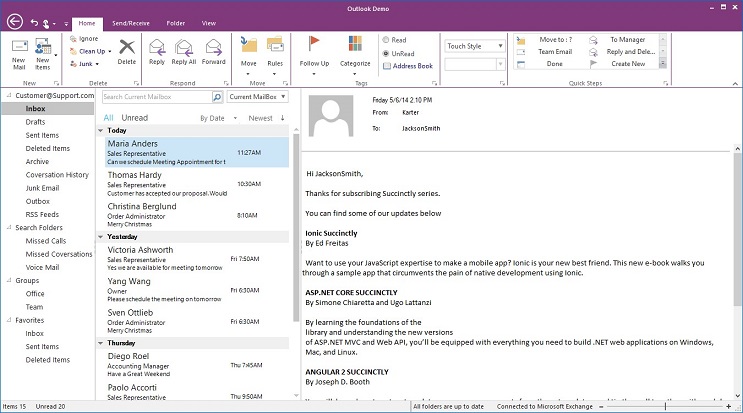

Windows Forms Ribbon Touch Support

Switching between Touch and Mouse Mode

During this mode, an extra dropdown button will be added in QAT. This dropdown contains two modes Touch and Mouse.

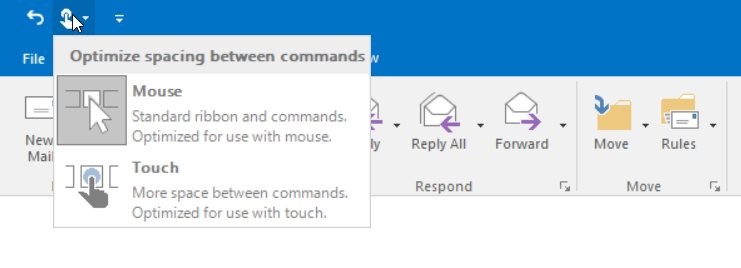

Windows Forms Ribbon Touch and Mouse Mode

Selecting the touch will provide extra spaces between the elements for better touch support and Mouse mode will take back to standard ribbon size.
