Localization Support in Windows Forms Ribbon (RibbonControlAdv)

4 Feb 202520 minutes to read

RibbonControlAdv now supports adaptation of its controls and its details to meet different languages and cultural requirements. This involves configuring the ribbon to a specific language.

Adding ILocalizationProvider

  1. Include the required namespaces at the beginning of the source file.

  2. Create a class that implements the ILocalizationProvider interface defined in the Syncfusion.Windows.Forms namespace in the Syncfusion.Shared.Base.dll.

  3. Return the localized versions of the strings corresponding to the string identifiers.

  4. String identifiers are defined in the ToolsResourceIdentifier classes in Syncfusion.Tools.Windows

​

using Syncfusion.Windows.Forms.Tools;
Imports Syncfusion.Windows.Forms.Tools

  1. Leave an empty string for the rest of the identifiers that are not involved in the localization. These identifiers are loaded with a default value.

  2. Assign this instance to the Provider property of the LocalizationProvider class before the InitializeComponent call in the constructor of the application.

​

LocalizationProvider.Provider = new localization();
LocalizationProvider.Provider = New localization()
  1. The Following is an example for localization
class localization : ILocalizationProvider
    {

        public string GetLocalizedString(System.Globalization.CultureInfo culture, string stringname, object obj)
        {

            switch (stringname)
            {

                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonAdd:
                    return "添加";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonRemove:
                    return "移除";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonCancel:
                    return "取消";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonOk:
                    return "确定";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonReset:
                    return "重置";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogLabel:
                    return "自定义功能区";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogChooseCommands:
                    return "选择命令";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogMainTab:
                    return "主选项卡";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonNewGroup:
                    return "新建组";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonNewTab:
                    return "新建选项卡";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonRename:
                    return "重命名";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogCustomizationLabel:
                    return "自定义选项";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogCaption:
                    return "自定义功能区";
                case ToolsResourceIdentifiers.CustomizeQuickAccessLabel:
                    return "快速访问工具栏";
                case ToolsResourceIdentifiers.QuickAccessCustomizeMenu:
                    return "自定义快速访问工具栏";
                case ToolsResourceIdentifiers.QuickAccessAddItem:
                    return "添加项目";

                case ToolsResourceIdentifiers.QuickAccessDialogButtonAdd:
                    return "添加";
                case ToolsResourceIdentifiers.QuickAccessDialogButtonCancel:
                    return "取消";
                case ToolsResourceIdentifiers.QuickAccessDialogButtonOk:
                    return "确定";
                case ToolsResourceIdentifiers.QuickAccessDialogButtonReset:
                    return "重置";
                case ToolsResourceIdentifiers.QuickAccessDialogButtonRemove:
                    return "移除";
                case ToolsResourceIdentifiers.QuickAccessMinimizeTheRibbon:
                    return "最小化功能区";
                case ToolsResourceIdentifiers.QuickAccessPlaceAboveRibbon:
                    return "放置于功能区上方";
                case ToolsResourceIdentifiers.QuickAccessPlaceBelowRibbon:
                    return "放置于功能区下方";
                case ToolsResourceIdentifiers.QuickAccessToolBarLabel:
                    return "快速访问工具栏";


                case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameCancelButton:
                    return "取消";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameCaption:
                    return "重命名";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameOkButton:
                    return "确定";
                case ToolsResourceIdentifiers.CustomizeRibbonRenameDisplayLabel:
                    return "显示名称";

                case ToolsResourceIdentifiers.CustomizationLabel:
                    return "自定义";
                case ToolsResourceIdentifiers.CustomizeMenu:
                    return "自定义";
                case ToolsResourceIdentifiers.QuickAccessDialogDropDownName:
                    return "快速访问下拉菜单";
                case ToolsResourceIdentifiers.QuickAccessCustomizeCaption:
                    return "快速访问工具栏";
                case ToolsResourceIdentifiers.QuickAccessDialogCommands:
                    return "命令";
                case ToolsResourceIdentifiers.CustomizeRibbonDialogColumnHeader:
                    return "列标题";

                case ToolsResourceIdentifiers.CustomMenu:
                    return "自定义菜单";
                case ToolsResourceIdentifiers.QuickAccessDialogCustomizeRibbon:
                    return "自定义功能区";

                default:
                    return string.Empty;

            }
        }
    }
Class localization
    Inherits ILocalizationProvider

    Public Function GetLocalizedString(ByVal culture As System.Globalization.CultureInfo, ByVal stringname As String, ByVal obj As Object) As String
        Select Case stringname
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonAdd
                Return "添加"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonRemove
                Return "移除"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonCancel
                Return "取消"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonOk
                Return "确定"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonReset
                Return "重置"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogLabel
                Return "自定义功能区"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogChooseCommands
                Return "选择命令"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogMainTab
                Return "主选项卡"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonNewGroup
                Return "新建组"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonNewTab
                Return "新建选项卡"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogButtonRename
                Return "重命名"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogCustomizationLabel
                Return "自定义选项"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogCaption
                Return "自定义功能区"
            Case ToolsResourceIdentifiers.CustomizeQuickAccessLabel
                Return "快速访问工具栏"
            Case ToolsResourceIdentifiers.QuickAccessCustomizeMenu
                Return "自定义快速访问工具栏"
            Case ToolsResourceIdentifiers.QuickAccessAddItem
                Return "添加项目"
            Case ToolsResourceIdentifiers.QuickAccessDialogButtonAdd
                Return "添加"
            Case ToolsResourceIdentifiers.QuickAccessDialogButtonCancel
                Return "取消"
            Case ToolsResourceIdentifiers.QuickAccessDialogButtonOk
                Return "确定"
            Case ToolsResourceIdentifiers.QuickAccessDialogButtonReset
                Return "重置"
            Case ToolsResourceIdentifiers.QuickAccessDialogButtonRemove
                Return "移除"
            Case ToolsResourceIdentifiers.QuickAccessMinimizeTheRibbon
                Return "最小化功能区"
            Case ToolsResourceIdentifiers.QuickAccessPlaceAboveRibbon
                Return "放置于功能区上方"
            Case ToolsResourceIdentifiers.QuickAccessPlaceBelowRibbon
                Return "放置于功能区下方"
            Case ToolsResourceIdentifiers.QuickAccessToolBarLabel
                Return "快速访问工具栏"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameCancelButton
                Return "取消"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameCaption
                Return "重命名"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogRenameOkButton
                Return "确定"
            Case ToolsResourceIdentifiers.CustomizeRibbonRenameDisplayLabel
                Return "显示名称"
            Case ToolsResourceIdentifiers.CustomizationLabel
                Return "自定义"
            Case ToolsResourceIdentifiers.CustomizeMenu
                Return "自定义"
            Case ToolsResourceIdentifiers.QuickAccessDialogDropDownName
                Return "快速访问下拉菜单"
            Case ToolsResourceIdentifiers.QuickAccessCustomizeCaption
                Return "快速访问工具栏"
            Case ToolsResourceIdentifiers.QuickAccessDialogCommands
                Return "命令"
            Case ToolsResourceIdentifiers.CustomizeRibbonDialogColumnHeader
                Return "列标题"
            Case ToolsResourceIdentifiers.CustomMenu
                Return "自定义菜单"
            Case ToolsResourceIdentifiers.QuickAccessDialogCustomizeRibbon
                Return "自定义功能区"
            Case Else
                Return String.Empty
        End Select
    End Function
End Class

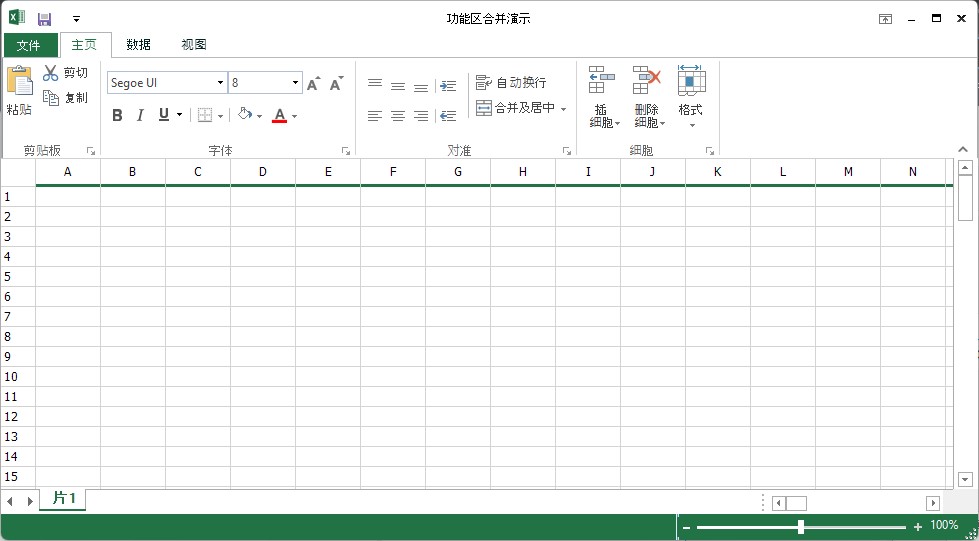

Localization-Support_img1

Ribbon Resource Identifier

String

 Description
CustomizeRibbonDialogButtonAdd

 `Add` button to add selected item in Customize Ribbon window
CustomizeRibbonDialogButtonRemove

 `Remove` button to remove selected item in Customize Ribbon window
CustomizeRibbonDialogButtonCancel

 `Cancel` button to cancel the changes in Customize Ribbon window
CustomizeRibbonDialogButtonOk

 `Ok` button to save the changes in Customize Ribbon window
CustomizeRibbonDialogButtonReset

 `Reset` button to reset all the customizations in Customize Ribbon window
CustomizeRibbonDialogLabel

 Main `Customize the Ribbon` label in Customize Ribbon window
CustomizeRibbonDialogChooseCommands

 `Choose Commands from` combo box header
CustomizeRibbonDialogMainTab

 `Customize Ribbon` tab header in left panel in Customize window
CustomizeRibbonDialogButtonNewGroup

 `New Group` button to add new group in Customize Ribbon window
CustomizeRibbonDialogButtonNewTab

 `New Tab` button to add new tab in Customize Ribbon window
CustomizeRibbonDialogButtonRename

 `Rename` button to rename selected item in customize Ribbon window
CustomizeRibbonDialogCustomizationLabel

 `Customizations` label in customize ribbon window
CustomizeRibbonDialogCaption

 Caption in customize ribbon window
CustomizeQuickAccessLabel

 Main label in customize QAT
QuickAccessCustomizeMenu

 Customize menu in quick access
QuickAccessAddItem

 Add Item label in quick access
QuickAccessDialogButtonAdd

 `Add` button to add selected item in Customize QAT window
QuickAccessDialogButtonCancel

 `Cancel` button to cancel the changes in Customize QAT window
QuickAccessDialogButtonOk

 `Ok` button to save the changes in Customize QAT window
QuickAccessDialogButtonReset

 `Reset` button to reset all the customizations in Customize QAT window
QuickAccessDialogButtonRemove

 `Remove` button to remove selected item in Customize QAT window
QuickAccessMinimizeTheRibbon

 MinimizeTheRibbon option in quick access
QuickAccessPlaceAboveRibbon

 PlaceAboveRibbon option in quick access
QuickAccessPlaceBelowRibbon

 PlaceBelowRibbon option in quick access
QuickAccessToolBarLabel

 QAT label
CustomizeRibbonDialogRenameCancelButton

 `Cancel’ button in Rename popup window
CustomizeRibbonDialogRenameCaption

 Rename caption in rename popup window
CustomizeRibbonDialogRenameOkButton

 `Ok` button in rename popup window
CustomizeRibbonRenameDisplayLabel

 Display Name label in rename popup window
CustomizationLabel

 Customization label in window
CustomizeMenu

 Customize menu option
QuickAccessDialogDropDownName

 Drop down name in quick access dialog
QuickAccessCustomizeCaption

 Customize caption in customizing QAT.
QuickAccessDialogCommands

 Commands dialog in quick access
CustomizeRibbonDialogColumnHeader

 Column header in Customize ribbon

CustomMenu

 Custom menu label
QuickAccessDialogCustomizeRibbon

 Quick access dialog in customize ribbon window

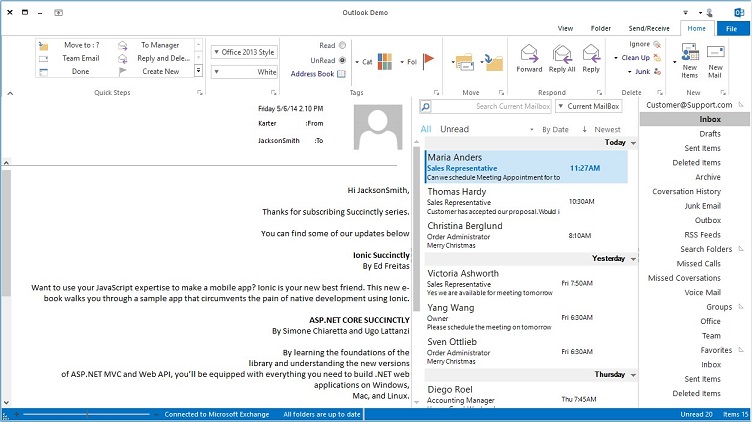

Right To Left

In Right To Left support, RibbonControlAdv aligns all its controls from right To left when the ribbon property `RightToLeft’ is set to Yes.

this.ribbonControlAdv1.RightToLeft = RightToLeft.Yes;
this.ribbonControlAdv1.RightToLeft = RightToLeft.Yes;

Localization-Support_img2
