Ticks in Flutter Range Selector (SfRangeSelector)
18 Nov 201824 minutes to read
This section explains how to add major and minor ticks in the Flutter Range Selector.

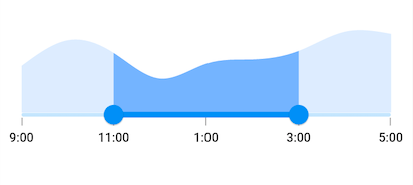

Show major ticks
You can enable the major ticks on the track. It is a shape used to mark the major interval points on the track. The default value of showTicks property is false.
For example, if min is 0.0 and max is 10.0 and interval is 2.0, the Flutter Range Selector will render the major ticks at 0.0, 2.0, 4.0 and so on.
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class ShowMajorTicksSample extends StatelessWidget {
final DateTime _min = DateTime(2002, 01, 01, 09, 00, 00);
final DateTime _max = DateTime(2002, 01, 01, 17, 00, 00);
final SfRangeValues _values = SfRangeValues(
DateTime(2002, 01, 01, 11, 00, 00), DateTime(2002, 01, 01, 15, 00, 00));
final List<Data> chartData = <Data>[
Data(x: DateTime(2002, 01, 01, 09, 00, 00), y: 2.2),
Data(x: DateTime(2002, 01, 01, 10, 00, 00), y: 3.4),
Data(x: DateTime(2002, 01, 01, 11, 00, 00), y: 2.8),
Data(x: DateTime(2002, 01, 01, 12, 00, 00), y: 1.6),
Data(x: DateTime(2002, 01, 01, 13, 00, 00), y: 2.3),
Data(x: DateTime(2002, 01, 01, 14, 00, 00), y: 2.5),
Data(x: DateTime(2002, 01, 01, 15, 00, 00), y: 2.9),
Data(x: DateTime(2002, 01, 01, 16, 00, 00), y: 3.8),
Data(x: DateTime(2002, 01, 01, 17, 00, 00), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 2,
dateFormat: DateFormat('h:mm'),
dateIntervalType: DateIntervalType.hours,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
NOTE
Refer the
tickShapeandSfRangeSelectorThemeDatafor customizing the major tick’s visual appearance.

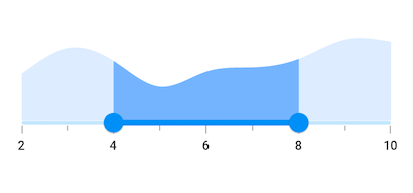

Show minor ticks
It represents the number of smaller ticks between two major ticks. For example, if min is 0.0 and max is 10.0 and interval is 2.0, the Flutter Range Selector will render the major ticks at 0.0, 2.0, 4.0 and so on. If minorTicksPerInterval is 1, then smaller ticks will be rendered on 1.0 and 3.0 and so on.
IMPORTANT
The default value of
minorTicksPerIntervalproperty isnulland it must be greater than 0.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class ShowMinorTicksSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
interval: 2,
showLabels: true,
showTicks: true,
minorTicksPerInterval: 1,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
NOTE
- Refer the
showTicksto know about the rendering of major ticks at given interval.- Refer the
minorTickShapeandSfRangeSelectorThemeDatafor customizing the minor tick’s visual appearance.

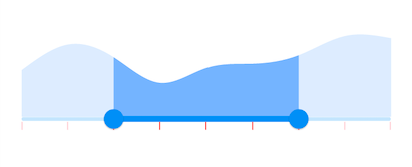

Major ticks color
You can change the active and inactive major ticks color of the Flutter Range Selector using the activeTickColor and inactiveTickColor properties respectively.
The active side of the SfRangeSelector is between start and end thumbs.
The inactive side of the SfRangeSelector is between the min value and the start thumb, and the end thumb and the max value.
For RTL, the inactive side is between the max value and the start thumb, and the end thumb and the min value.
NOTE
You must import the
theme.dartlibrary from theCorepackage to useSfRangeSelectorTheme. This applies to all the theme-based examples in this section.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class MajorTicksColorSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeTickColor: Colors.red,
inactiveTickColor: Colors.red[100],
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}

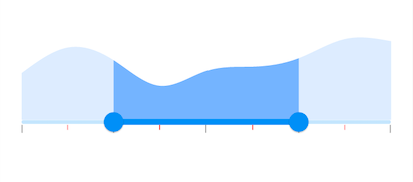

Minor ticks color
You can change the active and inactive minor ticks color of the Flutter Range Selector using the activeMinorTickColor and inactiveMinorTickColor properties respectively.
The active side of the SfRangeSelector is between start and end thumbs.
The inactive side of the SfRangeSelector is between the min value and the start thumb, and the end thumb and the max value.
For RTL, the inactive side is between the max value and the start thumb, and the end thumb and the min value.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class MinorTicksColorSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeMinorTickColor: Colors.red,
inactiveMinorTickColor: Colors.red[200],
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 2,
minorTicksPerInterval: 1,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}
Tick size
You can change the major and minor ticks size of the Flutter Range Selector using the tickSize and minorTickSize properties respectively. The default value of the tickSize property is Size(1.0, 8.0) and minorTickSize property is Size(1.0, 5.0).
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class TickSizeSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
tickSize: Size(3.0, 12.0),
minorTickSize: Size(3.0, 8.0),
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 2,
minorTicksPerInterval: 1,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}

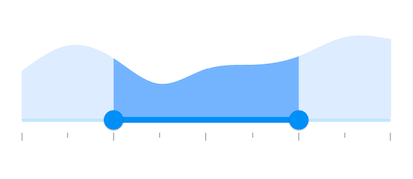

Ticks offset
You can adjust the space between track and ticks of the Flutter Range Selector using the tickOffset property in the SfRangeSelectorThemeData. The default value of the tickOffset property is null.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class TickOffsetSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
tickOffset: Offset(0.0, 10.0),
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 2,
minorTicksPerInterval: 1,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}
