Tooltip in Flutter Range Selector (SfRangeSelector)

18 Nov 201824 minutes to read

This section explains how to add tooltips in the Flutter Range Selector.

Enable tooltips

You can enable tooltips for both thumbs using the enableTooltip property. It is used to clearly indicate the current selection of the ranges during interaction. By default, tooltip text is formatted with either numberFormat or dateFormat.

IMPORTANT

By setting the value of shouldAlwaysShowTooltip to true, you can always show a tooltip without having to interact with the range selector thumb. The default value is false and it works independent of the enableTooltip behavior.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipSample extends StatefulWidget {
  @override
  _TooltipSampleState createState() => _TooltipSampleState();
}

class _TooltipSampleState extends State<TooltipSample> {
  final double _min = 2.0;
  final double _max = 10.0;
  SfRangeValues _values = SfRangeValues(4.0, 8.0);

  final List<Data> chartData = <Data>[
    Data(x: 2.0, y: 2.2),
    Data(x: 3.0, y: 3.4),
    Data(x: 4.0, y: 2.8),
    Data(x: 5.0, y: 1.6),
    Data(x: 6.0, y: 2.3),
    Data(x: 7.0, y: 2.5),
    Data(x: 8.0, y: 2.9),
    Data(x: 9.0, y: 3.8),
    Data(x: 10.0, y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelector(
            min: _min,
            max: _max,
            interval: 2,
            showLabels: true,
            showTicks: true,
            enableTooltip: true,
            initialValues: _values,
            child: Container(
              height: 130,
              child: SfCartesianChart(
                margin: const EdgeInsets.all(0),
                primaryXAxis: NumericAxis(
                  minimum: _min,
                  maximum: _max,
                  isVisible: false,
                ),
                primaryYAxis: NumericAxis(isVisible: false),
                plotAreaBorderWidth: 0,
                series: <SplineAreaSeries<Data, double>>[
                  SplineAreaSeries<Data, double>(
                    color: Color.fromARGB(255, 126, 184, 253),
                    dataSource: chartData,
                    xValueMapper: (Data sales, int index) => sales.x,
                    yValueMapper: (Data sales, int index) => sales.y)
                ],
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

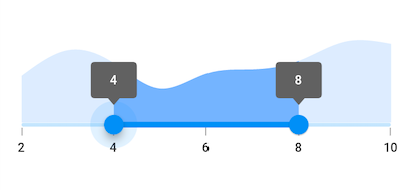

Tooltip support

NOTE

Tooltip shape

You can show tooltip in rectangular or paddle shape using the tooltipShape property. The default value of the tooltipShape property is SfRectangularTooltipShape.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipShapeSample extends StatefulWidget {
  @override
  _TooltipShapeSampleState createState() => _TooltipShapeSampleState();
}

class _TooltipShapeSampleState extends State<TooltipShapeSample> {
  final double _min = 2.0;
  final double _max = 10.0;
  SfRangeValues _values = SfRangeValues(4.0, 8.0);

  final List<Data> chartData = <Data>[
    Data(x: 2.0, y: 2.2),
    Data(x: 3.0, y: 3.4),
    Data(x: 4.0, y: 2.8),
    Data(x: 5.0, y: 1.6),
    Data(x: 6.0, y: 2.3),
    Data(x: 7.0, y: 2.5),
    Data(x: 8.0, y: 2.9),
    Data(x: 9.0, y: 3.8),
    Data(x: 10.0, y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelector(
            min: _min,
            max: _max,
            interval: 1,
            showLabels: true,
            showTicks: true,
            enableTooltip: true,
            tooltipShape: SfPaddleTooltipShape(),
            initialValues: _values,
            child: Container(
              height: 130,
              child: SfCartesianChart(
                margin: const EdgeInsets.all(0),
                primaryXAxis: NumericAxis(
                  minimum: _min,
                  maximum: _max,
                  isVisible: false,
                ),
                primaryYAxis: NumericAxis(isVisible: false),
                plotAreaBorderWidth: 0,
                series: <SplineAreaSeries<Data, double>>[
                  SplineAreaSeries<Data, double>(
                    color: Color.fromARGB(255, 126, 184, 253),
                    dataSource: chartData,
                    xValueMapper: (Data sales, int index) => sales.x,
                    yValueMapper: (Data sales, int index) => sales.y)
                ],
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

Range selector tooltip shape

Tooltip text format

By default it is formatted based on numberFormat property and dateFormat property based on whether it is date type SfRangeSelector or numeric SfRangeSelector.

You can format or change the whole tooltip label text using the tooltipTextFormatterCallback. Its arguments are,

  • actualValue – either DateTime or double based on given initialValues.
  • formattedText – If the actual value is double, it is formatted by numberFormat and if the actual value is DateTime, it is formatted by dateFormat.
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipTextFormatSample extends StatefulWidget {
  @override
  _TooltipTextFormatSampleState createState() => _TooltipTextFormatSampleState();
}

class _TooltipTextFormatSampleState extends State<TooltipTextFormatSample> {
  final DateTime _min = DateTime(2002, 01, 01, 09, 00, 00);
  final DateTime _max = DateTime(2002, 01, 01, 17, 00, 00);
  SfRangeValues _values = SfRangeValues(
      DateTime(2002, 01, 01, 11, 00, 00), DateTime(2002, 01, 01, 15, 00, 00));

  final List<Data> chartData = <Data>[
    Data(x: DateTime(2002, 01, 01, 09, 00, 00), y: 2.2),
    Data(x: DateTime(2002, 01, 01, 10, 00, 00), y: 3.4),
    Data(x: DateTime(2002, 01, 01, 11, 00, 00), y: 2.8),
    Data(x: DateTime(2002, 01, 01, 12, 00, 00), y: 1.6),
    Data(x: DateTime(2002, 01, 01, 13, 00, 00), y: 2.3),
    Data(x: DateTime(2002, 01, 01, 14, 00, 00), y: 2.5),
    Data(x: DateTime(2002, 01, 01, 15, 00, 00), y: 2.9),
    Data(x: DateTime(2002, 01, 01, 16, 00, 00), y: 3.8),
    Data(x: DateTime(2002, 01, 01, 17, 00, 00), y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelector(
            min: _min,
            max: _max,
            showLabels: true,
            showTicks: true,
            interval: 2,
            dateFormat: DateFormat('h:mm'),
            dateIntervalType: DateIntervalType.hours,
            enableTooltip: true,
            tooltipTextFormatterCallback:
                (dynamic actualValue, String formattedText) {
              return DateFormat('h:mm a').format(actualValue);
            },
            initialValues: _values,
            child: Container(
              height: 130,
              child: SfCartesianChart(
                margin: const EdgeInsets.all(0),
                primaryXAxis: DateTimeAxis(
                  minimum: _min,
                  maximum: _max,
                  isVisible: false,
                ),
                primaryYAxis: NumericAxis(isVisible: false),
                plotAreaBorderWidth: 0,
                series: <SplineAreaSeries<Data, DateTime>>[
                  SplineAreaSeries<Data, DateTime>(
                    color: Color.fromARGB(255, 126, 184, 253),
                    dataSource: chartData,
                    xValueMapper: (Data sales, int index) => sales.x,
                    yValueMapper: (Data sales, int index) => sales.y)
                ],
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final DateTime x;
  final double y;
}

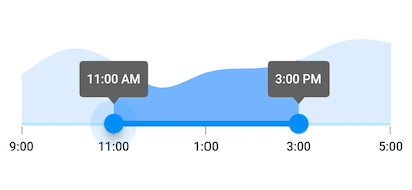

Tooltip format support

Tooltip color

You can change the background color of the tooltip in the range selector using the tooltipBackgroundColor property.

NOTE

You must import the theme.dart library from the Core package to use SfRangeSelectorTheme.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipColorSample extends StatefulWidget {
  @override
  _TooltipColorSampleState createState() => _TooltipColorSampleState();
}

class _TooltipColorSampleState extends State<TooltipColorSample> {
  final double _min = 2.0;
  final double _max = 10.0;
  SfRangeValues _values = SfRangeValues(4.0, 8.0);

  final List<Data> chartData = <Data>[
    Data(x: 2.0, y: 2.2),
    Data(x: 3.0, y: 3.4),
    Data(x: 4.0, y: 2.8),
    Data(x: 5.0, y: 1.6),
    Data(x: 6.0, y: 2.3),
    Data(x: 7.0, y: 2.5),
    Data(x: 8.0, y: 2.9),
    Data(x: 9.0, y: 3.8),
    Data(x: 10.0, y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelectorTheme(
            data: SfRangeSelectorThemeData(
              tooltipBackgroundColor: Colors.red[300],
            ),
            child: SfRangeSelector(
              min: _min,
              max: _max,
              interval: 1,
              enableTooltip: true,
              showTicks: true,
              showLabels: true,
              initialValues: _values,
              child: Container(
                height: 130,
                child: SfCartesianChart(
                  margin: const EdgeInsets.all(0),
                  primaryXAxis: NumericAxis(
                    minimum: _min,
                    maximum: _max,
                    isVisible: false,
                  ),
                  primaryYAxis: NumericAxis(isVisible: false),
                  plotAreaBorderWidth: 0,
                  series: <SplineAreaSeries<Data, double>>[
                    SplineAreaSeries<Data, double>(
                      color: Color.fromARGB(255, 126, 184, 253),
                      dataSource: chartData,
                      xValueMapper: (Data sales, int index) => sales.x,
                      yValueMapper: (Data sales, int index) => sales.y)
                  ],
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

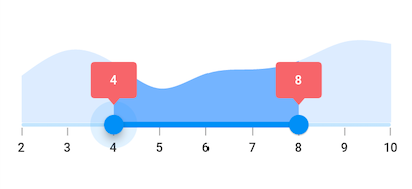

Tooltip color support

Tooltip label style

You can change the appearance of the tooltip text in the Flutter Range Selector using the tooltipTextStyle property.

NOTE

You must import the theme.dart library from the Core package to use SfRangeSelectorTheme.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipLabelStyleSample extends StatefulWidget {
  @override
  _TooltipLabelStyleSampleState createState() => _TooltipLabelStyleSampleState();
}

class _TooltipLabelStyleSampleState extends State<TooltipLabelStyleSample> {
  final double _min = 2.0;
  final double _max = 10.0;
  SfRangeValues _values = SfRangeValues(4.0, 8.0);

  final List<Data> chartData = <Data>[
    Data(x: 2.0, y: 2.2),
    Data(x: 3.0, y: 3.4),
    Data(x: 4.0, y: 2.8),
    Data(x: 5.0, y: 1.6),
    Data(x: 6.0, y: 2.3),
    Data(x: 7.0, y: 2.5),
    Data(x: 8.0, y: 2.9),
    Data(x: 9.0, y: 3.8),
    Data(x: 10.0, y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelectorTheme(
            data: SfRangeSelectorThemeData(
              tooltipTextStyle: TextStyle(
                  color: Colors.red,
                  fontSize: 16,
                  fontStyle: FontStyle.italic),
            ),
            child: SfRangeSelector(
              min: _min,
              max: _max,
              interval: 1,
              enableTooltip: true,
              showTicks: true,
              showLabels: true,
              initialValues: _values,
              child: Container(
                height: 130,
                child: SfCartesianChart(
                  margin: const EdgeInsets.all(0),
                  primaryXAxis: NumericAxis(
                    minimum: _min,
                    maximum: _max,
                    isVisible: false,
                  ),
                  primaryYAxis: NumericAxis(isVisible: false),
                  plotAreaBorderWidth: 0,
                  series: <SplineAreaSeries<Data, double>>[
                    SplineAreaSeries<Data, double>(
                      color: Color.fromARGB(255, 126, 184, 253),
                      dataSource: chartData,
                      xValueMapper: (Data sales, int index) => sales.x,
                      yValueMapper: (Data sales, int index) => sales.y)
                  ],
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

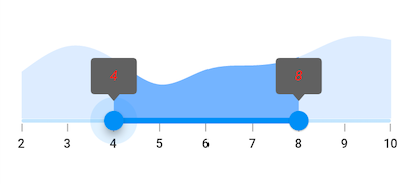

Tooltip style support

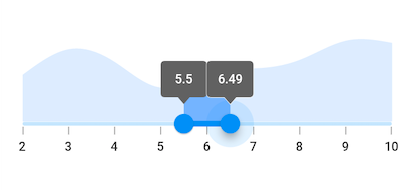

Tooltip overlap stroke color

You can change the overlap stroke color of the tooltip in the Flutter Range Selector using the overlappingTooltipStrokeColor property.

NOTE

You must import the theme.dart library from the Core package to use SfRangeSelectorTheme.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class TooltipOverlapStrokeSample extends StatefulWidget {
  @override
  _TooltipOverlapStrokeSampleState createState() =>
      _TooltipOverlapStrokeSampleState();
}

class _TooltipOverlapStrokeSampleState extends State<TooltipOverlapStrokeSample> {
  final double _min = 2.0;
  final double _max = 10.0;
  SfRangeValues _values = SfRangeValues(4.0, 8.0);

  final List<Data> chartData = <Data>[
    Data(x: 2.0, y: 2.2),
    Data(x: 3.0, y: 3.4),
    Data(x: 4.0, y: 2.8),
    Data(x: 5.0, y: 1.6),
    Data(x: 6.0, y: 2.3),
    Data(x: 7.0, y: 2.5),
    Data(x: 8.0, y: 2.9),
    Data(x: 9.0, y: 3.8),
    Data(x: 10.0, y: 3.7),
  ];

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfRangeSelectorTheme(
            data: SfRangeSelectorThemeData(
              overlappingTooltipStrokeColor: Colors.white,
            ),
            child: SfRangeSelector(
              min: _min,
              max: _max,
              interval: 1,
              enableTooltip: true,
              showTicks: true,
              showLabels: true,
              initialValues: _values,
              child: Container(
                height: 130,
                child: SfCartesianChart(
                  margin: const EdgeInsets.all(0),
                  primaryXAxis: NumericAxis(
                    minimum: _min,
                    maximum: _max,
                    isVisible: false,
                  ),
                  primaryYAxis: NumericAxis(isVisible: false),
                  plotAreaBorderWidth: 0,
                  series: <SplineAreaSeries<Data, double>>[
                    SplineAreaSeries<Data, double>(
                      color: Color.fromARGB(255, 126, 184, 253),
                      dataSource: chartData,
                      xValueMapper: (Data sales, int index) => sales.x,
                      yValueMapper: (Data sales, int index) => sales.y)
                  ],
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

Tooltip overlap support
