Labels and Dividers in Flutter Range Selector (SfRangeSelector)
6 Aug 202624 minutes to read
This section explains how to add labels and dividers to the range selector.

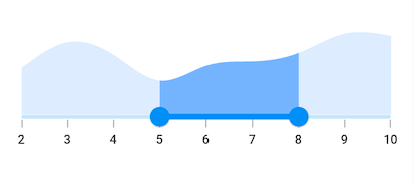

Show labels
The showLabels property is used to render the labels at given interval. The default value of showLabels property is false.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class ShowLabelsSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(5.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showLabels: true,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
NOTE
- Refer the
numberFormatanddateFormatfor formatting the numeric and date labels respectively.- Refer the
SfRangeSelectorThemeDatafor customizing the appearance of the labels.

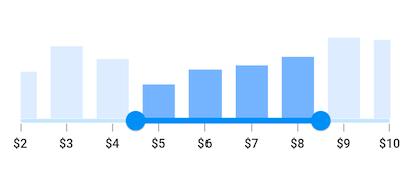

Number format
The numberFormat property is used to format the numeric labels. The default value of numberFormat property is null.
NOTE
You must import
intlpackage for formatting numeric range selector using theNumberFormatclass.
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class NumberFormatSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.5, 8.5);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showLabels: true,
showTicks: true,
numberFormat: NumberFormat("\$"),
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <ColumnSeries<Data, double>>[
ColumnSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
Date format
The dateFormat property is used to format the date labels. It is mandatory for the date SfRangeSelector. For date values, the range selector does not have auto interval support. So, it is mandatory to set interval, dateIntervalType, and dateFormat for date values. The default value of dateFormat property is null.
NOTE
You must import
intlpackage for formatting date range selector using theDateFormatclass.

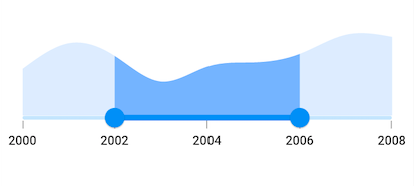

Year format
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class YearFormatSample extends StatelessWidget {
final DateTime _min = DateTime(2000, 01, 01);
final DateTime _max = DateTime(2008, 01, 01);
final SfRangeValues _values =
SfRangeValues(DateTime(2002, 01, 01), DateTime(2006, 01, 01));
final List<Data> _chartData = <Data>[
Data(x: DateTime(2000, 01, 01), y: 2.2),
Data(x: DateTime(2001, 01, 01), y: 3.4),
Data(x: DateTime(2002, 01, 01), y: 2.8),
Data(x: DateTime(2003, 01, 01), y: 1.6),
Data(x: DateTime(2004, 01, 01), y: 2.3),
Data(x: DateTime(2005, 01, 01), y: 2.5),
Data(x: DateTime(2006, 01, 01), y: 2.9),
Data(x: DateTime(2007, 01, 01), y: 3.8),
Data(x: DateTime(2008, 01, 01), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 2,
dateFormat: DateFormat.y(),
dateIntervalType: DateIntervalType.years,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: _chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}

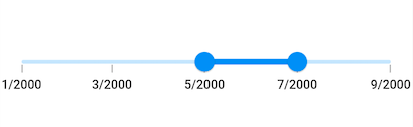

Month format
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class MonthFormatSample extends StatelessWidget {
final DateTime _min = DateTime(2000, 01, 01);
final DateTime _max = DateTime(2000, 09, 01);
final SfRangeValues _values =
SfRangeValues(DateTime(2000, 05, 01), DateTime(2000, 07, 01));
final List<Data> chartData = <Data>[
Data(x: DateTime(2000, 01, 01), y: 2.2),
Data(x: DateTime(2000, 02, 01), y: 3.4),
Data(x: DateTime(2000, 03, 01), y: 2.8),
Data(x: DateTime(2000, 04, 01), y: 1.6),
Data(x: DateTime(2000, 05, 01), y: 2.3),
Data(x: DateTime(2000, 06, 01), y: 2.5),
Data(x: DateTime(2000, 07, 01), y: 2.9),
Data(x: DateTime(2000, 08, 01), y: 3.8),
Data(x: DateTime(2000, 09, 01), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 2,
dateFormat: DateFormat.yM(),
dateIntervalType: DateIntervalType.months,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}

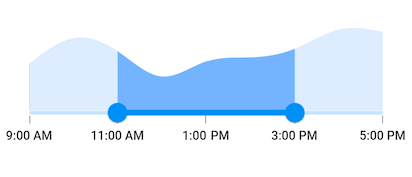

Hour format
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class HourFormatSample extends StatelessWidget {
final DateTime _min = DateTime(2002, 01, 01, 09, 00, 00);
final DateTime _max = DateTime(2002, 01, 01, 17, 00, 00);
final SfRangeValues _values = SfRangeValues(
DateTime(2002, 01, 01, 11, 00, 00), DateTime(2002, 01, 01, 15, 00, 00));
final List<Data> _chartData = <Data>[
Data(x: DateTime(2002, 01, 01, 09, 00, 00), y: 2.2),
Data(x: DateTime(2002, 01, 01, 10, 00, 00), y: 3.4),
Data(x: DateTime(2002, 01, 01, 11, 00, 00), y: 2.8),
Data(x: DateTime(2002, 01, 01, 12, 00, 00), y: 1.6),
Data(x: DateTime(2002, 01, 01, 13, 00, 00), y: 2.3),
Data(x: DateTime(2002, 01, 01, 14, 00, 00), y: 2.5),
Data(x: DateTime(2002, 01, 01, 15, 00, 00), y: 2.9),
Data(x: DateTime(2002, 01, 01, 16, 00, 00), y: 3.8),
Data(x: DateTime(2002, 01, 01, 17, 00, 00), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 2,
dateFormat: DateFormat('h:mm a'),
dateIntervalType: DateIntervalType.hours,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: _chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
NOTE
Refer the
DateFormatclass for other date format.

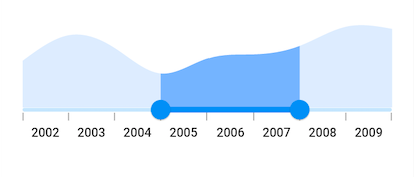

Label placement
The labelPlacement property is used to place the labels either between the major ticks or on the major ticks. The default value of labelPlacement property is LabelPlacement.onTicks.
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class LabelPlacementSample extends StatelessWidget {
final DateTime _min = DateTime(2002, 01, 01);
final DateTime _max = DateTime(2010, 01, 01);
final SfRangeValues _values =
SfRangeValues(DateTime(2005, 01, 01), DateTime(2008, 01, 01));
final List<Data> chartData = <Data>[
Data(x: DateTime(2002, 01, 01), y: 2.2),
Data(x: DateTime(2003, 01, 01), y: 3.4),
Data(x: DateTime(2004, 01, 01), y: 2.8),
Data(x: DateTime(2005, 01, 01), y: 1.6),
Data(x: DateTime(2006, 01, 01), y: 2.3),
Data(x: DateTime(2007, 01, 01), y: 2.5),
Data(x: DateTime(2008, 01, 01), y: 2.9),
Data(x: DateTime(2009, 01, 01), y: 3.8),
Data(x: DateTime(2010, 01, 01), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 1,
dateFormat: DateFormat.y(),
labelPlacement: LabelPlacement.betweenTicks,
dateIntervalType: DateIntervalType.years,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
Edge label placement
The edgeLabelPlacement property determines how the edge (first and last) labels are positioned on the range selector. This property allows the edge labels to be placed either inside the major ticks or directly on the major ticks.
The default value of edgeLabelPlacement property is EdgeLabelPlacement.auto.
import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final DateTime x;
final double y;
}
class EdgeLabelPlacementSample extends StatelessWidget {
final DateTime _min = DateTime(2002, 01, 01);
final DateTime _max = DateTime(2010, 01, 01);
final SfRangeValues _values =
SfRangeValues(DateTime(2005, 01, 01), DateTime(2008, 01, 01));
final List<Data> chartData = <Data>[
Data(x: DateTime(2002, 01, 01), y: 2.2),
Data(x: DateTime(2003, 01, 01), y: 3.4),
Data(x: DateTime(2004, 01, 01), y: 2.8),
Data(x: DateTime(2005, 01, 01), y: 1.6),
Data(x: DateTime(2006, 01, 01), y: 2.3),
Data(x: DateTime(2007, 01, 01), y: 2.5),
Data(x: DateTime(2008, 01, 01), y: 2.9),
Data(x: DateTime(2009, 01, 01), y: 3.8),
Data(x: DateTime(2010, 01, 01), y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
showLabels: true,
showTicks: true,
interval: 1,
dateFormat: DateFormat.y(),
edgeLabelPlacement: EdgeLabelPlacement.inside,
dateIntervalType: DateIntervalType.years,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: DateTimeAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, DateTime>>[
SplineAreaSeries<Data, DateTime>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}

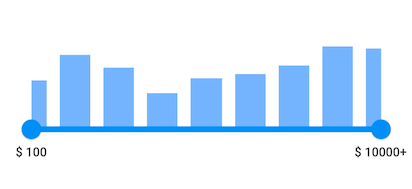

Customize label text
You can format or change the whole numeric or date label text using the labelFormatterCallback. Its arguments are,
-
actualValue – either
DateTimeordoublebased on giveninitialValues. -
formattedText – If the actual value is
double, it is formatted bynumberFormatand if the actual value isDateTime, it is formatted bydateFormat.
NOTE
labelFormatterCallbackhas been deprecated, you can useonLabelCreatedcallback to customize both the text and text style of the label.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class CustomizeLabelTextSample extends StatelessWidget {
final SfRangeValues _values = SfRangeValues(100.0, 10000.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: 100.0,
max: 10000.0,
initialValues: _values,
showLabels: true,
interval: 9900,
labelFormatterCallback:
(dynamic actualValue, String formattedText) {
return actualValue == 10000
? '\$ $formattedText+'
: '\$ $formattedText';
},
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: 100.0,
maximum: 10000.0,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <ColumnSeries<Data, double>>[
ColumnSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}

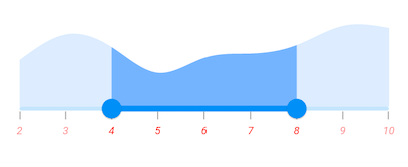

Label style
You can change the active and inactive label appearance of the range selector using the activeLabelStyle and inactiveLabelStyle properties respectively.
The active side of the SfRangeSelector is between start and end thumbs.
The inactive side of the SfRangeSelector is between the min value and the start thumb, and the end thumb and the max value.
For RTL, the inactive side is between the max value and the start thumb, and the end thumb and the min value.
NOTE
You must import the
theme.dartlibrary from theCorepackage to useSfRangeSelectorTheme. This applies to all the theme-based examples in this section.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class LabelStyleSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeLabelStyle: TextStyle(
color: Colors.red,
fontSize: 12,
fontStyle: FontStyle.italic),
inactiveLabelStyle: TextStyle(
color: Colors.red[200],
fontSize: 12,
fontStyle: FontStyle.italic),
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showLabels: true,
showTicks: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}
Individual label style
You can now customize the appearance of each label on the SfRangeSelector individually by using the onLabelCreated callback. This callback allows you to have complete control over the text and text style for each label.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class IndividualLabelStyleSample extends StatefulWidget {
@override
_IndividualLabelStyleSampleState createState() =>
_IndividualLabelStyleSampleState();
}
class _IndividualLabelStyleSampleState
extends State<IndividualLabelStyleSample> {
final double _min = 2.0;
final double _max = 10.0;
SfRangeValues _values = const SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showLabels: true,
showTicks: true,
initialValues: _values,
onChanged: (SfRangeValues value) {
setState(() {
_values = value;
});
},
onLabelCreated: (
dynamic actualValue,
String text,
TextStyle labelTextStyle,
) {
final int value = actualValue.toInt();
final int start = (_values.start as double).toInt();
final int end = (_values.end as double).toInt();
return RangeSelectorLabel(
text: text,
textStyle: (value == start || value == end)
? const TextStyle(
color: Colors.blue,
fontSize: 14,
)
: TextStyle(
color: Colors.red[200],
fontSize: 10,
),
);
},
child: SizedBox(
height: 130,
child: SfCartesianChart(
margin: EdgeInsets.zero,
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: const NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: const Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y,
),
],
),
),
),
),
),
);
}
}
Label offset
You can adjust the space between ticks and labels of the range selector using the labelOffset property.
The default value of the labelOffset property is Offset(0.0, 13.0) if the showTicks property is false.
The default value of the labelOffset property is Offset(0.0, 5.0) if the showTicks property is true.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class LabelOffsetSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
labelOffset: Offset(0, 15),
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showLabels: true,
showDividers: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}

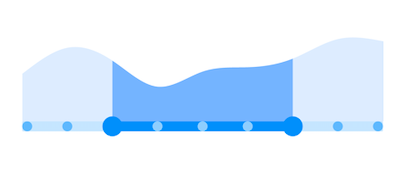

Show dividers
The showDividers property is used to render the dividers on the track. The default value of showDividers property is false. It is a shape which is used to represent the major interval points of the track.
For example, if min is 0.0 and max is 10.0 and interval is 2.0, the range selector will render the dividers at 0.0, 2.0, 4.0 and so on.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class ShowDividersSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showDividers: true,
showLabels: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
);
}
}
Divider radius
You can change the active and inactive divider radius of the range selector using the activeDividerRadius and the inactiveDividerRadius properties respectively.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class DividerRadiusSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeTrackHeight: 10,
inactiveTrackHeight: 10,
activeDividerRadius: 5,
inactiveDividerRadius: 5,
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showDividers: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}

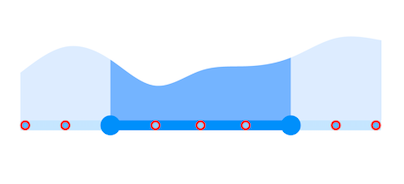

Divider stroke width and stroke color
You can change the active and inactive divider stroke width of the range selector using the activeDividerStrokeWidth and the inactiveDividerStrokeWidth properties respectively.
Also, you can change the active and inactive divider stroke color of the range selector using the activeDividerStrokeColor and the inactiveDividerStrokeColor properties respectively.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class DividerStrokeSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeTrackHeight: 10,
inactiveTrackHeight: 10,
activeDividerStrokeColor: Colors.red,
activeDividerStrokeWidth: 2,
inactiveDividerStrokeWidth: 2,
inactiveDividerStrokeColor: Colors.red,
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showDividers: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}

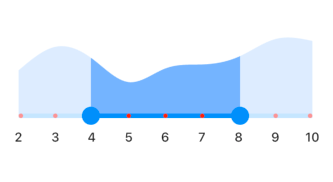

Divider color
You can change the active and inactive divider color of the range selector using the activeDividerColor and inactiveDividerColor properties respectively.
import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_charts/charts.dart';
import 'package:syncfusion_flutter_core/theme.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';
class Data {
Data({required this.x, required this.y});
final double x;
final double y;
}
class DividerColorSample extends StatelessWidget {
final double _min = 2.0;
final double _max = 10.0;
final SfRangeValues _values = SfRangeValues(4.0, 8.0);
final List<Data> chartData = <Data>[
Data(x: 2.0, y: 2.2),
Data(x: 3.0, y: 3.4),
Data(x: 4.0, y: 2.8),
Data(x: 5.0, y: 1.6),
Data(x: 6.0, y: 2.3),
Data(x: 7.0, y: 2.5),
Data(x: 8.0, y: 2.9),
Data(x: 9.0, y: 3.8),
Data(x: 10.0, y: 3.7),
];
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
body: Center(
child: SfRangeSelectorTheme(
data: SfRangeSelectorThemeData(
activeTrackHeight: 5,
inactiveTrackHeight: 5,
activeDividerColor: Colors.red,
inactiveDividerColor: Colors.red[200],
),
child: SfRangeSelector(
min: _min,
max: _max,
interval: 1,
showDividers: true,
initialValues: _values,
child: Container(
height: 130,
child: SfCartesianChart(
margin: const EdgeInsets.all(0),
primaryXAxis: NumericAxis(
minimum: _min,
maximum: _max,
isVisible: false,
),
primaryYAxis: NumericAxis(isVisible: false),
plotAreaBorderWidth: 0,
series: <SplineAreaSeries<Data, double>>[
SplineAreaSeries<Data, double>(
color: Color.fromARGB(255, 126, 184, 253),
dataSource: chartData,
xValueMapper: (Data sales, int index) => sales.x,
yValueMapper: (Data sales, int index) => sales.y)
],
),
),
),
),
),
),
);
}
}
