Disabled state in Flutter Range Selector (SfRangeSelector)

18 Jun 202113 minutes to read

This section helps to learn about the disabled state in the Flutter range selector.

Disabled state

You can render the range selector in disabled state using enabled property. The default value of enabled property is true.

DART
final double _min = 2.0;
final double _max = 10.0;
SfRangeValues _initialValues = SfRangeValues(5.0, 8.0);

final List<Data> _chartData = <Data>[
    Data(x:2.0, y: 2.2),
    Data(x:3.0, y: 3.4),
    Data(x:4.0, y: 2.8),
    Data(x:5.0, y: 1.6),
    Data(x:6.0, y: 2.3),
    Data(x:7.0, y: 2.5),
    Data(x:8.0, y: 2.9),
    Data(x:9.0, y: 3.8),
    Data(x:10.0, y: 3.7),
];

@override
Widget build(BuildContext context) {
  return MaterialApp(
      home: Scaffold(
          body: Center(
              child: SfRangeSelector(
                    min: _min,
                    max: _max,
                    enabled: false,
                    initialValues: _initialValues,
                    child: Container(
                    height: 130,
                    child: SfCartesianChart(
                        margin: const EdgeInsets.all(0),
                        primaryXAxis: NumericAxis(minimum: _min,
                            maximum: _max,
                            isVisible: false,),
                        primaryYAxis: NumericAxis(isVisible: false),
                        plotAreaBorderWidth: 0,
                        series: <SplineAreaSeries<Data, double>>[
                            SplineAreaSeries<Data, double>(
                                color: Color.fromARGB(255, 126, 184, 253),
                                dataSource: _chartData,
                                    xValueMapper: (Data sales, int index) => sales.x,
                                    yValueMapper: (Data sales, int index) => sales.y)
                            ],
                        ),
                   ),
              ),
          )
      )
  );
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

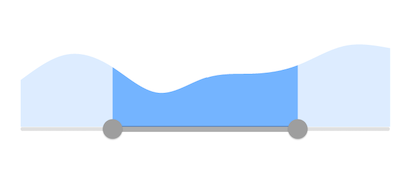

Range selector disabled state

Disabled color

You can change,

The color of the active and inactive track in disabled state using the disabledActiveTrackColor and disabledInactiveTrackColor properties.
The color of the active and inactive major ticks in disabled state using the disabledActiveTickColor and disabledInactiveTickColor properties.
The color of the active and inactive minor ticks in disabled state using the disabledActiveMinorTickColor and disabledInactiveMinorTickColor properties.
The color of the active and inactive dividers in disabled state using the disabledActiveDividerColor and disabledInactiveDividerColor properties.
The color of the thumb in disabled state using the disabledThumbColor property.

NOTE

You must import the theme.dart library from the Core package to use SfRangeSelectorTheme.

DART
final double _min = 2.0;
final double _max = 10.0;
SfRangeValues _initialValues = SfRangeValues(4.0, 8.0);

final List<Data> _chartData = <Data>[
    Data(x:2.0, y: 2.2),
    Data(x:3.0, y: 3.4),
    Data(x:4.0, y: 2.8),
    Data(x:5.0, y: 1.6),
    Data(x:6.0, y: 2.3),
    Data(x:7.0, y: 2.5),
    Data(x:8.0, y: 2.9),
    Data(x:9.0, y: 3.8),
    Data(x:10.0, y: 3.7),
];

@override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
            body: Center(
              child: SfRangeSelectorTheme(
                data: SfRangeSelectorThemeData(
                     disabledActiveTrackColor: Colors.red[900],
                     disabledInactiveTrackColor: Colors.red[200],
                     disabledActiveTickColor: Colors.red[900],
                     disabledInactiveTickColor: Colors.red[200],
                     disabledActiveMinorTickColor: Colors.red[900],
                     disabledInactiveMinorTickColor: Colors.red[200],
                     disabledActiveDividerColor: Colors.blue[900],
                     disabledInactiveDividerColor: Colors.blue[200],
                     disabledThumbColor: Colors.red,
                     activeTrackHeight: 4,
                     inactiveTrackHeight: 4,
                ),
                child:  SfRangeSelector(
                  min: _min,
                  max: _max,
                  interval: 1,
                  showLabels: true,
                  enabled: false,
                  showTicks: true,
                  showDividers: true,
                  initialValues: _initialValues,
                  child: Container(
                    height: 130,
                    child: SfCartesianChart(
                      margin: const EdgeInsets.all(0),
                      primaryXAxis: NumericAxis(minimum: _min,
                          maximum: _max,
                          isVisible: false),
                      primaryYAxis: NumericAxis(isVisible: false),
                      plotAreaBorderWidth: 0,
                      series: <SplineAreaSeries<Data, double>>[
                          SplineAreaSeries<Data, double>(
                            color: Color.fromARGB(255, 126, 184, 253),
                            dataSource: _chartData,
                            xValueMapper: (Data sales, int index) => sales.x,
                            yValueMapper: (Data sales, int index) => sales.y)
                      ],
                    ),
                  ),
                ),
              ),
            )
        )
    );
}

class Data {
  Data({required this.x, required this.y});
  final double x;
  final double y;
}

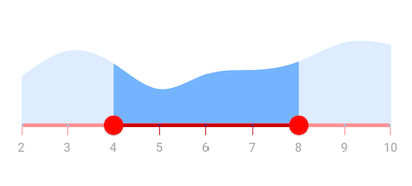

Disabled color support
