Gauge range customization

Gauge range is a visual element that helps to quickly visualize where a value falls on the axis. The text can be easily annotated in range to improve the readability.

Setting start and end value

The start and end values of ranges are set using the startValue and endValue properties.

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(

                  child: SfRadialGauge(
                    axes: <RadialAxis>[RadialAxis(
                      ranges: <GaugeRange>[GaugeRange(startValue: 30, endValue: 65)]
                    )
                    ],
                  )
                ),
              );
            }

    default range

    Range Customization

    The following properties are used for the range customization:

    • color – Specifies the color for the range.

    • startWidth – Specifies the start width of the range either in logical pixels or factor.

    • endWidth – Specifies the end width of the range either in logical pixels or factor.

    • sizeUnit – Specifies whether the start width and end width of the range are set in logical pixels or factor.

    • gradient - Specifies the gradient for the range.

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
                  child: SfRadialGauge(
                    axes: <RadialAxis>[RadialAxis(
                      ranges: <GaugeRange>[GaugeRange(startValue: 30, endValue: 65,
                        startWidth: 5, endWidth: 20
                      )]
                    )
                    ],
                  )
                ),
              );
            }

    range thickness

    When the sizeUnit is set as logical pixels, the range will be rendered based on the provided logical pixel values in startWidth and endWidth

    If the sizeUnit is set as factor, the provided factor value in the start width and end width will be multiplied with the axis radius, respectively. The factor value ranges from 0 to 1.

    Gradient support

    The gradient property of range allows to specify the smooth color transition to pointer by specifying the different colors based on provided factor value.

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
          body: Center(
              child: SfRadialGauge(
                axes: <RadialAxis>[RadialAxis(
                    ranges: <GaugeRange>[
                      GaugeRange(startValue: 30,
                          endValue: 65,
                          gradient: const SweepGradient(
                              colors: <Color>[Color(0xFFBC4E9C), Color(0xFFF80759)],
                              stops: <double>[0.25, 0.75]),
                          startWidth: 5,
                          endWidth: 20
                      )
                    ]
                )
                ],
              )
          ),
        );
      }

    range gradient

    Position customization

    The range can be moved far or near to the axis line with using the rangeOffset property. The property can be specified either in the logical pixels or the factor value.

    If the sizeUnit is set as logical pixels, then the range will be moved based on the provided logical pixel value.

    If the sizeUnit is set as factor, the factor value will be multiplied with the axis radius.Then the pointer will be moved to the corresponding value
    The sizeUnit property is common for the rangeOffset, startWidth and the endWidth properties. The default value of sizeUnit is logicalPixel.

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(

                  child: SfRadialGauge(
                    axes: <RadialAxis>[RadialAxis(
                      ranges: <GaugeRange>[GaugeRange(startValue: 30, endValue: 65,
                      rangeOffset: 50,
                      )]
                    )
                    ],
                  )
                ),
              );
            }

    range offset

    Setting range color to axis elements

    You can set range color to axis labels and ticks using the useRangeColorForAxis property of axis,

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
                  child: SfRadialGauge(
                    axes: <RadialAxis>[
                      RadialAxis(showAxisLine: false,
                          ticksPosition: ElementsPosition.outside,
                          labelsPosition: ElementsPosition.outside,
                          startAngle: 270, endAngle: 270, useRangeColorForAxis: true,
                           interval: 10,
                          axisLabelStyle:GaugeTextStyle(
                              fontWeight: FontWeight.w500,
                              fontSize: 12),
                          majorTickStyle: MajorTickStyle(length: 0.15,
                              lengthUnit: GaugeSizeUnit.factor,
                              thickness: 1),
                          minorTicksPerInterval: 4, labelOffset: 15,
                          minorTickStyle: MinorTickStyle(length: 0.04,
                              lengthUnit: GaugeSizeUnit.factor,
                              thickness: 1),
                          ranges: <GaugeRange>[GaugeRange(startValue: 0, endValue: 35,
                              color: Color(0xFFF8B195),
                              sizeUnit: GaugeSizeUnit.factor,
                              rangeOffset: 0.06,
                              startWidth: 0.05, endWidth: 0.25),
                            GaugeRange(startValue: 35, endValue: 70,
                                rangeOffset: 0.06,
                                sizeUnit: GaugeSizeUnit.factor,
                                color: Color(0xFFC06C84),
                                startWidth: 0.05, endWidth: 0.25),
                            GaugeRange(startValue: 70, endValue: 100,
                                rangeOffset: 0.06,
                                sizeUnit: GaugeSizeUnit.factor,
                                color: Color(0xFF355C7D),
                                startWidth: 0.05, endWidth: 0.25),]
                    )],
                  )
                ),
              );
            }

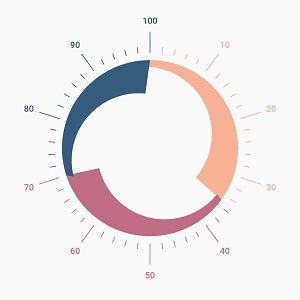

    range color to axis element

    Range label

    A text can be displayed on range using the label property. The provided text can be customized using the labelStyle property.

  • dart
  • @override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
                  child: SfRadialGauge(
                    axes:<RadialAxis>[
                      RadialAxis(showLabels: false, showAxisLine: false, showTicks: false,
                          minimum: 0, maximum: 99,
                          ranges: <GaugeRange>[GaugeRange(startValue: 0, endValue: 33,
                              color: Color(0xFFFE2A25), label: 'Slow',
                              sizeUnit: GaugeSizeUnit.factor,
                              labelStyle: GaugeTextStyle(fontFamily: 'Times', fontSize:  20),
                              startWidth: 0.65, endWidth: 0.65
                          ),GaugeRange(startValue: 33, endValue: 66,
                            color:Color(0xFFFFBA00), label: 'Moderate',
                            labelStyle: GaugeTextStyle(fontFamily: 'Times', fontSize:   20),
                            startWidth: 0.65, endWidth: 0.65, sizeUnit: GaugeSizeUnit.factor,
                          ),
                            GaugeRange(startValue: 66, endValue: 99,
                              color:Color(0xFF00AB47), label: 'Fast',
                              labelStyle: GaugeTextStyle(fontFamily: 'Times', fontSize:   20),
                              sizeUnit: GaugeSizeUnit.factor,
                              startWidth: 0.65, endWidth: 0.65,
                            ),

                          ],
                          pointers: <GaugePointer>[NeedlePointer(value: 60
                        )]
                      )
                    ],
                  )
                ),
              );
            }

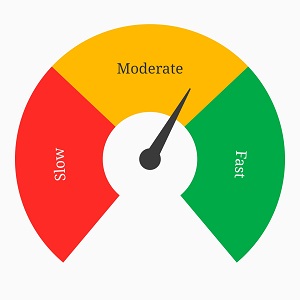

    range label
