Widget Pointer in Flutter Radial Gauge (SfRadialGauge)

18 Nov 201815 minutes to read

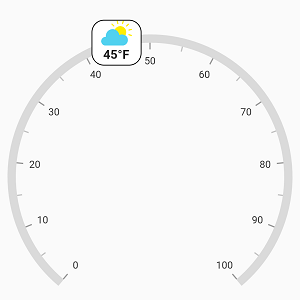

WidgetPointer allows you to point to a desired value with any Flutter widget in a gauge scale. You can set the desired widget to its child property to annotate the pointer value.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Widget Pointer')),
        body: const MyHomePage(),
      ),
    );
  }
}

class MyHomePage extends StatelessWidget {
  const MyHomePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SfRadialGauge(
          axes: <RadialAxis>[
            RadialAxis(
              pointers: <GaugePointer>[
                WidgetPointer(
                  value: 45,
                  child: Container(
                    height: 55,
                    width: 60,
                    decoration: BoxDecoration(
                      color: Colors.white,
                      borderRadius: BorderRadius.circular(15),
                      border: Border.all(
                        color: Colors.black,
                        style: BorderStyle.solid,
                        width: 1.0
                      )
                    ),
                    child: Column(
                      children: <Widget>[
                        Container(
                          width: 40.00,
                          height: 30.00,
                          decoration: BoxDecoration(
                            image: DecorationImage(
                              image: AssetImage('images/sun.png'),
                              fit: BoxFit.fitHeight,
                            ),
                          )
                        ),
                        Padding(
                          padding: EdgeInsets.fromLTRB(0, 2, 0, 0),
                          child: Container(
                            child: Text(
                              '45°F',
                              style: TextStyle(
                                fontWeight: FontWeight.bold,
                                fontSize: 15
                              )
                            ),
                          )
                        )
                      ],
                    )
                  )
                )
              ]
            )
          ],
        )
      ),
    );
  }
}

Position customization

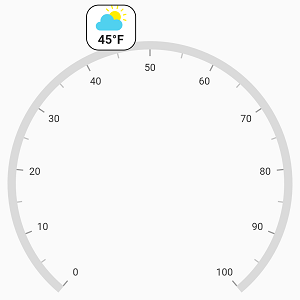

The widget pointer can be moved near or far from its actual position using the offset and offsetUnit properties.

When you set offsetUnit to logical pixel, the widget pointer will be moved based on the logical pixel value. If you set offsetUnit to factor, the provided factor will be multiplied by the axis radius value, and the pointer will be moved to the corresponding value. The default value of offsetUnit is GaugeSizeUnit.logicalPixel.

Note: Add the image to your pubspec.yaml assets section.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: const Text('Widget Pointer with Offset')),
        body: const MyHomePage(),
      ),
    );
  }
}

class MyHomePage extends StatelessWidget {
  const MyHomePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SfRadialGauge(
          axes: <RadialAxis>[
            RadialAxis(
              pointers: <GaugePointer>[
                WidgetPointer(
                  value: 45,
                  offset: -27,
                  child: Container(
                    height: 55,
                    width: 60,
                    decoration: BoxDecoration(
                      color: Colors.white,
                      borderRadius: BorderRadius.circular(15),
                      border: Border.all(
                        color: Colors.black,
                        style: BorderStyle.solid,
                        width: 1.0,
                      )
                    ),
                    child: Column(
                      children: <Widget>[
                        Container(
                          width: 40.00,
                          height: 30.00,
                          decoration: BoxDecoration(
                            image: DecorationImage(
                              image: AssetImage('images/sun.png'),
                              fit: BoxFit.fitHeight,
                            ),
                          )
                        ),
                        Padding(
                          padding: EdgeInsets.fromLTRB(0, 2, 0, 0),
                          child: Container(
                            child: Text(
                              '45°F',
                              style: TextStyle(
                                fontWeight: FontWeight.bold,
                                fontSize: 15
                              )
                            ),
                          )
                        )
                      ],
                    )
                  )
                )
              ]
            )
          ],
        )
      ),
    );
  }
}
