Shape Marker Pointer in Flutter Linear Gauge (SfLinearGauge)

18 Nov 201822 minutes to read

The LinearShapePointer in SfLinearGauge provides pre-defined shapes to mark specific values. The default shape pointer is invertedTriangle.

  1. Triangle
  2. Inverted Triangle
  3. Circle
  4. Diamond
  5. Rectangle

The following is the default appearance of the default shape pointer.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            markerPointers: [LinearShapePointer(value: 50)]
          ),
        ),
      ),
    );
  }
}

Initialize linear gauge for shape pointer

Change the size

The size of the marker pointer can be changed by the height and width properties of LinearShapePointer. The following code sample demonstrates how to change the size of a shape pointer:

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      color: Colors.white,
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(markerPointers: [
            LinearShapePointer(value: 50, height: 25, width: 25)
          ]),
        ),
      ),
    );
  }
}

Set size of linear gauge shape pointer

Customize color

The color of the shape pointer can be changed by the color property. The following code example demonstrates the same.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      color: Colors.white,
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(markerPointers: [
            LinearShapePointer(value: 50, color: Colors.redAccent)
          ]),
        ),
      ),
    );
  }
}

Change shape pointer color

Customize the border

The border can be customized by the borderColor and borderWidth properties of the LinearShapePointer.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      color: Colors.white,
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            markerPointers: [
              LinearShapePointer(
                value: 50, borderColor: Colors.redAccent, borderWidth: 2,
              )
            ],
          ),
        ),
      ),
    );
  }
}

Customize shape pointer border

Customize the elevation

The elevation can be customized by the elevation and elevationColor properties.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      color: Colors.white,
      home: Scaffold(
        body: Center(
          child: Container(
            color: Colors.white,
            child: SfLinearGauge(markerPointers: [
              LinearShapePointer(
                value: 50,
                shapeType: LinearShapePointerType.circle,
                elevation: 5,
                elevationColor: Colors.blueGrey,
              ),
            ]),
          ),
        ),
      ),
    );
  }
}

Change shape pointer elevation

Change marker alignment

The marker pointer alignment can be changed by the markerAlignment property of LinearShapePointer. The available marker pointer alignments are start, end, and center.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            axisTrackExtent: 30,
            markerPointers: [
              LinearShapePointer(
                value: 0, markerAlignment: LinearMarkerAlignment.start,
              ),
            ],
          ),
        ),
      ),
    );
  }
}

Change shape pointer alignment

Customize position

By default, the shape pointer is positioned outside the axis. This position can be changed by the position property of a LinearShapePointer. It is possible to position the shape pointer inside, cross, or outside the axis. The following code sample demonstrates how to position the shape pointer inside the axis.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            markerPointers: [
              LinearShapePointer(
                value: 55,
                shapeType: LinearShapePointerType.triangle,
                position: LinearElementPosition.inside,
              ),
            ]
          ),
        ),
      ),
    );
  }
}

Change shape pointer position

Customize offset

In addition to positioning the shape pointer, it is also possible to change the offset of the shape pointer. The offset is the distance from the axis and it cannot be negative. Cross-positioned elements will not be affected by the offset value. The following code sample demonstrates how to change the offset value of the shape pointer.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            markerPointers: [
              LinearShapePointer(
                value: 50,
                offset: 25,
                shapeType: LinearShapePointerType.triangle,
                position: LinearElementPosition.inside,
              ),
            ],
          ),
        ),
      ),
    );
  }
}

Customize linear gauge bar pointer offset

Drag behavior

You can drag the pointers freely to any position when adding multiple pointers by setting the dragBehavior property to LinearMarkerDragBehavior.free.

The LinearMarkerDragBehavior.constrained can be used to limit the active pointer dragging beyond the other pointers.

Free

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatefulWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  State<LinearGaugeDemo> createState() => _LinearGaugeDemoState();
}

class _LinearGaugeDemoState extends State<LinearGaugeDemo> {
  double _firstPointer = 30;
  double _secondPointer = 70;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfLinearGauge(
        markerPointers: [
          LinearShapePointer(
            value: _firstPointer,
            height: 25,
            width: 25,
            shapeType: LinearShapePointerType.invertedTriangle,
            dragBehavior: LinearMarkerDragBehavior.free,
            onChanged: (double newValue) {
              setState(() {
                _firstPointer = newValue;
              });
            },
          ),
          LinearShapePointer(
            value: _secondPointer,
            height: 25,
            width: 25,
            shapeType: LinearShapePointerType.invertedTriangle,
            dragBehavior: LinearMarkerDragBehavior.free,
            onChanged: (double newValue) {
              setState(() {
                _secondPointer = newValue;
              });
            },
          ),
        ],
      ),
    );
  }
}

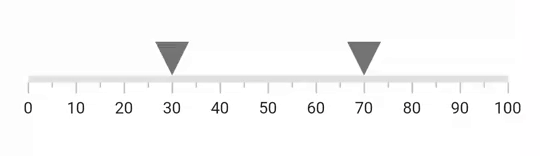

Pointers drag behavior

Constrained

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatefulWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  State<LinearGaugeDemo> createState() => _LinearGaugeDemoState();
}

class _LinearGaugeDemoState extends State<LinearGaugeDemo> {
  double _firstPointer = 30;
  double _secondPointer = 70;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfLinearGauge(
        markerPointers: [
          LinearShapePointer(
            value: _firstPointer,
            height: 25,
            width: 25,
            shapeType: LinearShapePointerType.invertedTriangle,
            dragBehavior: LinearMarkerDragBehavior.constrained,
            onChanged: (double newValue) {
              setState(() {
                _firstPointer = newValue;
              });
            },
          ),
          LinearShapePointer(
            value: _secondPointer,
            height: 25,
            width: 25,
            shapeType: LinearShapePointerType.invertedTriangle,
            dragBehavior: LinearMarkerDragBehavior.constrained,
            onChanged: (double newValue) {
              setState(() {
                _secondPointer = newValue;
              });
            },
          ),
        ],
      ),
    );
  }
}

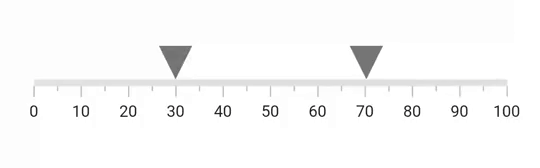

Pointers drag behavior

Handle onChangeStart, onChanged, and onChangeEnd callbacks

The LinearShapePointer provides the onChangeStart, onChanged, and onChangeEnd callbacks. The onChangeStart callback will be called when the user starts dragging the pointer. The onChanged callback will be called when dragging the pointer. The onChangeEnd callback will be called when the user stops dragging the pointer.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatefulWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  State<LinearGaugeDemo> createState() => _LinearGaugeDemoState();
}

class _LinearGaugeDemoState extends State<LinearGaugeDemo> {
  double _value = 50;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfLinearGauge(
        markerPointers: [
          LinearShapePointer(
            value: _value,
            onChangeStart: (double newValue) {
              _value = newValue;
            },
            onChanged: (double newValue) {
              setState(() {
                _value = newValue;
              });
            },
            onChangeEnd: (double newValue) {
              _value = newValue;
            },
            shapeType: LinearShapePointerType.invertedTriangle,
          ),
        ],
      ),
    );
  }
}

Animation completed callback

The onAnimationCompleted callback in the LinearShapePointer will be triggered when the shape pointer animation is completed. The default value of the onAnimationCompleted callback is null.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_gauges/gauges.dart';

void main() => runApp(const LinearGaugeDemo());

class LinearGaugeDemo extends StatelessWidget {
  const LinearGaugeDemo({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: SfLinearGauge(
            markerPointers:[
              LinearShapePointer(
                onAnimationCompleted: () {
                  // Shape Pointer animation is completed
                  debugPrint('Shape Pointer animation is completed');
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}
