Getting Started with WinUI DataGrid

19 Oct 202214 minutes to read

This section explains the steps required to add the DataGrid control and binding data in datagrid control. This section covers only basic features needed to get started with Syncfusion datagrid control.

Creating an application with WinUI DataGrid

  1. Create a WinUI 3 desktop app for C# and .NET 5.

  2. Add reference to Syncfusion.Grid.WinUI NuGet.

  3. Import the control namespace Syncfusion.UI.Xaml.DataGrid in XAML or C# code.

  4. Initialize the SfDataGrid control.

    <Page
        x:Class="GettingStarted.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="using:GettingStarted"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:dataGrid="using:Syncfusion.UI.Xaml.DataGrid"
        mc:Ignorable="d"
        Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid x:Name="rootGrid">
        <dataGrid:SfDataGrid x:Name="sfDataGrid" />
        </Grid>
    </Page>
    using Syncfusion.UI.Xaml.DataGrid;
    namespace GettingStarted
    {
        /// <summary>
        /// An empty page that can be used on its own or navigated to within a Frame.
        /// </summary>
        public sealed partial class MainPage : Page
        {
            public MainPage()
            {
                this.InitializeComponent();
                SfDataGrid sfDataGrid = new SfDataGrid();
                rootGrid.Children.Add(sfDataGrid);
            }
        }
    }

Creating Data Model for sample application

SfDataGrid is a data-bound control. So before create binding to the control, you must create data model for Application.

  1. Create data object class named OrderInfo and declare properties as shown below,

    public class OrderInfo
    {
        int orderID;
        string customerId;
        string country;
        string customerName;
        string shippingCity;

        public int OrderID
        {
            get {   return orderID;  }
            set {   orderID = value; }
        }

        public string CustomerID
        {
            get {  return customerId; }
            set {  customerId = value; }
        }

        public string CustomerName
        {
            get {  return customerName; }
            set {  customerName = value;}
        }

        public string Country
        {
            get { return country; }
            set  {  country = value; }
        }

        public string ShipCity
        {
            get {  return shippingCity; }
            set {  shippingCity = value; }
        }

        public OrderInfo(int orderId, string customerName, string country, string customerId,string shipCity)
        {
            this.OrderID = orderId;
            this.CustomerName = customerName;
            this.Country = country;
            this.CustomerID = customerId;
            this.ShipCity = shipCity;
        }
    }

NOTE

If you want your data object (OrderInfo class) to automatically reflect property changes, then the object must implement INotifyPropertyChanged interface.

  1. Create a ViewModel class with Orders property and Orders property is initialized with several data objects in constructor.

    public class ViewModel
    {
        private ObservableCollection<OrderInfo> _orders;
        public ObservableCollection<OrderInfo> Orders
        {
            get { return _orders; }
            set { _orders = value; }
        }

        public ViewModel()
        {
            _orders = new ObservableCollection<OrderInfo>();
            this.GenerateOrders();
        }

        private void GenerateOrders()
        {
            _orders.Add(new OrderInfo(1001, "Maria Anders", "Germany", "ALFKI", "Berlin"));
            _orders.Add(new OrderInfo(1002, "Ana Trujilo", "Mexico", "ANATR", "Mexico D.F."));
            _orders.Add(new OrderInfo(1003, "Antonio Moreno", "Mexico", "ANTON", "Mexico D.F."));
            _orders.Add(new OrderInfo(1004, "Thomas Hardy", "UK", "AROUT", "London"));
            _orders.Add(new OrderInfo(1005, "Christina Berglund", "Sweden", "BERGS", "Lula"));
            _orders.Add(new OrderInfo(1006, "Hanna Moos", "Germany", "BLAUS", "Mannheim"));
            _orders.Add(new OrderInfo(1007, "Frederique Citeaux", "France", "BLONP", "Strasbourg"));
            _orders.Add(new OrderInfo(1008, "Martin Sommer", "Spain", "BOLID", "Madrid"));
            _orders.Add(new OrderInfo(1009, "Laurence Lebihan", "France", "BONAP", "Marseille"));
           _orders.Add(new OrderInfo(1010, "Elizabeth Lincoln", "Canada", "BOTTM", "Tsawassen"));
        }
    }

Binding to Data

To bind the SfDataGrid to data, set the SfDataGrid.ItemsSource property to an IEnumerable implementation. Each row in SfDataGrid is bound to an object in data source and each column in SfDataGrid bound to a property in data object.

Bind the collection created in previous step to SfDataGrid.ItemsSource property in XAML by setting ViewModel as DataContext.

<Page
    x:Class="GettingStarted.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:GettingStarted"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:dataGrid="using:Syncfusion.UI.Xaml.DataGrid"
    mc:Ignorable="d"
    Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    <Page.DataContext>
        <local:ViewModel/>
    </Page.DataContext>
    <Grid>
        <dataGrid:SfDataGrid x:Name="sfDataGrid"
                               AutoGenerateColumns="True"
                               ItemsSource="{Binding Orders}"/>
    </Grid>
</Page>
ViewModel viewModel = new ViewModel();
sfDataGrid.ItemsSource = viewModel.Orders;

Now, run the application and you can expect the below output,

WinUi DataGrid

Defining Columns

By default, the SfDataGrid control generates the columns automatically when value assigned to SfDataGrid.ItemsSource property. The type of the column generated depends on the type of data in the column and the attribute of the property the column bound with.

The following table lists the column types and it’s constraints for auto column generation.

Generated Column Type Data Type / Attribute
GridTextColumn Property of type String and any other type apart from below specified cases.
GridCheckBoxColumn Property of type Bool
GridDateColumn Property of type DateTimeOffset
GridHyperLinkColumn Property of type Uri
GridNumericColumn Property of type Double

When columns are auto-generated, you can handle the SfDataGrid.AutoGeneratingColumn event to customize or cancel the columns before they are added to the SfDataGrid.

You can prevent the automatic column generation by setting SfDataGrid.AutoGenerateColumns property to false. When SfDataGrid.AutoGenerateColumns property is false, you have to define the columns to be displayed as below,

<dataGrid:SfDataGrid x:Name="sfDataGrid"
                       ItemsSource="{Binding Orders}"
                       AutoGenerateColumns="False">
    <dataGrid:SfDataGrid.Columns>
        <dataGrid:GridTextColumn  MappingName="OrderID" />
        <dataGrid:GridTextColumn  MappingName="CustomerID"/>
        <dataGrid:GridTextColumn  MappingName="CustomerName"/>
        <dataGrid:GridTextColumn  MappingName="ShipCity"/>
        <dataGrid:GridTextColumn  MappingName="Country"/>
    </dataGrid:SfDataGrid.Columns>
</dataGrid:SfDataGrid>
SfDataGrid sfDataGrid = new SfDataGrid();
sfDataGrid.AutoGenerateColumns = false;
sfDataGrid.Columns.Add(new GridTextColumn() { MappingName = "OrderID" });
sfDataGrid.Columns.Add(new GridTextColumn() { MappingName = "CustomerID" });
sfDataGrid.Columns.Add(new GridTextColumn() { MappingName = "CustomerName" });
sfDataGrid.Columns.Add(new GridTextColumn() { MappingName = "ShipCity" });
sfDataGrid.Columns.Add(new GridTextColumn() { MappingName = "Country" });

Below are the list of column types provided in SfDataGrid.

Column Type Comments
GridTextColumn Represents SfDataGrid column that hosts textual content in its cells.
GridComboBoxColumn Represents SfDataGrid column that hosts ComboBox controls in its cells.
GridCheckBoxColumn Represents SfDataGrid column that hosts CheckBox controls in its cells.
GridCheckBoxSelectorColumn Represents SfDataGrid column that hosts CheckBox controls to select or deselects rows which are not actually bound with data object of row.
GridDateColumn Represents SfDataGrid column that hosts

SfCalendarDatePicker

controls in its cells which is used to display and format Date values.
GridImageColumn Represents SfDataGrid column that hosts Image controls in its cells.
GridHyperlinkColumn Represents SfDataGrid column that hosts HyperlinkButton controls in its cells.
GridNumericColumn Represents SfDataGrid column that hosts

SfNumberBox

controls in its cells which is used to format and display Numeric values.
GridTimeColumn Represents SfDataGrid column that hosts

SfTimePicker

controls in its cells which is used to format and display Time values.
GridTemplateColumn Represents SfDataGrid column that hosts template-specified content in its cells
GridToggleSwitchColumn Represents SfDataGrid column that hosts ToggleSwitch controls in its cells.
GridUnboundColumn Represents SfDataGrid column that hosts textual or template-specified content which are not actually bound with data object of row.

Selection

By default, the entire row is selected when a user clicks a cell in a SfDataGrid. You can set the SfDataGrid.SelectionMode property to specify whether a user can select single row or cell, or multiple rows or cells. Set the SfDataGrid.SelectionUnit property to specify whether rows can be selected, or cells can selected.

You can handle the selection operations with the help of SfDataGrid.SelectionChanging and SfDataGrid.SelectionChanged events of SfDataGrid.

Sorting

By default, you can sort columns in a SfDataGrid by clicking the column header. You can configure the sorting by setting SfDataGrid.SortColumnDescriptions property as below,

<dataGrid:SfDataGrid x:Name="sfDataGrid"
                       ItemsSource="{Binding Orders}" >
    <dataGrid:SfDataGrid.SortColumnDescriptions>
        <dataGrid:SortColumnDescription ColumnName="CustomerName"/>
    </dataGrid:SfDataGrid.SortColumnDescriptions>
</dataGrid:SfDataGrid>

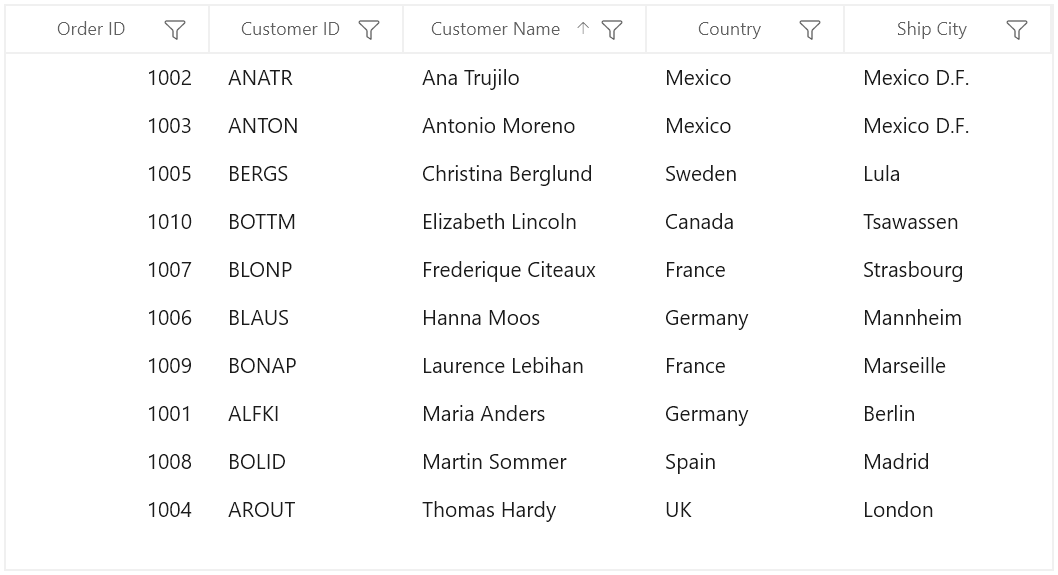

<img src=”Getting-Started-images/winui-datagrid-sorting.png” alt=”WinUI DataGrid Sorting” width=”100%” Height=”Auto/>

You can customize sorting by handling the SfDataGrid.SortColumnsChanging and SfDataGrid.SortColumnsChanged events. To cancel the default sort, set the Cancel property to true in SfDataGrid.SortColumnsChanging event.

this.sfDataGrid.SortColumnsChanging += SfDataGrid_SortColumnsChanging;

private void SfDataGrid_SortColumnsChanging(object sender, GridSortColumnsChangingEventArgs e)
{
    if (e.AddedItems[0].ColumnName == "CustomerName")
        e.Cancel = true;
}

Grouping

Grouping can be enabled by setting SfDataGrid.ShowGroupDropArea property, where you can group by dragging the column header and dropping it in the GroupDropArea over the column headers. You can configure the grouping by setting SfDataGrid.GroupColumnDescriptions property as below,

<dataGrid:SfDataGrid x:Name="sfDataGrid"
                       ItemsSource="{Binding Orders}" >
    <dataGrid:SfDataGrid.GroupColumnDescriptions>
        <dataGrid:GroupColumnDescription ColumnName="CustomerName"/>
    </dataGrid:SfDataGrid.GroupColumnDescriptions>
</dataGrid:SfDataGrid>

WinUI DataGrid Grouping

Editing

Editing can be enabled by setting SfDataGrid.AllowEditing property to true.
You can customize the editing operations by handling SfDataGrid.CurrentCellBeginEdit and SfDataGrid.CurrentCellEndEdit events.

Filtering

Filtering can be enabled by setting SfDataGrid.AllowFiltering property to true, where you can open advanced filter UI by clicking the Filter icon in column header and filter the SfDataGrid. You can customize the filtering operations by handling SfDataGrid.FilterChanging and SfDataGrid.FilterChanged events.

WinUI DataGrid Filtering
