Appearance in Windows Forms TreeView

29 Apr 202114 minutes to read

This section deals with the appearance of TreeViewAdv control

Border Customization

We can customize the border with the below properties.

BorderStyle

BorderStyle Property has the following styles

  • None

    If the BorderStyle set as none, border of TreeViewAdv will be collapsed

  • FixedSingle (For 2D)

    If the BorderStyle set as FixedSingle , then the border of the TreeViewAdv will be visible and we can customize the border

  • Fixed3D (Default)

    If the BorderStyle set as Fixed3D, then the border of the TreeViewAdv will be visible in 3D and we can customize the border settings

BorderSingle

It Indicates the following 2D border styles

  • Solid (default)
  • Dashed
  • Dotted
  • Inset
  • Outset
  • None

BorderColor

BorderColor Property sets the color of Border

BorderSides

BorderSides Property specify the sides of the control to which 3D border should be set.

It has the following Options

  • All

    Three-dimensional border will be set for all sides

  • Right

    Three-dimensional border on the right side of TreeViewAdv

  • Left

    Three-dimensional border on the left side of TreeViewAdv

  • Top

    Three-dimensional border on the top of TreeViewAdv

  • Bottom

    Three-dimensional border on the bottom of TreeViewAdv

  • Middle

Border3DStyle

Border3DStyle Property indicates the style of 3D border when BorderStyle is set as Fixed3D

It has the following Styles

  • Adjust
  • Bump
  • Etched
  • Flat
  • Raised
  • RaisedInner
  • RaisedOuter
  • Sunken
  • SunkenInner
  • SunkenOuter

NOTE

The settings will have applied only when TreeViewAdv.BorderStyle property is set to FixedSingle or Fixed3D.

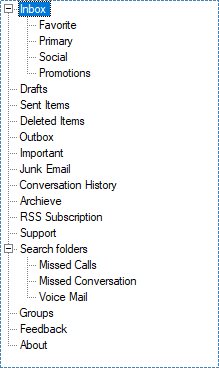

To customize the 2D border of TreeViewAdv, set the below properties as follows.

Property Table

Property Description
BorderColor Indicates the color of the 2D border.
BorderStyle Sets the 2D border style for the Treeview control.
BorderSingle Indicates the 2D border style.
this.treeViewAdv1.BorderColor = System.Drawing.Color.SteelBlue;
this.treeViewAdv1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed;
this.treeViewAdv1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle;
Me.treeViewAdv1.BorderColor = System.Drawing.Color.SteelBlue
Me.treeViewAdv1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed
Me.treeViewAdv1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle

Appearence_img1

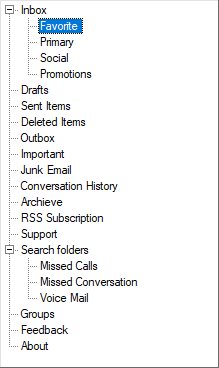

To customize the 3D border of TreeViewAdv, set the below property as follows

Property Table

TreeViewAdv Property Description
BorderStyle Sets the 3D border style for the Treeview control. It must be set as Fixed3D
Border3DStyle Indicates the style of the 3D border when BorderStyle is set to Fixed3D.
BorderSides Specifies the sides of the control to which border should be set.
this.treeViewAdv1.BorderStyle = BorderStyle.Fixed3D;
this.treeViewAdv1.BorderSides = Border3DSide.Right;
this.treeViewAdv1.Border3DStyle = Border3DStyle.RaisedOuter;
this.treeViewAdv1.BorderColor = Color.SteelBlue;
Me.treeViewAdv1.BorderStyle = BorderStyle.Fixed3D;
Me.treeViewAdv1.BorderSides = Border3DSide.Right;
Me.treeViewAdv1.Border3DStyle = Border3DStyle.RaisedOuter;
Me.treeViewAdv1.BorderColor = Color.SteelBlue;

Appearence_img2

ColorCustomization

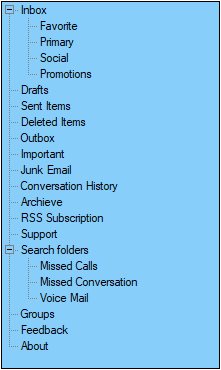

BackColor

Indicates the background color of the text and the graphics of the control.

this.treeViewAdv1.BackColor = Color.LightBlue;
Me.treeViewAdv1.BackColor = Color.LightBlue;

Appearence_img3

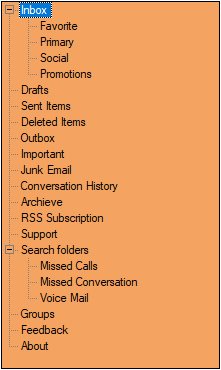

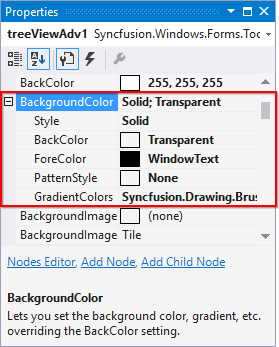

BackgroundColor

Indicates the background color of the control. It provides options to set style, back color, fore color, gradient color and gradient styles.

Appearence_img3

this.treeViewAdv1.BackgroundColor = new Syncfusion.Drawing.BrushInfo(Color.LightSteelBlue);
Me.treeViewAdv1.BackgroundColor = new Syncfusion.Drawing.BrushInfo(Color.LightSteelBlue)

Appearence_img4

Note

Both BackColor and Background color sets the background color of the control. If we set background color, backcolor property overridden by background color and also we can set gradient color and gradient styles through background color property rather than backcolor.

BaseStylePairs

It defines the style for the Nodes. BaseStylePairs property is a collection property of type StyleNamePairsList and it holds one more base style pairs

BaseStyles

Apart from the Standard style, we can also create custom Base styles using the following steps in Base Styles Collection Editor

  1. Open the Base Style Collection Editor by clicking the BaseStyles property in property window.

  2. Clicking the Add Base Style button, will add a new BaseStyle whose properties can be edited.

    StyleArchitecture_images3

  3. This new base style can be applied to any of the nodes, using TreeNodeAdv.BaseStyle property of the respective nodes.

    StyleArchitecture_images4

  4. This overrides the Standard Style settings for the specified nodes and displays the image as follows.

    StyleArchitecture_images5

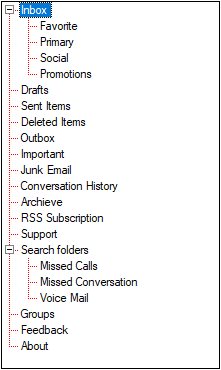

LineColor

Indicates the color of RootLines in TreeViewAdv.

this.treeViewAdv1.LineColor = Color.Red;
Me.treeViewAdv1.LineColor = Color.Red

Appearence_img5

SelectedNodeBackground

Background for the selected node can be set using SelectedNodeBackground property.

SelectedNodeForeColor

Fore color for the selected node can be set using SelectedNodeForeColor property.

InactiveSelectedNodeBackground

The selection rectangle gets grayed out when the TreeViewAdv loses focus. If the user still wishes to maintain the node’s active colors, then the InactiveSelectedNodeBackground and InactiveSelectedNodeForeColor properties can be set.

InactiveSelectedNodeForeColor

Fore Color for the selected node when control loses focus can be set using InactiveSelectedNodeForeColor property

NOTE:

The settings will have applied only when TreeViewAdv.HideSelection property should be set to false.

this.treeViewAdv1.SelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Color.Gray);

this.treeViewAdv1.SelectedNodeForeColor = System.Drawing.Color.White;

this.treeViewAdv1.InactiveSelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.ForwardDiagonal, System.Drawing.Color.Ivory, System.Drawing.Color.DarkOrange);

this.treeViewAdv1.InactiveSelectedNodeForeColor = System.Drawing.Color.SteelBlue;
Me.treeViewAdv1.SelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Color.Gray)

Me.treeViewAdv1.SelectedNodeForeColor = System.Drawing.Color.White

Me.treeViewAdv1.InactiveSelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.ForwardDiagonal, System.Drawing.Color.Ivory, System.Drawing.Color.DarkOrange)

Me.treeViewAdv1.InactiveSelectedNodeForeColor = System.Drawing.Color.SteelBlue

Style

Style provides rich and professional look and feel UI for the TreeViewAdv control.

Style can be applied for the TreeViewAdv using Style property.
Some of the available Styles are as follows:

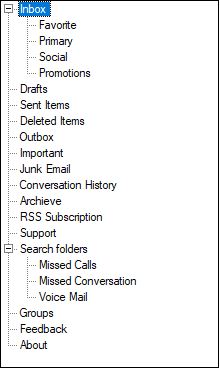

Default

By default, TreeViewAdv has Default visual style.

Appearence_img6

Office2007

Office2007ColorScheme

TreeViewAdv includes new color schemes as available in the Office 2007 suite to provide a more personalized experience with the TreeViewAdv.

TreeViewAdv now supports four themes:

  • Black
  • Blue (Default)
  • Managed
  • Silver
this.treeViewAdv1.Style = TreeStyle.Office2007;
this.treeViewAdv1.Office2007ColorScheme = Syncfusion.Windows.Forms.Office2007Theme.Silver;
Me.treeViewAdv1.Style = TreeStyle.Office2007
Me.treeViewAdv1.Office2007ColorScheme = Syncfusion.Windows.Forms.Office2007Theme.Silver

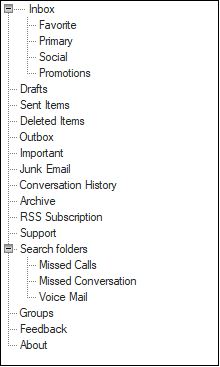

Office2007ColorTable

TreeViewAdv has new color table based on Office2007ColorScheme.

TreeViewAdv has following color tables

  • Office2007BlueColors
  • Office2007SilverColors
  • Office2007BlackColors

Appearence_img7

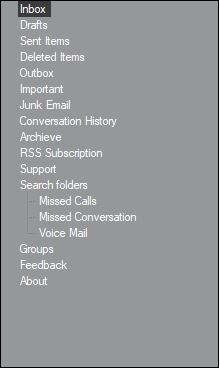

Office2010

Office2010ColorScheme

TreeViewAdv includes new color schemes as available in the Office 2010 suite to provide a more personalized experience with the TreeViewAdv. TreeViewAdv now supports four themes:

  • Black
  • Blue (Default)
  • Managed
  • Silver
this.treeViewAdv1.Style = TreeStyle.Office2010;
this.treeViewAdv1.Office2010ColorScheme = Syncfusion.Windows.Forms.Office2010Theme.Silver;
Me.treeViewAdv1.Style = TreeStyle.Office2010
Me.treeViewAdv1.Office2007ColorScheme = Syncfusion.Windows.Forms.Office2010Theme.Silver

Office2010ColorTable

TreeViewAdv has new color table based on Office2010ColorScheme.

TreeViewAdv has following color tables

  • Office2010BlueColors
  • Office2010SilverColors
  • Office2010BlackColors

Appearence_images8

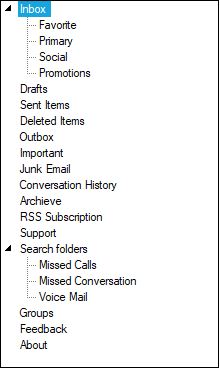

Metro

MetroArrowColorTable

We can customize the expander arrow style using MetroArrowColorTable property

MetroColor

Indicates the metro color of the control.(Applicable for metro style only)

this.treeViewAdv1.Style = TreeStyle.Metro;
this.treeViewAdv1.MetroColor = Color.SteelBlue;
this.treeViewAdv1.MetroArrowColorTable.ArrowNormal = Color.LightBlue;
Me.treeViewAdv1.Style = TreeStyle.Metro
Me.treeViewAdv1.MetroColor = Color.SteelBlue
Me.treeViewAdv1.MetroArrowColorTable.ArrowNormal = Color.LightBlue

Appearence_img9

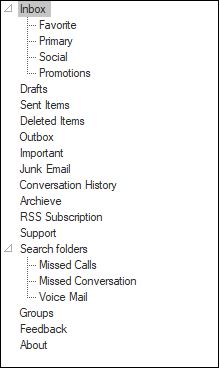

Office2016Colorful

this.treeViewAdv1.Style = TreeStyle.Office2016Colorful;
Me.treeViewAdv1.Style = TreeStyle.Office2016Colorful

Appearence_img10

Office2016White

this.treeViewAdv1.Style = TreeStyle.Office2016White;
Me.treeViewAdv1.Style = TreeStyle.Office2016White

Appearence_img11

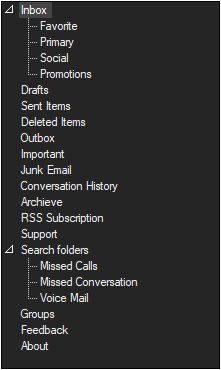

Office2016Black

this.treeViewAdv1.Style = TreeStyle.Office2016Black;
Me.treeViewAdv1.Style = TreeStyle.Office2016Black

Appearence_img12

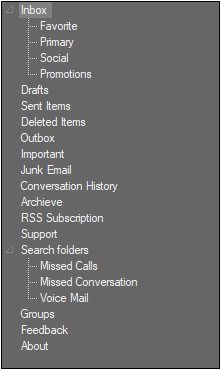

Office2016DarkGray

this.treeViewAdv1.Style = TreeStyle.Office2016DarkGray;
Me.treeViewAdv1.Style = TreeStyle.Office2016DarkGray

Appearence_img13

Gradient Background

This section discusses those events that are handled on changing some appearance related properties. They are as follows.

GradientBackgroundChanged Event

This event occurs when the GradientBackground of the tree changes.

private void treeViewAdv1_GradientBackgroundChanged(object sender, EventArgs e)
{

//The below line will be printed in the output window at run time.
    Console.Write("Gradient Background Changed Event is raised ");
}
Private Sub treeViewAdv1_GradientBackgroundChanged(ByVal sender As Object, ByVal e As EventArgs)

'The below line will be printed in the output window at run time.
Console.Write("Gradient Background Changed Event is raised ")

End Sub

GradientColorsChanged Event

This event occurs when the GradientColors of the tree changes.

private void treeViewAdv1_GradientColorsChanged(object sender, EventArgs e)
{

//The below line will be printed in the output window at run time.
    Console.Write("Gradient Colors Changed Event is raised ");
}
Private Sub treeViewAdv1_GradientColorsChanged(ByVal sender As Object, ByVal e As EventArgs)

'The below line will be printed in the output window at run time.
Console.Write("Gradient Colors Changed Event is raised ")
End Sub

VerticalGradientChanged Event

This event occurs when the tree’s VerticalGradient is changed.

private void treeViewAdv1_VerticalGradientChanged(object sender, EventArgs e)
{

//The below line will be printed in the output window at run time.
    Console.Write("Vertical GradientChanged Event is raised ");
}
Private Sub treeViewAdv1_VerticalGradientChanged(ByVal sender As Object, ByVal e As EventArgs)

'The below line will be printed in the output window at run time.
Console.Write("Vertical GradientChanged Event is raised ")

End Sub

Paint TreeNodeAdv

OwnerDrawn

Indicates whether the BeforeNodePaint and AfterNodePaint events will be fired before drawing a node. The default value is false.

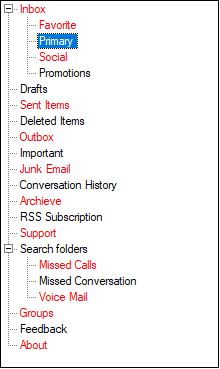

BeforeNodePaint Event

User can paint specific nodes using the BeforeNodePaint event.

OwnerDrawNodes property should be set to true while handling this event

Event Table

Node Paint Events Description
BeforeNodePaint Handled before a node is being painted.

Property Table

TreeViewAdv Property Description
OwnerDrawNodes Indicates if the BeforeNodePaint event will be fired before drawing a node.
this.treeViewAdv1.OwnerDrawNodes = true;
// Enabling Node's Foreground
private void treeViewAdv1_BeforeNodePaint(object sender, TreeNodeAdvPaintEventArgs e)
{
 	   if (e.Node.Index %2 == 0)
  	 	 {
       			 e.ForeColor=Color.Red;
    		}
}
Me.treeViewAdv1.OwnerDrawNodes = True
' Enabling Node's Foreground
Private Sub treeViewAdv1_BeforeNodePaint(ByVal sender As Object, ByVal e As TreeNodeAdvPaintEventArgs)
If e.Node.Index % 2 = 0 Then
e.ForeColor = Color.Red
End If
End Sub

Appearence_img14

AfterNodePaint Event

Users can also draw on the node, after the default drawing routines have rendered the node appropriately. Users can do so by first turning on OwnerDrawNodes in the tree and listening to the AfterNodePaint event.

Event Table

Node Paint Events Description
AfterNodePaint Handled after a node is painted.
