Docking Client Panel in Windows Forms Docking Manager

4 Feb 202510 minutes to read

A docking window is inherited from the client window but the layout of docking window is varied from client window at run-time, since the window is set in dock or float state. This paradigm is extremely well suited for MDI type forms where the MDIClient window gets resized/relocated in synchronization with changes in the docking windows layout.

Child controls located within the MDIClient window are always assured of a static spatial relationship with the parent container.

Non-MDI forms do not have any such client window and all non-dockable statically positioned controls risk being clipped by windows that are docked in their proximity.

The Essential^® Tools of docking client panel control help to overcome this limitation by providing an auto-resized client surface on which a form’s non-dockable controls can be located.

NOTE

The docking client panel control is intended only for use with forms that do not have the MDIContainer style set.

Add control to Docking Manager as client control

The following are the steps involved in setting up a docking layout on a non-MDIContainer form using the docking client panel. The docking client panel is used here because in addition to docking windows, the host form contains several non-dockable controls that require a container with static relative bounds to implement positioning and layout management.

1. Add the docking manager to the form and apply the EnableDocking for those controls that need to be set as docking windows.
2. Select the docking client panel control from the designer tool box and drop it to the form hosting the docking manager. Size the control, so that its bounds can accommodate any non-dockable child controls that may already be present on the form.
3. If any non-dockable controls are present in the form, then drag-and-drop the controls to the docking client panel instance.
4. Set the DockingClientPanel.SizeToFit property to true. Turning on the SizeToFit property forces the DockingClientPanel to start interacting with the Essential^® Tools docking architecture. The control will automatically be resized/repositioned to occupy the form’s client bounds or left unoccupied by the docking windows.
5. Set the BorderStyle property to get the 3D or fixed single effect to the docking client panel control.
6. Now, the docking client panel will function as a proxy for the form’s client surface and all controls originally intended to be placed on the form should henceforth be located on the DockingClientPanel. Any anchoring/layout features for child controls should be set relative to the docking client panel.
7. To add controls directly to the form, the SizeToFit property can temporarily be turned off within the designer and the form resized to expose its surface. At run-time, the SizeToFit property is always enabled.

Properties	Description
SizeToFit	Gets or sets a value indicating whether the control is sized to fill the form's area.
BorderStyle	Indicates the border style of the control.

1. The docking client panel control can be added to the non-MDI forms using the following code snippet.

   C#

   //Declaration and initialization

   private Syncfusion.Windows.Forms.Tools.DockingClientPanel dockingClientPanel1;

   private System.Windows.Forms.Label label1;

   this.dockingClientPanel1 = new Syncfusion.Windows.Forms.Tools.DockingClientPanel();

   this.label1 = new System.Windows.Forms.Label();

   this.dockingClientPanel1.SuspendLayout();

   this.label1.Text = "DockingClientPanel";

   //Add a control to DockingClientPanel

   this.dockingClientPanel1.Controls.Add(this.label1);

   this.dockingManager1.DockControl(this.panel1, this, Syncfusion.Windows.Forms.Tools.DockingStyle.Left, 200);

   //set the properties

   this.dockingClientPanel1.Location = new System.Drawing.Point(0, 133);

   this.dockingClientPanel1.Name = "dockingClientPanel1";

   this.dockingClientPanel1.Size = new System.Drawing.Size(600, 369);

   this.dockingClientPanel1.SizeToFit = true;

   this.dockingClientPanel1.TabIndex = 0;

   this.dockingClientPanel1.BorderStyle = System.Windows.Forms.BorderStyle.Fixed3D;


   //Add the control to the form

   this.Controls.Add(this.dockingClientPanel1);

   this.dockingClientPanel1.ResumeLayout(false);

   VB.NET

   ' Declaration and initialization

   Private dockingClientPanel1 As Syncfusion.Windows.Forms.Tools.DockingClientPanel

   Private  label1 As System.Windows.Forms.Label

   Me.dockingClientPanel1 = New Syncfusion.Windows.Forms.Tools.DockingClientPanel()

   Me.label1 = New System.Windows.Forms.Label()

   Me.dockingClientPanel1.SuspendLayout()

   Me.label1.Text = "DockingClientPanel"

   ' Add a control to DockingClientPanel

   Me.dockingClientPanel1.Controls.AddRange(New System.Windows.Forms.Control() {Me.label1})

   Me.dockingManager1.DockControl(Me.panel1, Me, Syncfusion.Windows.Forms.Tools.DockingStyle.Left, 200)

   'set the properties

   Me.dockingClientPanel1.AutoScroll = True

   Me.dockingClientPanel1.Location = New System.Drawing.Point(106, 0)

   Me.dockingClientPanel1.Name = "dockingClientPanel1"

   Me.dockingClientPanel1.Size = New System.Drawing.Size(452, 417)

   Me.dockingClientPanel1.SizeToFit = True

   Me.DockingClientPanel1.BorderStyle = System.Windows.Forms.BorderStyle.Fixed3D

   ' Add the control to the form

   Me.Controls.AddRange(New System.Windows.Forms.Control() {Me.dockingClientPanel1})

   Me.dockingClientPanel1.ResumeLayout(False)

Customize client panel

The docking client panel gives an attractive look and feel using the appearance and size properties. These properties are discussed in detail below. This section also gives an idea about the scrolling feature available for the client panel.

Change background and foreground

The background color of the control can be set using the BackColor property. The background image can be specified using the BackgroundImage property and image layout is set through the BackgroundImageLayout property. The following are the code snippets to set these properties programmatically.

Properties	Description
BackColor	Indicates the background color of the component.
BackgroundImage	Indicates the background image used for the control.
BackgroundImageLayout	Indicates the background image layout used for the control.

C#

this.dockingClientPanel1.BackColor = System.Drawing.Color.AliceBlue;

this.dockingClientPanel1.BackgroundImage = CType((Resources.GetObject("dockingClientPanel1.BackgroundImage")), System.Drawing.Image);

this.dockingClientPanel1.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Stretch;

VB.NET

Me.dockingClientPanel1.BackColor = System.Drawing.Color.AliceBlue

Me.dockingClientPanel1.BackgroundImage = CType((Resources.GetObject("dockingClientPanel1.BackgroundImage")), System.Drawing.Image)

Me.dockingClientPanel1.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Stretch

The font used to display the text in the control is set through the Font property and the fore color through the ForeColor property. The following are the code snippets to set these two properties programmatically.

Properties	Description
Font	The font is used to display the text in the control.
ForeColor	The foreground color of this component is used to display the text.

C#

this.dockingClientPanel1.Font = new System.Drawing.Font("Arial", 9F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(0)));

this.dockingClientPanel1.ForeColor = System.Drawing.Color.RoyalBlue;

VB.NET

Me.dockingClientPanel1.Font = New System.Drawing.Font("Arial", 9.0F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, CType((0), Byte))

Me.dockingClientPanel1.ForeColor = System.Drawing.Color.RoyalBlue

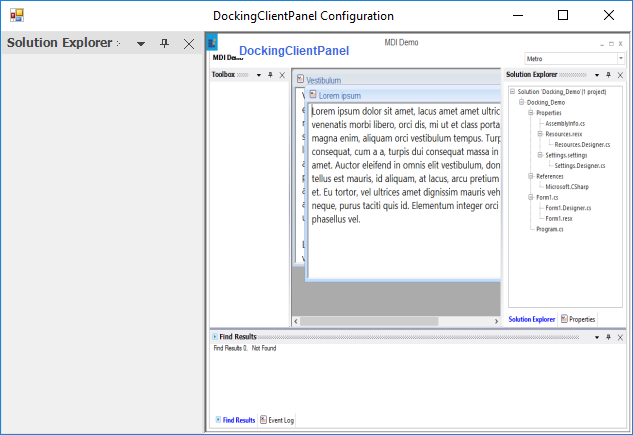

The following image illustrates a docking client panel in which the foreground and background properties has been set.

Auto sizing

The autoSize property allows the control to automatically size itself to fit its contents. The resize mode can be specified using the AutoSizeMode property.

Properties	Description
AutoSize	Specifies whether a control automatically resizes itself to fit its contents.
AutoSizeMode	Specifies the mode by which the user interface element automatically resizes itself.

C#

this.dockingClientPanel1.AutoSize = true;

this.dockingClientPanel1.AutoSizeMode = System.Windows.Forms.AutoSizeMode.GrowAndShrink;

VB.NET

Me.dockingClientPanel1.AutoSize = True

Me.dockingClientPanel1.AutoSizeMode = System.Windows.Forms.AutoSizeMode.GrowAndShrink

Scroll client control

When the control contents are larger than its visible area, the scroll bars will automatically appear by enabling the AutoScroll property. The margin for the control during autoscroll is specified using the AutoScrollMargin property, and the minimum size for auto scroll area can be specified using the AutoScrollMinSize property.

Properties	Description
AutoScroll	Indicates whether scroll bars automatically appear when the control contents are larger than its visible area.
AutoScrollMargin	Indicates the margin around controls during auto scroll.
AutoScrollMinSize	Indicates the minimum logical size for auto scroll region.

C#

this.dockingClientPanel1.AutoScroll = true;

this.dockingClientPanel1.AutoScrollMargin = new System.Drawing.Size(1, 1);

this.dockingClientPanel1.AutoScrollMinSize = new System.Drawing.Size(1, 1);

VB.NET

Me.dockingClientPanel1.AutoScroll = True

Me.dockingClientPanel1.AutoScrollMargin = New System.Drawing.Size(1, 1)

Me.dockingClientPanel1.AutoScrollMinSize = New System.Drawing.Size(1, 1)
