Tab Navigation in Windows Forms TabControl (TabControlAdv)

29 Apr 20214 minutes to read

TabPrimitives is a collection of NavigationControls used to navigate through the TabPages of the TabControlAdv.

The various TabPrimitives are,

  • FirstTab - Goes to the first tab among the pages.
  • LastTab - Goes to the last tab among the pages.
  • PreviousTab - Goes to the previous tab of the active tab.
  • NextTab - Goes to the next tab of the active tab.
  • PreviousPage - Goes to the previous page of the active page.
  • NextPage - Goes to the next page of the active page.
  • DropDown - This pops-up a list of the available tab pages in the control from which the user can select the page to be traversed.
  • Close - This button is used to close the TabControlAdv. It can be set to appear for the whole control or individual tab pages.
  • Custom - User can add more buttons through Custom TabPrimitive. This helps the user to create/add more buttons and handle their own click events.

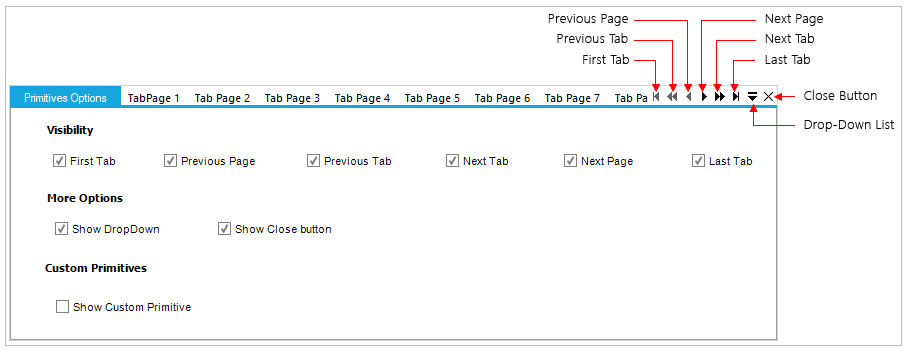

Tab primitives

NOTE

The TabControlAdv.HitTestTabs method can be used to return the tab at the specified location.

TabPrimitives features

Apart from doing the defined task of Navigation, TabPrimitivesHost provides options to add Images, ToolTips, and to enable the Visible property for each TabPrimitive.

NOTE

You can set the other properties for adding Images and ToolTips for the TabPrimitives using the TabPrimitives Collection Editor.

Creating TabPrimitives

The TabPrimitives can be added to the TabControlAdv by using either of the following ways,

  • Through designer
  • Through code-behind

Through designer

To create TabPrimitives through designer, follow the given steps:

  1. After adding a TabControlAdv with a set of TabPages in it, select the TabPrimitivesHost.TabPrimitives property in the Properties window.

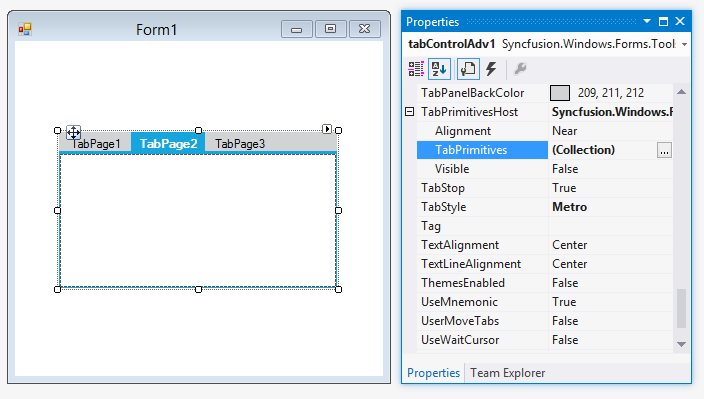

    TabPrimitives added by designer

  2. A TabPrimitives Collection Editor will be opened. Click the Add option in the Editor to add a TabPrimitive.

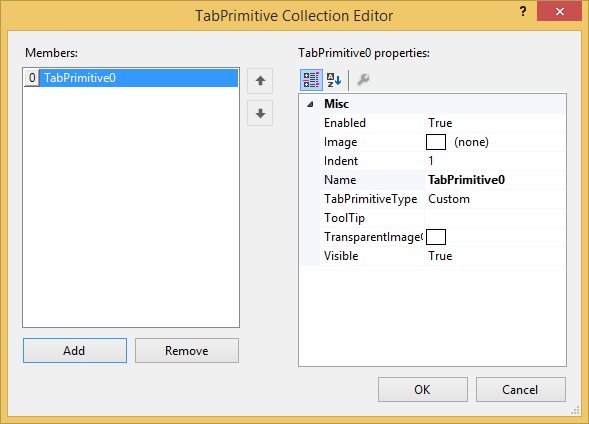

    Need to set tab primitive

  3. Set the TabPrimitiveType as required and click OK.

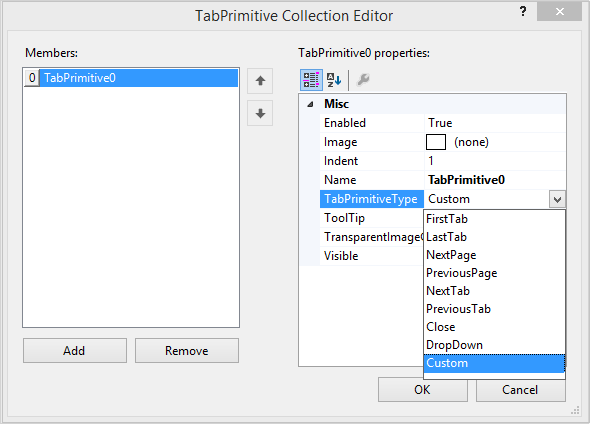

    Custom primitive type

Through code

//Adds a TabPrimitive of type DropDown.

this.tabControlAdv4.TabPrimitivesHost.TabPrimitives.Add(new Syncfusion.Windows.Forms.Tools.TabPrimitive(Syncfusion.Windows.Forms.Tools.TabPrimitiveType.DropDown, null, System.Drawing.Color.Empty, true, 1, "TabPrimitive0"));



//Adds a TabPrimitive of type Close.

this.tabControlAdv1.TabPrimitivesHost.TabPrimitives.Add(new Syncfusion.Windows.Forms.Tools.TabPrimitive(Syncfusion.Windows.Forms.Tools.TabPrimitiveType.Close, null, System.Drawing.Color.Empty, true, 1, "TabPrimitive1"));



//Similarly other TabPrimitive types are added.


//Makes the TabPrimitive visible in the control.

this.tabControlAdv1.TabPrimitivesHost.Visible = true;
'Adds a TabPrimitive of type DropDown.

Me.tabControlAdv4.TabPrimitivesHost.TabPrimitives.Add(New Syncfusion.Windows.Forms.Tools.TabPrimitive(Syncfusion.Windows.Forms.Tools.TabPrimitiveType.DropDown, Nothing, System.Drawing.Color.Empty, True, 1, "TabPrimitive0"))



'Adds a TabPrimitive of type Close.

Me.tabControlAdv1.TabPrimitivesHost.TabPrimitives.Add(New Syncfusion.Windows.Forms.Tools.TabPrimitive(Syncfusion.Windows.Forms.Tools.TabPrimitiveType.Close, Nothing, System.Drawing.Color.Empty, True, 1, "TabPrimitive1"))



'Similarly other TabPrimitive types are added.



'Makes the TabPrimitive visible in the control.

Private Me.tabControlAdv1.TabPrimitivesHost.Visible = True

NOTE

After adding TabPrimitives, set the TabPrimitiveHost.Visible property to true. Now the added TabPrimitives will be visible in the TabControlAdv.

SwitchPagesForDialogKeys property available for the TabControlAdv specifies if the control should switch TabPages on pressing Ctrl+Tab or Ctrl+Shift+Tab.

The TabPrimitivesHost property allows to customize the navigation and close buttons by defining it through the TabPrimitives property Collection. The TabPrimitives can be added and each primitive can be assigned with the type to be used, which includes primitives to traverse to the First/Previous/Next/LastTab, Next/PreviousPage, and Close/DropDown options.

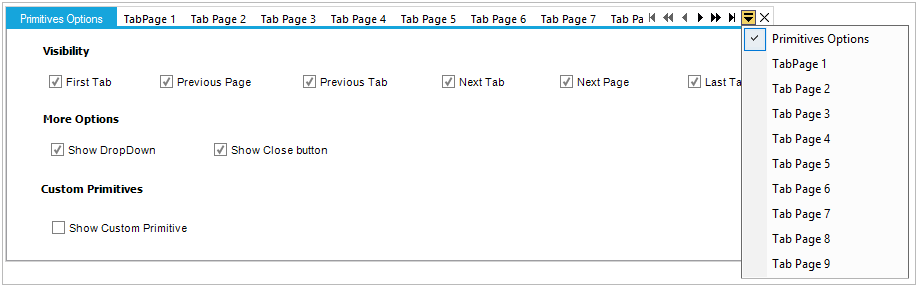

Tab primitives
