Menu Elements in Windows Forms Radial Menu

29 Apr 20212 minutes to read

Radial Menu items

Radial Menu items are populated with the business object collection. Each menu item can be checked.

Check mode

The CheckMode of a Radial Menu Item is defined with the following options:

  • None - When the CheckMode is set to None, item can not be checked.
  • CheckBox - When the CheckMode is set to CheckBox, you can check more than one item in the same level.
  • RadioButton - When the CheckMode is set to RadioButton, you can check only one item in the same level.

Grouping

Using Grouping functionality, you can group multiple items in the same level. This property is used when the CheckMode property is set to Option.

this.radialMenuItem1.CheckMode = CheckMode.Check;

this.radialMenuItem2.CheckMode = CheckMode.Check;

this.radialMenuItem5.GroupName = "group1";

this.radialMenuItem5.CheckMode = CheckMode.Option;

this.radialMenuItem4.GroupName = "group1";

this.radialMenuItem4.CheckMode = CheckMode.Option;

this.radialMenuItem3.GroupName = "group1";

this.radialMenuItem3.CheckMode = CheckMode.Option;
Me.radialMenuItem1.CheckMode = CheckMode.Check
Me.radialMenuItem2.CheckMode = CheckMode.Check

Me.radialMenuItem5.GroupName = "group1"

Me.radialMenuItem5.CheckMode = CheckMode.Option
Me.radialMenuItem4.GroupName = "group1"

Me.radialMenuItem4.CheckMode = CheckMode.Option
Me.radialMenuItem3.GroupName "group1"

Me.radialMenuItem3.CheckMode = CheckMode.Option

Grouping

Radial color palette

Radial Color Palette is formed in Radial Menu with the Radial Color Items and it is used to update the color.

Radial color palette

Radial font list box

Radial Font List Box is formed in Radial Menu with installed font family and it is used to update the font style.

Radial font list box

Radial Menu Slider

Radial Menu Slider is formed in Radial Menu with minimum and maximum value and it is used to update the size.

Radial Menu Slider

Icon

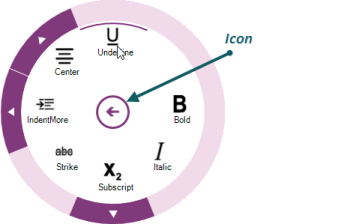

The Icon property of Radial Menu is used to customize the icon displayed in the center of Radial Menu circle. Icon is not displayed if it is not loaded.

Icon
