Appearance in Windows Forms MultiColumn TreeView

2 Nov 202218 minutes to read

Border

BorderStyle

BorderStyle Property has the following styles

  • None
    If the BorderStyle set as none, border of MultiColumnTreeView will be collapsed

  • FixedSingle (For 2D)
    If the BorderStyle set as FixedSingle, then the border of the MultiColumnTreeView will be visible and we can customize the border.

  • Fixed3D (Default)
    If the BorderStyle set as Fixed3D, then the border of the MultiColumnTreeView will be visible in 3D and we can customize the border settings

BorderSingle

It Indicates the following 2D border styles

  • Solid (default)

  • Dashed

  • Dotted

  • Inset

  • Outset

  • None

BorderColor

BorderColor Property sets the color of Border

BorderSides

BorderSides Property specify the sides of the control to which 3D border should be set.

It has the following Options

  • All
    Three-dimensional border will be set for all sides

  • Right
    Three-dimensional border on the right side of MultiColumnTreeView

  • Left
    Three-dimensional border on the left side of MultiColumnTreeView

  • Top
    Three-dimensional border on the top of MultiColumnTreeView

  • Bottom
    Three-dimensional border on the bottom of MultiColumnTreeView

  • Middle

Border3DStyle

Border3DStyle Property indicates the style of 3D border when BorderStyle is set as Fixed3D

It has the following Styles

  • Adjust

  • Bump

  • Etched

  • Flat

  • Raised

  • RaisedInner

  • RaisedOuter

  • Sunken

  • SunkenInner

  • SunkenOuter

NOTE

The settings will have applied only when MultiColumnTreeView.BorderStyle property is set to FixedSingle or Fixed3D.

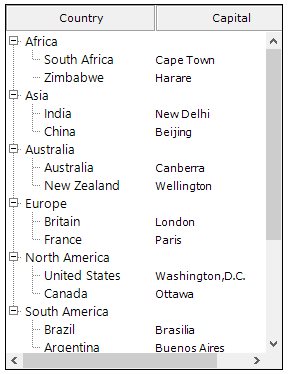

To customize the 2D border of MultiColumnTreeView, set the below properties as follows.

Property Table

MultiColumnTreeView Property Description
BorderColor Indicates the color of the 2D border.
BorderStyle Sets the 2D border style for the control.
BorderSingle Indicates the 2D border style.
this.multiColumnTreeView1.BorderColor = System.Drawing.Color.SteelBlue;

this.multiColumnTreeView1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed;

this.multiColumnTreeView1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle;
Me.multiColumnTreeView1.BorderColor = System.Drawing.Color.SteelBlue

Me.multiColumnTreeView1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed

Me.multiColumnTreeView1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle

Appearance_img1

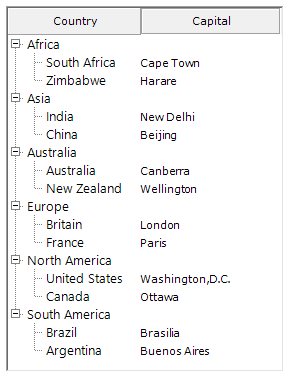

To customize the 3D border of MultiColumnTreeView, set the below property as follows

Property Table

MultiColumnTreeView Property Description
BorderStyle Sets the 3D border style for the control. It must be set as Fixed3D
Border3DStyle Indicates the style of the 3D border when BorderStyle is set to Fixed3D.
BorderSides Specifies the sides of the control to which border should be set.
BorderColor Indicates the color of the 3D border.
this.multiColumnTreeView1.BorderStyle = BorderStyle.Fixed3D;

this.multiColumnTreeView1.BorderSides = Border3DSide.Right;

this.multiColumnTreeView1.Border3DStyle = Border3DStyle.RaisedOuter;

this.multiColumnTreeView1.BorderColor = Color.SteelBlue;
Me.multiColumnTreeView1.BorderStyle = BorderStyle.Fixed3D

Me.multiColumnTreeView1.BorderSides = Border3DSide.Right

Me.multiColumnTreeView1.Border3DStyle = Border3DStyle.RaisedOuter

Me.multiColumnTreeView1.BorderColor = Color.SteelBlue

Appearance_img2

Color Customization

Color Customization lets you customize the MultiColumnTreeView with personalized colors to its components.

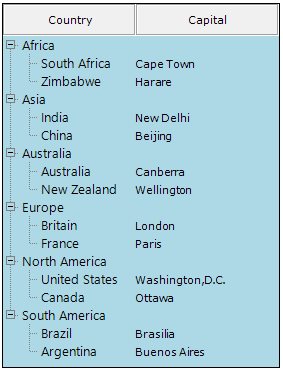

BackColor

Indicates the background color of the control

this.multiColumnTreeView1.BackColor = Color.LightBlue ;
Me.multiColumnTreeView1.BackColor = Color.LightBlue

Appearance_img3

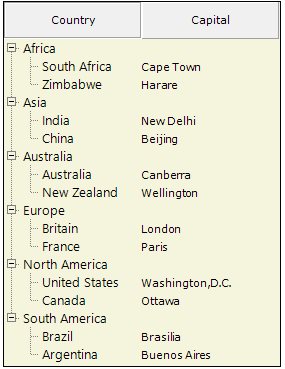

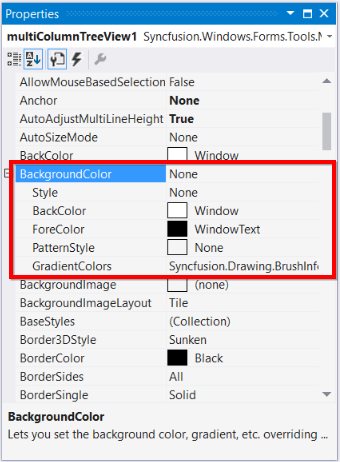

BackgroundColor

Indicates the background color of the control. It provides options to set style, back color, fore color, gradient color and gradient styles.

Appearance_img4

NOTE

Both BackColor and Background color sets the background color of the control. If we set background color, backcolor property overridden by background color and we can set gradient color and gradient styles through background color property rather than backcolor.

this.multiColumnTreeView1.BackgroundColor = new Syncfusion.Drawing.BrushInfo(Color.Beige);
Me.multiColumnTreeView1.BackgroundColor = New Syncfusion.Drawing.BrushInfo(Color.Beige)

Appearance_img5

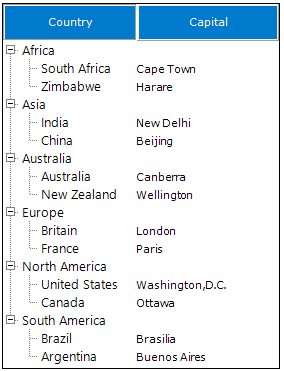

Header Customization

Column headers can be customized using the Background property.

this.multiColumnTreeView1.Columns[0].Background = new Syncfusion.Drawing.BrushInfo(ColorTranslator.FromHtml("#007acc"));
this.multiColumnTreeView1.Columns[1].Background = new Syncfusion.Drawing.BrushInfo(ColorTranslator.FromHtml("#007acc"));

this.multiColumnTreeView1.Columns[0].TextColor = Color.White;
this.multiColumnTreeView1.Columns[1].TextColor = Color.White ;
Me.multiColumnTreeView1.Columns(0).Background = New Syncfusion.Drawing.BrushInfo(ColorTranslator.FromHtml("#007acc"))
    Me.multiColumnTreeView1.Columns(1).Background = New Syncfusion.Drawing.BrushInfo(ColorTranslator.FromHtml("#007acc"))
    Me.multiColumnTreeView1.Columns(0).TextColor = Color.White
    Me.multiColumnTreeView1.Columns(1).TextColor = Color.White

Appearance_img6

BaseStyles

Apart from the Standard styles, you can create custom base styles for nodes, columns, sub items and even nodes with individual levels.

For creating base styles follow the below steps,

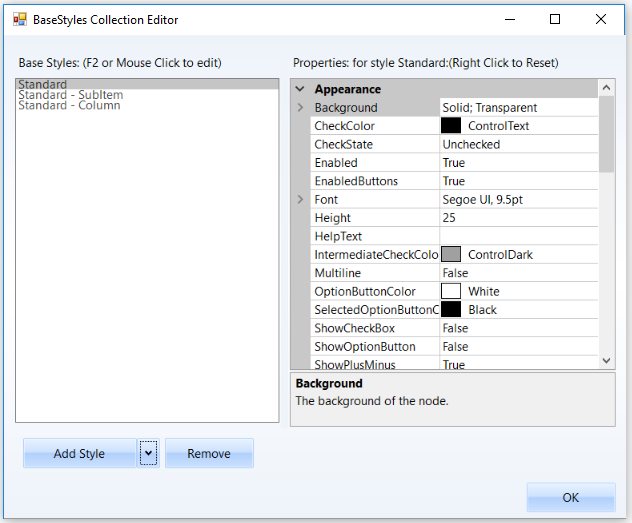

  1. Open the Base Style Collection Editor by clicking the BaseStyles property in property window.

Appearance_img7

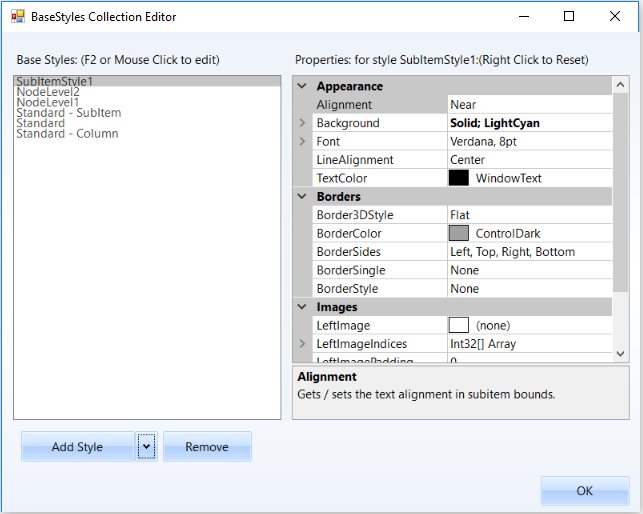

  1. By default, there will be three standard styles, for applying new base styles select for which you need to apply the styles in dropdown arrow and click the Add button .

Appearance_img8

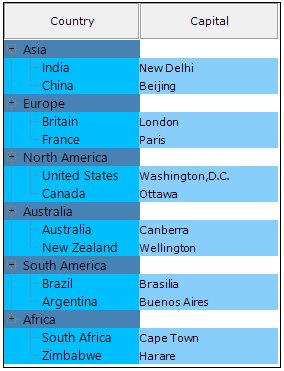

In the image Node Level 1, Node Level 2 and SubItem Style Base style has been added.

Appearance_img9

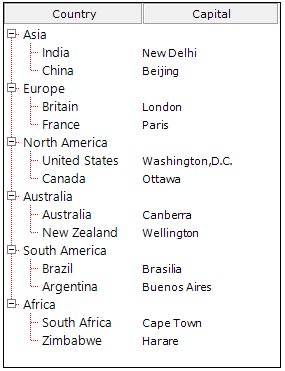

LineColor

Indicates the color of RootLines in MultiColumnTreeView.

this.multiColumnTreeView1.LineColor = Color.Red;
Me.multiColumnTreeView1.LineColor = Color.Red

Appearance_img10

SelectedNodeBackground

Background for the selected node can be set using SelectedNodeBackground property.

this.multiColumnTreeView1.SelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Color.LightSeaGreen);
Me.multiColumnTreeView1.SelectedNodeBackground = New Syncfusion.Drawing.BrushInfo(Color.LightSeaGreen)

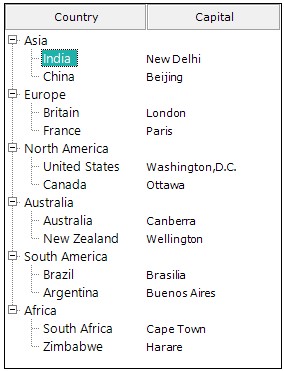

SelectedNodeForeColor

Fore color for the selected node can be set using SelectedNodeForeColor property.

this.multiColumnTreeView1.SelectedNodeForeColor = Color.White;
Me.multiColumnTreeView1.SelectedNodeForeColor = Color.White

Appearance_img11

InactiveSelectedNodeBackground

The selection rectangle gets grayed out when the node loses focus. If the user still wishes to maintain the node’s active colors, then the InactiveSelectedNodeBackground and InactiveSelectedNodeForeColor properties can be set.

this.multiColumnTreeView1.InactiveSelectedNodeBackground = new BrushInfo(Color.Red);
Me.multiColumnTreeView1.InactiveSelectedNodeBackground = New BrushInfo(Color.Red)

InactiveSelectedNodeForeColor

Fore Color for the selected node when control loses focus can be set using InactiveSelectedNodeForeColor property

this.multiColumnTreeView1.InactiveSelectedNodeForeColor = Color.White;
Me.multiColumnTreeView1.InactiveSelectedNodeForeColor = Color.White

Customize SubItems

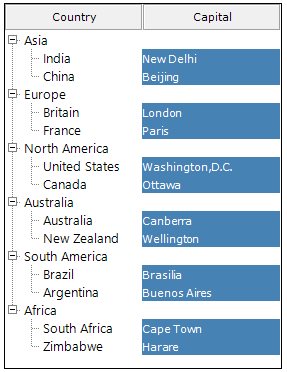

Background

Background customization can be done for the sub item using Background property.

this.multiColumnTreeView1.Nodes[0].SubItems[1].Background = new Syncfusion.Drawing.BrushInfo(Color.Blue);
Me.multiColumnTreeView1.Nodes(0).SubItems(1).Background = New Syncfusion.Drawing.BrushInfo(Color.Blue)

Appearance_img12

Border

BorderColor

Border color for the SubItem can be set using the property BorderColor.

this.MultiColumnTreeView1.Nodes[0].Nodes[0].Nodes[2].SubItems[1].BorderColor = Color.Red;
Me.MultiColumnTreeView1.Nodes(0).Nodes(0).Nodes(2).SubItems(1).BorderColor = Color.Red

BorderStyle

Border style can be set for the sub item using the BorderStyle property. It has same styles as explained in the Border Style for Nodes.

this.MultiColumnTreeView1.Nodes[0].Nodes[0].Nodes[2].SubItems[1].BorderStyle = BorderStyle.FixedSingle;
Me.MultiColumnTreeView1.Nodes(0).Nodes(0).Nodes(2).SubItems(1).BorderStyle = BorderStyle.FixedSingle

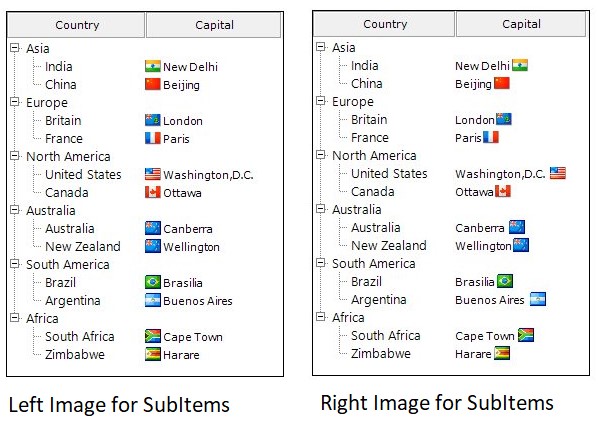

Image Customization

Sub items can be customized with the Right and left image using the property RightImage and LeftImage

this.MultiColumnTreeView1.Nodes[0].Nodes[0].Nodes[2].SubItems[1].RightImage = Image.FromFile(@"Pictures/RightImage.png");

this.MultiColumnTreeView1.Nodes[0].Nodes[0].Nodes[2].SubItems[1].LeftImage = Image.FromFile(@"Pictures/LeftImage.png");
Me.MultiColumnTreeView1.Nodes(0).Nodes(0).Nodes(2).SubItems(1).RightImage = Image.FromFile("Pictures/RightImage.png")

Me.MultiColumnTreeView1.Nodes(0).Nodes(0).Nodes(2).SubItems(1).LeftImage = Image.FromFile("Pictures/LeftImage.png")

Appearance_img13

Style

Office2016Colorful

this.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016Colorful;
Me.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016Colorful

Appearance_img14

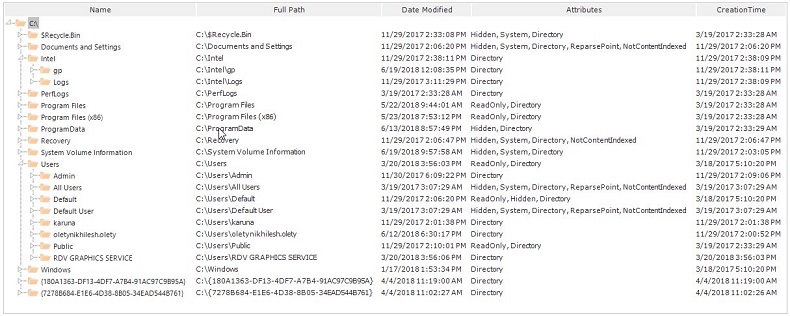

Office2016White

this.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016White;
Me.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016White

Appearance_img15

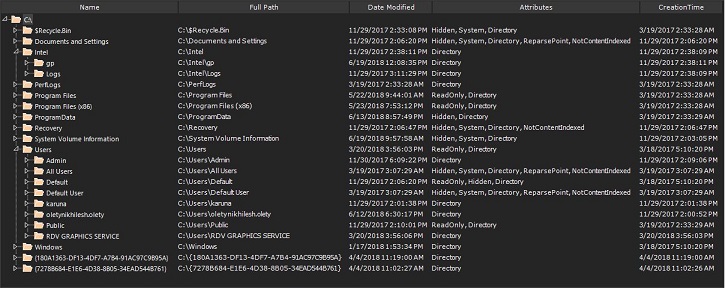

Office2016Black

this.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016Black;
Me.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016Black

Appearance_img16

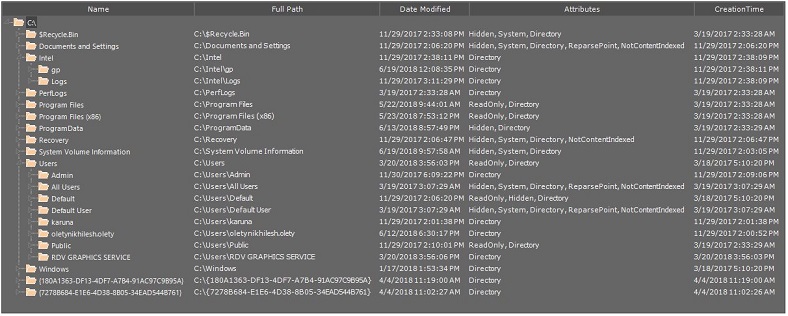

Office2016DarkGray

this.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016DarkGray;
Me.multiColumnTreeView1.Style = MultiColumnVisualStyle.Office2016DarkGray

Appearance_img17

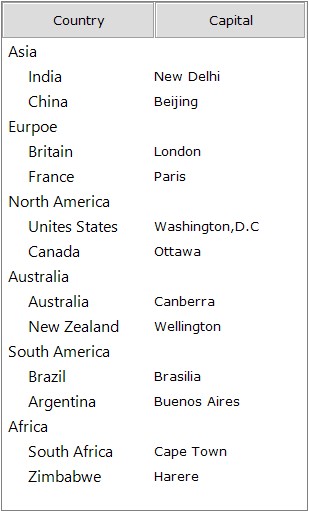

PlusMinus

Plus Minus are used to display plus/minus images for the parent nodes using the property ShowPlusMinus these images can be disabled.

this.multiColumnTreeView2.ShowPlusMinus = false;
Me.multiColumnTreeView2.ShowPlusMinus = False

Appearance_img21

Image Customization

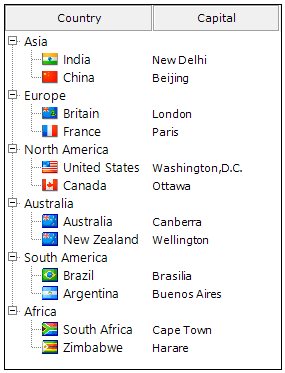

LeftImageList

The tree nodes can be set with left images using LeftImageList property in the property window. Left images for the individual nodes can be specified in LeftImageIndices property of individual nodes, using the MultiColumnTreeView Nodes Collection Editor.

The nodes with the images can be given an enhanced appearance using LeftImagePadding.

Property Table

MultiColumnTreeView Property Description
LeftImageList Indicates the image list that holds the images to be drawn on the left of the Node.
TreeNodeAdv Property Description
LeftImageIndices It is the image index to be drawn on the left of the node's text.
LeftImagePadding It is the space provided between the LeftImage of the node and node.
LeftStateImagePadding It is the space provided between, the LeftStateImage of the node and node.

To set the left images for all the nodes in MultiColumnTreeView follow the below steps

  1. Create image list and add images in it.

  2. Set the newly created image list to the LeftImageList property.

    Through code:

    this.multiColumnTreeView1.LeftImageList = this.leftImageList;
    Me.multiColumnTreeView1.LeftImageList = Me.leftImageList

  3. Now set the LeftImageIndices for each node in MultiColumnTreeView.

​

multiColumnTreeView1.LeftImageIndices = new int[] {1};
multiColumnTreeView1.LeftImageIndices = New Integer() {1}

Appearance_img18

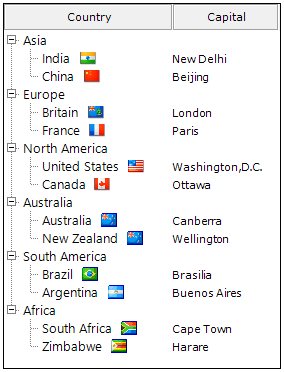

RightImageList

The tree nodes can be set with right images using RightImageList property in the property window. right images for the individual nodes can be specified in RightImageIndices property of individual nodes, using the MultiColumnTreeView Nodes Collection Editor.

The nodes with the images can be given an enhanced appearance using RightImagePadding.

Property Table

MultiColumnTreeView Property Description
RightImageList Indicates the image list that holds the images to be drawn on the right of the Node.
TreeNodeAdv Property Description
RightImageIndices It is the image index to be drawn on the right of the node's text.
RightImagePadding It is the space provided between the RightImage of the node and node.
RightStateImagePadding It is the space provided between, the RightStateImage of the node and node.

To set the right images for all the nodes in MultiColumnTreeView follow the below steps

  1. Create image list and add images in it.

  2. Set the newly created image list to the RightImageList property.

    Through code:

    this.multiColumnTreeView1.RightImageList = this.rightImageList;
    Me.multiColumnTreeView1.RightImageList = Me.rightImageList

  3. Now set the RightImageIndices for each node in MultiColumnTreeView.

​

multiColumnTreeView1.RightImageIndices = new int[] {1};
multiColumnTreeView1.RightImageIndices = New Integer() {1}

Appearance_img19

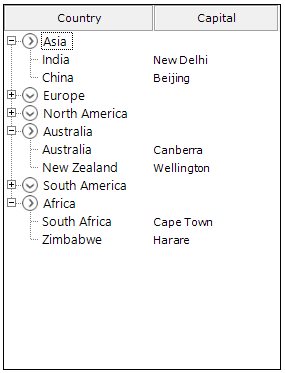

StateImageList

Different images can be set for expand / collapse states of the node, using StateImageList property. To apply the left open and close images, set the ClosedImageIndex and the OpenImageIndex to the indices that points to the images in the StateImageList respectively. Nodes without child can be set with a separate image using NoChildrenImageIndex.

Property Table

MultiColumnTreeView Property

MultiColumnTreeView Event Description
ClosedImageIndex It is the StateImageList index value of the image that is displayed, when a tree node is collapsed.
NoChildrenImageIndex It is the StateImageList index value of the image that is displayed, when a tree node has no children.
OpenImageIndex It is the StateImageList index value of the image that is displayed, when a tree node is expanded.
StateImageList This indicates the image list that holds the images to be drawn based on the state of the Node.

The above properties can also be set to individual nodes

TreeNodeAdv Property

MultiColumnTreeView Event Description
ClosedImageIndex It is the image index in StateImageList where the node is collapsed.
NoChildrenImageIndex It is the image index indicating the image in the StateImageList where the node has no children.
OpenImageIndex It is the image index in StateImageList where the node is expanded.

To set the state images for all the nodes in MultiColumnTreeView follow the below steps

  1. Create image list and add images in it.

  2. Set the newly created image list to the property StateImageList.

    Through code:

    this.multiColumnTreeView1.StateImageList = this.stateImageList;
    Me.multiColumnTreeView1.StateImageList = Me.stateImageList

  3. Now set the OpenImgIndex and ClosedImgIndex for each node in MultiColumnTreeView.

    treeNodeAdv1. OpenImgIndex = 1;

treeNodeAdv1. CloseImgIndex = 2;
    treeNodeAdv1.OpenImgIndex = 1

treeNodeAdv1.CloseImgIndex = 2

  4. Repeat step 3 until set OpenImgIndex and ClosedImgIndex for all the nodes in MultiColumnTreeView.

Appearance_img20
