Element Events in Windows Forms Html Viewer (HTMLUI)

9 Dec 2019 / 6 minutes to read

Each HTML element in an HTML document is made to support events, such asClick, DoubleClick, MouseMove, KeyPress, and so on just like the Windows Forms controls.

<html>

<body>

<input type="text" id="text1"/>

</body>

</html>
// Object declaration for the textarea element in the html document rendered in the control.

private void htmluiControl1_LoadFinished(object sender, System.EventArgs e)

{

Hashtable tab = this.htmluiControl1.Document.GetElementsByUserIdHash();

BaseElement textElement  = tab["text1"] as BaseElement;



     // Event handlers declaration for the events on the html elements.

     textElement.Click += new EventHandler( textElement_Click );

   textElement.KeyDown += new EventHandler( textElement_KeyDown );

   textElement.MouseEnter += new EventHandler( textElement_MouseEnter );

}



// HTML element Click event definition.

private void textElement_Click( object sender, EventArgs e )

{

Console.WriteLine("Click Event Handled");

}



// HTML element KeyDown event definition.

private void textElement_KeyDown( object sender, EventArgs e )

{

Console.WriteLine("KeyDown Event Handled");

}



// HTML element MouseEnter event definition.

private void textElement_MouseEnter( object sender, EventArgs e )

{

Console.WriteLine("MouseDown Event Handled");

}
' Object declaration for the textarea element in the html document rendered in the control.

Private Sub htmluiControl1_LoadFinished(ByVal sender As Object, ByVal e As System.EventArgs)

Dim tab As Hashtable = Me.htmluiControl1.Document.GetElementsByUserIdHash()

Dim textElement As BaseElement = Ctype(IIf(TypeOf tab("text1") Is BaseElement, tab("text1"), Nothing), BaseElement)



' Event handlers declaration for the events on the html elements.

AddHandler textElement.Click, AddressOf textElement_Click

AddHandler textElement.KeyDown, AddressOf textElement_KeyDown

AddHandler textElement.MouseEnter, AddressOf textElement_MouseEnter

End Sub



' HTML element Click event definition.

Private Sub textElement_Click(ByVal sender As Object, ByVal e As EventArgs)

Console.WriteLine("Click Event Handled")

End Sub



' HTML element KeyDown event definition.

Private Sub textElement_KeyDown(ByVal sender As Object, ByVal e As EventArgs)

Console.WriteLine("KeyDown Event Handled")

End Sub



' HTML element MouseEnter event definition.

Private Sub textElement_MouseEnter(ByVal sender As Object, ByVal e As EventArgs)

Console.WriteLine("MouseDown Event Handled")

End Sub

Another important feature of the HTMLUI is its Bubbling Event architecture. With this architecture, a single common event handler defined for a particular event of the parent can be used for all the Child Elements bound to that parent while executing the same event.

<html>

<body>

<input type="button" id="button1"/>

<br/>

<input type="button" id="button2"/>

</body>

</html>
private void htmluiControl1_LoadFinished(object sender, System.EventArgs e)

{

IHTMLElement[] tab = this.htmluiControl1.Document.GetElementsByName("body");

tab[0].MouseLeave += new EventHandler(body_MouseLeave);

}



// Event occurs when the mouse pointer leaves the  control.

private void body_MouseLeave(object sender, EventArgs e)

{

   // Converts the  EventArgs object to BubblingEventArgs type if possible.

BubblingEventArgs argument = HTMLUIControl.GetBublingEventArgs(e);



   // Returns the first sender of the event.

BaseElement elem = argument.RootSender as BaseElement;



if( elem != null && elem is INPUTElementImpl)

{

if(elem.ID == "button1")

{

    this.label1.Text = "Mouse just left Button 1";

}

else if(elem.ID == "button2")

{

    this.label1.Text = "Mouse just left Button 2";

}

}

}
Event occurs when the mouse pointer leaves the  control.

Private Sub htmluiControl1_LoadFinished(ByVal sender As Object, ByVal e As System.EventArgs)

Dim tab As IHTMLElement() = Me.htmluiControl1.Document.GetElementsByName("body")

AddHandler tab(0).MouseLeave, AddressOf body_MouseLeave

End Sub



Private Sub body_MouseLeave(ByVal sender As Object, ByVal e As EventArgs)



Converts the  EventArgs object to BubblingEventArgs type if possible.

Dim argument As BubblingEventArgs = HTMLUIControl.GetBublingEventArgs(e)



Returns the first sender of the event.

Dim elem As BaseElement = CType(IIf(TypeOf argument.RootSender Is BaseElement, argument.RootSender, Nothing), BaseElement)

If Not elem Is Nothing AndAlso TypeOf elem Is INPUTElementImpl Then

If elem.ID = "button1" Then

Me.label1.Text = "Mouse just left Button 1"

ElseIf elem.ID = "button2" Then

Me.label1.Text = "Mouse just left Button 2"

End If

End If

End Sub

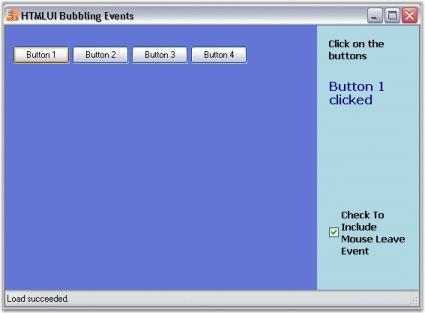

HTMLUI bubbling events sample

This sample demonstrates the implementation of Bubbling Event architecture in HTMLUI.

Element-Events_img1

By default, this sample can be found under the following location:

…_My Documents\Syncfusion\EssentialStudio\Version Number\Windows\HTMLUI.Windows\Samples\Advanced Editor Functions\ActionGroupingDemo_

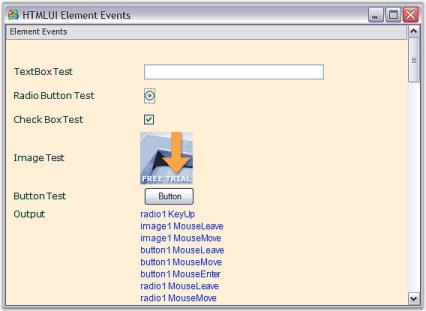

HTMLUI element events sample

This sample shows how element events are handled for creating effective user interfaces.

Element-Events_img2

By default, this sample can be found under the following location:

…_My Documents\Syncfusion\EssentialStudio\Version Number\Windows\HTMLUI.Windows\Samples\Advanced Editor Functions\ActionGroupingDemo_
