Getting Started with Windows Forms GroupView

11 Oct 20225 minutes to read

This section describes how to add GroupView control in a Windows Forms application and overview of its basic functionalities.

Assembly deployment

Refer to the Control Dependencies section to get the list of assemblies or details of NuGet package that needs to be added as reference to use the control in any application.

Refer to NuGet Packages to learn how to install nuget packages in a Windows Forms application.

Adding GroupView control via designer

  1. Create a new Windows Forms project in the Visual Studio.

  2. Add the GroupView control to an application by dragging it from the toolbox to a designer view. The following dependent assembly will be added automatically:

    • Syncfusion.Shared.Base

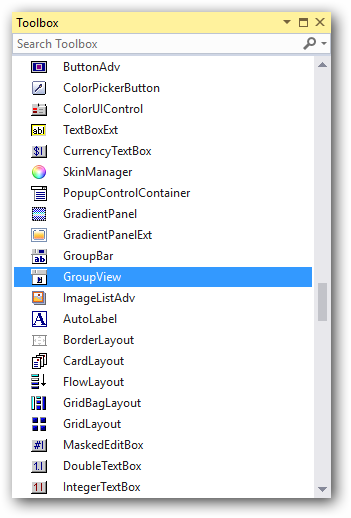

Windows Forms GroupView drag and drop from toolbox

  1. Right-click the control, click Properties, and then select GroupViewItems. Now, the GroupViewItem Collection Editor will be opened. Click Add to add group view items to the control.

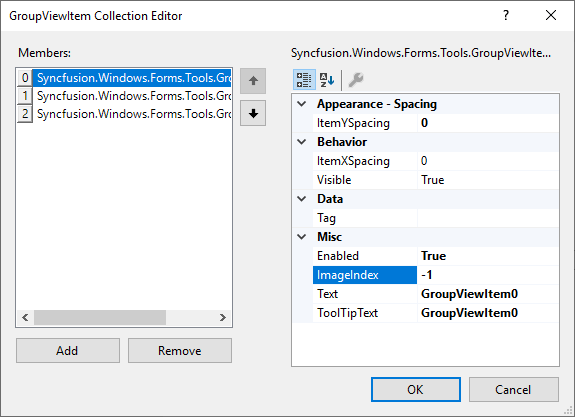

Windows Forms GroupView showing collection editor of item

Adding GroupView control via code

To add the control manually in C#, follow the given steps:

  1. Create a C# or VB application via Visual Studio.

  2. Add the following assembly reference to the project:

    • Syncfusion.Shared.Base

  3. Include the required namespace.

    using Syncfusion.Windows.Forms.Tools;
    Imports Syncfusion.Windows.Forms.Tools

  4. Create an instance of the GroupView control, and then add it to the form.

    GroupView groupView1 = new GroupView();

this.Controls.Add(groupView1);
    Dim groupView1 As GroupView = New GroupView()

Me.Controls.Add(groupView1)

  5. Add items to GroupView container using the GroupViewItems collection property.

    this.groupView1.GroupViewItems.AddRange(new GroupViewItem[] {
            new GroupViewItem("GroupViewItem0",0,true, null, "GroupViewItem0"),
            new GroupViewItem("GroupViewItem1",1,true, null, "GroupViewItem0"),
            new GroupViewItem("GroupViewItem2",2,true, null, "GroupViewItem0")});
this.groupView1.FlatLook = true;
    Me.groupView1.GroupViewItems.AddRange(New GroupViewItem() {
            New GroupViewItem("GroupViewItem0",0,True, Nothing, "GroupViewItem0"),
            New GroupViewItem("GroupViewItem1",1,True, Nothing, "GroupViewItem0"),
            New GroupViewItem("GroupViewItem2",2,True, Nothing, "GroupViewItem0"True, Nothing, "GroupViewItem0")})
Me.groupView1.FlatLook = True

Windows Forms GroupView showing added items

Adding images

To add images to the GroupView, ImageList control must be added to the form with images.

ImageList imageList1 = new ImageList();
imageList1.ImageStream = ((System.Windows.Forms.ImageListStreamer)(resources.GetObject("imageList1.ImageStream")));
this.imageList1.Images.SetKeyName(0, "holo.png");
this.imageList1.Images.SetKeyName(1, "edge.png");
this.imageList1.Images.SetKeyName(2, "light.png");
Dim imageList1 As New ImageList()
imageList1.ImageStream = (CType(resources.GetObject("imageList1.ImageStream"), System.Windows.Forms.ImageListStreamer))
Me.imageList1.Images.SetKeyName(0, "holo.png")
Me.imageList1.Images.SetKeyName(1, "edge.png")
Me.imageList1.Images.SetKeyName(2, "light.png")

After adding images, assign ImageList to the SmallImageList property, and then set the SmallImageView property to true for the GroupView control.

groupView1.SmallImageList = this.imageList1;
groupView1.SmallImageView = true;
groupView1.SmallImageList = Me.imageList1
groupView1.SmallImageView = True

Windows Forms GroupView showing added images

Selected item

At run time, a particular item can be selected using the SelectedItem property.

groupView1.SelectedItem = 1;
groupView1.SelectedItem = 1

Windows Forms GroupView showing selected item
