Navigation in Windows Forms Calendar (SfCalendar)

By default, the calendar displays the month view. You can move from current month to previous or next month in the calendar control by clicking navigation buttons in the header, and also you can move from month view to other views (year, decade, century) to select the dates from other year or decade by click the header text of the calendar.

Different views

Calendar supports month, year, decade, and century views and provides intuitive interface through which you can navigate and quickly select dates.

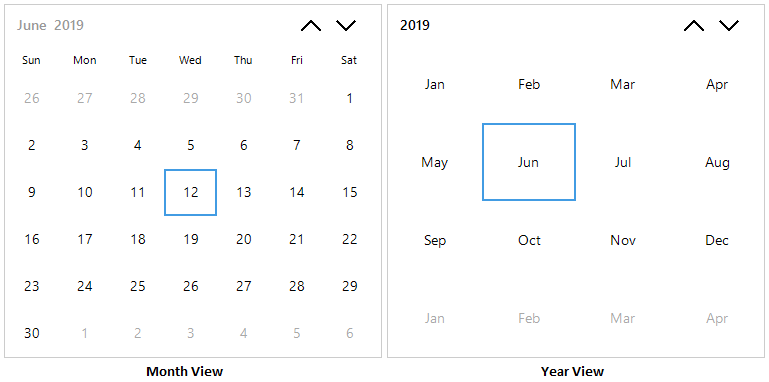

Navigation view

Navigation view

You can choose the required view options in the calendar by the ViewMode property. The following code illustrates how to show year and decade views in the calendar.

// setting Year and decade mode to display year and decade view

calendar.ViewMode = Syncfusion.WinForms.Input.Enums.CalendarViewType.Year | Syncfusion.WinForms.Input.Enums.CalendarViewType.Decade;
' setting Year and decade mode to display year and decade view

calendar.ViewMode = Syncfusion.WinForms.Input.Enums.CalendarViewType.Year Or Syncfusion.WinForms.Input.Enums.CalendarViewType.Decade

The navigation between next or previous range of dates for the current view in the calendar can be done by clicking up and down navigation buttons in the calendar header. The SfCalendar control allows you to navigate from one view to other view by clicking the header text of the calendar and selecting the cell from the view to navigate back to the next available view in the ViewMode.

The SfCalendar control allows you to navigate from one view to other view by pressing the CTRL + UP keys in backward direction or CTRL + DOWN keys in forward direction. The SfCalendar allows you to navigate between different cells in the same view by pressing navigation arrows. CTRL + LEFT and CTRL + RIGHT arrow keys are pressed to navigate to previous or next month of the calendar respectively.

The navigation between next or previous range of dates for the current view in the calendar can be done by panning on the calendar view. The SfCalendar control allows you to navigate from one view to other view by tapping the header of the calendar. Tapping the cell in view navigates back to the next available view in the ViewMode.

Handle view change

The ViewChanging event occurs when the calendar header text is clicked to change the view from one view to another view. The change of view can be restricted on-demand by handling the ViewChanging event. The ViewChangingEventArgs provides information about the old and new ViewType. This helps to restrict the view change in specific scenarios only. The following code example illustrates the same:

// Invoked when the view changed.

 calendar.ViewChanging += SfCalendar_ViewChanging;

  private void SfCalendar_ViewChanging(Syncfusion.WinForms.Input.SfCalendar sender, Syncfusion.WinForms.Input.Events.ViewChangingEventArgs args)

  {

      if(args.NewViewType == Syncfusion.WinForms.Input.Enums.CalendarViewType.Year)

      {

         args.Cancel = true;

      }

  }
' Invoked when the view changed.

calendar.ViewChanging += SfCalendar_ViewChanging

    Private Sub SfCalendar_ViewChanging(ByVal sender As
    Syncfusion.WinForms.Input.SfCalendar, ByVal args As Syncfusion.WinForms.Input.Events.ViewChangingEventArgs)

        If (args.NewViewType = Syncfusion.WinForms.Input.Enums.CalendarViewType.Year) Then

            args.Cancel = true

        End If

    End Sub

Handle navigation

The Navigating event occurs when navigating between current range of dates to next or previous range of dates in the calendar. The navigation between the same views can be restricted by handling the Navigating event. The NavigatingEventArgs provides information about the old and new ranges of dates. This helps to restrict navigation in specific scenarios only. The following code example illustrates the same:

// Invoked the Navigating event.

this.sfCalendar.Navigating += SfCalendar_Navigating;

private void SfCalendar_Navigating(SfCalendar sender, Syncfusion.WinForms.Input.Events.NavigatingEventArgs args)

{

    if (args.NewValue.Start <= new DateTime(2018, 04, 01) && args.NewValue.End >= new DateTime(2018, 04, 30))

    {

        args.Cancel = true;

    }

}
' Invoked the Navigating event.

Me.sfCalendar.Navigating = (Me.sfCalendar.Navigating + SfCalendar_Navigating)

    Private Sub SfCalendar_Navigating(ByVal sender As SfCalendar, ByVal args As Syncfusion.WinForms.Input.Events.NavigatingEventArgs)

        If ((args.NewValue.Start <= New DateTime(2018, 4, 1))  _

                    AndAlso (args.NewValue.End >= New DateTime(2018, 4, 30))) Then

            args.Cancel = true

        End If

End Sub

Disable animation on navigation

The SfCalendar animates the content while navigating between different sets of date ranges or move from one view to another view. This animation can be disabled by setting the EnableAnimation to false. The following code example illustrates the same:

// Disabling the animation

calendar.EnableAnimation = false;
' Disabling the animation

calendar.EnableAnimation = False
