Tooltip in .NET MAUI Slider

18 Nov 20184 minutes to read

This section helps to learn about how to add tooltip in the Slider.

Enable tooltip

Enable tooltip for the thumb by setting the Tooltip property to SliderTooltip. It is used to clearly indicate the current selection of the value during interaction. By default, tooltip text is formatted with either numberFormat. The default value of the Tooltip property is null.

<sliders:SfSlider>
  <sliders:SfSlider.Tooltip>
    <sliders:SliderTooltip />
  </sliders:SfSlider.Tooltip>
</sliders:SfSlider>
SfSlider slider = new SfSlider()
{
    Tooltip = new SliderTooltip()
};

Slider tooltip

Show always

Always shows a tooltip with and without the thumb interaction by setting the SliderTooltip.ShowAlways property. The default value of the SliderTooltip.ShowAlways property is False.

<sliders:SfSlider>
  <sliders:SfSlider.Tooltip>
    <sliders:SliderTooltip ShowAlways="True" />
  </sliders:SfSlider.Tooltip>
</sliders:SfSlider>
SfSlider slider = new SfSlider()
{
    Tooltip = new SliderTooltip()
    {
        ShowAlways = true,
    }
};

Slider show always tooltip

Refer here to customize tooltip text through the SliderTooltip events.

Customize tooltip position

You can customize the tooltip position using the Position property of SliderTooltip in the Slider. In a horizontal slider, the tooltip can be displayed above or below the track. In a vertical slider, it can be displayed on the left or right side of the track.

<sliders:SfSlider>
    <sliders:SfSlider.Tooltip>
        <sliders:SliderTooltip Position="Bottom" />
    </sliders:SfSlider.Tooltip>
</sliders:SfSlider>
SfSlider slider = new SfSlider();
slider.Tooltip = new SliderTooltip();
slider.Tooltip.Position = SliderTooltipPosition.Bottom;
this.Content = slider;

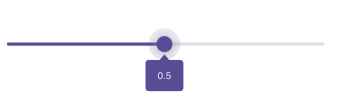

Tooltip position customization

Tooltip label style

Change the appearance of the tooltip using the Fill, Stroke, StrokeThickness, and Position properties. Also, customize the tooltip text using the TextColor, FontSize, FontAttributes, FontFamily, Padding, and NumberFormat properties of the SliderTooltip class.

<sliders:SfSlider>
    <sliders:SfSlider.Tooltip>
        <sliders:SliderTooltip Fill="#DFD8F7"
                               Stroke="#512BD4"
                               StrokeThickness="2"
                               TextColor="#512BD4"
                               FontSize="14"
                               FontAttributes="Bold"
                               Padding="12,12"
                               NumberFormat="0.#0" />
    </sliders:SfSlider.Tooltip>
</sliders:SfSlider>
SfSlider slider = new SfSlider()
{
    Tooltip = new SliderTooltip()
    {
        Fill = new SolidColorBrush(Color.FromArgb("#DFD8F7")),
        Stroke = new SolidColorBrush(Color.FromArgb("#512BD4")),
        StrokeThickness = 2,
        TextColor = Color.FromArgb("#512BD4"),
        FontSize = 14,
        FontAttributes = FontAttributes.Bold,
        Padding = new Thickness(12, 12),
        NumberFormat = "0.#0",
    }
};

Slider tooltip style
