Labels in .NET MAUI Slider (SfSlider)
30 Sep 202223 minutes to read
This section explains how to add the labels in the slider.
Show labels
The ShowLabels property is used to render the labels on given interval. The default value of the ShowLabels property is False.
<sliders:SfSlider Minimum="2"
Maximum="10"
Value="6"
Interval="2"
ShowLabels="True"
ShowTicks="True" />SfSlider slider = new SfSlider()
{
Minimum = 2,
Maximum = 10,
Value = 6,
Interval = 2,
ShowLabels = true,
ShowTicks = true,
};
Number format
The NumberFormat property is used to format the numeric labels. The default value of the NumberFormat property is 0.##.
<sliders:SfSlider Minimum="2"
Maximum="10"
Value="6"
Interval="2"
NumberFormat="$##"
ShowLabels="True"
ShowTicks="True" />SfSlider slider = new SfSlider()
{
Minimum = 2,
Maximum = 10,
Value = 6,
Interval = 2,
NumberFormat = "$##",
ShowLabels = true,
ShowTicks = true,
};
Label placement
The LabelsPlacement property is used to place the labels either between the major ticks or on the major ticks. The default value of the LabelsPlacement property is SliderLabelsPlacement.OnTicks.
<sliders:SfSlider Minimum="0"
Maximum="10"
Value="5"
Interval="2"
LabelsPlacement="BetweenTicks"
ShowLabels="True"
ShowTicks="True" />SfSlider slider = new SfSlider()
{
Minimum = 0,
Maximum = 10,
Value = 5,
Interval = 2,
ShowLabels = true,
ShowTicks = true,
LabelsPlacement = SliderLabelsPlacement.BetweenTicks,
};
NOTE
Refer here to customize the label text format through slider events.
Edge labels placement
The EdgeLabelsPlacement property is used to move the first and the last label either inside the track bounds or based on the intervals. The default value of the EdgeLabelsPlacement property is SliderEdgeLabelPlacement.Default.
If the TrackExtent > 0 and the EdgeLabelsPlacement is SliderEdgeLabelsPlacement.Inside, the labels get placed inside the extended track edges.
<sliders:SfSlider Minimum="100"
Maximum="1000"
Value="550"
Interval="225"
ShowLabels="True"
ShowTicks="True"
NumberFormat="$##"
EdgeLabelsPlacement="Inside" />SfSlider slider = new SfSlider()
{
Minimum = 100,
Maximum = 100,
Value = 550,
Interval = 225,
ShowTicks = true,
ShowLabels = true,
ShowDividers = true,
NumberFormat = "$##",
EdgeLabelsPlacement = SliderEdgeLabelsPlacement.Inside
};

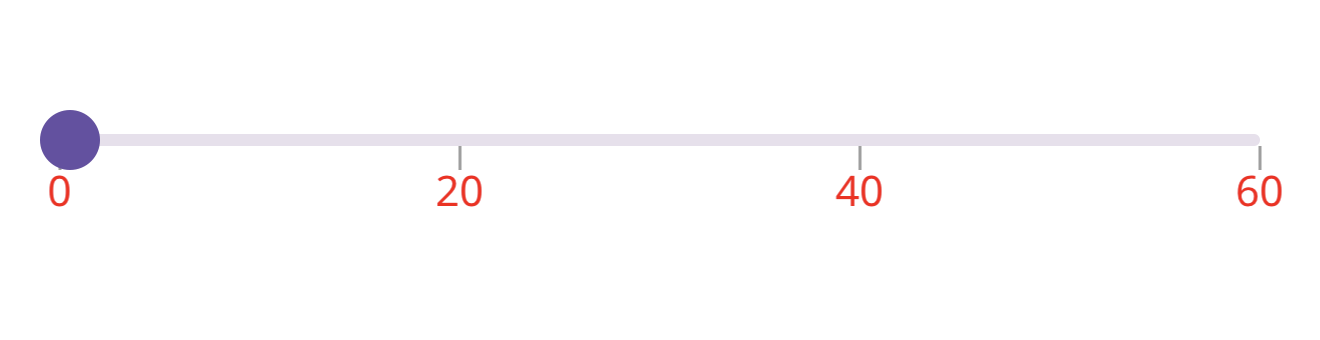

Label style
Change the active and inactive label appearance of the slider using the ActiveTextColor, ActiveFontSize, ActiveFontFamily, ActiveFontAttributes, InactiveTextColor, InactiveFontSize, InactiveFontFamily, InactiveFontAttributes and Offset properties of the LabelStyle class.
The active side of the slider is between the Minimum value and the thumb.
The inactive side of the slider is between the thumb and the Maximum value.
<sliders:SfSlider Minimum="2"
Maximum="10"
Value="6"
Interval="2"
ShowTicks="True"
ShowLabels="True">
<sliders:SfSlider.LabelStyle>
<sliders:SliderLabelStyle ActiveTextColor="#EE3F3F"
InactiveTextColor="#F7B1AE"
ActiveFontAttributes="Italic"
InactiveFontAttributes="Italic"
ActiveFontSize="16"
InactiveFontSize="16" />
</sliders:SfSlider.LabelStyle>
</sliders:SfSlider>SfSlider slider = new SfSlider()
{
Minimum = 2,
Maximum = 10,
Value = 6,
Interval = 2,
ShowLabels = true,
ShowTicks = true,
};
slider.LabelStyle.ActiveTextColor = Color.FromArgb("#EE3F3F");
slider.LabelStyle.InactiveTextColor = Color.FromArgb("#F7B1AE");
slider.LabelStyle.ActiveFontSize = 16;
slider.LabelStyle.InactiveFontSize = 16;
slider.LabelStyle.ActiveFontAttributes = FontAttributes.Italic;
slider.LabelStyle.InactiveFontAttributes = FontAttributes.Italic;
Label offset
Adjust the space between ticks and labels of the slider using the Offset property. The default value of the Offset property is 5.0 when ShowTicks enabled, otherwise it is 15.0 by default.
<sliders:SfSlider Minimum="2"
Maximum="10"
Value="6"
Interval="2"
ShowTicks="True"
ShowLabels="True">
<sliders:SfSlider.LabelStyle>
<sliders:SliderLabelStyle Offset="10" />
</sliders:SfSlider.LabelStyle>
</sliders:SfSlider>SfSlider slider = new SfSlider()
{
Minimum = 2,
Maximum = 10,
Value = 6,
Interval = 2,
ShowLabels = true,
ShowTicks = true,
};
slider.LabelStyle.Offset = 10;
Disabled labels
Change the state of the slider to disabled by setting false to the IsEnabled property. Using the Visual State Manager (VSM), customize the slider labels properties based on the visual states. The applicable visual states are enabled(default) and disabled.
<ContentPage.Resources>
<Style TargetType="sliders:SfSlider">
<Setter Property="Interval"
Value="0.25" />
<Setter Property="ShowTicks"
Value="True" />
<Setter Property="ShowLabels"
Value="True" />
<Setter Property="VisualStateManager.VisualStateGroups">
<VisualStateGroupList>
<VisualStateGroup>
<VisualState x:Name="Default">
<VisualState.Setters>
<Setter Property="LabelStyle">
<Setter.Value>
<sliders:SliderLabelStyle ActiveTextColor="#EE3F3F"
InactiveTextColor="#F7B1AE"
ActiveFontSize="16"
InactiveFontSize="14"
ActiveFontAttributes="Bold"
InactiveFontAttributes="Italic" />
</Setter.Value>
</Setter>
</VisualState.Setters>
</VisualState>
<VisualState x:Name="Disabled">
<VisualState.Setters>
<Setter Property="LabelStyle">
<Setter.Value>
<sliders:SliderLabelStyle ActiveTextColor="Gray"
InactiveTextColor="LightGray"
ActiveFontSize="14"
InactiveFontSize="16"
ActiveFontAttributes="Italic"
InactiveFontAttributes="Bold" />
</Setter.Value>
</Setter>
<Setter Property="ThumbStyle">
<Setter.Value>
<sliders:SliderThumbStyle Fill="Gray" />
</Setter.Value>
</Setter>
<Setter Property="TrackStyle">
<Setter.Value>
<sliders:SliderTrackStyle ActiveFill="Gray"
InactiveFill="LightGray" />
</Setter.Value>
</Setter>
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateGroupList>
</Setter>
</Style>
</ContentPage.Resources>
<ContentPage.Content>
<VerticalStackLayout>
<Label Text="Enabled"
Padding="24,10" />
<sliders:SfSlider />
<Label Text="Disabled"
Padding="24,10" />
<sliders:SfSlider IsEnabled="False" />
</VerticalStackLayout>
</ContentPage.Content>VerticalStackLayout stackLayout = new VerticalStackLayout();
SfSlider defaultSlider = new()
{
Interval = 0.25,
ShowTicks = true,
ShowLabels = true
};
SfSlider disabledSlider = new()
{
IsEnabled = false,
Interval = 0.25,
ShowTicks = true,
ShowLabels = true
};
VisualStateGroupList visualStateGroupList = new VisualStateGroupList();
VisualStateGroup commonStateGroup = new VisualStateGroup();
// Default State.
VisualState defaultState = new VisualState { Name = "Default" };
defaultState.Setters.Add(new Setter
{
Property = SfSlider.LabelStyleProperty,
Value = new SliderLabelStyle
{
ActiveFontSize = 16,
InactiveFontSize = 14,
ActiveTextColor = Color.FromArgb("#EE3F3F"),
InactiveTextColor = Color.FromArgb("#F7B1AE"),
ActiveFontAttributes = FontAttributes.Bold,
InactiveFontAttributes = FontAttributes.Italic,
}
});
// Disabled State.
VisualState disabledState = new VisualState { Name = "Disabled" };
disabledState.Setters.Add(new Setter
{
Property = SfSlider.LabelStyleProperty,
Value = new SliderLabelStyle
{
ActiveFontSize = 14,
InactiveFontSize = 16,
ActiveTextColor = Colors.Gray,
InactiveTextColor = Colors.LightGray,
ActiveFontAttributes = FontAttributes.Italic,
InactiveFontAttributes = FontAttributes.Bold,
}
});
disabledState.Setters.Add(new Setter
{
Property = SfSlider.ThumbStyleProperty,
Value = new SliderThumbStyle
{
Fill = Colors.Gray,
}
});
disabledState.Setters.Add(new Setter
{
Property = SfSlider.TrackStyleProperty,
Value = new SliderTrackStyle
{
ActiveFill = Colors.Gray,
InactiveFill = Colors.LightGray,
}
});
commonStateGroup.States.Add(defaultState);
commonStateGroup.States.Add(disabledState);
visualStateGroupList.Add(commonStateGroup);
VisualStateManager.SetVisualStateGroups(defaultSlider, visualStateGroupList);
VisualStateManager.SetVisualStateGroups(disabledSlider, visualStateGroupList);
stackLayout.Children.Add(new Label() { Text = "Enabled", Padding = new Thickness(24, 10) });
stackLayout.Children.Add(defaultSlider);
stackLayout.Children.Add(new Label() { Text = "Disabled", Padding = new Thickness(24, 10) });
stackLayout.Children.Add(disabledSlider);
this.Content = stackLayout;
