Tile Selection in Flutter Treemap (SfTreemap)

18 Nov 201812 minutes to read

You can select a tile to highlight that area on the Flutter Treemap. You can use the callback to perform any action during tile selection.

Enable tile selection

You can enable tile selection on a Flutter Treemap using the SfTreemap.onSelectionChanged property. The descendant tiles of the selected tile are also selected along with the selected tile when doing selection for hierarchical level.

The onSelectionChanged callback will be called with the details of the selected tile when the user is selecting a tile by tapping and you will be able to do any specific functionalities like showing pop-up or navigate to a different page.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class EnableSelectionExample extends StatefulWidget {
  const EnableSelectionExample({super.key});

  @override
  State<EnableSelectionExample> createState() => _EnableSelectionExampleState();
}

class _EnableSelectionExampleState extends State<EnableSelectionExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      SocialMediaUsers('India', 'Facebook', 25.4),
      SocialMediaUsers('USA', 'Instagram', 19.11),
      SocialMediaUsers('Japan', 'Facebook', 13.3),
      SocialMediaUsers('Germany', 'Instagram', 10.65),
      SocialMediaUsers('France', 'Twitter', 7.54),
      SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SizedBox(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            onSelectionChanged: (TreemapTile tile) {},
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the TreemapSelectionSettings, for customizing the selected tile’s appearance.

Appearance customization

You can customize the below appearance of the selected tile.

• Background color - Change the background color of the selected tile using the TreemapSelectionSettings.color property.
• Border - Change the border color, border stroke width using the BorderSide.color and BorderSide.width properties in the RoundedRectangleBorder. Also apply rounded border using the RoundedRectangleBorder.borderRadius property.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class SelectionAppearanceExample extends StatefulWidget {
  const SelectionAppearanceExample({super.key});

  @override
  State<SelectionAppearanceExample> createState() =>
      _SelectionAppearanceExampleState();
}

class _SelectionAppearanceExampleState extends State<SelectionAppearanceExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      SocialMediaUsers('India', 'Facebook', 25.4),
      SocialMediaUsers('USA', 'Instagram', 19.11),
      SocialMediaUsers('Japan', 'Facebook', 13.3),
      SocialMediaUsers('Germany', 'Instagram', 10.65),
      SocialMediaUsers('France', 'Twitter', 7.54),
      SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SizedBox(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            onSelectionChanged: (TreemapTile tile) {},
            selectionSettings: TreemapSelectionSettings(
              color: Colors.orange,
              border: RoundedRectangleBorder(
                side: const BorderSide(
                  color: Colors.deepOrange,
                  width: 1,
                ),
                borderRadius: BorderRadius.circular(10),
              ),
            ),
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

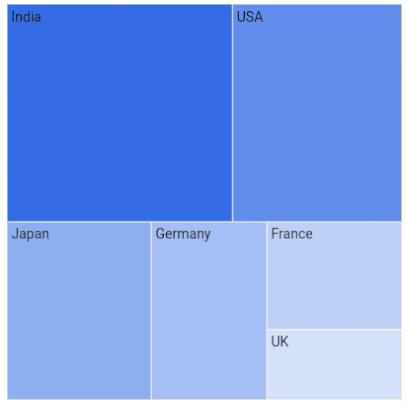

Hovered tile customization

You can customize the hovered tile color and border using the tileHoverColor and tileHoverBorder properties. The default value of the tileHoverColor is Colors.transparent.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class HoveredTileExample extends StatefulWidget {
  const HoveredTileExample({super.key});

  @override
  State<HoveredTileExample> createState() => _HoveredTileExampleState();
}

class _HoveredTileExampleState extends State<HoveredTileExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      SocialMediaUsers('India', 'Facebook', 25.4),
      SocialMediaUsers('USA', 'Instagram', 19.11),
      SocialMediaUsers('Japan', 'Facebook', 13.3),
      SocialMediaUsers('Germany', 'Instagram', 10.65),
      SocialMediaUsers('France', 'Twitter', 7.54),
      SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: SizedBox(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
                labelBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.all(4),
                    child: Text(tile.group, style: const TextStyle(color: Colors.black)),
                  );
                },
              ),
            ],
            onSelectionChanged: (TreemapTile tile) {},
            tileHoverColor: Colors.tealAccent,
            tileHoverBorder: RoundedRectangleBorder(
              side: const BorderSide(
                color: Colors.teal,
                width: 1,
              ),
              borderRadius: BorderRadius.circular(10),
            ),
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}
