Legend in Flutter Treemap (SfTreemap)

28 Jul 202524 minutes to read

The legend provides clarity about the data plotted on the treemap.

Enable default legend

To display a legend, initialize the SfTreemap.legend property. By default, the legend item’s text is rendered based on the value of TreemapLevel.groupMapper property. The default value of the legend property is null.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the TreemapLegend.bar, to display a bar-shaped legend.

Bar shape legend

You can show bar shape legend by initializing the SfTreemap.legend property as TreemapLegend.bar. By default, the legend item’s text is rendered based on the value of TreemapLevel.groupMapper property.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend.bar(),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the TreemapLegend, for the default legend display options.

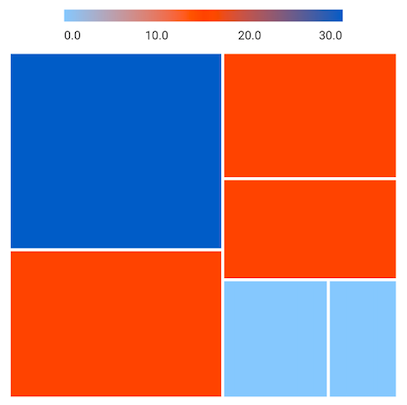

Icon and text customization

Customize legend icons and text based on the TreemapLevel.color and TreemapLevel.groupMapper properties respectively by default. It is possible to customize the legend icons color and texts using the TreemapColorMapper.color based on the TreemapColorMapper.value or TreemapColorMapper.from and TreemapColorMapper.to properties. You can also customize the legend item’s text using the TreemapColorMapper.name when setting the TreemapColorMapper.range color mapper constructor.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blue[200]!),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.deepOrange),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.blue[800]!),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(),
      ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

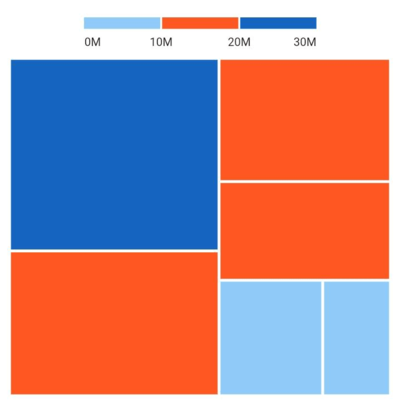

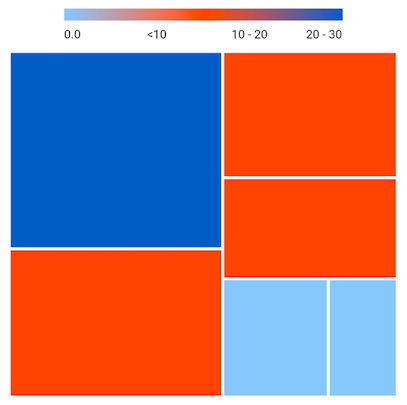

First segment label customization

You can customize the first segment label of the legend by using the TreemapColorMapper.name property with curly braces. The value inside the first pair of curly braces will be used as the start label for the segment, and the value inside the second pair will be used as the end label.

By default, the TreemapColorMapper.from value appears at the start of the first segment, and the TreemapColorMapper.to value appears at the end.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      SocialMediaUsers('India', 'Facebook', 25.4),
      SocialMediaUsers('USA', 'Instagram', 19.11),
      SocialMediaUsers('Japan', 'Facebook', 13.3),
      SocialMediaUsers('Germany', 'Instagram', 10.65),
      SocialMediaUsers('France', 'Twitter', 7.54),
      SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
      TreemapColorMapper.range(
          from: 0, to: 10, color: Colors.blue[200]!, name: '{0M},{10M}'),
      TreemapColorMapper.range(
          from: 10, to: 20, color: Colors.deepOrange, name: '20M'),
      TreemapColorMapper.range(
          from: 20, to: 30, color: Colors.blue[800]!, name: '30M'),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
        dataCount: _source.length,
        weightValueMapper: (int index) {
          return _source[index].usersInMillions;
        },
        levels: [
          TreemapLevel(
            padding: const EdgeInsets.all(1.5),
            groupMapper: (int index) {
              return _source[index].country;
            },
            colorValueMapper: (TreemapTile tile) {
              return tile.weight;
            },
          ),
        ],
        colorMappers: _colorMappers,
        legend: TreemapLegend.bar(),
      ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Scrollbar visibility

You can control the visibility of the scrollbar in the treemap legend using the shouldAlwaysShowScrollbar property. When set to true, the scrollbar for the legend will always be visible, making it easier to see and navigate through legend items, even if all items fit within the available space.

The default value is false, so the scrollbar appears in legend only when the legend items exceed the available space and scrolling is needed.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                shouldAlwaysShowScrollbar: true,
                overflowMode: TreemapLegendOverflowMode.scroll,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

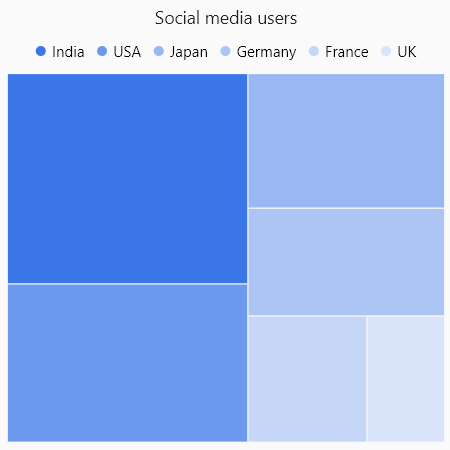

Title

You can set a title specifically for the legend in the treemap by using the title property. This property lets you display a descriptive heading for the legend, helping users understand what the legend represents within the treemap.

By default, the value of the legend’s title property is null, indicating that no title is displayed for the legend, unless it is specified explicitly.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                title: Text('Social media users'),
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Position

You can position the legend items in different directions using the TreemapLegend.position property. The default value of the position](https://pub.dev/documentation/syncfusion_flutter_treemap/latest/treemap/TreemapLegend/position.html) property is [TreemapLegendPosition.top](https://pub.dev/documentation/syncfusion_flutter_treemap/latest/treemap/TreemapLegendPosition.html). The possible values are [left](https://pub.dev/documentation/syncfusion_flutter_treemap/latest/treemap/TreemapLegendPosition.html#left), [right](https://pub.dev/documentation/syncfusion_flutter_treemap/latest/treemap/TreemapLegendPosition.html#right), [top](https://pub.dev/documentation/syncfusion_flutter_treemap/latest/treemap/TreemapLegendPosition.html#top), and [bottom`.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                position: TreemapLegendPosition.bottom,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the offset, for placing the legend in custom position.

Offset

You can place the legend in custom position using the TreemapLegend.offset property. The default value of the offset property is null.

If the property TreemapLegend.offset has been set with the property TreemapLegend.position as top, then the legend will be placed in top but with absolute position, i.e. legend will not take dedicated position for it and will be drawn at the top of the map.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                offset: Offset(70, 250),
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

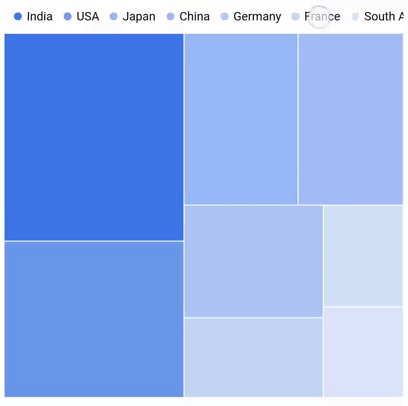

Overflow mode

For default legend

You can wrap or scroll the legend items using the TreemapLegend.overflowMode property. The default value of the overflowMode property is TreemapLegendOverflowMode.wrap. The possible values are scroll and wrap.

If the legend position is left or right, then the default scroll direction is vertical.

If the legend position is top or bottom, then the default scroll direction is horizontal.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('China', 'Facebook', 12.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('South America', 'Twitter', 5.54),
        SocialMediaUsers('United Kingdom', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                overflowMode: TreemapLegendOverflowMode.scroll,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

For bar legend

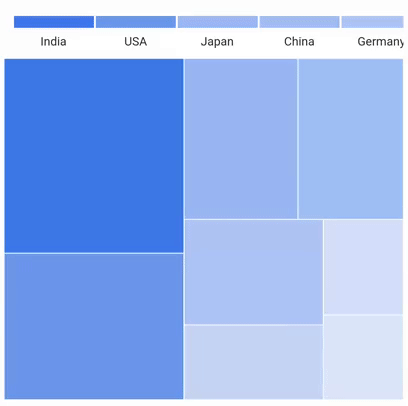

You can wrap or scroll the bar legend items using the TreemapLegend.overflowMode property. The default value of the overflowMode property is TreemapLegendOverflowMode.scroll. The possible values are scroll and wrap.

If the legend position is left or right, then the default scroll direction is vertical.

If the legend position is top or bottom, then the default scroll direction is horizontal.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend.bar(
                overflowMode: TreemapLegendOverflowMode.scroll,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the iconSize, for changing the size of the icon.

Text style

You can customize the legend item’s text style using the TreemapLegend.textStyle property.

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                textStyle: TextStyle(
                  color: Colors.red,
                  fontSize: 14,
                  fontWeight: FontWeight.bold,
                  fontStyle: FontStyle.italic,
                ),
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Default legend appearance customization

You can customize the legend items using the following properties.

• iconType - Used to change the icon shape. The default value of the iconType argument in the constructor is TreemapIconType.circle. The possible values are circle, rectangle, triangle, and diamond.
• iconSize - Used to change the size of the icon. The default value of iconSize argument in the constructor is Size(8.0, 8.0).
• spacing - Used to provide space between the each legend items. The default value of the spacing argument in the constructor is 10.0.
• direction - Used to arrange the legend items in either horizontal or vertical direction. The default value of direction property is horizontal, if the value of the position property is top, bottom and defaults to vertical, if the value of the [position] property is left or right.
• padding - Used to set padding around the legend. The default value of the padding property is EdgeInsets.all(10.0).

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend(
                iconType: TreemapIconType.triangle,
                iconSize: Size(12.0, 12.0),
                spacing: 15,
                padding: EdgeInsets.all(12.0),
                direction: Axis.vertical,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the position, for setting the position of the legend.

Bar legend segment painting style

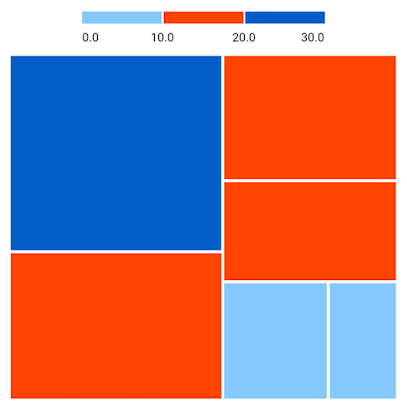

Solid

You can set solid color for the legend bar by using the TreemapLegendPaintingStyle.solid. By defaults TreemapLegendPaintingStyle will be solid.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blue[200]!),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.deepOrange),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.blue[800]!),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            segmentPaintingStyle: TreemapLegendPaintingStyle.solid,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Gradient

You can set gradient color for the legend bar by using the TreemapLegendPaintingStyle.gradient.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blue[200]!),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.deepOrange),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.blue[800]!),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Bar legend appearance customization

You can customize the legend items using the following properties.

• segmentSize - Used to change the size of individual legend bar segments. When gradient paint style is applied, segmentSize argument in the constructor will update the whole legend bar. The default value of the segmentSize property is Size(80.0, 12.0).
• labelOverflow - Used to remove or trim the legend labels based on the bar legend size.The default value of the labelOverflow argument in the constructor will be TreemapLabelOverflow.visible.
• edgeLabelsPlacement - Used to place the edge labels either inside or outside of the bar legend. The default value of the edgeLabelsPlacement argument in the constructor will be TreemapLegendEdgeLabelsPlacement.inside.
• spacing - Used to provide space between the each legend items. The default value of the spacing is 2.0. This is not applicable for gradient legend.
• direction - Used to arrange the legend items in either horizontal or vertical direction. The default value of direction property is horizontal, if the value of the position property is top, bottom and defaults to vertical, if the value of the position property is left or right.
• padding - Used to set padding around the legend. The default value of the padding property is EdgeInsets.all(10.0).

DART

late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('United Kingdom', 'Instagram', 4.93),
        SocialMediaUsers('France', 'Twitter', 7.54),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
          child: Container(
            height: 400,
            width: 400,
            child: SfTreemap(
              dataCount: _source.length,
              weightValueMapper: (int index) {
                return _source[index].usersInMillions;
              },
              levels: [
                TreemapLevel(
                  groupMapper: (int index) {
                    return _source[index].country;
                  },
                ),
              ],
              legend: TreemapLegend.bar(
                segmentSize: Size(60, 12),
                labelOverflow: TreemapLabelOverflow.ellipsis,
                edgeLabelsPlacement: TreemapLegendEdgeLabelsPlacement.center,
                padding: EdgeInsets.all(12),
                direction: Axis.horizontal,
                spacing: 5,
              ),
            ),
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

Bar legend labels placement

You can place the labels either between the segments or on the segments using the labelsPlacement property.

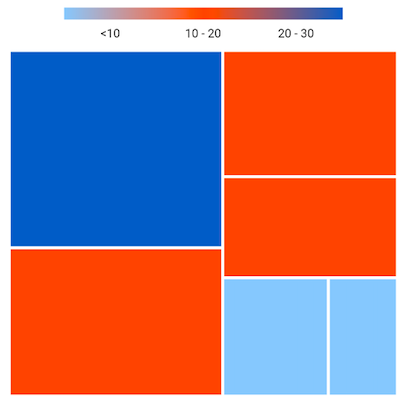

Labels placement for range color mapper

The labels are positioned between the segments when setting range color mapper without setting color mapper TreemapColorMapper.name property. The TreemapColorMapper.from value of the first item is positioned at starting point of the first segment and the TreemapColorMapper.to value of the first item is placed at the first segment end position. For other segments, the values of TreemapColorMapper.to is positioned as label between the other segments.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blue[200]!),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.deepOrange),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.blue[800]!),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            labelsPlacement: TreemapLegendLabelsPlacement.betweenItems,
            segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

The labels are positioned between the segments when setting range color mapper along with setting color mapper TreemapColorMapper.name property. The TreemapColorMapper.from value of the first item is positioned at starting point of the first segment and the TreemapColorMapper.name value of the first item is placed at the first segment end position. For Other segments, the value of TreemapColorMapper.name is positioned as label between the segments.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(
            from: 0, to: 10, color: Colors.blue[200]!, name: '<10'),
        TreemapColorMapper.range(
            from: 10, to: 20, color: Colors.deepOrange, name: '10 - 20'),
        TreemapColorMapper.range(
            from: 20, to: 30, color: Colors.blue[800]!, name: '20 - 30'),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            labelsPlacement: TreemapLegendLabelsPlacement.betweenItems,
            segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

The labels are positioned at the center of the segments when setting the labelsPlacement property to TreemapLegendLabelsPlacement.onItem. The labels will based on the value of TreemapColorMapper.name property. If the value of TreemapColorMapper.name property is null, labels will be based on the values of TreemapColorMapper.from and TreemapColorMapper.to properties.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(
            from: 0, to: 10, color: Colors.blue[200]!, name: '<10'),
        TreemapColorMapper.range(
            from: 10, to: 20, color: Colors.deepOrange, name: '10 - 20'),
        TreemapColorMapper.range(
            from: 20, to: 30, color: Colors.blue[800]!, name: '20 - 30'),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(1.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              colorValueMapper: (TreemapTile tile) {
                return tile.weight;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            labelsPlacement: TreemapLegendLabelsPlacement.onItem,
            edgeLabelsPlacement: TreemapLegendEdgeLabelsPlacement.center,
            segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

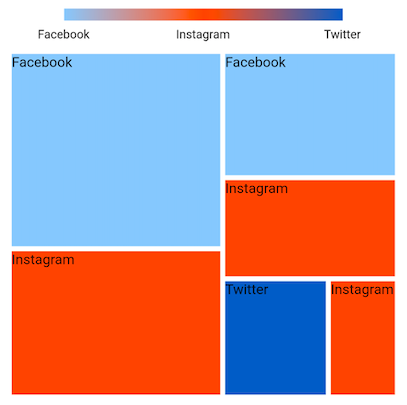

Labels placement for equal color mapper

The labelsPlacement option is not applicable for the legend label applied with equal color mapper. By default, the labels are positioned at center of the segment.

DART

late List<SocialMediaUsers> _source;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
        SocialMediaUsers('India', 'Facebook', 25.4),
        SocialMediaUsers('USA', 'Instagram', 19.11),
        SocialMediaUsers('Japan', 'Facebook', 13.3),
        SocialMediaUsers('Germany', 'Instagram', 10.65),
        SocialMediaUsers('France', 'Twitter', 7.54),
        SocialMediaUsers('UK', 'Instagram', 4.93),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.value(value: 'Facebook', color: Colors.blue[200]!),
        TreemapColorMapper.value(value: 'Instagram', color: Colors.deepOrange),
        TreemapColorMapper.value(value: 'Twitter', color: Colors.blue[800]!),
      ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfTreemap(
          dataCount: _source.length,
          weightValueMapper: (int index) {
            return _source[index].usersInMillions;
          },
          levels: [
            TreemapLevel(
              padding: const EdgeInsets.all(2.5),
              groupMapper: (int index) {
                return _source[index].country;
              },
              labelBuilder: (BuildContext context, TreemapTile tile) {
                return Text(_source[tile.indices[0]].socialMedia);
              },
              colorValueMapper: (TreemapTile tile) {
                return _source[tile.indices[0]].socialMedia;
              },
            ),
          ],
          colorMappers: _colorMappers,
          legend: TreemapLegend.bar(
            edgeLabelsPlacement: TreemapLegendEdgeLabelsPlacement.center,
            segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
          ),
        ),
    );
  }

class SocialMediaUsers {
  const SocialMediaUsers(this.country, this.socialMedia, this.usersInMillions);

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

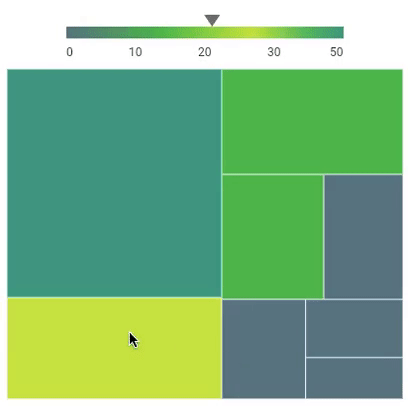

Show pointer

You may show a pointer on the solid or gradient bar legend while hovering over a tile using the showPointerOnHover property. The default value of the showPointerOnHover property is false.

DART

late List<IndianPopulation> _population;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _population = <IndianPopulation>[
        IndianPopulation('Gujarat', 54612),
        IndianPopulation('Bangalore', 473069),
        IndianPopulation('Chennai', 210312),
        IndianPopulation('Andra', 95419),
        IndianPopulation('Kashmir', 80599),
        IndianPopulation('Delhi', 39000),
        IndianPopulation('Mumbai', 122897),
        IndianPopulation('Kolkatta', 184135),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blueGrey),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.green),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.lime),
        TreemapColorMapper.range(from: 30, to: 50, color: Colors.teal),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: Container(
              height: 400,
              width: 400,
              child: SfTreemap(
                dataCount: _population.length,
                weightValueMapper: (int index) =>
                    _population[index].population.toDouble(),
                colorMappers: _colorMappers,
                legend: TreemapLegend.bar(
                  segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
                  showPointerOnHover: true,
                ),
                levels: [
                  TreemapLevel(
                    groupMapper: (int index) {
                      return _population[index].state;
                    },
                    colorValueMapper: (TreemapTile tile) {
                      return _population[tile.indices[0]].population / 10000;
                    },
                  )
                ],
              ),
            ),
          ),
        ),
    );
  }

class IndianPopulation {
  const IndianPopulation(this.state, this.population);

  final String state;
  final int population;
}

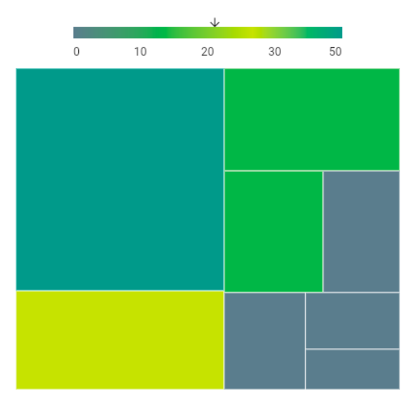

Pointer builder

It returns a widget for the given value.

The pointer is used to indicate the exact color of the hovering tile on the legend segment.

The pointerBuilder will be called when the user interacts with the tiles i.e., while tapping in touch devices and hovering in the mouse enabled devices.

DART

late List<IndianPopulation> _population;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _population = <IndianPopulation>[
        IndianPopulation('Gujarat', 54612),
        IndianPopulation('Bangalore', 473069),
        IndianPopulation('Chennai', 210312),
        IndianPopulation('Andra', 95419),
        IndianPopulation('Kashmir', 80599),
        IndianPopulation('Delhi', 39000),
        IndianPopulation('Mumbai', 122897),
        IndianPopulation('Kolkatta', 184135),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blueGrey),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.green),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.lime),
        TreemapColorMapper.range(from: 30, to: 50, color: Colors.teal),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
          body: Center(
            child: Container(
              height: 400,
              width: 400,
              child: SfTreemap(
                dataCount: _population.length,
                weightValueMapper: (int index) =>
                    _population[index].population.toDouble(),
                colorMappers: _colorMappers,
                legend: TreemapLegend.bar(
                  segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
                  showPointerOnHover: true,
                  pointerBuilder: (BuildContext context, dynamic value) {
                    return Icon(Icons.arrow_downward, size: 15);
                  },
                ),
                levels: [
                  TreemapLevel(
                    groupMapper: (int index) {
                      return _population[index].state;
                    },
                    colorValueMapper: (TreemapTile tile) {
                      return _population[tile.indices[0]].population / 10000;
                    },
                  )
                ],
              ),
            ),
          ),
        ),
    );
  }

class IndianPopulation {
  const IndianPopulation(this.state, this.population);

  final String state;
  final int population;
}

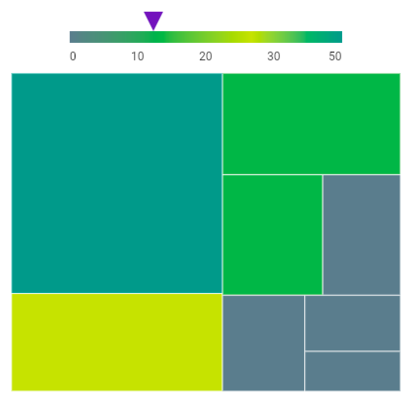

Pointer customization

You can customize the size and color of the pointer using the pointerSize and pointerColor properties. The default value of the pointerSize property is Size(16, 12).

DART

late List<IndianPopulation> _population;
  late List<TreemapColorMapper> _colorMappers;

  @override
  void initState() {
    _population = <IndianPopulation>[
        IndianPopulation('Gujarat', 54612),
        IndianPopulation('Bangalore', 473069),
        IndianPopulation('Chennai', 210312),
        IndianPopulation('Andra', 95419),
        IndianPopulation('Kashmir', 80599),
        IndianPopulation('Delhi', 39000),
        IndianPopulation('Mumbai', 122897),
        IndianPopulation('Kolkatta', 184135),
    ];

    _colorMappers = <TreemapColorMapper>[
        TreemapColorMapper.range(from: 0, to: 10, color: Colors.blueGrey),
        TreemapColorMapper.range(from: 10, to: 20, color: Colors.green),
        TreemapColorMapper.range(from: 20, to: 30, color: Colors.lime),
        TreemapColorMapper.range(from: 30, to: 50, color: Colors.teal),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
          body: Center(
            child: Container(
              height: 400,
              width: 400,
              child: SfTreemap(
                dataCount: _population.length,
                weightValueMapper: (int index) =>
                    _population[index].population.toDouble(),
                colorMappers: _colorMappers,
                legend: TreemapLegend.bar(
                  segmentPaintingStyle: TreemapLegendPaintingStyle.gradient,
                  showPointerOnHover: true,
                  pointerSize: Size(20, 20),
                  pointerColor: Colors.deepPurple,
                ),
                levels: [
                  TreemapLevel(
                    groupMapper: (int index) {
                      return _population[index].state;
                    },
                    colorValueMapper: (TreemapTile tile) {
                      return _population[tile.indices[0]].population / 10000;
                    },
                  )
                ],
              ),
            ),
          ),
        ),
    );
  }

class IndianPopulation {
  const IndianPopulation(this.state, this.population);

  final String state;
  final int population;
}
