Getting Started with Flutter Treemap (SfTreemap)

18 Nov 201824 minutes to read

This section explains the steps required to add the treemap widget and enable its features such as labels, tooltip, assigning colors based on region, and legends. This section covers only the basic features needed to get started with Syncfusion^® treemap.

To get started quickly with our Flutter Treemap widget, you can refer to this video.

Add Flutter treemap to an application

Create a simple project using the instructions given in the Getting Started with your first Flutter app documentation.

Add dependency

Add the Syncfusion^® Flutter Treemap dependency to your pubspec.yaml file.

DART

dependencies:
  syncfusion_flutter_treemap: ^xx.x.xx

NOTE

Here xx.x.xx denotes the current version of Syncfusion Flutter Treemap package. It is recommended to use the latest available version from pub.dev.

Get packages

Run the following command to get the required packages.

DART

$ flutter pub get

Import package

Import the following package in your Dart code.

DART

import 'package:syncfusion_flutter_treemap/treemap.dart';

Initialize treemap and populate data source

After importing the package, initialize the treemap widget as a child of any widget.

To populate the data source, set its count to the dataCount property of the treemap. The data will be grouped based on the values returned from the TreemapLevel.groupMapper callback. You can have more than one TreemapLevel in the levels collection to form a hierarchical treemap. The quantitative value of the underlying data has to be returned from the weightValueMapper callback. Based on this value, every tile (rectangle) will have its size.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class TreemapExample extends StatefulWidget {
  const TreemapExample({super.key});

  @override
  State<TreemapExample> createState() => _TreemapExampleState();
}

class _TreemapExampleState extends State<TreemapExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      const SocialMediaUsers(
        country: 'India',
        socialMedia: 'Facebook',
        usersInMillions: 25.4,
      ),
      const SocialMediaUsers(
        country: 'USA',
        socialMedia: 'Instagram',
        usersInMillions: 19.11,
      ),
      const SocialMediaUsers(
        country: 'Japan',
        socialMedia: 'Facebook',
        usersInMillions: 13.3,
      ),
      const SocialMediaUsers(
        country: 'Germany',
        socialMedia: 'Instagram',
        usersInMillions: 10.65,
      ),
      const SocialMediaUsers(
        country: 'France',
        socialMedia: 'Twitter',
        usersInMillions: 7.54,
      ),
      const SocialMediaUsers(
        country: 'UK',
        socialMedia: 'Instagram',
        usersInMillions: 4.93,
      ),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers({
    required this.country,
    required this.socialMedia,
    required this.usersInMillions,
  });

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

NOTE

• Refer the SfTreemap.levels, for adding flat or hierarchical structured treemap.
• Refer the SfTreemap.colorMappers, for customizing the tiles color.

Add labels

You can add any type of custom widgets to the tiles as labels based on the index using the TreemapLevel.labelBuilder property. The following example extends the initial sample by adding a label builder.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class TreemapExample extends StatefulWidget {
  const TreemapExample({super.key});

  @override
  State<TreemapExample> createState() => _TreemapExampleState();
}

class _TreemapExampleState extends State<TreemapExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      const SocialMediaUsers(
        country: 'India',
        socialMedia: 'Facebook',
        usersInMillions: 25.4,
      ),
      const SocialMediaUsers(
        country: 'USA',
        socialMedia: 'Instagram',
        usersInMillions: 19.11,
      ),
      const SocialMediaUsers(
        country: 'Japan',
        socialMedia: 'Facebook',
        usersInMillions: 13.3,
      ),
      const SocialMediaUsers(
        country: 'Germany',
        socialMedia: 'Instagram',
        usersInMillions: 10.65,
      ),
      const SocialMediaUsers(
        country: 'France',
        socialMedia: 'Twitter',
        usersInMillions: 7.54,
      ),
      const SocialMediaUsers(
        country: 'UK',
        socialMedia: 'Instagram',
        usersInMillions: 4.93,
      ),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
                labelBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.only(left: 2.5, right: 2.4, top: 1),
                    child: Text(
                      tile.group,
                      style: const TextStyle(color: Colors.black),
                    ),
                  );
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers({
    required this.country,
    required this.socialMedia,
    required this.usersInMillions,
  });

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

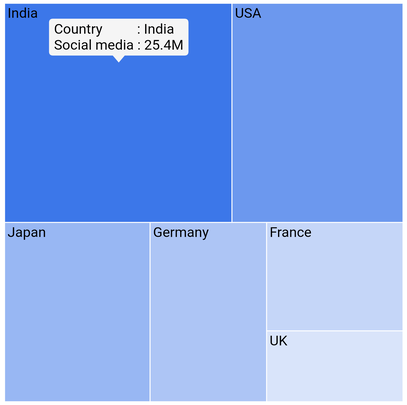

Add tooltip

You can enable tooltip for any tile in the treemap and return a fully customized widget using the tooltipBuilder property. The following example extends the initial sample by adding a tooltip builder.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class TreemapExample extends StatefulWidget {
  const TreemapExample({super.key});

  @override
  State<TreemapExample> createState() => _TreemapExampleState();
}

class _TreemapExampleState extends State<TreemapExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      const SocialMediaUsers(
        country: 'India',
        socialMedia: 'Facebook',
        usersInMillions: 25.4,
      ),
      const SocialMediaUsers(
        country: 'USA',
        socialMedia: 'Instagram',
        usersInMillions: 19.11,
      ),
      const SocialMediaUsers(
        country: 'Japan',
        socialMedia: 'Facebook',
        usersInMillions: 13.3,
      ),
      const SocialMediaUsers(
        country: 'Germany',
        socialMedia: 'Instagram',
        usersInMillions: 10.65,
      ),
      const SocialMediaUsers(
        country: 'France',
        socialMedia: 'Twitter',
        usersInMillions: 7.54,
      ),
      const SocialMediaUsers(
        country: 'UK',
        socialMedia: 'Instagram',
        usersInMillions: 4.93,
      ),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
                labelBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.only(left: 2.5, right: 2.4, top: 1),
                    child: Text(
                      tile.group,
                      style: const TextStyle(color: Colors.black),
                    ),
                  );
                },
                tooltipBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.only(left: 5, right: 5, top: 2, bottom: 3),
                    child: Text(
                      'Country          : ${tile.group}\nSocial media : ${tile.weight}M',
                      style: const TextStyle(color: Colors.black),
                    ),
                  );
                },
              ),
            ],
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers({
    required this.country,
    required this.socialMedia,
    required this.usersInMillions,
  });

  final String country;
  final String socialMedia;
  final double usersInMillions;
}

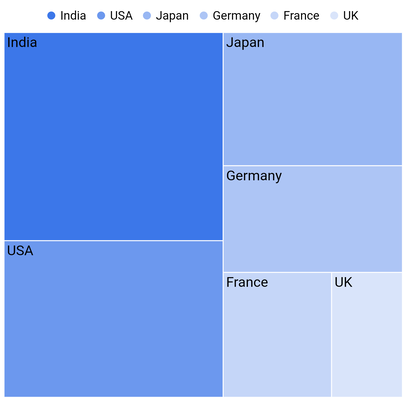

Add legend

You can show legend by initializing the legend property in the SfTreemap. It is possible to customize the legend item’s color and text using the SfTreemap.colorMappers property. The following example extends the initial sample by adding legend support.

DART

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_treemap/treemap.dart';

class TreemapExample extends StatefulWidget {
  const TreemapExample({super.key});

  @override
  State<TreemapExample> createState() => _TreemapExampleState();
}

class _TreemapExampleState extends State<TreemapExample> {
  late List<SocialMediaUsers> _source;

  @override
  void initState() {
    _source = <SocialMediaUsers>[
      const SocialMediaUsers(
        country: 'India',
        socialMedia: 'Facebook',
        usersInMillions: 25.4,
      ),
      const SocialMediaUsers(
        country: 'USA',
        socialMedia: 'Instagram',
        usersInMillions: 19.11,
      ),
      const SocialMediaUsers(
        country: 'Japan',
        socialMedia: 'Facebook',
        usersInMillions: 13.3,
      ),
      const SocialMediaUsers(
        country: 'Germany',
        socialMedia: 'Instagram',
        usersInMillions: 10.65,
      ),
      const SocialMediaUsers(
        country: 'France',
        socialMedia: 'Twitter',
        usersInMillions: 7.54,
      ),
      const SocialMediaUsers(
        country: 'UK',
        socialMedia: 'Instagram',
        usersInMillions: 4.93,
      ),
    ];
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          height: 400,
          width: 400,
          child: SfTreemap(
            dataCount: _source.length,
            weightValueMapper: (int index) {
              return _source[index].usersInMillions;
            },
            levels: [
              TreemapLevel(
                groupMapper: (int index) {
                  return _source[index].country;
                },
                labelBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.only(left: 2.5, right: 2.4, top: 1),
                    child: Text(
                      tile.group,
                      style: const TextStyle(color: Colors.black),
                    ),
                  );
                },
                tooltipBuilder: (BuildContext context, TreemapTile tile) {
                  return Padding(
                    padding: const EdgeInsets.only(left: 5, right: 5, top: 2, bottom: 3),
                    child: Text(
                      'Country          : ${tile.group}\nSocial media : ${tile.weight}M',
                      style: const TextStyle(color: Colors.black),
                    ),
                  );
                },
              ),
            ],
            legend: TreemapLegend(),
          ),
        ),
      ),
    );
  }
}

class SocialMediaUsers {
  const SocialMediaUsers({
    required this.country,
    required this.socialMedia,
    required this.usersInMillions,
  });

  final String country;
  final String socialMedia;
  final double usersInMillions;
}
