Getting Started with WinForms Card Layout

18 Nov 20189 minutes to read

This section explains how to add the WinForms Card Layout control in a Windows Forms application and overview its basic functionalities.

Assembly deployment

Refer to the Control Dependencies section to get the list of assemblies or details of NuGet package that needs to be added as reference to use the control in any application.

Refer to this documentation to find more details about installing NuGet packages in a Windows Forms application.

Adding the WinForms Card Layout control via designer

  1. Create a new Windows Forms application in Visual Studio.

  2. Add the WinForms Card Layout control to an application by dragging it from the toolbox to design view. The following required dependent assembly will be added automatically:

    • Syncfusion.Shared.Base

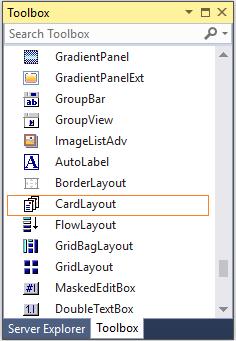

WinForms CardLayout being dragged from the Visual Studio toolbox onto the designer

  1. To add the form as a container control of WinForms Card Layout, click Yes in the popup. The form is automatically assigned as the container control before the WinForms Card Layout is added.

Confirmation dialog asking whether the form should be used as the container control of CardLayout

Adding layout components

The child controls can be added to the layout by dragging them from the toolbox to the design view.

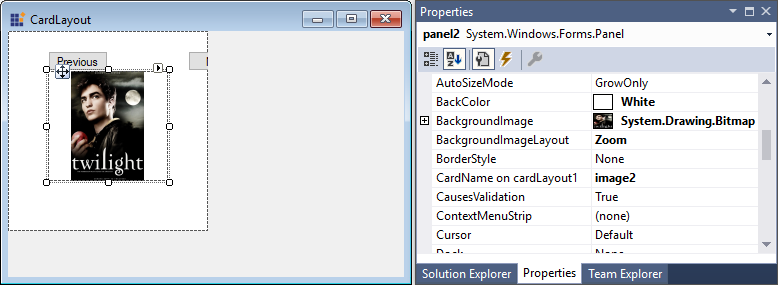

Child controls added as cards into the WinForms CardLayout container

Adding the WinForms Card Layout control via code

The WinForms Card Layout control can be created programmatically using the following steps:

  1. Create a C# or VB application in Visual Studio.

  2. Add the following assembly reference to the project:

    • Syncfusion.Shared.Base.dll

  3. Include the required namespace.

    using Syncfusion.Windows.Forms.Tools;
    Imports Syncfusion.Windows.Forms.Tools

  4. Create an instance of the WinForms Card Layout control, and then set ContainerControl to the form.

    private Syncfusion.Windows.Forms.Tools.CardLayout cardLayout1;
this.cardLayout1 = new Syncfusion.Windows.Forms.Tools.CardLayout(this.components);
this.components = new System.ComponentModel.Container();
this.cardLayout1.ContainerControl = this;
    Private cardLayout1 As Syncfusion.Windows.Forms.Tools.CardLayout
Me.cardLayout1 = New Syncfusion.Windows.Forms.Tools.CardLayout(Me.components)
Me.components = New System.ComponentModel.Container()
Me.cardLayout1.ContainerControl = Me

Adding layout components

The child controls can be added to the layout by simply adding them to the form, since the form is its container control.

  1. Add the main panel to the layout by simply adding it to the form, since the form is its container control.

    // Add main panel
private System.Windows.Forms.Panel cardLayoutPanel;
this.cardLayoutPanel = new System.Windows.Forms.Panel();

// Add properties
this.cardLayoutPanel.BackColor = System.Drawing.Color.White;
this.cardLayoutPanel.Dock = System.Windows.Forms.DockStyle.Fill;
this.cardLayoutPanel.Size = new System.Drawing.Size(800, 450);

// Add to card layout
this.cardLayout1.ContainerControl = cardLayoutPanel;
    ' Add main panel
Private cardLayoutPanel As System.Windows.Forms.Panel
Me.cardLayoutPanel = New System.Windows.Forms.Panel()

' Add properties
Me.cardLayoutPanel.BackColor = System.Drawing.Color.White
Me.cardLayoutPanel.Dock = System.Windows.Forms.DockStyle.Fill
Me.cardLayoutPanel.Size = New System.Drawing.Size(800, 450)

' Add to card layout
Me.cardLayout1.ContainerControl = cardLayoutPanel

  2. Add the child panels to the layout by simply adding them to the main panel.

    // Create an instance of three panels
private System.Windows.Forms.Panel panel1;
private System.Windows.Forms.Panel panel2;
private System.Windows.Forms.Panel panel3;

this.panel1 = new System.Windows.Forms.Panel();
this.panel2 = new System.Windows.Forms.Panel();
this.panel3 = new System.Windows.Forms.Panel();

// Set the size and image to panel1
this.cardLayout1.SetPreferredSize(this.panel1, new System.Drawing.Size(586, 232));
this.panel1.BackgroundImage = ((System.Drawing.Image)(resources.GetObject("panel1.BackgroundImage")));

// Set the size and image to panel2
this.panel2.BackgroundImage = ((System.Drawing.Image)(resources.GetObject("panel2.BackgroundImage")));
this.cardLayout1.SetPreferredSize(this.panel2, new System.Drawing.Size(586, 232));

// Set the size and image to panel3
this.panel3.BackgroundImage = ((System.Drawing.Image)(resources.GetObject("panel3.BackgroundImage")));
this.cardLayout1.SetPreferredSize(this.panel3, new System.Drawing.Size(586, 232));

// Add the panels into the main panel
this.cardLayoutPanel.Controls.Add(this.panel1);
this.cardLayoutPanel.Controls.Add(this.panel2);
this.cardLayoutPanel.Controls.Add(this.panel3);
    ' Create an instance of three panels
Private panel1 As System.Windows.Forms.Panel
Private panel2 As System.Windows.Forms.Panel
Private panel3 As System.Windows.Forms.Panel

Me.panel1 = New System.Windows.Forms.Panel()
Me.panel2 = New System.Windows.Forms.Panel()
Me.panel3 = New System.Windows.Forms.Panel()

' Set the size and image to panel1
Me.cardLayout1.SetPreferredSize(Me.panel1, New System.Drawing.Size(586, 232))
Me.panel1.BackgroundImage = (CType(resources.GetObject("panel1.BackgroundImage"), System.Drawing.Image))

' Set the size and image to panel2
Me.panel2.BackgroundImage = (CType(resources.GetObject("panel2.BackgroundImage"), System.Drawing.Image))
Me.cardLayout1.SetPreferredSize(Me.panel2, New System.Drawing.Size(586, 232))

' Set the size and image to panel3
Me.panel3.BackgroundImage = (CType(resources.GetObject("panel3.BackgroundImage"), System.Drawing.Image))
Me.cardLayout1.SetPreferredSize(Me.panel3, New System.Drawing.Size(586, 232))

' Add the panels into the main panel
Me.cardLayoutPanel.Controls.Add(Me.panel1)
Me.cardLayoutPanel.Controls.Add(Me.panel2)
Me.cardLayoutPanel.Controls.Add(Me.panel3)

  3. Navigate to the next or previous card using the Next and Previous methods. At run time, a particular card can be selected using the SelectedCard property.

    // For moving to the next card
this.cardLayout1.Next();

// For moving to the previous card
this.cardLayout1.Previous();

// For selecting a card
this.cardLayout1.SelectedCard = "image1";
    ' For moving to the next card
Me.cardLayout1.Next()

' For moving to the previous card
Me.cardLayout1.Previous()

' For selecting a card
Me.cardLayout1.SelectedCard = "image1"

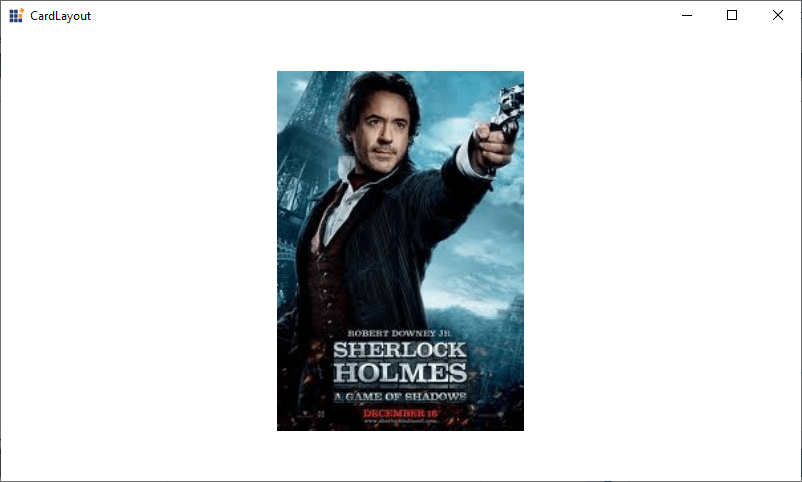

Selected card displayed in the WinForms CardLayout
