Background and Foreground Settings in Windows Forms GradientPanelExt

28 Apr 2021 / 4 minutes to read

By setting the background properties, the user can create a GradientPanelExt according to his requirements. The properties and styles for the GradientPanelExt have been listed and discussed below.

Background Properties

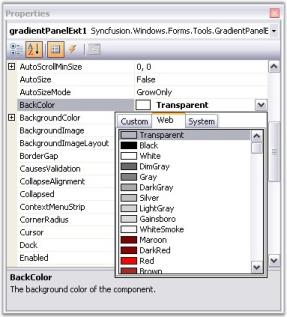

BackColor represents the background color used to display the text or the graphics in the control.

Overview_img382

gradientPanelExt1.BackColor = System.Drawing.Color.Transparent;
Private gradientPanelExt1.BackColor = System.Drawing.Color.Transparent

Overview_img383

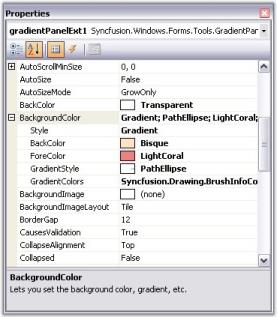

The colors and styles of the GradientPanelExt control can be set using the BackgroundColor properties, which have been explained below:

  • Style - The styles available are solid, pattern and gradient.
  • Back Color - User can select the required colors for the background using BackColor property.
  • Fore Color - Foreground color, for text or graphics can be set using ForeColor property.
  • PatternStyle - Provides the pattern styles available for the style selected.
  • GradientColors - This pops up the Color Collection Editor, which allows the user to add colors and get a combination of colors to display in the gradient panel with the specified style.
GradientPanelExt Properties Description
Style Specifies the brush style (Solid, Pattern, Gradient).
BackColor Gets or sets the back color.
ForeColor Gets or sets the fore color.
PatternStyle Gets or sets specifies the pattern style.
GradientColor Specifies the gradient colors, with the first color same as BackColor and last color same as ForeColor.
BackgroundImage Specifies the background image for the control.

Overview_img384

Alternatively, the BackgroundColor for the control can also be set using the following code snippet.

gradientPanelExt1.BackgroundColor = new Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.PathEllipse, new     System.Drawing.Color[] {
System.Drawing.Color.Bisque,
System.Drawing.Color.LightSalmon,
System.Drawing.Color.LightCoral});
Private gradientPanelExt1.BackgroundColor = New Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.PathEllipse, New System.Drawing.Color() {
System.Drawing.Color.Bisque, System.Drawing.Color.LightSalmon, System.Drawing.Color.LightCoral})

Overview_img385

Image Settings

A background image can be set for the gradient panel using the BackgroundImage property. User can set the layout for the background image using the BackgroundImageLayout property. These properties can be set programmatically using the below code snippets.

gradientPanelExt1.BackgroundImage = ((System.Drawing.Image)(resources.GetObject("gradientPanelExt1.BackgroundImage")));
gradientPanelExt1.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Stretch;
Private Me.gradientPanelExt1.BackgroundImage = (CType(resources.GetObject("gradientPanelExt1.BackgroundImage"),System.Drawing.Image))
Private Me.gradientPanelExt1.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Stretch

Overview_img386

Foreground

The control’s text can be customized by altering its Font properties. The ForeColor property represents the GradientPanelExt’s text color. Using the following code snippet customizes the foreground of the GradientPanelExt.

this.gradientPanelExt1.Font = new System.Drawing.Font("Comic Sans MS", 9.75F, ((System.Drawing.FontStyle)                                   (((System.Drawing.FontStyle.Bold | System.Drawing.FontStyle.Italic)
| System.Drawing.FontStyle.Underline))), System.Drawing.GraphicsUnit.Point, ((byte)(0)));
this.gradientPanelExt1.ForeColor = System.Drawing.Color.DarkGreen;
Private Me.gradientPanelExt1.Font = New System.Drawing.Font("Comic Sans MS", 9.75F, (CType                                                  (((System.Drawing.FontStyle.Bold Or System.Drawing.FontStyle.Italic) Or System.Drawing.FontStyle.Underline),                              System.Drawing.FontStyle)), System.Drawing.GraphicsUnit.Point, (CByte(0)))
Private Me.gradientPanelExt1.ForeColor = System.Drawing.Color.DarkGreen

Overview_img387
