Thumb and Overlay in DateTime Range Selector (SfDateTimeRangeSelector)

17 Jan 202513 minutes to read

This section helps to learn about how to customize the thumb and thumb overlay in the DateTime Range Selector.

  • Thumb - It is one of the slider elements that can be used to drag and change the selected value.
  • Thumb overlay - It is rendered around the thumb while interacting with them.

Thumb size

Change the thumb size using the ThumbStyle class’s Radius property. The default value of the Radius property is 10.0.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbStyle>
            <sliders:SliderThumbStyle Radius="15" />
        </sliders:SfDateTimeRangeSelector.ThumbStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbStyle.Radius = 15;
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

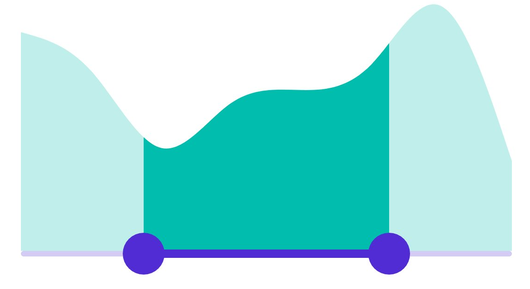

RangeSelector thumb size

Thumb color

Change the color of the thumb using the Fill property of the ThumbStyle class.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:chart="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbStyle>
            <sliders:SliderThumbStyle Fill="#EE3F3F" />
        </sliders:SfDateTimeRangeSelector.ThumbStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbStyle.Fill = new SolidColorBrush(Color.FromArgb("#EE3F3F"));
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

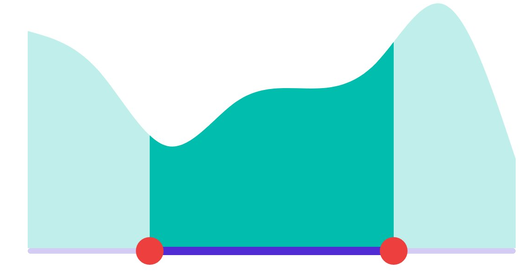

RangeSelector thumb color

Thumb stroke thickness and stroke

Change the thumb stroke width using the StrokeThickness property and thumb stroke color using the Stroke property of the ThumbStyle class.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbStyle>
            <sliders:SliderThumbStyle StrokeThickness="2" Stroke="#EE3F3F" />
        </sliders:SfDateTimeRangeSelector.ThumbStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbStyle.Stroke = new SolidColorBrush(Color.FromArgb("#EE3F3F"));
rangeSelector.ThumbStyle.StrokeThickness = 2;
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

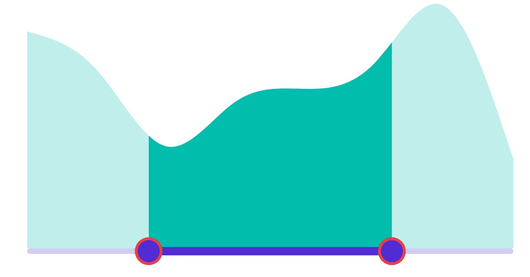

RangeSelector thumb stroke color

Thumb overlapping stroke color

Change the thumb stroke color while two thumbs overlap using the OverlapStroke property of the ThumbStyle class.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbStyle>
            <sliders:SliderThumbStyle OverlapStroke="#EE3F3F" />
        </sliders:SfDateTimeRangeSelector.ThumbStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbStyle.OverlapStroke = new SolidColorBrush(Color.FromArgb("#EE3F3F"));
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

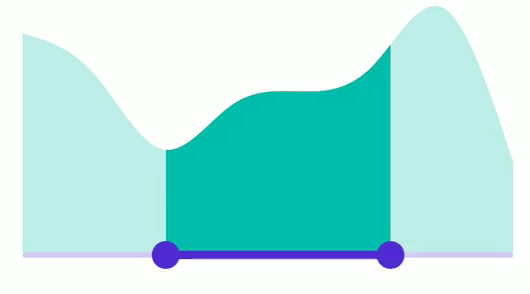

RangeSelector thumb stroke color

Thumb overlay size

Change the size of the thumb overlay using the Radius property of the ThumbOverlayStyle class. The default value of the Radius property is 24.0.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbOverlayStyle>
            <sliders:SliderThumbOverlayStyle Radius="30" />
        </sliders:SfDateTimeRangeSelector.ThumbOverlayStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbOverlayStyle.Radius = 30;
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

RangeSelector thumb overlay size

Thumb overlay color

Change the color of the thumb overlay using the Fill property of the ThumbOverlayStyle class.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

        <sliders:SfDateTimeRangeSelector.ThumbOverlayStyle>
            <sliders:SliderThumbOverlayStyle Fill="#F7C8DB" />
        </sliders:SfDateTimeRangeSelector.ThumbOverlayStyle>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.ThumbOverlayStyle.Fill = new SolidColorBrush(Color.FromArgb("#F7C8DB"));
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

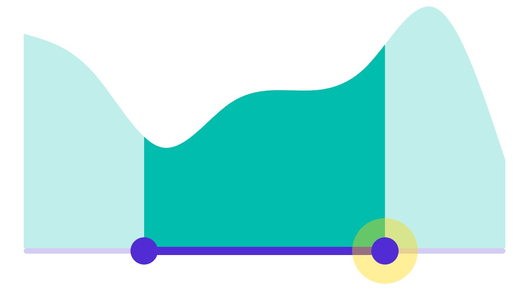

RangeSelector thumb overlay color
