Tooltip in .NET MAUI DateTime Range Selector (SfDateTimeRangeSelector)

This section helps to learn how to add the tooltip in the DateTime Range Selector.

Enable tooltip

Enable the tooltip for the thumb by setting the Tooltip property to SliderTooltip. It is used to indicate the current selection of the value during the interaction. By default, the tooltip text is formatted with either numberFormat or dateFormat. The default value of the Tooltip property is null.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

         <sliders:SfDateTimeRangeSelector.Tooltip>
            <sliders:SliderTooltip />
         </sliders:SfDateTimeRangeSelector.Tooltip>

     <charts:SfCartesianChart>
         ...
     </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.Tooltip = new SliderTooltip();
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

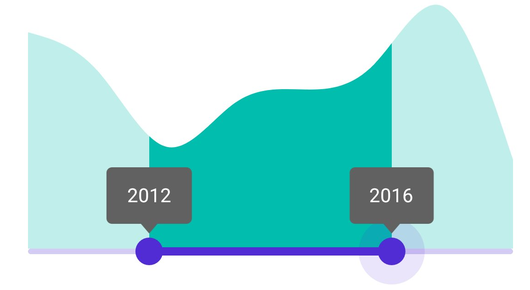

RangeSelector tooltip

Show always

Always shows a tooltip with and without the thumb interaction by setting the SliderTooltip.ShowAlways property. The default value of the SliderTooltip.ShowAlways property is False.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

         <sliders:SfDateTimeRangeSelector.Tooltip>
            <sliders:SliderTooltip ShowAlways="True"/>
         </sliders:SfDateTimeRangeSelector.Tooltip>

     <charts:SfCartesianChart>
         ...
     </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.Tooltip = new SliderTooltip();
rangeSelector.Tooltip.ShowAlways = true;
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

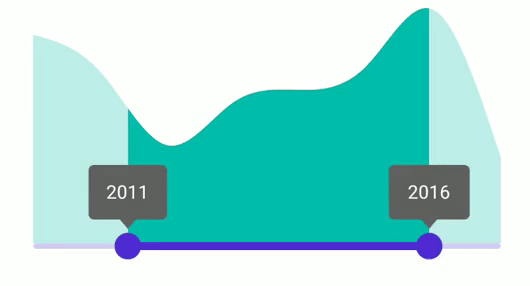

RangeSelector show always tooltip

NOTE

Refer here to customize the tooltip text through the SliderTooltip events.

Tooltip label style

Change the appearance of the tooltip using the Fill, Stroke, StrokeThickness, and Position properties. Also, customize the tooltip text using the TextColor, FontSize, FontAttributes, FontFamily, Padding, and DateFormat properties of the SliderTooltip class.

<ContentPage
             ...
             xmlns:sliders="clr-namespace:Syncfusion.Maui.Sliders;assembly=Syncfusion.Maui.Sliders"
             xmlns:charts="clr-namespace:Syncfusion.Maui.Charts;assembly=Syncfusion.Maui.Charts">

    <sliders:SfDateTimeRangeSelector Minimum="2010-01-01"
                                     Maximum="2018-01-01"
                                     RangeStart="2012-01-01"
                                     RangeEnd="2016-01-01">

         <sliders:SfDateTimeRangeSelector.Tooltip>
            <sliders:SliderTooltip Fill="#DFD8F7"
                                   Stroke="#512BD4"
                                   StrokeThickness="2"
                                   TextColor="#512BD4"
                                   FontSize="14"
                                   FontAttributes="Bold"
                                   Padding="12,12" />
         </sliders:SfDateTimeRangeSelector.Tooltip>

        <charts:SfCartesianChart>
            ...
        </charts:SfCartesianChart>

    </sliders:SfDateTimeRangeSelector>
</ContentPage>
SfDateTimeRangeSelector rangeSelector = new SfDateTimeRangeSelector();
rangeSelector.Minimum = new DateTime(2010, 01, 01);
rangeSelector.Maximum = new DateTime(2018, 01, 01);
rangeSelector.RangeStart = new DateTime(2012, 01, 01);
rangeSelector.RangeEnd = new DateTime(2016, 01, 01);
rangeSelector.Tooltip.Fill = new SolidColorBrush(Color.FromArgb("#DFD8F7"));
rangeSelector.Tooltip.Stroke = new SolidColorBrush(Color.FromArgb("#512BD4"));
rangeSelector.Tooltip.StrokeThickness = 2;
rangeSelector.Tooltip.TextColor = Color.FromArgb("#512BD4");
rangeSelector.Tooltip.FontSize = 14;
rangeSelector.Tooltip.FontAttributes = FontAttributes.Bold;
rangeSelector.Tooltip.Padding = new Thickness(12, 12);
SfCartesianChart chart = new SfCartesianChart();
rangeSelector.Content = chart;

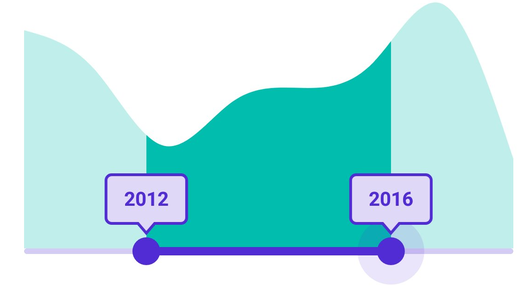

RangeSelector tooltip style
