Formatting in WinForms Numeric TextBox

18 Nov 20185 minutes to read

FormatMode

The formatting functionality allows formatting the value based on the FormatString. You can format the value in different modes, of which three specific formats are supported: Numeric, Currency, and Percent. In Currency and Percent modes, the value is displayed with its symbol.

The three supported formats are explained below:

  • Numeric - Used for displaying values in numeric format. The number may contain different decimal symbol, decimal separator, decimal digits, and group size in different cultures. All these can be customized using the NumberFormatInfo property.

  • Currency – The Currency format specifier converts a number to a string and is used for displaying currency values in currency format. The currency text may contain currency symbol, currency decimal separator, currency decimal digit, and currency group size. This can be customized by using NumberFormatInfo.

  • Percent - The Percent format specifier converts a number to a string and is used for displaying percentage values in percent format. The percentage text may contain percent symbol, percent decimal separator, percent decimal digit, and percent group size. This can be customized by using NumberFormatInfo.

NOTE: If NumberFormatInfo is null, the Text will be parsed based on CurrentUICulture.

Numeric FormatMode

this.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Numeric;
Me.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Numeric

Percent FormatMode

this.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Percent;
Me.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Percent

Currency FormatMode

this.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Currency;
Me.numericTextBox.FormatMode = Syncfusion.WinForms.Input.Enums.FormatMode.Currency

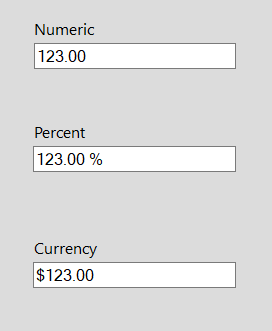

Format types applied to the WinForms Numeric TextBox

Format using NumberFormatInfo

The NumberFormatInfo class contains culture-specific information that is used when you format and parse numeric values. This NumberFormatInfo includes

  • Currency symbol
  • Decimal symbol
  • Percent symbol
  • Group separator symbol and
  • Symbols for negative signs.

Using this NumberFormatInfo, you can define how the values can be formatted and displayed. You can also format based on the culture by specifying it in NumberFormatInfo.

NumberFormatInfo numberFormat = new NumberFormatInfo();
 numberFormat.NumberDecimalSeparator = "*";
 numberFormat.NumberDecimalDigits = 4;
 numberFormat.NumberGroupSeparator = "/";
 numberFormat.NumberGroupSizes = new int[3] { 1, 2, 3 };
 numericTextBox.NumberFormatInfo = numberFormat;
Dim numberFormat As New NumberFormatInfo()
 numberFormat.NumberDecimalSeparator = "*"
 numberFormat.NumberDecimalDigits = 4
 numberFormat.NumberGroupSeparator = "/"
 numberFormat.NumberGroupSizes = New Integer(2) { 1, 2, 3 }
 Me.numericTextBox.NumberFormatInfo = numberFormat

WinForms Numeric TextBox formatted using NumberFormatInfo

NOTE: The Value in the WinForms Numeric TextBox can be parsed by using the NumberFormatInfo property. If the NumberFormatInfo is not initialized, the Value will be parsed based on CurrentUICulture.

Hiding trailing zeros

Trailing zeros are a sequence of 0s in the decimal representation of a number, after which no other digits follow. Trailing zeros to the right of the decimal point do not affect the value of a number; they can be removed by enabling the HideTrailingZeros property.

// Hides the trailing zeros.
this.numericTextBox.HideTrailingZeros = true;
' Hides the trailing zeros.
Me.numericTextBox.HideTrailingZeros = True

Trailing zeros hidden in the WinForms Numeric TextBox

Prefix and Suffix

Additional details about the value will always improve the meaning of the value. Such details can be displayed along with the Value using the Prefix and Suffix properties. For example, values for speed, weight, and length can be displayed with units such as Km/h, Kg, and m.

this.numericTextBox.Prefix = "Pass percent :";
Me.numericTextBox.Prefix = "Pass percent :"

Prefix format applied to the WinForms Numeric TextBox

this.numericTextBox.Suffix = "inches";
Me.numericTextBox.Suffix = "inches"

Suffix format applied to the WinForms Numeric TextBox

WatermarkText

The watermark is the placeholder content displayed in the WinForms Numeric TextBox when the value is null. It can be used for providing instructions or guidelines for the control.

this.numericTextBox.WatermarkText = "Enter your age";
Me.numericTextBox.WatermarkText = "Enter your age"

Watermark text displayed in the WinForms Numeric TextBox

NOTE: The WatermarkText will be visible when the value is null and the control does not have the focus.
