Getting Started with WinForms Flow Layout

18 Nov 20185 minutes to read

This section explains how to add the WinForms Flow Layout control in a Windows Forms application and overviews its basic functionalities.

Assembly deployment

Refer to the Control Dependencies section to get the list of assemblies or details of the NuGet package that needs to be added as a reference to use the control in any application.

Refer to this documentation to find more details about installing NuGet packages in a Windows Forms application.

Adding the WinForms Flow Layout control via designer

  1. Create a new Windows Forms application in Visual Studio.

  2. Add the WinForms Flow Layout control to an application by dragging it from the toolbox to design view. The following assembly will be added automatically:

    • Syncfusion.Shared.Base

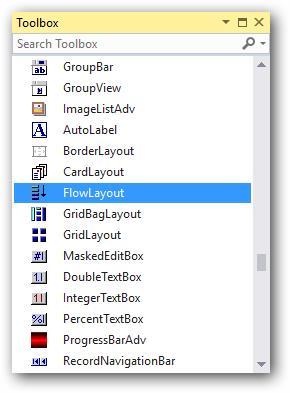

WinForms FlowLayout being dragged from the Visual Studio toolbox onto the designer

  1. To add the form as a container control of the WinForms Flow Layout, click Yes in the popup, from which it appears automatically when WinForms Flow Layout is added.

Confirmation dialog asking whether the form should be used as the container control of FlowLayout

Adding layout components

The child controls can be added to the layout by dragging them from the toolbox to the design view.

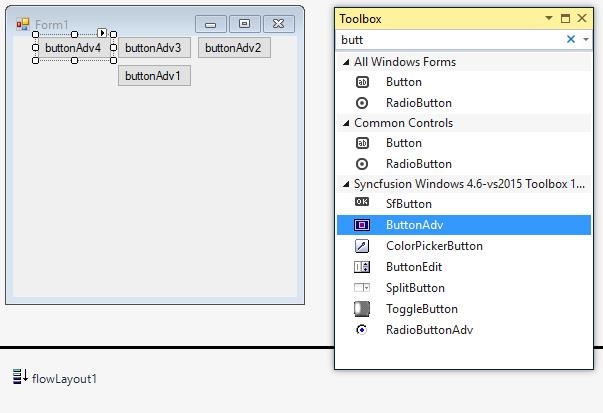

Child controls added to a WinForms FlowLayout container in the designer

Adding the WinForms Flow Layout control via code

To add the control manually in C# or VB, follow the given steps:

  1. Create a C# or VB application in Visual Studio.

  2. Add the following required assembly reference to the project:

    • Syncfusion.Shared.Base

  3. Include the required namespace.

    using Syncfusion.Windows.Forms.Tools;
    Imports Syncfusion.Windows.Forms.Tools

  4. Create a WinForms Flow Layout control instance, and then set ContainerControl as the form.

    FlowLayout flowLayout1 = new FlowLayout();

flowLayout1.ContainerControl = this;
    Dim flowLayout1 As FlowLayout = New FlowLayout()

Me.flowLayout1.ContainerControl = Me

Adding layout components

The child controls can be added to the layout by simply adding them to the form since the form is its container control.

ButtonAdv buttonAdv1 = new ButtonAdv();
ButtonAdv buttonAdv2 = new ButtonAdv();
ButtonAdv buttonAdv3 = new ButtonAdv();
ButtonAdv buttonAdv4 = new ButtonAdv();

this.buttonAdv1.Text = "buttonAdv1";
this.buttonAdv2.Text = "buttonAdv2";
this.buttonAdv3.Text = "buttonAdv3";
this.buttonAdv4.Text = "buttonAdv4";

this.Controls.Add(this.buttonAdv1);
this.Controls.Add(this.buttonAdv2);
this.Controls.Add(this.buttonAdv3);
this.Controls.Add(this.buttonAdv4);
Dim buttonAdv1 As ButtonAdv = New ButtonAdv()
Dim buttonAdv2 As ButtonAdv = New ButtonAdv()
Dim buttonAdv3 As ButtonAdv = New ButtonAdv()
Dim buttonAdv4 As ButtonAdv = New ButtonAdv()

Me.buttonAdv1.Text = "buttonAdv1"
Me.buttonAdv2.Text = "buttonAdv2"
Me.buttonAdv3.Text = "buttonAdv3"
Me.buttonAdv4.Text = "buttonAdv4"

Me.Controls.Add(Me.buttonAdv1)
Me.Controls.Add(Me.buttonAdv2)
Me.Controls.Add(Me.buttonAdv3)
Me.Controls.Add(Me.buttonAdv4)

Four ButtonAdv child controls added to a WinForms FlowLayout

Layout mode

To change the layout of child controls either horizontally or vertically, use the LayoutMode property.

  • Horizontal

    flowLayout1.LayoutMode = Syncfusion.Windows.Forms.Tools.FlowLayoutMode.Horizontal;
    flowLayout1.LayoutMode = Syncfusion.Windows.Forms.Tools.FlowLayoutMode.Horizontal

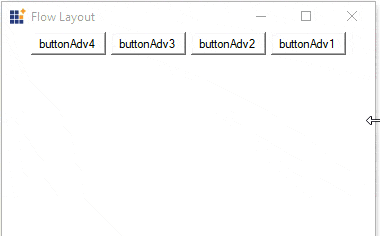

WinForms FlowLayout showing the child controls arranged in horizontal mode

  • Vertical

    flowLayout1.LayoutMode = Syncfusion.Windows.Forms.Tools.FlowLayoutMode.Vertical;
    flowLayout1.LayoutMode = Syncfusion.Windows.Forms.Tools.FlowLayoutMode.Vertical

WinForms FlowLayout showing the child controls arranged in vertical mode
