HTML to PDF conversion in Azure Function App container in Linux PDF

13 Aug 202612 minutes to read

The HTML to PDF converter is a .NET Core library for converting webpages, SVG, MHTML, and HTML to PDF using C#. The result preserves all graphics, images, text, fonts, and the layout of the original HTML document or webpage. Using this library, you can convert HTML to PDF using C# with the Blink rendering engine in Azure Function App container in Linux.

Prerequisites

Version Compatibility

The Syncfusion.HtmlToPdfConverter.Net.Linux NuGet package uses the Blink rendering engine for HTML to PDF conversion. This library is compatible with .NET 8.0 and later versions

Supported Inputs

The HTML to PDF converter supports the following input types:

• HTML String: Direct HTML content.
• URL: Web pages and online HTML content.
• HTML Files: Local HTML files.
• MHTML Files: Web archive (.mhtml/.mht) content.
• Authenticated Web Pages: Pages that require cookies, form authentication, or HTTP authentication.
• HTTP GET/POST Requests: HTML content accessed through GET or POST methods

Required Software

• .NET 8 SDK or later
• Linux x86_64 environment

Register the license key

Starting with v16.2.0.x, if you reference Syncfusion^® assemblies from trial setup or from the NuGet feed, you must add the “Syncfusion.Licensing” assembly reference and register a license key in your application. Please refer to this link for details on registering a Syncfusion^® license key.

Include a license key in your Function1.cs file before creating an HtmlToPdfConverter instance. Refer to the Syncfusion License documentation to learn about registering the Syncfusion license key in your application.

C#

using Syncfusion.Licensing;

public class Function1
{
    // Register the Syncfusion license
    SyncfusionLicenseProvider.RegisterLicense("YOUR LICENSE KEY");
}

Starting from version 29.2.4, it is no longer necessary to manually add the following command-line arguments when using the Blink rendering engine:

settings.CommandLineArguments.Add("--no-sandbox");
settings.CommandLineArguments.Add("--disable-setuid-sandbox");

These arguments are only required when using older versions of the library that depend on Blink in sandbox-restricted environments.

Steps to convert HTML to PDF in Azure Function App container in Linux

Step 1: Create the Azure function project using Visual Studio template.

Step 2: Select the .NET version.

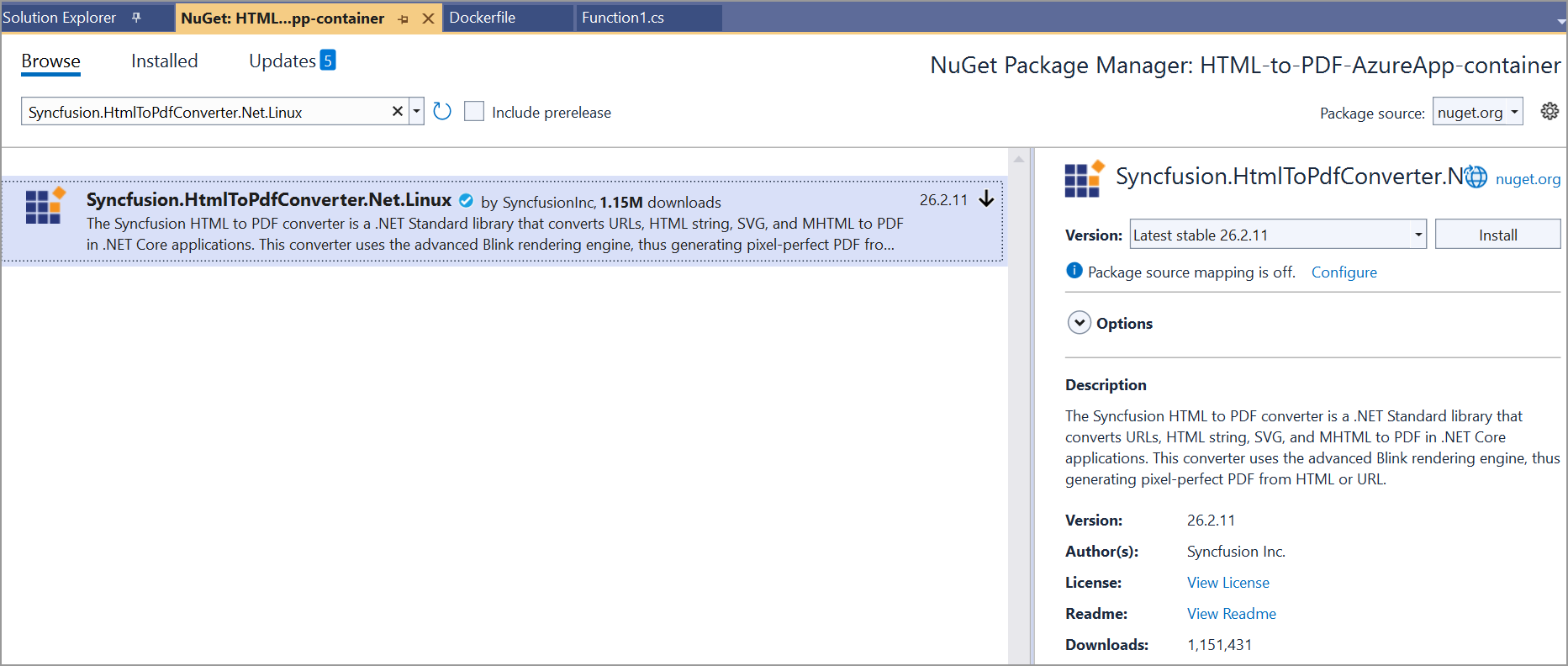

Step 3: Install the Syncfusion.HtmlToPdfConverter.Net.Linux NuGet package as a reference to your .NET Core application from NuGet.org.

Step 4: Add the following namespaces to your Function1.cs file:

C#

using Syncfusion.HtmlConverter;
using Syncfusion.Pdf;
using Syncfusion.Pdf.Graphics;
using System.Runtime.InteropServices;

Step 5: Add the following code snippet to your Function1.cs file to implement the HTML to PDF conversion in Azure Function:

C#

[Function("Function1")]
public IActionResult Run([HttpTrigger(AuthorizationLevel.Anonymous, "get", "post")] HttpRequest req)
{
    string blinkBinariesPath = string.Empty;
    MemoryStream ms = null;

    try
    {
        // Setup and initialize Blink binaries path from Azure Function runtime environment
        blinkBinariesPath = SetupBlinkBinaries();
        // Initialize HTML to PDF converter with Blink rendering engine for high-quality output
        HtmlToPdfConverter htmlConverter = new HtmlToPdfConverter(HtmlRenderingEngine.Blink);
        // Create Blink converter settings with sandbox bypass configuration
        BlinkConverterSettings settings = new BlinkConverterSettings();
        // Add command line arguments to disable sandbox for Azure Function container execution
        settings.CommandLineArguments.Add("--no-sandbox");
        settings.CommandLineArguments.Add("--disable-setuid-sandbox");
        // Set the Blink binaries path from the setup method
        settings.BlinkPath = blinkBinariesPath;
        // Assign converter settings to the HTML converter instance
        htmlConverter.ConverterSettings = settings;
        // Convert URL to PDF document using Blink rendering engine
        PdfDocument document = htmlConverter.Convert("https://www.google.com/");
        // Create memory stream to store converted PDF bytes
        ms = new MemoryStream();
        // Save PDF document to memory stream
        document.Save(ms);
        // Close the document and release resources
        document.Close(true);
    }
    catch (Exception ex)
    {
        // Create error PDF document if conversion fails for exception handling
        PdfDocument document = new PdfDocument();
        PdfPage page = document.Pages.Add();
        PdfGraphics graphics = page.Graphics;
        // Create standard font for error message rendering
        PdfFont font = new PdfStandardFont(PdfFontFamily.Helvetica, 20);
        // Draw the exception message text in the PDF document
        graphics.DrawString(ex.Message, font, PdfBrushes.Black, new Syncfusion.Drawing.PointF(0, 0));
        // Create memory stream for error PDF
        ms = new MemoryStream();
        // Save error PDF to memory stream
        document.Save(ms);
        // Close the error document
        document.Close(true);
    }
    // Reset stream position for reading
    ms.Position = 0;
    // Return PDF document as file stream response with proper MIME type
    return new FileStreamResult(ms, "application/pdf");
}

private static string SetupBlinkBinaries()
{
    // Define path to Blink binaries in Azure Function runtime directory
    string blinkAppDir = Path.Combine("/home/site/wwwroot/runtimes/linux/native");
    // Get system temp directory for Blink binary extraction
    string tempBlinkDir = Path.GetTempPath();
    // Check if chrome executable already exists in temp directory
    string chromePath = Path.Combine(tempBlinkDir, "chrome");
    if (!File.Exists(chromePath))
    {
        // Copy all Blink binaries from runtime to temp directory if not already copied
        CopyFilesRecursively(blinkAppDir, tempBlinkDir);
        // Set executable permissions on Blink binaries for Linux execution
        SetExecutablePermission(tempBlinkDir);
    }
    // Return temp directory path containing extracted Blink binaries
    return tempBlinkDir;
}

private static void CopyFilesRecursively(string sourcePath, string targetPath)
{
    // Create all directory structure from source to destination path
    foreach (string dirPath in Directory.GetDirectories(sourcePath, "*", SearchOption.AllDirectories))
    {
        Directory.CreateDirectory(dirPath.Replace(sourcePath, targetPath));
    }
    // Copy all files recursively from source path to destination path
    foreach (string newPath in Directory.GetFiles(sourcePath, "*.*", SearchOption.AllDirectories))
    {
        File.Copy(newPath, newPath.Replace(sourcePath, targetPath), true);
    }
}

// P/Invoke declaration for Linux chmod system call to set file permissions
[DllImport("libc", SetLastError = true, EntryPoint = "chmod")]
internal static extern int Chmod(string path, FileAccessPermissions mode);

private static void SetExecutablePermission(string tempBlinkDir)
{
    // Define file permissions for executable binaries: read, write, execute for user, group, other
    FileAccessPermissions ExecutableFilePermissions = FileAccessPermissions.UserRead | FileAccessPermissions.UserWrite | FileAccessPermissions.UserExecute |
    FileAccessPermissions.GroupRead | FileAccessPermissions.GroupExecute | FileAccessPermissions.OtherRead | FileAccessPermissions.OtherExecute;
    // List of Blink binaries requiring executable permissions
    string[] executableFiles = new string[] { "chrome", "chrome_sandbox" };
    // Set permissions on each executable binary for Azure Function container execution
    foreach (string executable in executableFiles)
    {
        var execPath = Path.Combine(tempBlinkDir, executable);
        if (File.Exists(execPath))
        {
            // Call chmod to set executable permissions on the binary
            var code = Function1.Chmod(execPath, ExecutableFilePermissions);
            if (code != 0)
            {
                // Throw exception if chmod operation fails
                throw new Exception("Chmod operation failed");
            }
        }
    }
}

// Enum for Unix/Linux file access permissions used with chmod system call
[Flags]
internal enum FileAccessPermissions : uint
{
    OtherExecute = 1,
    OtherWrite = 2,
    OtherRead = 4,
    GroupExecute = 8,
    GroupWrite = 16,
    GroupRead = 32,
    UserExecute = 64,
    UserWrite = 128,
    UserRead = 256
}

Step 6: Add the following dependency packages to your Dockerfile to enable Blink rendering in the Azure Function container:

DOCKERFILE

RUN apt-get update && \
apt-get install -yq --no-install-recommends \
libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 \
libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 \
libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 \
libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 \
libnss3 libgbm1

A complete working sample for converting HTML to PDF in Azure Function App container can be downloaded from GitHub.

Steps to publish to Azure Function App container in Linux

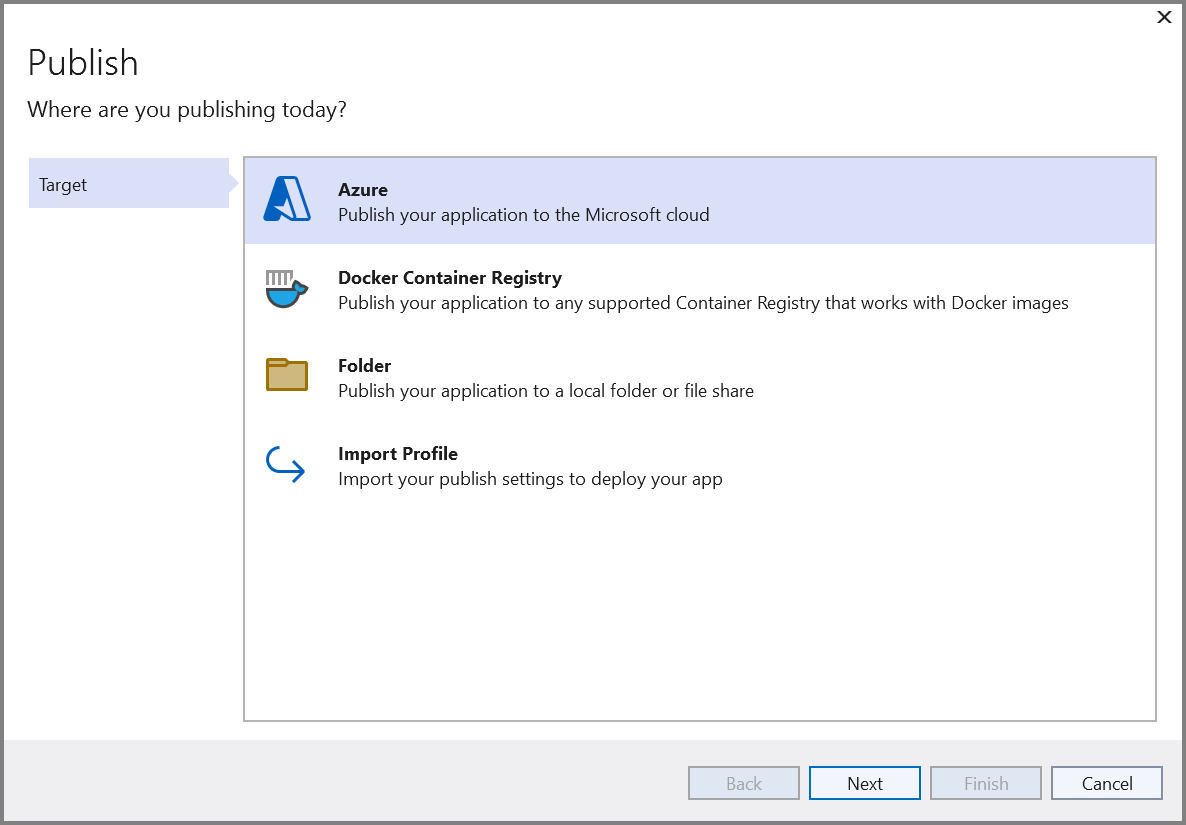

Step 1: Right-click your solution in Solution Explorer and select Publish to deploy to Azure.

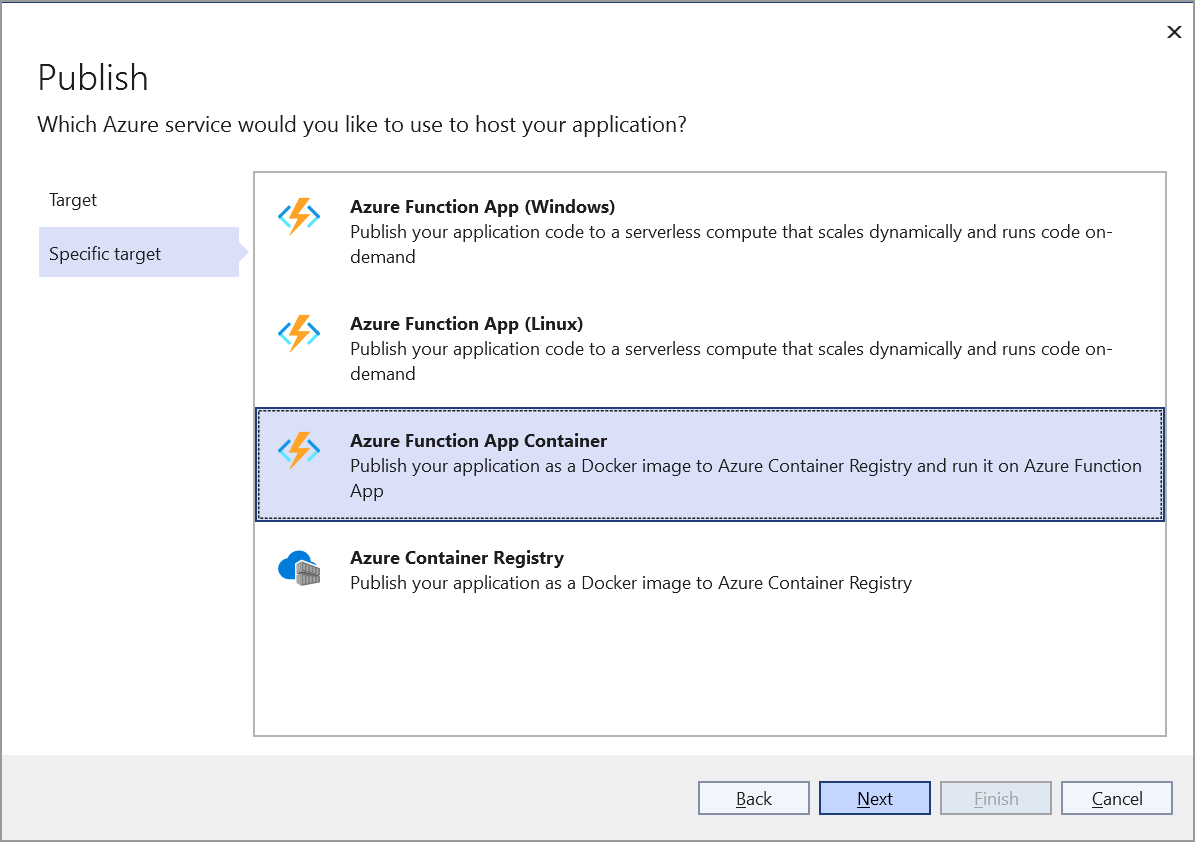

Step 2: Select Azure Function App container as the deployment target.

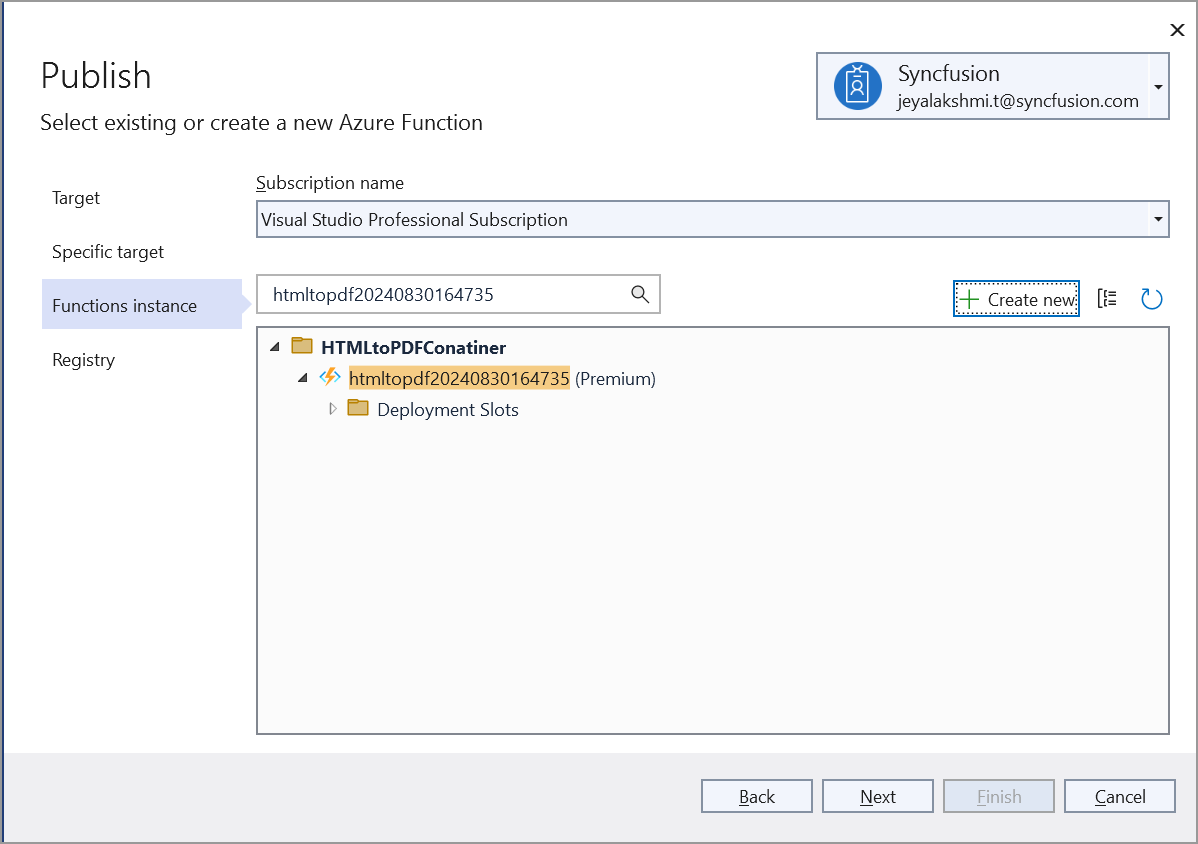

Step 3: Create the Function App instance and Azure Container Registry.

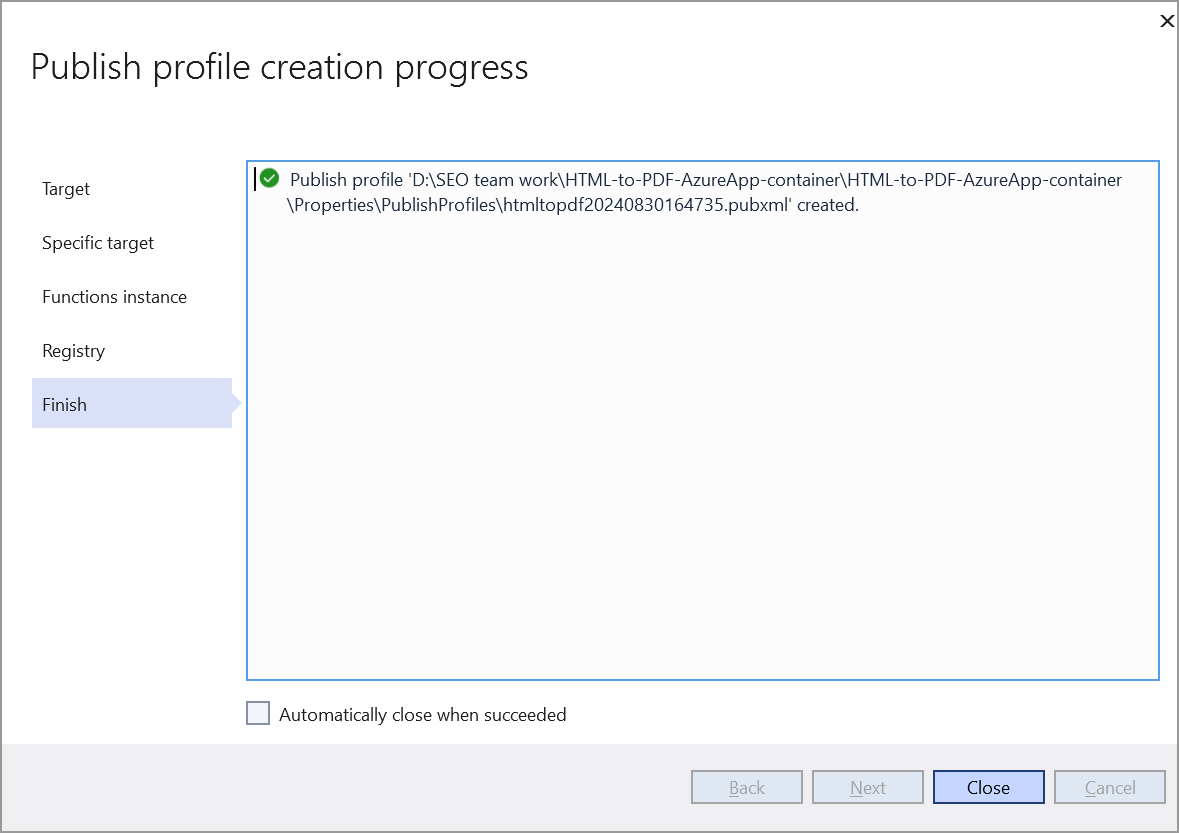

Step 4: Click Close to complete the setup.

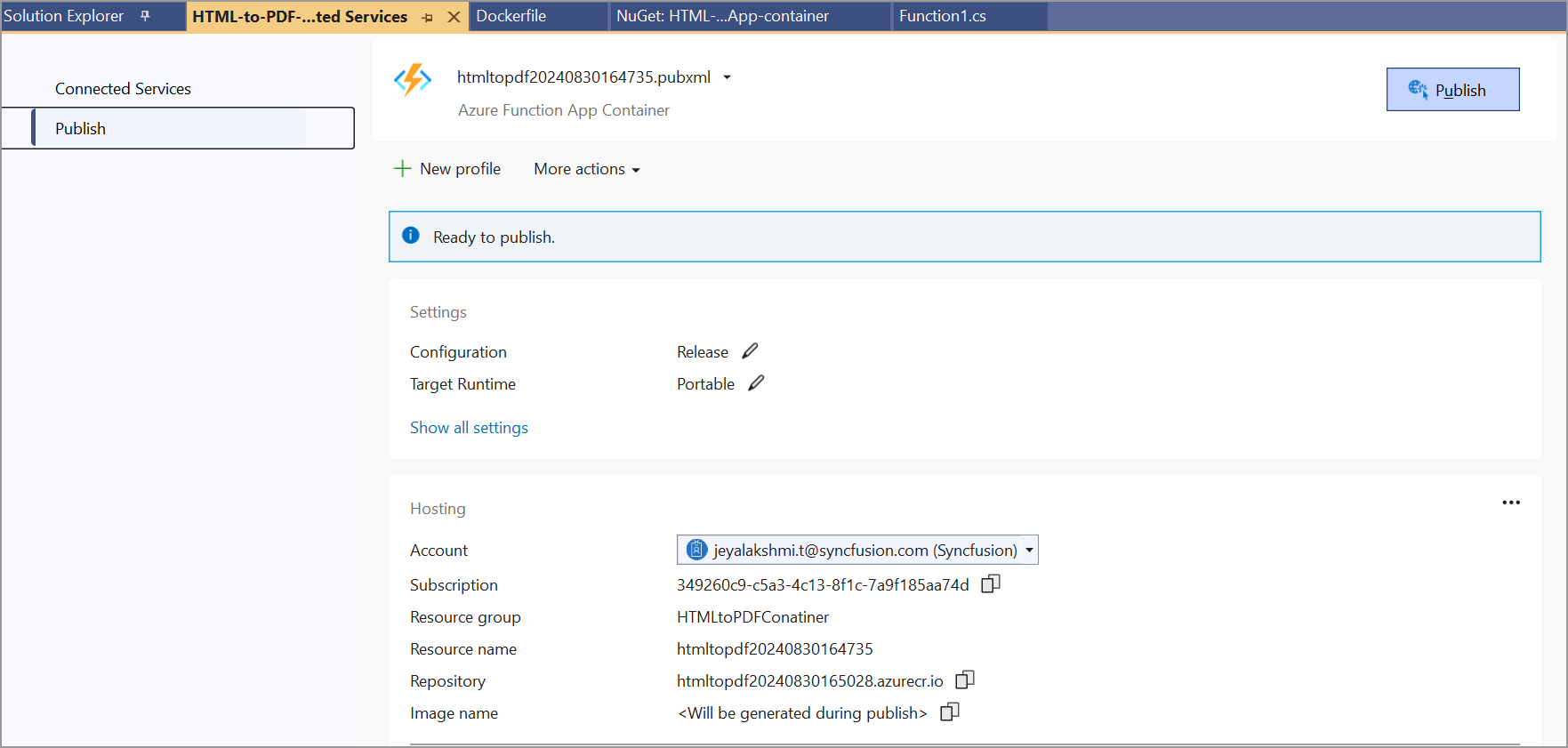

Step 5: Click Publish to deploy the containerized function to Azure.

Step 6: After successful publication, navigate to the Azure portal and select App Services. Once the service is running, click Get function URL > Copy. Paste the URL into a new browser tab, and you will obtain the following PDF document output:

Click here to explore the rich set of Syncfusion^® HTML to PDF converter library features.

You can also view the online sample to convert HTML to PDF documents in ASP.NET Core.
