Troubleshooting and FAQ

27 Nov 202424 minutes to read

Blink files are missing

Exception Blink files are missing

Reason The exception may occur if the 'runtimes' folder is not copied correctly from the NuGet folder.

Solution

Exception	Blink files are missing
Reason	The exception may occur if the 'runtimes' folder is not copied correctly from the NuGet folder.
Solution	Ensure that the runtimes folder is copied properly to bin folder of the application from NuGet package location. Please refer to the below screenshot, (Or) You can set the runtimes folder path explicitly in BlinkPath property in BlinkConverterSettings class. Ex path: C:\HtmlConversion\HTMl-to-PDF\HTMl-to-PDF\bin\Debug\net7.0\runtimes\win-x64\native\ C# //Initialize the HTML to PDF converter. HtmlToPdfConverter htmlConverter = new HtmlToPdfConverter(); BlinkConverterSettings blinkConverterSettings = new BlinkConverterSettings(); //Set Blink the binaries path. blinkConverterSettings.BlinkPath = @"C:/HtmlConversion/BlinkBinaries/"; //Assign the Blink converter settings to HTML converter. htmlConverter.ConverterSettings = blinkConverterSettings; //Convert the URL to PDF document. PdfDocument document = htmlConverter.Convert("https://www.syncfusion.com"); //Create a file stream to save the PDF document. FileStream fileStream = new FileStream("HTML-to-PDF.pdf", FileMode.CreateNew, FileAccess.ReadWrite); //Save and close the PDF document. document.Save(fileStream); document.Close(true);

Ensure that the runtimes folder is copied properly to bin folder of the application from NuGet package location.

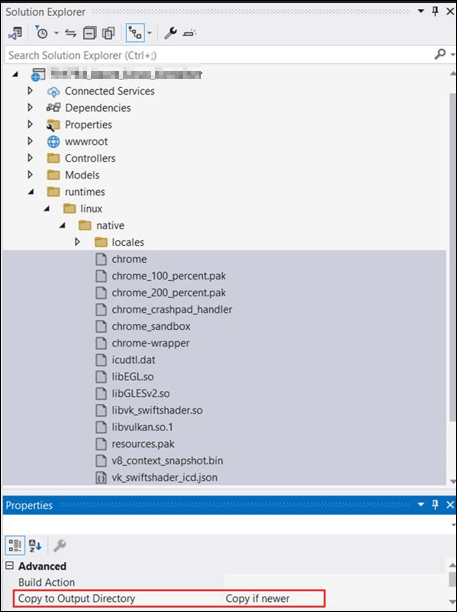

Please refer to the below screenshot,

Runtime folder

(Or)

You can set the runtimes folder path explicitly in BlinkPath property in BlinkConverterSettings class.

Ex path: C:\HtmlConversion\HTMl-to-PDF\HTMl-to-PDF\bin\Debug\net7.0\runtimes\win-x64\native\

C#
//Initialize the HTML to PDF converter.
HtmlToPdfConverter htmlConverter = new HtmlToPdfConverter();
BlinkConverterSettings blinkConverterSettings = new BlinkConverterSettings();
//Set Blink the binaries path.
blinkConverterSettings.BlinkPath = @"C:/HtmlConversion/BlinkBinaries/";
//Assign the Blink converter settings to HTML converter.
htmlConverter.ConverterSettings = blinkConverterSettings;
//Convert the URL to PDF document.
PdfDocument document = htmlConverter.Convert("https://www.syncfusion.com");
//Create a file stream to save the PDF document.
FileStream fileStream = new FileStream("HTML-to-PDF.pdf", FileMode.CreateNew, FileAccess.ReadWrite);
//Save and close the PDF document.
document.Save(fileStream);
document.Close(true);

BlinkBinaries access is denied in server

Exception	BlinkBinaries access is denied in server.
Reason	If the BlinkBinaries folder does not have elevated permission for the respective user, then the Blink HTML converter may throw this exception.
Solution	You can add read/write/execute permission to for the BlinkBinaries folder for the respective user group.

Blink rendering engine only supported from .NET Framework 4.5

Exception	Blink rendering engine only supported from .NET Framework 4.5.
Reason	HTML conversion using blink is only supported from .NET framework 4.5 or above.
Solution	The application should target .NET Framework 4.5 or above to convert the HTML using the Blink rendering engine.

Failed to launch chromium: Running as root without –no-sandbox is not supported

Exception Failed to launch chromium: Running as root without --no-sandbox is not supported

Reason The exception may occur in the Linux CentOS/Docker environment due to the Chrome browser unable to launch from sandbox mode in CentOS.

Solution

To overcome the exception in the Linux CentOS/Docker environment, provide the execute permission for chrome and chrome-wrapper files inside the BlinkBinaries folder.
Refer to the following screenshot:
Blink chrome file permission

Also, please add the following command line arguments in our converter setting.

C#
//Set command line arguments to run without sandbox.
blinkConverterSettings.CommandLineArguments.Add("--no-sandbox");
blinkConverterSettings.CommandLineArguments.Add("--disable-setuid-sandbox");

Failed to launch Base

Exception	Failed to launch Base
Reason	The exception may occur due to missing of required dependent packages.
Solution	To overcome the exception, you can ensure the required dependency in docker file.

Failed to launch chromium: Missing required dependent packages

Exception	Failed to launch chromium: Missing required dependent packages
Reason	The required dependencies for the Chromium are not installed on the system.
Solution	Ensure all required dependencies for the Chromium are installed on the system. This may include additional libraries or packages.

Access is denied in runtimes folders. Runtimes folder requires read/write/execute permission

Exception	Access is denied in runtimes folders. Runtimes folder requires read/write/execute permission
Reason	The exception may occur if the runtimes folder is not accessed.
Solution	To overcome the exception, you can add read, write, and execute permissions for the runtimes folder.

Access denied for specified temporary folder

Exception	Access denied for specified temporary folder
Reason	The specified temporary folder path might be inaccessible.
Solution	To overcome the exception, you can add read, write, and execute permissions for the temporary folder. Refer to the following code sample to set the temp folder. C# `BlinkConverterSettings settings = new BlinkConverterSettings(); settings.TempPath = "D://MyProject//bin";`

The temporary folder does not have read permission

Exception	The temporary folder does not have read permission
Reason	If the temporary folder does not have elevated permission for the respective user, then the Blink HTML converter may throw this exception.
Solution	The Blink HTML converter has support for setting the temporary path. Using the TempPath property, you can set any folder path that has read/write/execute permission. Then, the converter uses this path for creating temporary files.

Blink converter may create PDF with blank pages

Issue	Blink converter may create PDF with blank pages.
Reason	When the webpage (HTML) is not available or accessible.
Solution	Please check the internet connection and the HTML page is available in the mentioned location. Check the HTML file or URL is rendered properly in Chrome browser's print preview.

Failed to launch chromium: Due to insufficient permission unable to launch the chromium process for conversion

Exception	Failed to launch chromium: Due to insufficient permission unable to launch chromium process for conversion.
Reason	This exception might arise because the Blink binary files lack sufficient permissions to be launched from the specified BlinkPath location.
Solution	To overcome this exception, you can provide an execute permission for chrome and chrome-wrapper files inside the runtimes/linux/native folder by using the docker command. C# `COPY . /app WORKDIR /app RUN chmod +x /app/runtimes/linux/native/chrome && \ chmod +x /app/runtimes/linux/native/chrome-wrapper`

Images or other contents in the HTML are missing in the resultant PDF document

Issue	Images or other contents in the HTML are missing in the resultant PDF document.
Reason	The issue may be due to the slow internet connection or due to the behavior that the conversion completed before the page is loaded completely.
Solution	To overcome this issue, add suitable delay for the conversion using the AdditionalDelay property of the HTMLConverter. C# `BlinkConverterSettings settings = new BlinkConverterSettings(); settings.AdditionalDelay = 4000;`
Reason	While converting HTML string to PDF, the resources may be missed due to the invalid Base URL.
Solution	Overcome this issue by passing the valid base URL (path of the resources) along with the HTML string.

Blink conversion failed in Azure app service (Windows)

Issue	Blink conversion failed in Azure app service (Windows). “The process was terminated due to an unhandled exception”
Reason	Blink rendering engine uses GDI calls for viewing and rendering the webpages. But Azure app service blocks GDI calls in Azure website environment. As azure website does not have the elevated permission and enough rights, so we could not launch the Chrome headless browser in Azure app service (Azure website and Azure function).
Solution	You can convert HTML to PDF using the Blink rendering engine in Azure cloud service (which has the elevated permission and rights to access the GDI calls). Refer to this link for more information.

Unable to convert unsecured https URL to PDF using Blink

Issue	Unable to convert unsecured https URL to PDF using Blink.
Reason	The issue is happen due to invalid SSL certificate errors in unsecured sites.
Solution	You can able to bypass the invalid SSL certificate errors using the command line arguments property of Blink converter settings. C# `BlinkConverterSettings settings = new BlinkConverterSettings(); settings.CommandLineArguments.Add("--ignore-certificate-errors");`

Conversion failure in windows server 2012 R2

Issue	Conversion failure in windows server 2012 R2.
Reason	The issue may happen due to windows server environment permission restriction.
Solution	We can resolve this permission related failure in the Blink rendering engine using below command line arguments in our converter settings. C# `//Set command line arguments to run without sandbox. blinkConverterSettings.CommandLineArguments.Add("--no-sandbox"); blinkConverterSettings.CommandLineArguments.Add("--disable-setuid-sandbox");`

Converting the HTML to PDF fails in x32 bit windows system environment

Exception	Converting the HTML to PDF fails in x32 bit windows system environment.
Reason	The existing x64 bit Blink binaries windows are not compatible with x32 bit windows system architecture.
Solution	To overcome this issue, we can use the x32 bit blink binaries. The x32 bit windows blink binaries are compatible with the x32 bit windows system environment. Please download the x32 bit blink binaries for windows here and replace these binaries in the existing x64 bit blink binaries folder.

ERROR:The specified module could not be found in windows server 2012 R2

Exception	The specified module could not be found in windows server 2012 R2.
Reason	The issue happened because the Windows Server Essentials Media Pack was missing in the Windows server 2012 R2.
Solution	We can resolve this issue by installing the Windows Server Essentials Media Pack. To install the Windows Server Essentials Media Pack, first install the Windows Server Essentials. 1. Open the Server Manager in the Taskbar. 2. Click Manage in the Server Manager and select Add Roles and Features option. 3. Select the Role-based or feature-based installation option and click next. 4. In the left side menu, select server roles, then Windows Server Essentials Experience in the server roles and then click next. 5. Now, the Windows Server Essentials will be installed. 6. After successful installation, install the Windows Server Essentials Media Pack. Go to the official website to download and Install the Windows Server Essentials Media Pack. Note: This version is only applicable to Windows Server 2012 R2 Standard.

Exception

The specified module could not be found in windows server 2012 R2.

Reason

The issue happened because the Windows Server Essentials Media Pack was missing in the Windows server 2012 R2.

Solution

We can resolve this issue by installing the Windows Server Essentials Media Pack. To install the Windows Server Essentials Media Pack, first install the Windows Server Essentials.
1. Open the Server Manager in the Taskbar.
2. Click Manage in the Server Manager and select Add Roles and Features option.
3. Select the Role-based or feature-based installation option and click next.
4. In the left side menu, select server roles, then Windows Server Essentials Experience in the server roles and then click next.
5. Now, the Windows Server Essentials will be installed.
6. After successful installation, install the Windows Server Essentials Media Pack.
Go to the official website to download and Install the Windows Server Essentials Media Pack.

Note:

This version is only applicable to Windows Server 2012 R2 Standard.

How to Exclude BlinkBinaries or Runtime Files in Build or Deployment

The runtime files, or blink binaries, will be copied into a bin or published folder while building and publishing the application.

By including the native option in the package reference of the csproj file, you can exclude the runtime files or blink binaries from being copied into the bin or publish folder while building and publishing the application. But you need to place the BlinkBinaries in the server disk and set the BlinkPath in the BlinkConverterSettings to perform the conversion.

Note:

Using this approach, you can reduce the deployment size on your own servers.

Refer to the following package reference:

ExcludeAssets

HTML conversion support in Azure

HTML conversion support in Azure
Azure App Service (Linux)	Yes
Azure Functions (Linux)	Yes
Azure Cloud Service	Yes
Azure App Service with Linux docker	Yes

Failed to convert Webpage exception with Linux docker in Mac M1 machine.

Exception Failed to convert Webpage exception using Linux Docker in Mac M1 system environment.

Reason The existing x64-bit Blink binaries for Linux are not compatible with the x64 ARM Mac M1 system architecture with Linux Docker.

Solution

Exception	Failed to convert Webpage exception using Linux Docker in Mac M1 system environment.
Reason	The existing x64-bit Blink binaries for Linux are not compatible with the x64 ARM Mac M1 system architecture with Linux Docker.
Solution	To resolve this issue, we can install the chromium using the docker file and set the Blink Path to the location where chromium is installed. Docker File: C# `FROM mcr.microsoft.com/dotnet/aspnet:7.0 AS base RUN apt-get update && apt-get install -y \ libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 \ libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 \ libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 \ libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 \ libnss3 libgbm1 chromium WORKDIR /app EXPOSE 80 EXPOSE 443` Code snippet: C# `BlinkConverterSettings settings = new BlinkConverterSettings(); //To utilize the Blink binaries from the arm64-based chromium installed using the docker file, execute the following command. settings.BlinkPath = @"/usr/lib/chromium/chromium";`

To resolve this issue, we can install the chromium using the docker file and set the Blink Path to the location where chromium is installed.

Docker File:

C#
FROM mcr.microsoft.com/dotnet/aspnet:7.0 AS base

	RUN apt-get update && apt-get install -y \

    libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 \

    libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 \

    libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 \

    libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 \

    libnss3 libgbm1 chromium

	WORKDIR /app

	EXPOSE 80

	EXPOSE 443

Code snippet:

C#
BlinkConverterSettings settings = new BlinkConverterSettings();

	//To utilize the Blink binaries from the arm64-based chromium installed using the docker file, execute the following command.

	settings.BlinkPath = @"/usr/lib/chromium/chromium";

Background color missing issue in HTML Header and Footer

Exception Background color missing issue in HTML Header and Footer.

Reason We do not have the support for adding a custom CSS style in the HTML header and footer.

Solution

Exception	Background color missing issue in HTML Header and Footer.
Reason	We do not have the support for adding a custom CSS style in the HTML header and footer.
Solution	To resolve this issue, we can add inline styles in element. However, we have attached the sample and output documents for your reference. C# HtmlToPdfConverter htmlConverter = new HtmlToPdfConverter(); //Initialize blink converter settings. BlinkConverterSettings blinkConverterSettings = new BlinkConverterSettings(); //Set the Blink viewport size. blinkConverterSettings.ViewPortSize = new Size(1280, 0); //Set the html margin-top value based on the html header height and margin-top value. blinkConverterSettings.Margin.Top = 70; //Set the html margin-bottom value based on the html footer height and margin-bottom value. blinkConverterSettings.Margin.Bottom = 40; //Set the custom HTML header to add at the top of each page. blinkConverterSettings.HtmlHeader = " <div style=\"background-color: blue; -webkit-print-color-adjust: exact; margin-left: 40px; font-size: 10px;\">HTML Header</div>"; //Set the custom HTML footer to add at the bottom of each page. blinkConverterSettings.HtmlFooter = " <div style=\"background-color: blue; -webkit-print-color-adjust: exact;margin-left: 40px; font-size: 10px;\">HTML Footer</div>"; //Assign Blink converter settings to the HTML converter. htmlConverter.ConverterSettings = blinkConverterSettings; //Convert the URL to a PDF document. PdfDocument document = htmlConverter.Convert("<div>Hello World</div>",string.Empty); //Create a filestream. FileStream fileStream = new FileStream("Output.pdf", FileMode.Create, FileAccess.ReadWrite); //Save and close a PDF document. document.Save(fileStream); document.Close(true); You can downloaded a complete working sample from [GitHub](https://github.com/SyncfusionExamples/PDF-Examples/tree/master/HTML%20to%20PDF/Blink/HTML-Footer-Background-Colour/.NET).

To resolve this issue, we can add inline styles in element. However, we have attached the sample and output documents for your reference.

C#
HtmlToPdfConverter htmlConverter = new HtmlToPdfConverter();
	//Initialize blink converter settings.
	BlinkConverterSettings blinkConverterSettings = new BlinkConverterSettings();
	//Set the Blink viewport size.
	blinkConverterSettings.ViewPortSize = new Size(1280, 0);
	//Set the html margin-top value based on the html header height and margin-top value.
	blinkConverterSettings.Margin.Top = 70;
	//Set the html margin-bottom value based on the html footer height and margin-bottom value.
	blinkConverterSettings.Margin.Bottom = 40;
	//Set the custom HTML header to add at the top of each page.
	blinkConverterSettings.HtmlHeader = " <div style=\"background-color: blue; -webkit-print-color-adjust: exact; margin-left: 40px; font-size: 10px;\">HTML Header</div>";
	//Set the custom HTML footer to add at the bottom of each page.
	blinkConverterSettings.HtmlFooter = " <div style=\"background-color: blue; -webkit-print-color-adjust: exact;margin-left: 40px; font-size: 10px;\">HTML Footer</div>";
	//Assign Blink converter settings to the HTML converter.
	htmlConverter.ConverterSettings = blinkConverterSettings;
	//Convert the URL to a PDF document.
	PdfDocument document = htmlConverter.Convert("<div>Hello World</div>",string.Empty);
	//Create a filestream.
	FileStream fileStream = new FileStream("Output.pdf", FileMode.Create, FileAccess.ReadWrite);
	//Save and close a PDF document.
	document.Save(fileStream);
	document.Close(true);

You can downloaded a complete working sample from [GitHub](https://github.com/SyncfusionExamples/PDF-Examples/tree/master/HTML%20to%20PDF/Blink/HTML-Footer-Background-Colour/.NET).

Zombie process are not closed by default from chrome headless in Linux platform

The zombie process are not closed by default from chrome headless in Linux. However, We can resolve the zombie process issue by using the below command line arguments in converter settings.

C#
//Set command line arguments to run without the sandbox.

		settings.CommandLineArguments.Add("--no-sandbox");

		settings.CommandLineArguments.Add("--disable-setuid-sandbox");

		settings.CommandLineArguments.Add("--no-zygote");

		settings.CommandLineArguments.Add("--disable-dev-shm-usage");

		settings.CommandLineArguments.Add("--single-process");

Failed to launch chromium: Missing required dependent packages issue occurs in Azure function Linux with premium plans.

Exception Failed to launch chromium: Missing required dependent packages issue occurs in Azure function Linux with premium plans.

Reason The reported issue occurs due to missing of required Linux dependencies in Azure function to perform the conversion in premium plans (such as Ep1)

Solution

Exception	Failed to launch chromium: Missing required dependent packages issue occurs in Azure function Linux with premium plans.
Reason	The reported issue occurs due to missing of required Linux dependencies in Azure function to perform the conversion in premium plans (such as Ep1)
Solution	To overcome this issue by installing the Linux dependencies package in SSH window. Please refer the below commands and screenshot, C# `apt-get update && apt-get install -yq --no-install-recommends libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 libnss3 libgbm1` Please refer to the below screenshot, (Or) We can install the required dependencies using the dependencies vis shell script. Please find the below. code snippet: C# private static void InstallLinuxPackages(FileInfo functionAppDirectory) { if (!RuntimeInformation.IsOSPlatform(OSPlatform.Linux)) { return; } FileAccessPermissions ExecutableFilePermissions = FileAccessPermissions.UserRead \| FileAccessPermissions.UserWrite \| FileAccessPermissions.UserExecute \| FileAccessPermissions.GroupRead \| FileAccessPermissions.GroupExecute \| FileAccessPermissions.OtherRead \| FileAccessPermissions.OtherExecute; //Install the dependencies packages for HTML to PDF conversion in Linux string shellFilePath = Path.Combine(functionAppDirectory.Directory.Parent.FullName, @"wwwroot/data"); string tempBlinkDir = Path.GetTempPath(); string dependenciesPath = Path.Combine(tempBlinkDir, "dependenciesInstall.sh"); if (!File.Exists(dependenciesPath)) { CopyFilesRecursively(shellFilePath, tempBlinkDir); var execPath = Path.Combine(tempBlinkDir, "dependenciesInstall.sh"); if (File.Exists(execPath)) { var code = Function1.Chmod(execPath, ExecutableFilePermissions); if (code != 0) { throw new Exception("Chmod operation failed"); } } Process process = new Process { StartInfo = new ProcessStartInfo { FileName = "/bin/bash", Arguments = "-c " + execPath, CreateNoWindow = true, UseShellExecute = false, } }; process.Start(); process.WaitForExit(); } }

To overcome this issue by installing the Linux dependencies package in SSH window. Please refer the below commands and screenshot,

C#
apt-get update && apt-get install -yq --no-install-recommends libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 libnss3 libgbm1

Please refer to the below screenshot,

(Or)

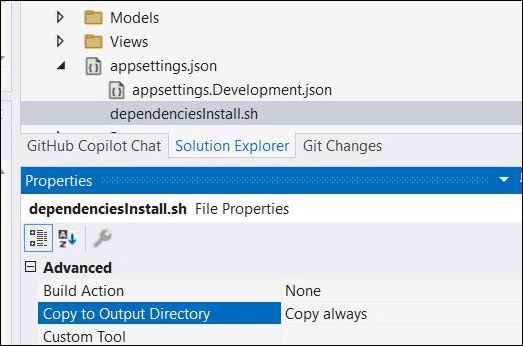

We can install the required dependencies using the dependencies vis shell script. Please find the below.

code snippet:

C#
private static void InstallLinuxPackages(FileInfo functionAppDirectory)
	{
		if (!RuntimeInformation.IsOSPlatform(OSPlatform.Linux))
		{
			return;
		}
		FileAccessPermissions ExecutableFilePermissions = FileAccessPermissions.UserRead | FileAccessPermissions.UserWrite | FileAccessPermissions.UserExecute |
		FileAccessPermissions.GroupRead | FileAccessPermissions.GroupExecute | FileAccessPermissions.OtherRead | FileAccessPermissions.OtherExecute;
		//Install the dependencies packages for HTML to PDF conversion in Linux
		string shellFilePath = Path.Combine(functionAppDirectory.Directory.Parent.FullName, @"wwwroot/data");
		string tempBlinkDir = Path.GetTempPath();
		string dependenciesPath = Path.Combine(tempBlinkDir, "dependenciesInstall.sh");
		if (!File.Exists(dependenciesPath))
		{
			CopyFilesRecursively(shellFilePath, tempBlinkDir);
			var execPath = Path.Combine(tempBlinkDir, "dependenciesInstall.sh");
			if (File.Exists(execPath))
			{
				var code = Function1.Chmod(execPath, ExecutableFilePermissions);
				if (code != 0)
				{
					throw new Exception("Chmod operation failed");
				}
			}
			Process process = new Process
			{
				StartInfo = new ProcessStartInfo
				{
					FileName = "/bin/bash",
					Arguments = "-c " + execPath,
					CreateNoWindow = true,
					UseShellExecute = false,
				}
			};
			process.Start();
			process.WaitForExit();
		}
	}

Failed to load Chrome DLL exception occurs on Windows 7/8 and Windows Server 2008/2012 machines

Exception	Failed to load Chrome DLL exception occurs on Windows 7/8 and Windows Server 2008/2012 machines.
Reason	The reported issue occurs due to an unsupported OS platform with the latest binaries.
Solution	If you are using Windows 7/8 or Windows Server 2008/2012, please use Chromium version 109 instead of the newer versions. Chromium has discontinued support for these operating systems, and the last compatible version is 109. Please refer to the below thread for more information, https://support.google.com/chrome/thread/185534985 Blink binaries (Version 109.0.5414.75), https://www.syncfusion.com/downloads/support/directtrac/general/ze/BlinkBinaries_109.0.5414.7560606898

Exception

Failed to load Chrome DLL exception occurs on Windows 7/8 and Windows Server 2008/2012 machines.

Reason

The reported issue occurs due to an unsupported OS platform with the latest binaries.

Solution

If you are using Windows 7/8 or Windows Server 2008/2012, please use Chromium version 109 instead of the newer versions. Chromium has discontinued support for these operating systems, and the last compatible version is 109.

Please refer to the below thread for more information, https://support.google.com/chrome/thread/185534985
Blink binaries (Version 109.0.5414.75), https://www.syncfusion.com/downloads/support/directtrac/general/ze/BlinkBinaries_109.0.5414.7560606898

There was an error opening this document. This file is already open or in use by another application.

Issue There was an error opening this document. This file is already open or in use by another application.

Reason The reported issue occurs due to the document or file not being properly disposed or closed, leading to conflicts when attempting to access it again.

Solution

Issue	There was an error opening this document. This file is already open or in use by another application.
Reason	The reported issue occurs due to the document or file not being properly disposed or closed, leading to conflicts when attempting to access it again.
Solution	We can resolve the reported issue by using the FileStream within the "using" block. C# `using (FileStream fs = new FileStream("path_to_file", FileMode.Open)) { // Use the file here } // File stream is automatically closed and disposed` Or Dispose of the FileStream at the end of the process and ensure that the file or document is not already open in another application. C# `PdfDocument document = htmlConverter.Convert("); FileStream fileStream = new FileStream(baseUrl+ "Bill_PDF_04_16_24.pdf", FileMode.CreateNew, FileAccess.ReadWrite); //Save and close the PDF document. document.Save(fileStream); document.Close(true); document.Dispose(); fileStream.Dispose();`

We can resolve the reported issue by using the FileStream within the "using" block.

C#
using (FileStream fs = new FileStream("path_to_file", FileMode.Open))
	{
    	// Use the file here
	} // File stream is automatically closed and disposed

Or Dispose of the FileStream at the end of the process and ensure that the file or document is not already open in another application.

C#
PdfDocument document = htmlConverter.Convert(");

	FileStream fileStream = new FileStream(baseUrl+ "Bill_PDF_04_16_24.pdf", FileMode.CreateNew, FileAccess.ReadWrite);

	//Save and close the PDF document.

	document.Save(fileStream);

	document.Close(true);

	document.Dispose();

	fileStream.Dispose();

HTML to PDF Performance Benchmarks:

We have prepared the following benchmark details for converting HTML to PDF, using the specified machine configuration and input HTML files:

Environment Details:

OS Edition : Windows 11 Enterprise

Version : 22H2

Processor : 11th Gen Intel(R) Core(TM) i5-1135G7 @ 2.40GHz 2.42 GHz

Installed RAM : 20.0 GB (19.7 GB usable)

System type : 64-bit operating system, x64-based processor

Example Application:

The benchmark details were obtained using the Syncfusion.HtmlToPdfConverter.Net.Windows package. You can refer to the following sample, as well as the input and output files used:

Input Html files : https://github.com/SyncfusionExamples/html_to_pdf_conversion/tree/main/Performance_Testing/Syncfusion_HTMLtoPDF/wwwroot/Data

Output PDF files : https://www.syncfusion.com/downloads/support/directtrac/general/ze/Output-924807763.zip

Results:

Input Page count	Conversion time (Avg value of 5 conversions)	Process Memory and CPU usage
10+ Pages	2.78 seconds	Memory usage: 318 MB CPU usage: 10%
100+ pages	3.65 seconds	Memory usage: 367 MB CPU usage: 14%
1000+ pages	6.72 seconds	Memory usage: 813 MB CPU usage: 27%
10 documents with 100+ pages in a loop	30.52 seconds	Memory usage: 663 MB CPU usage: 15%
10 documents with 1000+ pages in a loop	1 minute 10 seconds	Memory usage: 2.2 GB CPU usage: 64%

NOTE

The performance metrics were recorded on a freshly configured machine. Speed and memory usage may vary if the machine is running other processes. Additionally, performance can be affected by:

NOTE

External resources loaded in the HTML (such as images, scripts, and styles)

Network speed for online URL conversions

Hardware resources (CPU and memory)

You can download a complete working sample from GitHub.

Custom fonts are not rendered in Azure App Service and Function Linux using Blink.

Issue	Custom fonts are not rendered in Azure App Service and Function Linux using Blink.
Reason	We are internally using the Blink rendering engine to convert HTML to PDF document. Due to the sandbox GDI limitation on Azure App services and Function, custom fonts are not rendered (system-installed font is used instead) because of sandbox GDI API limitations that present even in VM-based Azure Apps plans. So, that the converter will automatically renders with default font. Refer below link for more information. This is a limitation of Azure cloud environment. [https://github.com/projectkudu/kudu/wiki/Azure-Web-App-sandbox](https://github.com/projectkudu/kudu/wiki/Azure-Web-App-sandbox)
Solution	we can overcome this issue by using Azure cloud service which has the elevated access permissions. If it is possible to use Azure cloud service API for converting HTML to PDF. Please refer below link for converting HTML to PDF in Azure cloud service. The custom font may work in Azure cloud service/Azure VM, we ensured this by creating simple sample in Azure VM and the font is working properly. If possible, kindly use the Azure cloud service with VM to resolve the reported issue. KB: [https://www.syncfusion.com/kb/10258/how-to-convert-html-to-pdf-in-azure-using-blink](https://www.syncfusion.com/kb/10258/how-to-convert-html-to-pdf-in-azure-using-blink)

Issue

Custom fonts are not rendered in Azure App Service and Function Linux using Blink.

Reason

We are internally using the Blink rendering engine to convert HTML to PDF document. Due to the sandbox GDI limitation on Azure App services and Function, custom fonts are not rendered (system-installed font is used instead) because of sandbox GDI API limitations that present even in VM-based Azure Apps plans. So, that the converter will automatically renders with default font. Refer below link for more information. This is a limitation of Azure cloud environment. [https://github.com/projectkudu/kudu/wiki/Azure-Web-App-sandbox](https://github.com/projectkudu/kudu/wiki/Azure-Web-App-sandbox)

Solution

we can overcome this issue by using Azure cloud service which has the elevated access permissions. If it is possible to use Azure cloud service API for converting HTML to PDF. Please refer below link for converting HTML to PDF in Azure cloud service. The custom font may work in Azure cloud service/Azure VM, we ensured this by creating simple sample in Azure VM and the font is working properly. If possible, kindly use the Azure cloud service with VM to resolve the reported issue. KB: [https://www.syncfusion.com/kb/10258/how-to-convert-html-to-pdf-in-azure-using-blink](https://www.syncfusion.com/kb/10258/how-to-convert-html-to-pdf-in-azure-using-blink)

How to prevent the DawnCache and CPUCache folders creation during HTML to PDF conversion using CEF rendering engine.

Issue	How to remove the DawnCache and CPUCache folders during HTML to PDF conversion using CEF rendering engine.
Reason	The DawnCache and CPUCache folders are created in project folder while performing HTML to PDF conversion using CEF rendering engine.
Solution	You can add below command-line arguments in Cef converter settings to prevent the DawnCache and CPUCache folders creation. C# `cefConverterSettings.CommandLineArguments.Add("disable-gpu"); cefConverterSettings.CommandLineArguments.Add("disable-gpu-shader-disk-cache"); cefConverterSettings.CommandLineArguments.Add("disable-gpu-program-cache");`

Blink files are missing at /user/local/bin while performing HTML to PDF conversion with docker and docker compose file.

Issue	Blink files are missing at /user/local/bin while performing HTML to PDF conversion with docker and docker compose file.
Reason	The exception may occur while performing HTML to PDF conversion with docker and docker compose file due to a permission-related issues.
Solution	To overcome the exception by making the root files as executable. For making the root files as executable, you can find the code snippet below which will be added to your docker file. C# `USER root RUN chmod +x /app/runtimes/linux/native/chrome && \ chmod +x /app/runtimes/linux/native/chrome-wrapper` Please refer to the below screenshot,

Converting HTML to PDF using the Alpine Docker image, it crashes after the first conversion.

Issue	Converting HTML to PDF using the Alpine Docker image, it crashes after the first conversion.
Reason	The issue occurs within Chromium specifically for Alpine.
Solution	We can resolve this issue by adding command-line arguments to the Blink converter settings. Please refer to the code snippet below. C# `blinkConverterSettings.CommandLineArguments.Add("--disable-gpu");`

Failed to launch Base! chrome_crashpad_handler: –database is required while performing HTML to PDF conversion with Alpine Docker

Exception Failed to launch Base! chrome_crashpad_handler: --database is required while performing HTML to PDF conversion with Alpine Docker

Reason The reported issue may occur due to missing of crashpad handler configuration in your docker file

Solution

Exception	Failed to launch Base! chrome_crashpad_handler: --database is required while performing HTML to PDF conversion with Alpine Docker
Reason	The reported issue may occur due to missing of crashpad handler configuration in your docker file
Solution	You can try the below solution steps to overcome the reported issue 'Failed to launch Base! chrome_crashpad_handler: --database is required', Step 1: Kindly try the below docker file changes in your sample to resolve the chrome_crashpad_handler issue. C# FROM mcr.microsoft.com/dotnet/aspnet:8.0-alpine LABEL pipelineName="PDFSearch" \ pipelineKey="ECUNZKAJ" \ offeringKey="LUSUYQTB" RUN apk upgrade -U RUN apk add --no-cache tzdata RUN apk add --no-cache icu-libs RUN apk update && \ apk upgrade && \ apk add --no-cache \ openssl RUN apk update && \ apk upgrade --available && \ apk add --update ca-certificates && \ apk add chromium --update-cache --repository http://nl.alpinelinux.org/alpine/edge/community \ rm -rf /var/cache/apk/* COPY . /app WORKDIR /app RUN mkdir -p /crashpad && \ chown -R root:root /crashpad ENV XDG_CONFIG_HOME=/tmp/.chromium ENV XDG_CACHE_HOME=/tmp/.chromium ENV CHROME_CRASHPAD_DATABASE=/crashpad ARG dotnet_cli_home_dir=/tmp EXPOSE 5000 7000 ENV ASPNETCORE_URLS=http://*:5000 ENV DOTNET_CLI_HOME=$dotnet_cli_home_dir WORKDIR /app COPY . /app USER guest ENTRYPOINT ["dotnet", "Ops.PDFSearch.Web.dll"] We have attached the modified docker file for your reference [Docker file](https://www.syncfusion.com/downloads/support/directtrac/general/ze/Dockerfile-431990059). Step 2: From chromium version 128.x.x.x.x --database flag required for chrome Crashpad handler. So, it may cause the issue on your end. So kindly try the below steps and it may resolve the reported issue. Add below commands in Docker file C# `RUN mkdir -p /var/www/.config/google-chrome/Crashpad RUN chown -R www-data:www-data /var/www/.config` Add below command-line arguments in conversion code C# `if (RuntimeInformation.IsOSPlatform(OSPlatform.Linux)) { strLogs.Append("\nPDF: BlinkConverterSettings for Linux updated BlinkPath to chromium " + GetCurrentTime()); settings.BlinkPath = "/usr/lib/chromium"; settings.CommandLineArguments.Add("--no-sandbox"); settings.CommandLineArguments.Add("--disable-setuid-sandbox"); settings.CommandLineArguments.Add("--disable-crash-reporter"); settings.CommandLineArguments.Add("--no-crashpad"); settings.CommandLineArguments.Add("--disable-dev-shm-usage"); }` Please refer the [Chromium forum link](https://github.com/chrome-php/chrome/issues/649) for more information about the reported issue

You can try the below solution steps to overcome the reported issue 'Failed to launch Base! chrome_crashpad_handler: --database is required', Step 1: Kindly try the below docker file changes in your sample to resolve the chrome_crashpad_handler issue.

C#
FROM mcr.microsoft.com/dotnet/aspnet:8.0-alpine
LABEL pipelineName="PDFSearch" \
      pipelineKey="ECUNZKAJ" \
      offeringKey="LUSUYQTB"

RUN apk upgrade -U
RUN apk add --no-cache tzdata
RUN apk add --no-cache icu-libs
RUN apk update && \
    apk upgrade && \
    apk add --no-cache \
        openssl
RUN apk update && \
   apk upgrade --available && \
   apk add --update ca-certificates && \
   apk add chromium --update-cache --repository  http://nl.alpinelinux.org/alpine/edge/community \
   rm -rf /var/cache/apk/*
COPY . /app
WORKDIR /app

RUN mkdir -p /crashpad && \
    chown -R root:root /crashpad

ENV XDG_CONFIG_HOME=/tmp/.chromium
ENV XDG_CACHE_HOME=/tmp/.chromium

ENV CHROME_CRASHPAD_DATABASE=/crashpad

ARG dotnet_cli_home_dir=/tmp

EXPOSE 5000 7000
ENV ASPNETCORE_URLS=http://*:5000
ENV DOTNET_CLI_HOME=$dotnet_cli_home_dir
WORKDIR /app
COPY . /app
USER guest
ENTRYPOINT ["dotnet", "Ops.PDFSearch.Web.dll"]

We have attached the modified docker file for your reference [Docker file](https://www.syncfusion.com/downloads/support/directtrac/general/ze/Dockerfile-431990059). Step 2: From chromium version 128.x.x.x.x --database flag required for chrome Crashpad handler. So, it may cause the issue on your end. So kindly try the below steps and it may resolve the reported issue. Add below commands in Docker file

C#
RUN mkdir -p /var/www/.config/google-chrome/Crashpad
RUN chown -R www-data:www-data /var/www/.config

Add below command-line arguments in conversion code

C#
if (RuntimeInformation.IsOSPlatform(OSPlatform.Linux))
{
    strLogs.Append("\nPDF: BlinkConverterSettings  for Linux updated BlinkPath to chromium " + GetCurrentTime());
    settings.BlinkPath = "/usr/lib/chromium";
    settings.CommandLineArguments.Add("--no-sandbox");
    settings.CommandLineArguments.Add("--disable-setuid-sandbox");
    settings.CommandLineArguments.Add("--disable-crash-reporter");
    settings.CommandLineArguments.Add("--no-crashpad");
    settings.CommandLineArguments.Add("--disable-dev-shm-usage");
}

Please refer the [Chromium forum link](https://github.com/chrome-php/chrome/issues/649) for more information about the reported issue

Due to insufficient permissions, we are unable to launch the Chromium process for conversion in Azure Function .NET 8.0 with premium plans.

The problem is limited to Azure Functions with premium plans in Net 8.0 version. To fix this, we can either manually install the necessary Chromium dependencies in the SSH portal or include the runtimes folder (Blink binaries) in the project location.

Prerequisites dependencies:

C#
apt-get update && apt-get install -yq --no-install-recommends libasound2 libatk1.0-0 libc6 libcairo2 libcups2 libdbus-1-3 libexpat1 libfontconfig1 libgcc1 libgconf-2-4 libgdk-pixbuf2.0-0 libglib2.0-0 libgtk-3-0 libnspr4 libpango-1.0-0 libpangocairo-1.0-0 libstdc++6 libx11-6 libx11-xcb1 libxcb1 libxcursor1 libxdamage1 libxext6 libxfixes3 libxi6 libxrandr2 libxrender1 libxss1 libxtst6 libnss3 libgbm1

NOTE

Note: We have option to exclude the default Blink binaries from the installation package. This will reduce the size of your deployment package in azure. Please refer to the code snippet below.

C#
<PackageReference Include="Syncfusion.HtmlToPdfConverter.Net.Linux" Version="25.1.35" >

	<ExcludeAssets>native</ExcludeAssets>

	</PackageReference>
