Filtering in EJ 1 ASP.NET MVC Gantt

22 Mar 2018 / 2 minutes to read

Filtering helps to view specific or related records from data source which meets a given filtering criteria. The FilterSettings property in Gantt is used to set the filtering criteria at load time.

Filter columns at initial load

It is possible to filter one or more columns at initial load by providing the Field, Value,Predicate and Operator to the FilteredColumns property. The following code example explains how to filter a column on initial load.

  • cshtml
  • @(Html.EJ().Gantt("GanttContainer")
      .FilterSettings(filter =>
      {
        filter.FilteredColumns(filtered =>
        {
          filtered.Value("plan").Field("taskName").Predicate("and").Operator(FilterOperatorType.StartsWith).Add();
        });
      })
      )
    @(Html.EJ().ScriptManager())

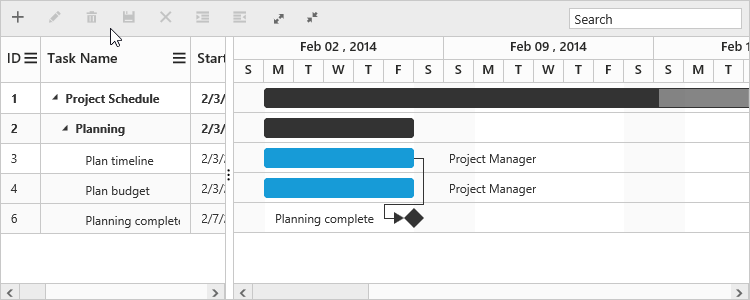

    The output of the filtering applied for a specific column is as follows.

    Filtering_img1

    Filtering a specific column by public method

    It is possible to filter columns dynamically by using the filterColumn public method.
    The below code snippet explains the above behavior.

  • js
  • <button id="filterColumn">Filter Column</button>
    @(Html.EJ().Gantt("GanttContainer")
       //..
     )
    @(Html.EJ().ScriptManager())
    <script type="text/javascript">

    $("#filterColumn").click(function (args) {
           var obj = $("#GanttContainer").ejGantt("instance");
           obj.filterColumn("taskName", "startswith", "plan");
    })
    </script>

    Clearing the filter applied to Gantt

    You can clear all the filtering condition done in the Gantt by using the clearFilter public method.
    The below code snippet explains the above behavior.

  • js
  • <button id="clearFilter">Clear Filter</button>

    @(Html.EJ().Gantt("GanttContainer")
       //..
     )
    @(Html.EJ().ScriptManager())

    <script type="text/javascript">

    $("#clearFilter").click(function (args) {
           var obj = $("#GanttContainer").ejGantt("instance");
           obj.clearFilter();
    })
    </script>
