Input Message Tip in WPF GridControl

27 Feb 202510 minutes to read

The input message tip can be added to individual cells, rows and columns to show external message of a specific cell when the cell is activated. The input message tip service can be enabled by setting the GridTooltipService.SetShowTooltips attached property to true. Tooltip for particular cell or row or column can be enabled by setting the GridStyleInfo.ShowDataValidationTooltip property.

Input Message Tip for particular cell

The input message tip displayed for any cell by setting the ShowDataValidationTooltip and the message tip can be customized by setting DataValidationTooltip property.

XAML

<syncfusion:GridControl Name="grid" syncfusion:GridTooltipService.ShowTooltips="True" />

C#

//To enable input message tip for GridControl
GridTooltipService.SetShowTooltips(grid, true);

grid.Model[1, 2].DataValidationTooltip = grid.Model[1, 0].CellValue + ":\nPopulation rate in " + grid.Model[1, 2].ColumnIndex + " is " + grid.Model[1, 2].CellValue;
grid.Model[1, 2].ShowDataValidationTooltip = true;

Input Message Tip for row and column

The input message tip can be displayed for any row or column by setting the ShowDataValidationTooltip and the message tip can be customized by setting DataValidationTooltip property.

C#

//Adding input message tip for specific row
grid.Model.RowStyles[1].DataValidationTooltip = "Hello";
grid.Model.RowStyles[1].ShowDataValidationTooltip = true;

//Adding input message tip for specific column
grid.Model.ColStyles[1].DataValidationTooltip = "Hello";
grid.Model.ColStyles[1].ShowDataValidationTooltip = true;

An another way to set the input message tip for specific row and column.

C#

//Add input message tip for specific row
for (int i = 1; i <= 4; i++)
{
    string comment = grid.Model[1, 0].CellValue + " :\nPopulation rate in " + grid.Model[1, i].ColumnIndex + " is " + grid.Model[1, i].CellValue;
    grid.Model[1, i].DataValidationTooltip = comment;
    grid.Model[1, i].ShowDataValidationTooltip = true;
}

//Add input message tip for specific column
for (int i = 1; i <= 4; i++)
{
    string comment = grid.Model[i, 0].CellValue + " :\nPopulation rate in " + grid.Model[i, 2].RowIndex + " is " + grid.Model[i, 2].CellValue;
    grid.Model[i, 2].DataValidationTooltip = comment;
    grid.Model[i, 2].ShowDataValidationTooltip = true;
}

NOTE

View sample in GitHub

Set Input Message Tip using QueryCellInfo event

You can set the input message tip for specific cell or row or column by using QueryCellInfo event.

C#

private void Grid_QueryCellInfo(object sender, Syncfusion.Windows.Controls.Grid.GridQueryCellInfoEventArgs e)
{
    e.Style.ShowDataValidationTooltip = true;

    //Show message tip for specific cell
    if (e.Cell.RowIndex == 1 && e.Cell.ColumnIndex == 1)
        e.Style.DataValidationTooltip = e.Style.GridModel[1, 0].CellValue + ": \nPopulation rate in " + e.Style.ColumnIndex + " is " + e.Style.CellValue.ToString();

    // Show message tip for row.
    if (e.Cell.ColumnIndex > 0 && e.Cell.RowIndex == 1)
        e.Style.DataValidationTooltip = e.Style.GridModel[1, 0].CellValue + ": \nPopulation rate in " + e.Style.ColumnIndex + " is " + e.Style.CellValue.ToString();

    // Show message tip for column.
    if (e.Cell.RowIndex > 0 && e.Cell.ColumnIndex == 2)
        e.Style.DataValidationTooltip = e.Style.GridModel[e.Style.RowIndex, 0].CellValue + ": \nPopulation rate in " + e.Style.RowIndex + " is " + e.Style.CellValue.ToString();
}

NOTE

View sample in GitHub

Show or hide Input Message Tip

You can show or hide the input message tip for specific cell or row or column by setting the ShowDataValidationTooltip property to false.

C#

grid.Model[1, 2].ShowDataValidationTooltip = false;

Identify whether cell has Input Message Tip

The HasShowDataValidationTooltip property is used to identify whether the cell has an input message tip in a cell or row or column in GridControl. You can also highlight the cell or row or column applied to the input message tip.

C#

private void Grid_QueryCellInfo(object sender, Syncfusion.Windows.Controls.Grid.GridQueryCellInfoEventArgs e)
{
    if (e.Cell.ColumnIndex > 0 && e.Cell.RowIndex == 2)
    {
        e.Style.DataValidationTooltip = e.Style.GridModel[1, 0].CellValue + ": \nPopulation rate in " + e.Style.ColumnIndex + " is " + e.Style.CellValue.ToString();
        if(e.Style.HasShowDataValidationTooltip)
        {
            e.Style.Background = Brushes.CornflowerBlue;
            e.Style.Foreground = Brushes.White;
        }
    }
}

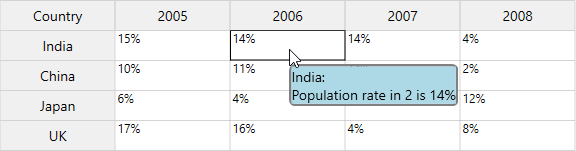

Customize the Input Message Tip

The input message tip can be customized by defining DataTemplate. The DataTemplate can be assigned to the GridStyleInfo.DataValidationTooltipTemplateKey property. If you are using inputTextmessage1 then you need to assign template to its corresponding template key property namely GridStyleInfo.DataValidationTooltipTemplateKey.

GridStyleInfo which holds cell information is the DataContext for data template of input message tip.

XAML

<Window.Resources>
    <DataTemplate x:Key="inputTextmessage1">
        <Border BorderBrush="Gray" BorderThickness="2.5" CornerRadius="5">
            <TextBlock Width="Auto" Height="Auto" HorizontalAlignment="Left" VerticalAlignment="Center"
                    Background="LightBlue" FontSize="14" Foreground="Black" Text="{Binding DataValidationTooltip}" />
        </Border>
    </DataTemplate>
</Window.Resources>

C#

// Set template key to a particular index
grid.Model[1, 2].DataValidationTooltipTemplateKey = "inputTextmessage1";

// Using QueryCellInfo event
private void Grid_QueryCellInfo(object sender, Syncfusion.Windows.Controls.Grid.GridQueryCellInfoEventArgs e)
{
    if(e.Cell.RowIndex == 1 && e.Cell.ColumnIndex == 2)
    {
        e.Style.DataValidationTooltip = e.Style.GridModel[1, 0].CellValue + ": \nPopulation rate in " + e.Style.ColumnIndex + " is " + e.Style.CellValue.ToString();
        e.Style.ShowDataValidationTooltip = true;
        e.Style.DataValidationTooltipTemplateKey = "inputTextmessage1";
    }
}

NOTE

View sample in GitHub

Remove the Input Message Tip

The ResetValue() method is used to remove the input message tip for specific cell or row or column in GridControl and to reset the input message value to the default values.

C#

grid.Model[1, 2].DataValidationTooltip = grid.Model[1, 0].CellValue + ":\nPopulation rate in " + grid.Model[1, 2].ColumnIndex + " is " + grid.Model[1, 2].CellValue;
grid.Model[1, 2].ShowDataValidationTooltip = true;
grid.Model[1, 2].ResetValue(GridStyleInfoStore.DataValidationTooltipProperty);
