Two dimensional Barcode is a way to represent information by using the two-dimensional approach. It is similar to one dimensional Barcode, but can represent more data per unit area. The barcode generator control supports the following two dimensional symbology:

QR Code

A QR Code is a two-dimensional barcode that consists of a grid of dark and light dots or blocks that form a square. The data encoded in the barcode can be numeric, alphanumeric, or Shift JIS characters.

  • The QR Code uses version from 1 to 40. Version 1 measures 21 modules x 21 modules, Version 2 measures 25 modules x 25 modules, and so on. The number of modules increases in steps of 4 modules per side up to Version 40 that measures 177 modules x 177 modules.
  • Each version has its own capacity. By default, the barcode control automatically sets the version according to the length of the input text.
  • The QR Barcodes are designed for industrial uses and also commonly used in consumer advertising.
  • dart
  • @override
        Widget build(BuildContext context) {
        return Scaffold(
            backgroundColor: Colors.white,
            body: Center(
                child: Container(
                    height: 300,
                    width: 300,
                    child: SfBarcodeGenerator(
                      value: 'www.syncfusion.com',
                      showValue: true,
                      symbology: QRCode())
                )
            )
        );
      }

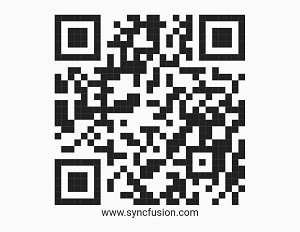

    qr-code

    The data that can be stored in the QR code depends upon the following property:

    As like one dimensional symbology, the two dimensional symbology also supports the module property.
    The property is used to define the size of the smallest line or dot of the barcode. If this property is not set, the size of the smallest dot of the barcode is calculated based on the available size.

    Error correction level

    The errorCorrectionLevel property employs error correction to generate a series of error correction code words that are added to the data code word sequence in order to enable the symbol to withstand damage without loss of data. By default, its value is set as high.

    Low - it recovers the data up to 7%
    Medium - it recovers the data up to 15%
    Quartile - it recovers the data up to 25%
    High - it recovers the data up to 30%

  • dart
  • @override
        Widget build(BuildContext context) {
        return Scaffold(
            backgroundColor: Colors.white,
            body: Center(
                child: Container(
                    height: 300,
                    width: 300,
                    child: SfBarcodeGenerator(
                      value: 'www.syncfusion.com',
                      showValue: true,
                      symbology: QRCode(errorCorrectionLevel: ErrorCorrectionLevel.high),)
                )
            )
        );
      }

    error correction level

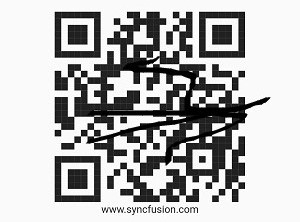

    The data can be read from the damaged image based on the error correction level,

    eror correction level

    Input mode

    The inputMode property allows you to select a specific set of input characters. You may select the most suitable input mode. By default, its value is set as binaryMode.

    numeric - supports from 0 to 9
    alphaNumeric - supports 0 to 9, A to Z, space, $, %, *, +, -,., /, :
    binary - supports Shift JIS characters

  • dart
  • @override
            Widget build(BuildContext context) {
        return Scaffold(
            backgroundColor: Colors.white,
            body: Center(
                child: Container(
                    height: 300,
                    width: 300,
                    child: SfBarcodeGenerator(
                      value: '1263438892737643894930872',
                      showValue: true,
                      symbology: QRCode(inputMode: QRInputMode.numeric),)
                )
            )
        );
      }

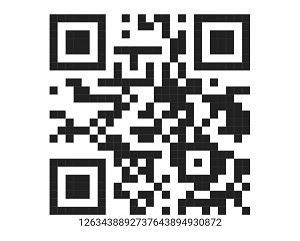

    input mode

    QR code version

    The version property allows you to set various types of version for QR code from QRVersion enumeration. By default, its value is set as auto.

    The QR Code uses version from 1 to 40. Version 1 measures 21 modules x 21 modules, Version 2 measures 25 modules x 25 modules, and so on.

    The number of modules increases in steps of 4 modules per side up to Version 40 that measures 177 modules x 177 modules.

  • dart
  • @override
            Widget build(BuildContext context) {
        return Scaffold(
            backgroundColor: Colors.white,
            body: Center(
                child: Container(
                    height: 300,
                    width: 300,
                    child: SfBarcodeGenerator(
                      value: 'www.syncfusion.com',
                      showValue: true,
                      symbology: QRCode(codeVersion: QRCodeVersion.version09))
                )
            )
        );
      }

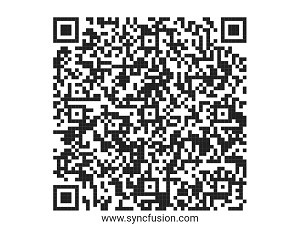

    QR version

    Data Matrix

    Data Matrix barcode is a two dimensional barcode that consists of a grid of dark and light dots or blocks forming a square or rectangular symbol. The data encoded in the barcode can either be numbers or alphanumeric. They are widely used in printed media such as labels and letters. You can read it easily with the help of a barcode reader and mobile phones.

  • dart
  • @override
            Widget build(BuildContext context) {
        return Scaffold(
            backgroundColor: Colors.white,
            body: Center(
                child: Container(
                    height: 300,
                    width: 300,
                    child: SfBarcodeGenerator(
                      value: 'www.syncfusion.com',
                      showValue: true,
                      symbology:  DataMatrix())
                )
            )
        );
        }

    Data matrix

    Data matrix format

    Length - Data Matrix can store up to 2335 alphanumeric characters or 3116 numbers from the ASCII range.

    Type - Data Matrix supports the following data types,

    • Numeric
    • Alpha Numeric
    • Byte

    The encoded data size depends upon the length and data type of provided input values.

    Encoding Methods

    Data Matrix supports following encoding types,

    • Auto
    • ASCII
    • ASCIINumeric
    • Base256

    By default, the encoding types is auto.

    When the encoding type is ASCII, the code word will be calculated as like follows,

    Code word = ASCII value + 1.

    The ASCII value ranges from 0 to 127

    When the encoding type is base256, then the first code word will be calculated with the value 235 and the second code value is calculated as ASCII value - 127.

    The base256 value ranges from 128 to 255.

    When the encoding type is ASCIINumeric, then the code word will be calculated as like follows,

    Code word = numerical value pair + 130.

    The numerical value pair will be like 00, 01, 02,…..99
