Searching in .NET MAUI ComboBox

21 Jul 202617 minutes to read

The .NET MAUI ComboBox control provides rich text searching functionality. Use the TextSearchMode property to control how the drop-down is filtered when the user types into the editor.

NOTE

Searching only applies when IsFilteringEnabled is true and IsEditable is true. The TextSearchMode setting has no effect if filtering is disabled.

Prerequisites

Before using the SfComboBox, ensure the following NuGet package is installed in your .NET MAUI project:

  • Syncfusion.Maui.Inputs

For a step-by-step setup, refer to the Getting Started documentation.

Search based on member path

The DisplayMemberPath and TextMemberPath properties specify which property path is used to display and search items when a custom data type is bound to the ItemsSource property.

  • DisplayMemberPath - Specifies the property path whose value is displayed as text in the drop-down. The default value is string.Empty.
  • TextMemberPath - Specifies the property path whose value is used to perform searching based on user input in the editor. The default value is string.Empty. When TextMemberPath is null or string.Empty, searching is performed based on DisplayMemberPath.

NOTE

DisplayMemberPath and TextMemberPath apply only when the bound collection item has two or more properties.

NOTE

When both DisplayMemberPath and TextMemberPath are null or string.Empty, searching is performed against the class name (with namespace) of the item.

Edit mode searching based on TextMemberPath

In edit mode, searching is performed against the TextMemberPath value as the user types into the editor. When TextMemberPath is null or string.Empty, searching falls back to DisplayMemberPath.

<editors:SfComboBox x:Name="comboBox"
                    IsEditable="True"
                    IsFilteringEnabled="True"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="ID"
                    DisplayMemberPath="Name">
    <editors:SfComboBox.BindingContext>
        <local:SocialMediaViewModel />
    </editors:SfComboBox.BindingContext>
</editors:SfComboBox>
SocialMediaViewModel socialMediaViewModel = new SocialMediaViewModel();

SfComboBox comboBox = new SfComboBox
{
    IsEditable = true,
    IsFilteringEnabled = true,
    ItemsSource = socialMediaViewModel.SocialMedias,
    TextMemberPath = "ID",
    DisplayMemberPath = "Name",
    BindingContext = socialMediaViewModel,
};
// ViewModel
public class SocialMediaViewModel
{
    public ObservableCollection<SocialMedia> SocialMedias { get; set; }

    public SocialMediaViewModel()
    {
        this.SocialMedias = new ObservableCollection<SocialMedia>
        {
            new SocialMedia { Name = "Facebook", ID = 0 },
            new SocialMedia { Name = "Google Plus", ID = 1 },
            new SocialMedia { Name = "Instagram", ID = 2 },
            new SocialMedia { Name = "LinkedIn", ID = 3 },
            new SocialMedia { Name = "Skype", ID = 4 },
            new SocialMedia { Name = "Telegram", ID = 5 },
            new SocialMedia { Name = "Twitter", ID = 6 },
            new SocialMedia { Name = "WhatsApp", ID = 7 },
            new SocialMedia { Name = "YouTube", ID = 8 }
        };
    }
}

public class SocialMedia
{
    public string Name { get; set; }
    public int ID { get; set; }
}

The following image illustrates the result of the above code:

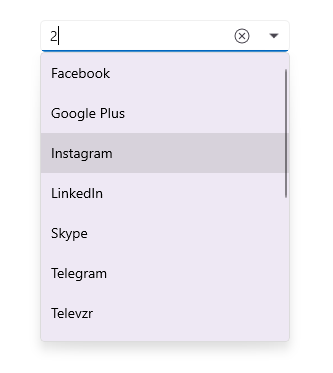

.NET MAUI ComboBox search based on TextMemberPath

NOTE

Auto-appending of text is supported only in Editable mode and when TextSearchMode is StartsWith.

Text search mode

The TextSearchMode property of the ComboBox controls how the drop-down is filtered when the user types. The default value is StartsWith. Matching is case-insensitive and accent-insensitive. For a complete walkthrough of the available modes, see Filtering in .NET MAUI ComboBox.

The available modes are:

  • StartsWith - Filters items whose value starts with the typed text. The first match is auto-appended to the editor (in editable mode).
  • Contains - Filters items whose value contains the typed text anywhere. The first match is highlighted but not auto-appended.

Search with beginning text

Set TextSearchMode to StartsWith to filter items whose value starts with the typed text. The first match is highlighted in the drop-down.

<editors:SfComboBox x:Name="comboBox"
                    IsEditable="True"
                    IsFilteringEnabled="True"
                    TextSearchMode="StartsWith"
                    ItemsSource="{Binding SocialMedias}"
                    DisplayMemberPath="Name"
                    TextMemberPath="Name">
    <editors:SfComboBox.BindingContext>
        <local:SocialMediaViewModel />
    </editors:SfComboBox.BindingContext>
</editors:SfComboBox>
SocialMediaViewModel socialMediaViewModel = new SocialMediaViewModel();

SfComboBox comboBox = new SfComboBox
{
    IsEditable = true,
    IsFilteringEnabled = true,
    TextSearchMode = ComboBoxTextSearchMode.StartsWith,
    ItemsSource = socialMediaViewModel.SocialMedias,
    TextMemberPath = "Name",
    DisplayMemberPath = "Name",
    BindingContext = socialMediaViewModel,
};
// ViewModel
public class SocialMediaViewModel
{
    public ObservableCollection<SocialMedia> SocialMedias { get; set; }

    public SocialMediaViewModel()
    {
        this.SocialMedias = new ObservableCollection<SocialMedia>
        {
            new SocialMedia { Name = "Facebook", ID = 0 },
            new SocialMedia { Name = "Google Plus", ID = 1 },
            new SocialMedia { Name = "Instagram", ID = 2 },
            new SocialMedia { Name = "LinkedIn", ID = 3 },
            new SocialMedia { Name = "Skype", ID = 4 },
            new SocialMedia { Name = "Telegram", ID = 5 },
            new SocialMedia { Name = "Twitter", ID = 6 },
            new SocialMedia { Name = "WhatsApp", ID = 7 },
            new SocialMedia { Name = "YouTube", ID = 8 }
        };
    }
}

public class SocialMedia
{
    public string Name { get; set; }
    public int ID { get; set; }
}

The following image illustrates the result of the above code:

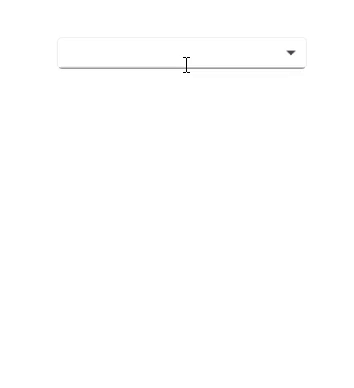

.NET MAUI ComboBox TextSearchMode StartsWith

Search with contains text

Set TextSearchMode to Contains to filter items whose value contains the typed text anywhere. The first match is highlighted in the drop-down but is not auto-appended to the editor.

<editors:SfComboBox x:Name="comboBox"
                    IsEditable="True"
                    IsFilteringEnabled="True"
                    TextSearchMode="Contains"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="Name">
    <editors:SfComboBox.BindingContext>
        <local:SocialMediaViewModel />
    </editors:SfComboBox.BindingContext>
</editors:SfComboBox>
SocialMediaViewModel socialMediaViewModel = new SocialMediaViewModel();

SfComboBox comboBox = new SfComboBox
{
    IsEditable = true,
    IsFilteringEnabled = true,
    TextSearchMode = ComboBoxTextSearchMode.Contains,
    ItemsSource = socialMediaViewModel.SocialMedias,
    TextMemberPath = "Name",
    DisplayMemberPath = "Name",
    BindingContext = socialMediaViewModel,
};
// ViewModel
public class SocialMediaViewModel
{
    public ObservableCollection<SocialMedia> SocialMedias { get; set; }

    public SocialMediaViewModel()
    {
        this.SocialMedias = new ObservableCollection<SocialMedia>
        {
            new SocialMedia { Name = "Facebook", ID = 0 },
            new SocialMedia { Name = "Google Plus", ID = 1 },
            new SocialMedia { Name = "Instagram", ID = 2 },
            new SocialMedia { Name = "LinkedIn", ID = 3 },
            new SocialMedia { Name = "Skype", ID = 4 },
            new SocialMedia { Name = "Telegram", ID = 5 },
            new SocialMedia { Name = "Twitter", ID = 6 },
            new SocialMedia { Name = "WhatsApp", ID = 7 },
            new SocialMedia { Name = "YouTube", ID = 8 }
        };
    }
}

public class SocialMedia
{
    public string Name { get; set; }
    public int ID { get; set; }
}

The following image illustrates the result of the above code:

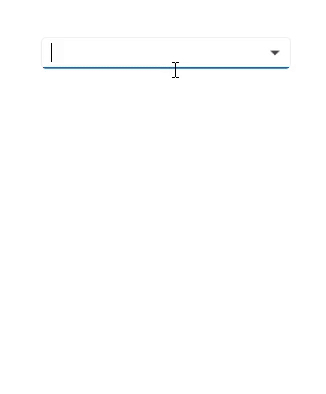

.NET MAUI ComboBox TextSearchMode Contains

Minimum prefix characters

By default, the suggestion list is updated on every character entry. Use the MinimumPrefixCharacters property to defer the update until the user has typed the specified number of characters. The default value is 1 (filtering starts immediately).

<editors:SfComboBox x:Name="comboBox"
                    IsFilteringEnabled="True"
                    IsEditable="True"
                    ItemsSource="{Binding SocialMedias}"
                    MinimumPrefixCharacters="3"
                    DisplayMemberPath="Name"
                    TextMemberPath="Name">
    <editors:SfComboBox.BindingContext>
        <local:SocialMediaViewModel />
    </editors:SfComboBox.BindingContext>
</editors:SfComboBox>
SocialMediaViewModel socialMediaViewModel = new SocialMediaViewModel();

SfComboBox comboBox = new SfComboBox
{
    IsFilteringEnabled = true,
    IsEditable = true,
    ItemsSource = socialMediaViewModel.SocialMedias,
    MinimumPrefixCharacters = 3,
    TextMemberPath = "Name",
    DisplayMemberPath = "Name",
    BindingContext = socialMediaViewModel,
};
// ViewModel
public class SocialMediaViewModel
{
    public ObservableCollection<SocialMedia> SocialMedias { get; set; }

    public SocialMediaViewModel()
    {
        this.SocialMedias = new ObservableCollection<SocialMedia>
        {
            new SocialMedia { Name = "Facebook", ID = 0 },
            new SocialMedia { Name = "Google Plus", ID = 1 },
            new SocialMedia { Name = "Instagram", ID = 2 },
            new SocialMedia { Name = "LinkedIn", ID = 3 },
            new SocialMedia { Name = "Skype", ID = 4 },
            new SocialMedia { Name = "Telegram", ID = 5 },
            new SocialMedia { Name = "Twitter", ID = 6 },
            new SocialMedia { Name = "WhatsApp", ID = 7 },
            new SocialMedia { Name = "YouTube", ID = 8 }
        };
    }
}

public class SocialMedia
{
    public string Name { get; set; }
    public int ID { get; set; }
}

The following image illustrates the result of the above code:

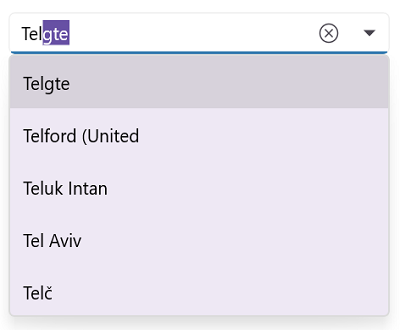

.NET MAUI ComboBox MinimumPrefixCharacters
