Working with MVVM in .NET MAUI TreeView (SfTreeView)

This section explains about how to work with MVVM pattern in TreeView.

Binding properties in MVVM pattern

Binding SelectedItem

TreeView support to select the items through binding the SelectedItem property from view model by implementing the INotifyPropertyChanged interface that gives the call back notification to UI.

XAML
C#
<syncfusion:SfTreeView x:Name="treeView"
                       SelectedItem="{Binding SelectedPlace}"
                       ChildPropertyName="States"
                       ItemsSource="{Binding CountriesInfo}"/>
SfTreeView treeView = new SfTreeView();
treeView.SetBinding(SfTreeView.SelectedItemProperty, new Binding("SelectedPlace", BindingMode.TwoWay));

CountriesViewModel.cs
public class CountriesViewModel
{
    public CountriesViewModel()
    {
        GenerateCountriesInfo();
    }
    public ObservableCollection<Countries> CountriesInfo { get; set; }

    public object SelectedPlace { get; set; }

    private void GenerateCountriesInfo()
    {
        var australia = new Countries() { Name = "Australia" };
        var nsw = new Countries() { Name = "New South Wales" };
        var sydney = new Countries() { Name = "Sydney" };
        australia.States = new ObservableCollection<Countries>();
        australia.States.Add(nsw);
        nsw.States = new ObservableCollection<Countries>();
        nsw.States.Add(sydney);
        var usa = new Countries() { Name = "United States of America" };
        var california = new Countries() { Name = "California" };
        var losAngeles = new Countries() { Name = "Los Angeles" };
        usa.States = new ObservableCollection<Countries>();
        usa.States.Add(california);
        california.States = new ObservableCollection<Countries>();
        california.States.Add(losAngeles);

        this.CountriesInfo = new ObservableCollection<Countries>();
        CountriesInfo.Add(australia);
        CountriesInfo.Add(usa);

        SelectedPlace = nsw;
    }
}

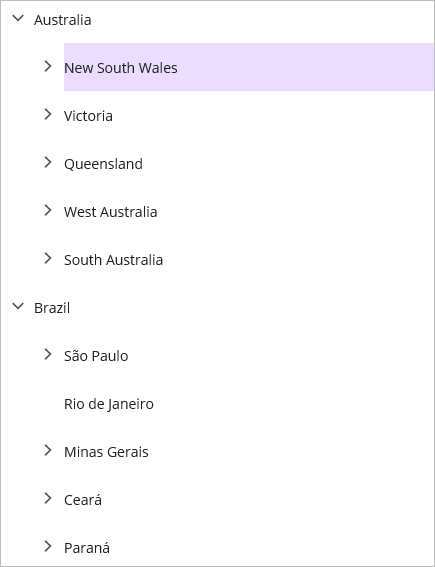

.NET MAUI TreeView with selection

Binding SelectedItems

The TreeView supports selecting multiple items by binding the SelectedItems property from the view model with the ObservableCollection<object> type.

XAML
C#
<syncfusion:SfTreeView x:Name="treeView"
                       SelectionMode="Multiple"
                       SelectedItems="{Binding SelectedCountries}"
                       ChildPropertyName="States"
                       ItemsSource="{Binding CountriesInfo}"/>
SfTreeView treeView = new SfTreeView();
treeView.SelectionMode = TreeViewSelectionMode.Multiple;
treeView.SetBinding(SfTreeView.SelectedItemsProperty, new Binding("SelectedCountries", BindingMode.TwoWay));

CountriesViewModel.cs
public class CountriesViewModel
{
    public CountriesViewModel()
    {
        GenerateCountriesInfo();
    }

    public ObservableCollection<Countries> CountriesInfo { get; set; }

    public ObservableCollection<object> SelectedCountries { get; set; }

    private void GenerateCountriesInfo()
    {
        var australia = new Countries() { Name = "Australia" };
        var nsw = new Countries() { Name = "New South Wales" };
        var sydney = new Countries() { Name = "Sydney" };
        var victoria = new Countries() { Name = "Victoria" };
        australia.States = new ObservableCollection<Countries>();
        australia.States.Add(nsw);
        australia.States.Add(victoria);
        nsw.States = new ObservableCollection<Countries>();
        nsw.States.Add(sydney);
        var usa = new Countries() { Name = "United States of America" };
        var california = new Countries() { Name = "California" };
        usa.States = new ObservableCollection<Countries>();
        usa.States.Add(california);

        this.CountriesInfo = new ObservableCollection<Countries>();
        CountriesInfo.Add(australia);
        CountriesInfo.Add(usa);

        SelectedCountries = new ObservableCollection<object>();
        SelectedCountries.Add(nsw);
        SelectedCountries.Add(victoria);
    }
}

Download the entire source code from GitHub here.

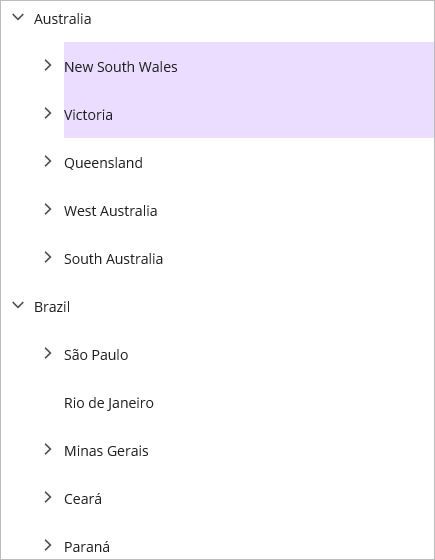

.NET MAUI TreeView with selection

Commands

Tap command

The TapCommand will be triggered whenever tapping the item and passing the TreeViewNode as command a parameter.

CommandViewModel.cs
treeView.TapCommand = viewModel.TappedCommand;

public class CommandViewModel
{
    private Command<object> tappedCommand;

    public Command<object> TappedCommand
    {
        get { return tappedCommand; }
        set { tappedCommand = value; }
    }

    public CommandViewModel()
    {
        TappedCommand = new Command<object>(TappedCommandMethod);
    }

    private void TappedCommandMethod(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as TreeViewNode).Content as FileManager).ItemName+ "  is Tapped","OK");
    }
}

RightTapCommand

The RightTapCommand will be triggered whenever you right tap the item and pass the TreeViewNode as a parameter.

CommandViewModel.cs
treeView.RightTapCommand = viewModel.RightTapCommand;

public class CommandViewModel
{
    private Command<object> rightTapCommand;

    public Command<object> RightTapCommand
    {
        get { return rightTapCommand; }
        set { rightTapCommand = value; }
    }

    public CommandViewModel()
    {
        RightTapCommand = new Command<object>(RightTapCommandMethod);
    }

    private void RightTapCommandMethod(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as TreeViewNode).Content as FileManager).ItemName+ "  is right tapped","OK");
    }
}

LongPressCommand

The LongPressCommand will be triggered whenever an item is long pressed and passing the TreeViewNode as command parameter.

CommandViewModel.cs
treeView.LongPressCommand = viewModel.LongPressCommand;

public class CommandViewModel
{
    private Command<Object> longPressCommand;

    public Command<object> LongPressCommand
    {
        get { return longPressCommand; }
        set { longPressCommand = value; }
    }

    public CommandViewModel()
    {
        LongPressCommand = new Command<object>(LongPressCommandMethod);
    }

    private void LongPressCommandMethod(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as TreeViewNode).Content as FileManager).ItemName+ "  is LongPressed","OK");
    }
}

Expand command

The ExpandCommand will be triggered while expanding the node and passing the TreeViewNode as a command parameter. TreeView expands the node based on the return value of the CanExecute method implementation of ExpandCommand. If you return false, then expand action will be canceled. Execute method implementation of ExpandCommand will get called after expanding the node.

MainPage.xaml
CommandViewModel.cs
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:syncfusion="clr-namespace:Syncfusion.Maui.TreeView;assembly=Syncfusion.Maui.TreeView"
             xmlns:local="clr-namespace:Selection"
             x:Class="Selection.MainPage">
    <ContentPage.BindingContext>
        <local:CommandViewModel x:Name="viewModel"/>
    </ContentPage.BindingContext>
    <ContentPage.Content>
        <syncfusion:SfTreeView x:Name="treeView"
                               ExpandCommand="{Binding ExpandingCommand}"/>
    </ContentPage.Content>
</ContentPage>
/// <summary>
/// CommandViewModel class that implements command.
/// </summary>

public class CommandViewModel
{
    private Command<Object> expandingCommand;

    public Command<object> ExpandingCommand
    {
        get { return expandingCommand; }
        set { expandingCommand = value; }
    }

    public CommandViewModel()
    {
        ExpandingCommand = new Command<object>(ExpandCommandAction, CanExecute);
    }

    /// <summary>
    /// CanExecute method is called before expanding of node.
    /// </summary>
    /// <returns>Handle expand action by returning true or false. </returns>
    /// <param name="obj">TreeViewNode is passed as command parameter. </param>
    public bool CanExecute(object obj)
    {
        //You can also return false to cancel the expand action.
        return true;
    }

    /// <summary>
    /// Method gets called after expanding action performed.
    /// </summary>
    /// <param name="obj">TreeViewNode is passed as command parameter. </param>
    private void ExpandCommandAction(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as TreeViewNode).Content as FileManager).ItemName+ "  is Expanded","OK");
    }
}

Collapse command

The CollapseCommand will be triggered while collapsing the node and passing the TreeViewNode as a command parameter. TreeView collapses the node based on the return value of the CanExecute method implementation of CollapseCommand. If you return false, then collapse action will be canceled. Execute method implementation of CollapseCommand will be called after the node has collapsed.

MainPage.xaml
CommandViewModel.cs
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:syncfusion="clr-namespace:Syncfusion.Maui.TreeView;assembly=Syncfusion.Maui.TreeView"
             xmlns:local="clr-namespace:Selection"
             x:Class="Selection.MainPage">
    <ContentPage.BindingContext>
        <local:CommandViewModel x:Name="viewModel"/>
    </ContentPage.BindingContext>
    <ContentPage.Content>
        <syncfusion:SfTreeView x:Name="treeView"
                               CollapseCommand="{Binding CollapsingCommand}"/>
    </ContentPage.Content>
</ContentPage>
/// <summary>
/// CommandViewModel class that implements command.
/// </summary>
public class CommandViewModel
{
    private Command<object> collapsingCommand;

    public Command<object> CollapsingCommand
    {
        get { return collapsingCommand; }
        set { collapsingCommand = value; }
    }

    public CommandViewModel()
    {
        CollapsingCommand = new Command<object>(CollapseCommandAction, CanExecute);
    }

    /// <summary>
    /// CanExecute method is called before collapsing of node.
    /// </summary>
    /// <returns>Handle collapse action by returning true or false. </returns>
    /// <param name="obj">TreeViewNode is passed as command parameter. </param>
    public bool CanExecute(object obj)
    {
        //You can also return false to cancel the collapse action.
        return true;
    }

    /// <summary>
    /// Method gets called after collapsing action performed.
    /// </summary>
    /// <param name="obj">TreeViewNode is passed as command parameter. </param>
    private void CollapseCommandAction(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as TreeViewNode).Content as FileManager).ItemName+ "  is Collapsed","OK");
    }
}

Event to command

The TreeView event can be converted into commands using Behaviors. To achieve this, create a command in the ViewModel class and associate it to the TreeView event using Behaviors.

MainPage.xaml
CountriesViewModel.cs
<syncfusion:SfTreeView x:Name="treeView"
                       SelectionMode="Multiple"
                       SelectedItems="{Binding SelectedCountries}"
                       ChildPropertyName="States"
                       ItemsSource="{Binding CountriesInfo}">
    <syncfusion:SfTreeView.Behaviors>
        <local:EventToCommandBehavior EventName="SelectionChanged" Command="{Binding SelectionChangedCommand}"/>
    </syncfusion:SfTreeView.Behaviors>
</syncfusion:SfTreeView>
public class CountriesViewModel : INotifyPropertyChanged
{
     private Command<object> selectionChangedCommand;

    public CountriesViewModel()
    {
        SelectionChangedCommand = new Command<object>(OnSelectionChanged);
        GenerateCountriesInfo();
    }

    public ObservableCollection<Countries> CountriesInfo { get; set; }

    public ObservableCollection<object> SelectedCountries { get; set; }

    public Command<object> SelectionChangedCommand
    {
        get { return selectionChangedCommand; }
        set { selectionChangedCommand = value; }
    }

    private void OnSelectionChanged(object obj)
    {
        App.Current.MainPage.DisplayAlert("Alert", ((obj as ItemSelectionChangedEventArgs).AddedItems[0] as Countries).Name + " is selected", "OK");
    }

    public event PropertyChangedEventHandler PropertyChanged;

    public void OnPropertyChanged(string name)
    {
        if (this.PropertyChanged != null)
            this.PropertyChanged(this, new PropertyChangedEventArgs(name));
    }

    private void GenerateCountriesInfo()
    {
        var australia = new Countries() { Name = "Australia" };
        var nsw = new Countries() { Name = "New South Wales" };
        var victoria = new Countries() { Name = "Victoria" };
        australia.States = new ObservableCollection<Countries>();
        australia.States.Add(nsw);
        australia.States.Add(victoria);
        var usa = new Countries() { Name = "United States of America" };
        var california = new Countries() { Name = "California" };
        usa.States = new ObservableCollection<Countries>();
        usa.States.Add(california);

        this.CountriesInfo = new ObservableCollection<Countries>();
        CountriesInfo.Add(australia);
        CountriesInfo.Add(usa);
    }
}

Download the entire source code from GitHub here.

For more information regarding the EventToCommand behavior in .NET MAUI, you can refer this link.
