Add Perimeter Annotations in Blazor SfPdfViewer Component

17 Jul 202612 minutes to read

Perimeter is a measurement annotation used to calculate the length around a closed polyline on a PDF page—useful for technical markups and reviews.

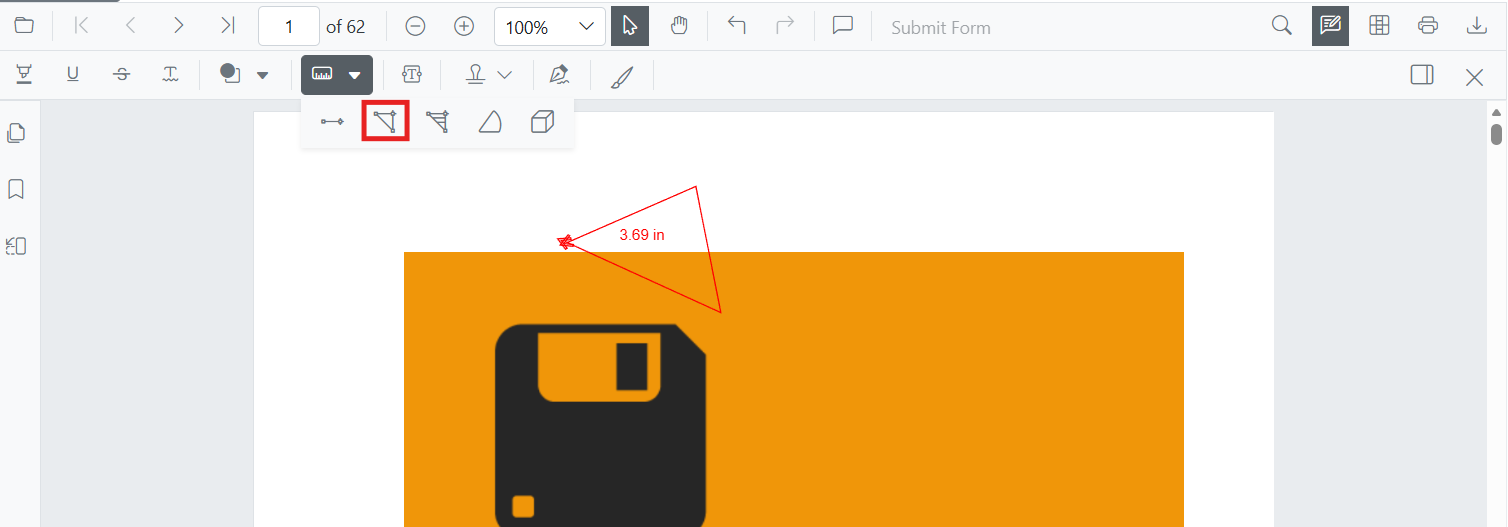

Perimeter overview

Enable Perimeter Annotation

The SfPdfViewer component supports Perimeter measurement annotations by default. To enable the annotation toolbar and measurement functionality, simply add the SfPdfViewer component to your Blazor page:

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Perimeter Annotation

Add Perimeter Annotation Using the Toolbar

  1. Click the Edit Annotation button in the SfPdfViewer toolbar. A secondary toolbar appears below it.
  2. Click the Measurement Annotation dropdown. A list of measurement annotation types appears.
  3. Select Perimeter to enter Perimeter measurement mode.
  4. Click on the page to place each vertex of the polyline.
  5. Double-click (or click the first vertex) to close and finalize the shape.

Measurement Toolbar

NOTE

If Pan mode is active, choosing a measurement tool switches the viewer into the appropriate interaction mode for a smoother workflow.

Enable Perimeter Annotation Mode

Switch the viewer into Perimeter mode from code by calling SetAnnotationModeAsync.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="EnablePerimeterMode">Enable Perimeter Mode</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task EnablePerimeterMode(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Perimeter);
    }
}

Exit Perimeter Annotation Mode

Switch back to the default mode by calling SetAnnotationModeAsync with annotation type None.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="ExitPerimeterMode">Exit Perimeter Mode</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async void ExitPerimeterMode(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.None);
    }
}

Add Perimeter Annotation Programmatically

Use the AddAnnotationAsync API to draw a perimeter by providing multiple VertexPoints.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="AddPerimeter">Add Perimeter</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task AddPerimeter(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        annotation.Type = AnnotationType.Perimeter;
        annotation.PageNumber = 0;
        annotation.VertexPoints = new List<VertexPoint>
        {
            new VertexPoint() { X = 200, Y = 350 },
            new VertexPoint() { X = 285, Y = 350 },
            new VertexPoint() { X = 286, Y = 412 },
            new VertexPoint() { X = 200, Y = 350 }
        };
        await viewer.AddAnnotationAsync(annotation);
    }
}

Customize Perimeter Annotation Appearance

Configure the default Perimeter style — fill color, stroke color, thickness, and opacity — using the PerimeterSettings property.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%"
              PerimeterSettings="@PerimeterSettings">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private PdfViewerPerimeterSettings PerimeterSettings = new PdfViewerPerimeterSettings
    {
        FillColor = "blue",
        StrokeColor = "green",
        Thickness = 2,
        Opacity = 0.6
    };
}

Manage Perimeter Annotation

Move Perimeter Annotation

Drag inside the polyline to reposition the entire annotation on the page.

Reshape Perimeter Annotation

Drag any vertex handle to adjust the shape’s points.

Edit Perimeter Annotation

Edit Perimeter Annotation Appearance (UI)

Select the Perimeter annotation first — the annotation toolbar appears below the main toolbar. Use it to change:

  • Fill Color: pick a new color with the Edit Color tool.
    Editing Calibrate FillColor in Blazor SfPdfViewer
  • Stroke Color: change the line color with the Edit Stroke Color tool.
    Editing Calibrate StrokeColor in Blazor SfPdfViewer
  • Thickness: adjust the line width with the Edit Thickness tool.
    Editing Calibrate Thickness in Blazor SfPdfViewer
  • Opacity: change transparency with the Edit Opacity tool.
    Editing Calibrate Opacity in Blazor SfPdfViewer
  • Line properties: change the leader style (line only, with arrows, or full dimension lines) with the Edit Property tool.
    Editing Calibrate Property in Blazor SfPdfViewer

Edit Perimeter Annotation Programmatically

Update the properties of an existing Perimeter annotation and call EditAnnotationAsync(). The example below expects PDF_Succinctly.pdf to already contain a Perimeter annotation; replace the filter with one that matches your data.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="EditPerimeterProgrammatically">Edit Perimeter</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task EditPerimeterProgrammatically(MouseEventArgs args)
    {
        List<PdfAnnotation> annotationCollection = await viewer.GetAnnotationsAsync();

        // Guard against an empty collection
        if (annotationCollection == null || annotationCollection.Count == 0)
        {
            return;
        }

        PdfAnnotation target = annotationCollection
            .FirstOrDefault(a => a.Type == AnnotationType.Perimeter);

        if (target == null)
        {
            return;
        }

        // Update the style
        target.StrokeColor = "#0000FF";
        target.Thickness = 2;
        target.FillColor = "#FFFF00";
        target.Opacity = 0.8;

        // Apply the changes
        await viewer.EditAnnotationAsync(target);
    }
}

For the full set of PdfAnnotation members, see the PdfAnnotation API reference.

Delete Perimeter Annotation

Delete a Perimeter annotation through the UI (right-click → Delete, click Delete on the annotation toolbar, or press the Delete key while the annotation is selected) or programmatically:

@code {
    private async Task DeleteFirstPerimeter()
    {
        List<PdfAnnotation> annotations = await viewer.GetAnnotationsAsync();
        PdfAnnotation target = annotations.FirstOrDefault(a => a.Type == AnnotationType.Perimeter);
        if (target != null)
        {
            await viewer.DeleteAnnotationAsync(target);
        }
    }
}

Set Default Properties During Initialization

Apply defaults for Perimeter using the PerimeterSettings property.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              Height="100%" Width="100%"
              PerimeterSettings="@PerimeterSettings">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerPerimeterSettings PerimeterSettings = new PdfViewerPerimeterSettings
    {
        FillColor = "green",
        Opacity = 0.6,
        StrokeColor = "blue"
    };
}

Add Perimeter Annotation Programmatically with Custom Properties

Override the default style for a single Perimeter annotation by setting properties directly on the PdfAnnotation instance before adding it.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="AddStyledPerimeter">Add Styled Perimeter</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task AddStyledPerimeter(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        annotation.Type = AnnotationType.Perimeter;
        annotation.PageNumber = 0;
        annotation.VertexPoints = new List<VertexPoint>
        {
            new VertexPoint() { X = 240, Y = 360 },
            new VertexPoint() { X = 320, Y = 360 },
            new VertexPoint() { X = 330, Y = 410 },
            new VertexPoint() { X = 240, Y = 360 }
        };
        annotation.StrokeColor = "#1D4ED8";
        annotation.FillColor = "#DBEAFE";
        annotation.Thickness = 2;
        annotation.Opacity = 0.85;
        await viewer.AddAnnotationAsync(annotation);
    }
}

Scale Ratio and Units

The Scale Ratio controls how many page units equal one real-world unit. Open it from the context menu of any measurement annotation to recalibrate.

Scale ratio

Scale dialog

Set Default Scale Ratio During Initialization

Configure scale defaults using MeasurementSettings. The default ScaleRatio is 1; values must be greater than 0.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              MeasurementSettings="@MeasurementSettings"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private PdfViewerMeasurementSettings MeasurementSettings = new PdfViewerMeasurementSettings
    {
        ScaleRatio = 2,
        ConversionUnit = CalibrationUnit.Cm
    };
}

For more deletion patterns, see Delete Annotation.

Handle Perimeter Annotation Events

Listen to the annotation life-cycle with the Added, Modified, Selected, and Removed events. The handler receives an AnnotationEventArgs payload that includes the affected PdfAnnotation, the page number, and the action that triggered the event.

<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="@viewer"
              Added="@OnAdded"
              Removed="@OnRemoved"
              Width="100%"
              Height="100%" />

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private void OnAdded(AnnotationEventArgs args)
    {
        // args.Annotation contains the PdfAnnotation that was added
    }

    private void OnRemoved(AnnotationEventArgs args)
    {
        // args.Annotation contains the PdfAnnotation that was removed
    }
}

For the full list of events and their payloads, see Annotation Events.

Export and Import

Perimeter measurements are exported and imported with the rest of the annotations in JSON or XFDF format. You can programmatically export and import these annotations using the ExportAnnotationAsync and ImportAnnotationAsync methods.

For the full export/import workflow and additional formats, see Export and Import Annotations.
