Add Area Annotations in Blazor SfPdfViewer Component

17 Jul 202611 minutes to read

Area is a measurement annotation used to calculate the surface of a closed region on a PDF page—ideal for engineering, construction, or design reviews.

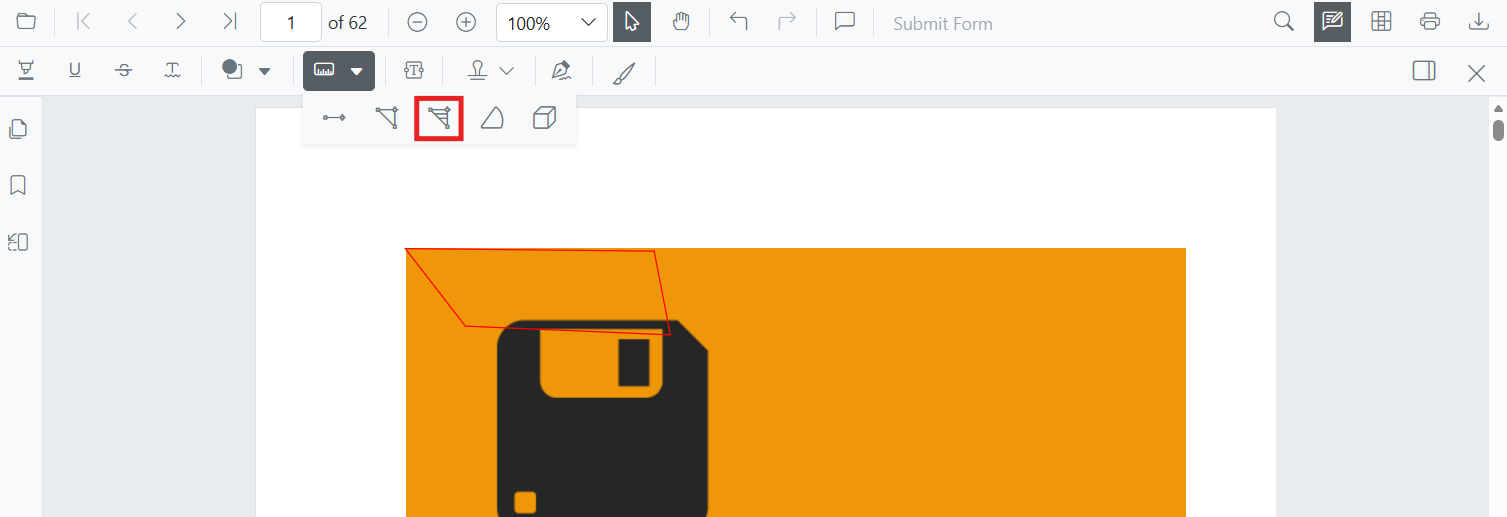

Area overview

Enable Area Annotation

The SfPdfViewer component supports area measurement annotations by default. To enable the annotation toolbar and measurement functionality, simply add the SfPdfViewer component to your Blazor page:

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Area Annotation

Add Area Annotation Using the Toolbar

  1. Click the Edit Annotation button in the SfPdfViewer toolbar. A secondary toolbar appears below it.
  2. Click the Measurement Annotation dropdown. A list of measurement annotation types appears.
  3. Select Area to enter Area measurement mode.
  4. Click on the page to place each vertex of the polygon.
  5. Double-click (or click the first vertex) to close and finalize the shape.

Measurement Toolbar

NOTE

If Pan mode is active, choosing a measurement tool switches the viewer into the appropriate interaction mode for a smoother workflow.

Enable Area Annotation Mode Programmatically

Switch the viewer into Area mode from code by calling SetAnnotationModeAsync. The viewer must finish loading a document before this call returns successfully. Invoking the method before the DocumentLoaded event can throw or be ignored.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnClick">Area Measurement</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Area);
    }
}

Exit Area Annotation Mode

Switch back to the default mode by calling SetAnnotationModeAsync with annotation type None.

@code {
    private async Task ExitAreaMode()
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.None);
    }
}

Add Area Annotation Programmatically

Use AddAnnotationAsync() to add an Area measurement by providing VertexPoints for a closed region.

A closed polygon must contain at least three distinct vertices, and the first and last points must match to close the shape.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddArea">Add Area Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 Viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task AddArea(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        annotation.Type = AnnotationType.Area;
        annotation.PageNumber = 0;
        List<VertexPoint> vertexPoints = new List<VertexPoint>
        {
            new VertexPoint() { X = 200, Y = 500 },
            new VertexPoint() { X = 288, Y = 500 },
            new VertexPoint() { X = 288, Y = 560 },
            new VertexPoint() { X = 200, Y = 560 },
            new VertexPoint() { X = 200, Y = 500 }
        };
        annotation.VertexPoints = vertexPoints;
        await Viewer.AddAnnotationAsync(annotation);
    }
}

Customize Area Appearance

Configure the default Area style — fill color, stroke color, thickness, and opacity — using the AreaSettings property.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              AreaSettings="@AreaSettings"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private PdfViewerAreaSettings AreaSettings = new PdfViewerAreaSettings
    {
        FillColor = "yellow",
        StrokeColor = "orange",
        Thickness = 2,
        Opacity = 0.6
    };
}

Manage Area Annotation

Move Area Annotation

Drag inside the polygon to reposition the entire annotation on the page.

Reshape Area Annotation

Drag any vertex handle to adjust the shape’s points.

Edit Area Area Annotation

Edit Area Annotation Appearance (UI)

Select the Area annotation first — the annotation toolbar appears below the main toolbar. Use it to change:

  • Fill Color: pick a new color with the Edit Color tool.
    Editing Calibrate FillColor in Blazor SfPdfViewer
  • Stroke Color: change the border color with the Edit Stroke Color tool.
    Editing Calibrate StrokeColor in Blazor SfPdfViewer
  • Thickness: adjust the border width with the Edit Thickness tool.
    Editing Calibrate Thickness in Blazor SfPdfViewer
  • Opacity: change transparency with the Edit Opacity tool.
    Editing Calibrate Opacity in Blazor SfPdfViewer

Edit Area Annotation Programmatically

Modify an existing Area annotation programmatically using EditAnnotationAsync().

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditArea">Edit Area Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 Viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task EditArea(MouseEventArgs args)
    {
        // Get the annotations on the current document
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();

        // Guard against an empty collection
        if (annotationCollection == null || annotationCollection.Count == 0)
        {
            return;
        }

        // Select the first annotation (replace with your own selection logic)
        PdfAnnotation annotation = annotationCollection[0];

        // Update the style
        annotation.StrokeColor = "#0000FF";
        annotation.Thickness = 2;
        annotation.FillColor = "#FFFF00";
        annotation.Opacity = 0.5;

        // Apply the changes
        await Viewer.EditAnnotationAsync(annotation);
    }
}

NOTE

For the full set of PdfAnnotation members, see the PdfAnnotation API reference.

Delete Area Annotation

Delete an Area annotation through the UI (right-click → Delete, click Delete on the annotation toolbar, or press the Delete key while the annotation is selected) or programmatically:

@code {
    private async Task DeleteFirstArea()
    {
        List<PdfAnnotation> annotations = await Viewer.GetAnnotationsAsync();
        PdfAnnotation target = annotations.FirstOrDefault(a => a.Type == AnnotationType.Area);
        if (target != null)
        {
            await Viewer.DeleteAnnotationAsync(target);
        }
    }
}

Set Default Properties During Initialization

Apply defaults for Area using the AreaSettings property.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              AreaSettings="@AreaSettings"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerAreaSettings AreaSettings = new PdfViewerAreaSettings
    {
        FillColor = "yellow",
        StrokeColor = "orange",
        Opacity = 0.6
    };
}

Add Area Annotation Programmatically with Custom Properties

Override the default style for a single Area annotation by setting properties directly on the PdfAnnotation instance before adding it.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddStyledArea">Add Styled Area</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 Viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private async Task AddStyledArea(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        annotation.Type = AnnotationType.Area;
        annotation.PageNumber = 0;
        annotation.VertexPoints = new List<VertexPoint>
        {
            new VertexPoint() { X = 210, Y = 510 },
            new VertexPoint() { X = 300, Y = 510 },
            new VertexPoint() { X = 305, Y = 560 },
            new VertexPoint() { X = 210, Y = 560 },
            new VertexPoint() { X = 210, Y = 510 }
        };
        annotation.StrokeColor = "#EA580C";
        annotation.FillColor = "#FEF3C7";
        annotation.Thickness = 2;
        annotation.Opacity = 0.85;
        await Viewer.AddAnnotationAsync(annotation);
    }
}

Scale Ratio and Units

The Scale Ratio controls how many page units equal one real-world unit. Open it from the context menu of any measurement annotation to recalibrate.

Supported CalibrationUnit values

Value Description
Inch Inches.
Millimeter Millimeters.
Centimeter / Cm Centimeters.
Point PostScript points (1/72 inch).
Pica Picas (1/6 inch).
Feet Feet.

Set Default Scale Ratio During Initialization

Configure scale defaults using MeasurementSettings. The default ScaleRatio is 1 and the default ConversionUnit is Point; ScaleRatio values must be greater than 0.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              MeasurementSettings="@MeasurementSettings"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    private PdfViewerMeasurementSettings MeasurementSettings = new PdfViewerMeasurementSettings
    {
        ScaleRatio = 2,
        ConversionUnit = CalibrationUnit.Cm
    };
}

For more deletion patterns, see Delete Annotation.

Handle Area Annotation Events

Listen to the annotation life-cycle with the Added, Modified, Selected, and Removed events. The handler receives a AnnotationEventArgs payload that includes the affected PdfAnnotation, the page number, and the action that triggered the event.

For the full list of events and their payloads, see Annotation Events.

Export and Import

Area measurements can be exported and imported along with other annotations in JSON or XFDF format. You can programmatically export and import these annotations using the ExportAnnotationAsync and ImportAnnotationAsync methods.

For the full export/import workflow and additional formats, see Export and Import Annotations.
